DZ-400/DC Hualian Vacuum Chamber Packing Machine

Product details
Supply Ability:1000 Set/Sets per Month;Sealing Power (W):400;
Sealing Width (mm):10;Power:750w;
Certification:CE;After-sales Service Provided:Overseas service center available;
Voltage:220V/110V;Automatic Grade:Automatic;
Packaging Material:Plastic;Driven Type:Electric;
Brand Name:Hualian;Sealing Length (mm):400;
Weight:132kgs;Condition:New;
Port:shanghai or ningbo;NO. of Sealing Bar for Each Chamber:1;
Ultimate Vacuum Pressure (Kpa):1;Packaging Detail:wooden case packing packed size:850X620X1130mm(0.596cbm) gross weight:132kgs;
Application:Commodity,Food;Type:Vacuum Packing Machine;
Dimension(L*W*H):850X620X1130mm;Place of Origin:Zhejiang China;
Payment Terms:L/C,T/T,Western Union;Packaging Type:Bags;

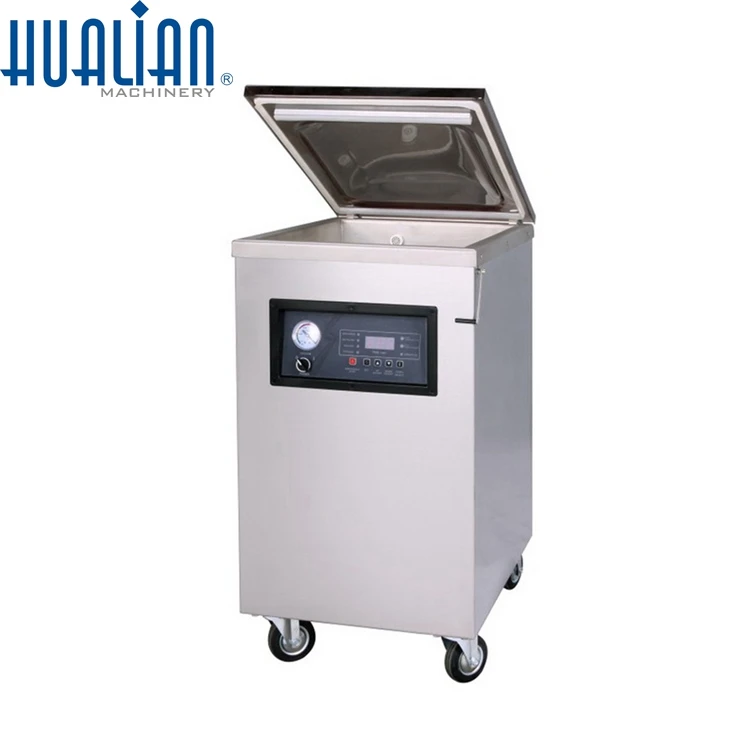

Hualian Vacuum Chamber Packing Machine
(DZ-400/DC)

Product Description


Description:

  1. DZ series Vacuum Chamber Packing Machine can finish the whole programs of vacuum extraction, gas flushing (optional), sealing, printing, cooling and exhaust automatically.

  2. The products after packing can be prevented from oxidation, going mould, insects or getting damp, thus can be kept fresh for longer time.

  3. Note: Add Letter “Q” to the model name if you need function of gas flushing when you place order.

Parameters:





DZ-400/2E)

DZ-400/DC

DZ-5002E

DZ-600/2S

DZ-1040

Voltage (V/Hz)

AC 220/50 110/60

AC 380/50

AC 380/50 220/60

Motor Power (W)

750

1100

750×2

Sealing Power (W)

500

400

750

900

1500

Ultimate Vacuum
Pressure (Kpa)

1

NO. of Sealing Bar for
Each Chamber

2

1

2

Sealing Length (mm)

400

500

600

900/400

Sealing Width (mm)

10

Chamber Dimensions
(L×W×H) (mm)

440×420×130

590×420×210

530×525×130

700×620×250

1035×450×170

Vacuum Pum
Rate (m3/h)

20

40

Material of Vacuum
Chamber

Stainless steel

External Dimensions
(L×W×H) (mm)

540×480×1010

725×490×970

580×650×1010

760×770×970

1110×625×870

Net Weight (kg)

110

115

125

150

200
