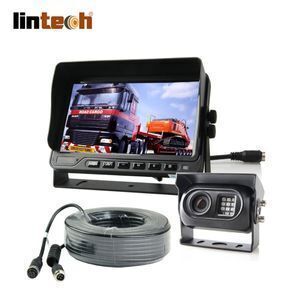

1080P IP69K Bus Camera System Reversing Camera with 7 inch TFT LCD Monitor AHD Backup Camera System

Supplier: Dongguan Lintech Electronic Limited
Region: Guangdong, China
Contact: Mr Alex Luk
Price: $88.00 / >=2 sets
Min. Order: 2 sets

Click here to contact

Product details

Brand Name:	Lintech;	Monitor Voltage:	12V ~ 24V DC;
Type:	AHD 1080P Backup Camera System;	Car Make:	Heavy Duty Vehicles;
Camera Waterproof rate:	IP69K;	View angle:	120 degree;
Place of Origin:	Guangdong China;	Video:	2-CH AHD, 1-CH CVBS;
Warranty:	18 Months;	Certificate:	CE FCC Rohs E-mark;
Warranty:	18 months;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal;
Camera's Sensor:	AHD 1080P / 960P / Sony 700 TVL;	Power:	8.64W;
Model Number:	LW-070D2-010C;	Resolution:	800RGB(H) x 480(V);
Packaging Detail:	White Box neutral;	Voltage:	DC 12V - 32V;
Camera Lens:	2.8mm;	Port:	Shenzhen;
Screen:	7 inches TFT LCD;	Supply Ability:	8000 Set/Sets per Month;

Product Description

Main Features:

Monitor
--7inch screen, 16:9 widescreen format
--Resolution: 800 x 480 digital
--2-CH AHD, 1-CH CVBS

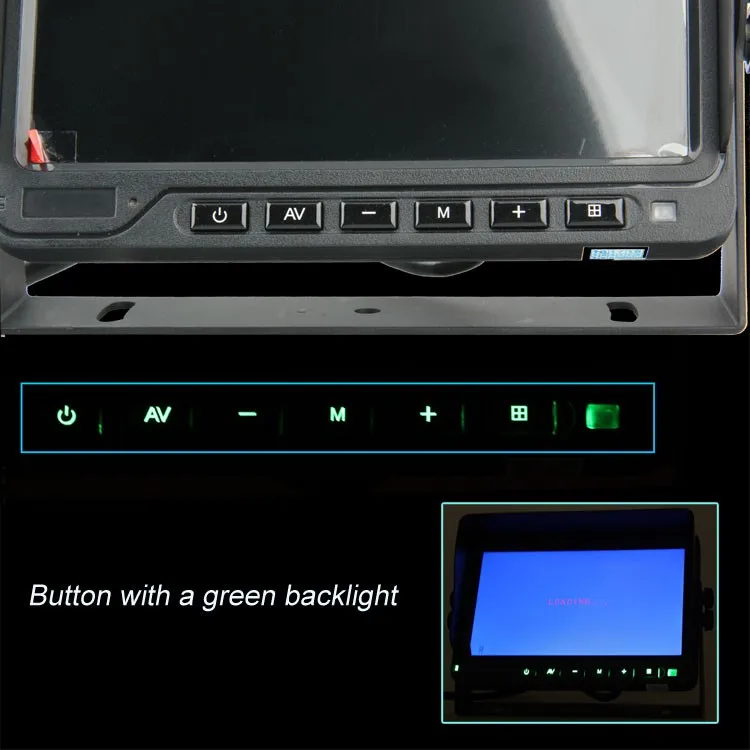

--Button with a green backlight
--Aluminum alloy back housing, it is good for heat radiation.

Camera

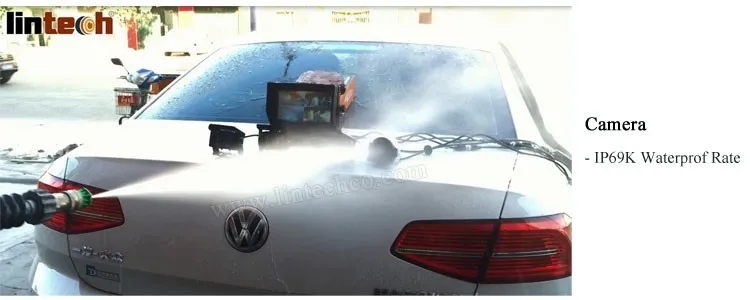

--IP69K Military Grade Waterproof Rating

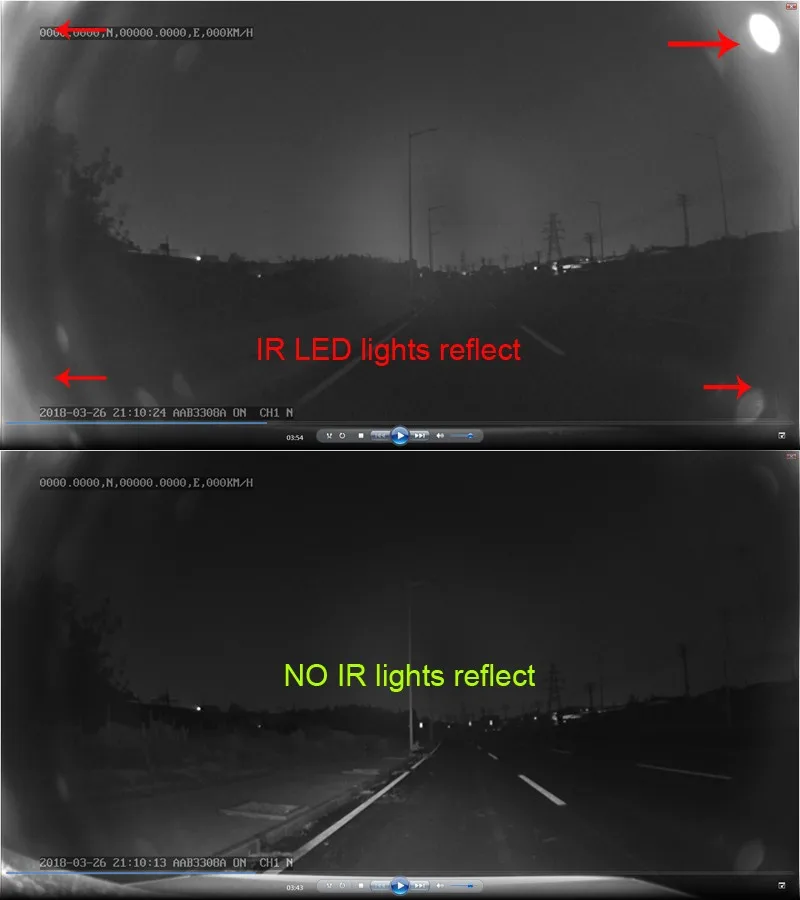

--11pcs Built-in SMD IR LEDs, better for lights concentration
--With Hidden Mirror/normal Image Switch

--Optional built-in Microphone
--Optional Heating function for extremely cold condition
--Heavy duty and strong full alloy housing

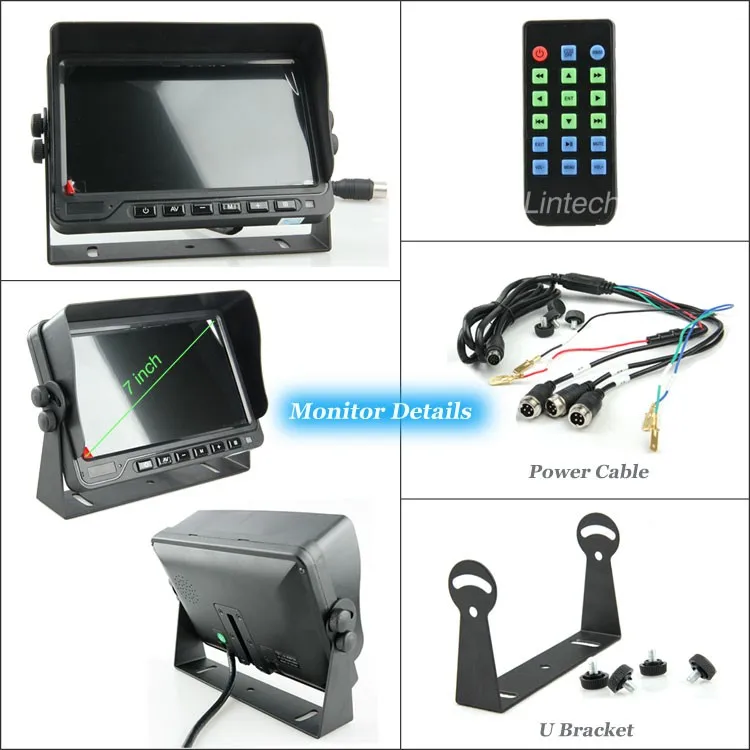

Monitor Detail

Resolution:	800RGB(H) x 480(V)
Brightness:	450cd/m2
Contrast:	450:1
Voltage:	DC12V~36V
Operating Temperature:	-20℃~+70℃
System:	PAL / NTSC
Menu:	OSD MENU
Video:	3 video input (2-CH AHD, 1-CH CVBS), 4-channel version is optional
Video display:	Single image
Operation system:	18# remote control/ Keystroke
Dimensions:	7": 177(L) x 141(W) x 21mm(T)
MIRROR/NORMAL switch	Yes
Speaker	Optional
Optional:	RCA/Aviation connector, Bracket optional

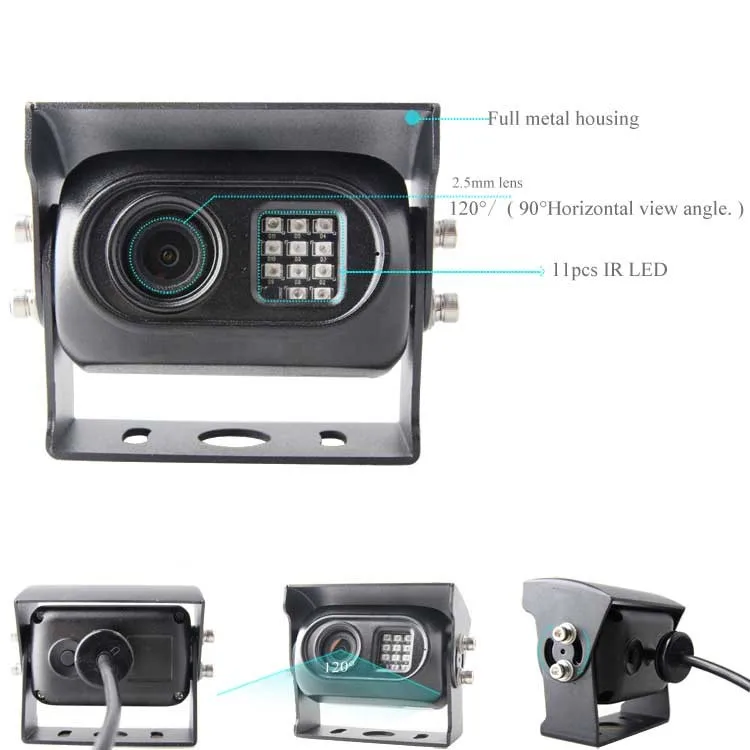

Camera Detail

Sensor	1080P 1/3" APTINA CMOS	960P 1/3" APTINA CMOS
Resolution	1920*1080 (2.0M Pixels) 2,000,000 pixels	1280*960 (1.2M Pixels) 1,300,000 pixels
Lens	2.8mm	2.8mm
Min illumination:	0Lux (LED ON)	0Lux (LED ON)
IR led:	11pcs	11pcs
Night Vision:	12~15M	12~15M
Waterproof	IP69K	IP69K
View angle:	120°/90°	120°/90°
Power voltage:	12V	12V
Operation Temp:	-20℃~+70℃	-20℃~+70℃
Microphone built-in:	Optional	Optional
Mirror/Normal switching:	Yes	Yes
Heater built-in:	Optional	Optional
12~24V voltage:	Optional	Optional
IR Cut	Yes	Yes

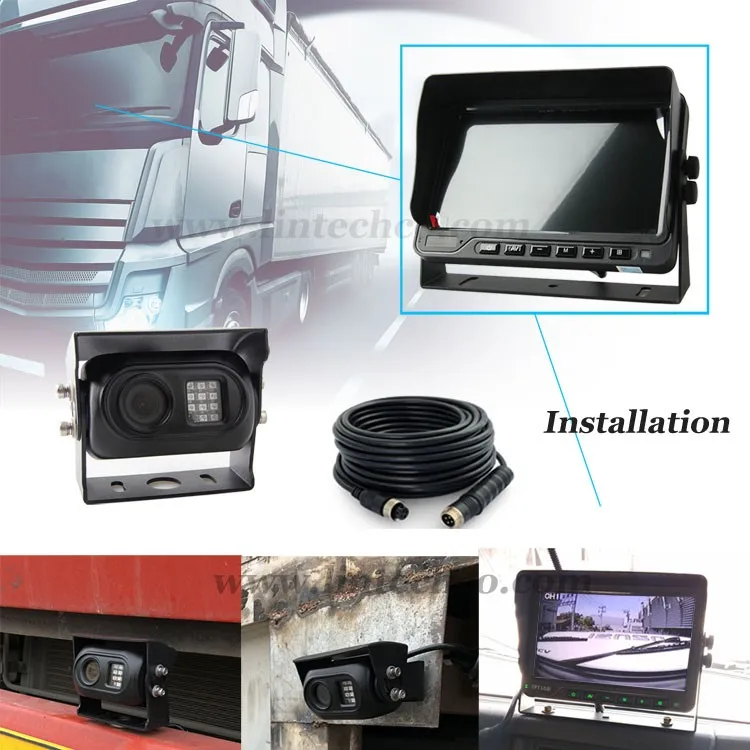

Installation

Packing & Delivery

Package
Size	30 (L) * 20(W) * 13 (D)
Weight	3kg /set

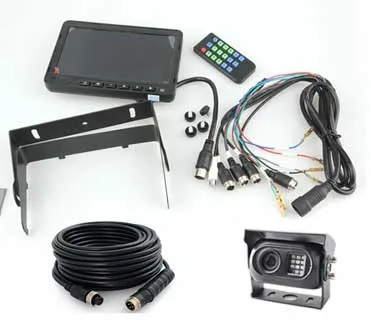

Items include:	-- 1x 7" LCD Monitor (including its accessories: power cable, bracket, remote control) -- 1x Rear view Cameras -- 1x Extension cable 15 Meters (5m, 10m and 15m are optional)
