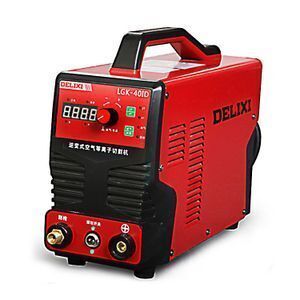

LGK-40 Inverter Portable Air Plasma Cutter

Click here to contact

Product details

Weight (KG):	10;	Port:	Shanghai/Ningbo;
Showroom Location:	none;	Applicable Industries:	Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Home Use,Construction works ,Advertising Company;
After Warranty Service:	Video technical support,Online support;	Payment Terms:	L/C,T/T,Western Union;
Warranty:	1 Year;	Condition:	New;
Video outgoing-inspection:	Provided;	Motor Type:	Stepper Motor;

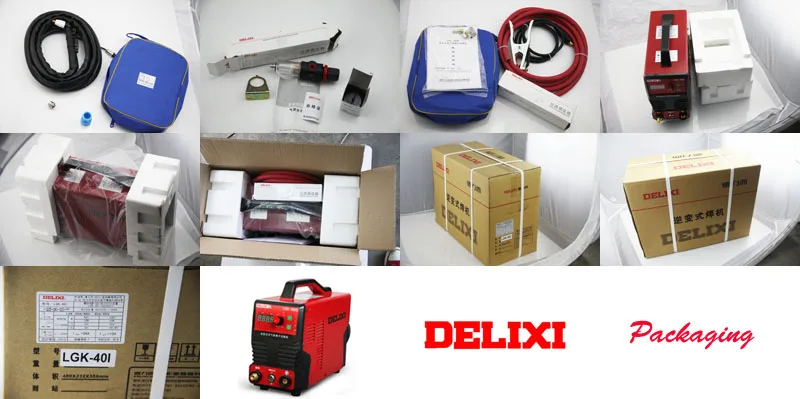

Machinery Test Report:	Provided;	Packaging Detail:	Plasma cutter by Standard export package;
After-sales Service Provided:	Free spare parts,Field installation, commissioning and training,Video technical support;	Key Selling Points:	High Safety Level;
Supply Ability:	5000 Set/Sets per Month plasma cutter;	Marketing Type:	Ordinary Product;
Core Components:	PLC;	Warranty of core components:	1 Year;
Local Service Location:	none;

Product Description

LGK-M Series Inverter Air Plasma Cutter

-Small volume, light weight, simple installation, easy operation;

-Good cutting property, high cutting efficiency;

-Continuously adjustable output current, excellent operating property;

Model		LGK-40M	LGK-60M
Parameters	Input voltage	One-phase AC 220V±15% 50/60Hz	Three-phase AC 380V±15% 50/60Hz
	Rated input power (A)	22.1	12
	Floating voltage (V)	220	280
	Output current adjustment (A)	20-40	20-60
	Rated output voltage (V)	96	104
	Duty cycle (%)	35	35
	No load loss (W)	40	50
	Efficiency (%)	85	85
	Power factor	0.93	0.93
	Type of arc striking	Contact striking	Contact striking
	Suggested compressing pressure(MPa)	4.5	4.5
	Class of insulation	F	F
	Grade of casing protection	IP21S	IP21S
	Overall dimensions(WDH)mm	155295375	205360480
	Weight (kg)	8	13
