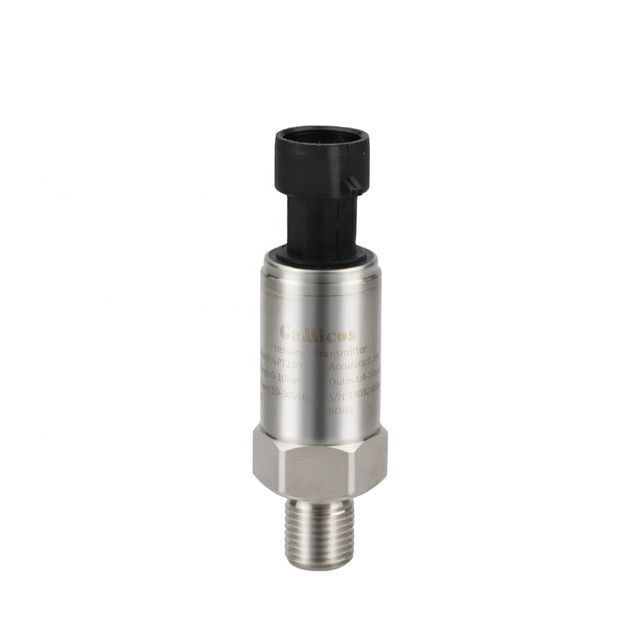

Cheap 50 bar 100 bar 300 bar Pressure Sensor

Supplier: Xi'an Gavin Electronic Technology Co., Ltd.
Region: Shaanxi, China
Contact: Ms Olina Li
Price: $15.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Place of Origin:	Shaanxi, China;	Range:	2bar - 600bar;
Packaging Detail:	each unit has individual box and all boxes are packed in standard packages;	RoHS Compliant:	Yes;
Title:	Cheap 50 bar 100 bar 300 bar Pressure Sensor;	OEM:	Acceptable;
Accuracy:	± 0.5% FS;± 1.0% FS;	Warranty:	1 year;
Supply Ability:	5000 Pieces per Month Cheap 50 bar 100 bar 300 bar Pressure Sensor;	Brand Name:	GAMICOS;
Damage pressure:	3*RP(rated pressure );	Customized support:	OEM,ODM,OBM;
Payment Terms:	L/C,Western Union,T/T,MoneyGram,Paypal;	material of pressure membrane:	ceramic;
Customized:	Acceptable;	Model Number:	GPT230;
Overload pressure:	1.5*RP(rated pressure );	CE certificate:	Yes;
Port:	Any port of China;

Cheap 50 bar 100 bar 300 bar Pressure Sensor

Gamicos Brand

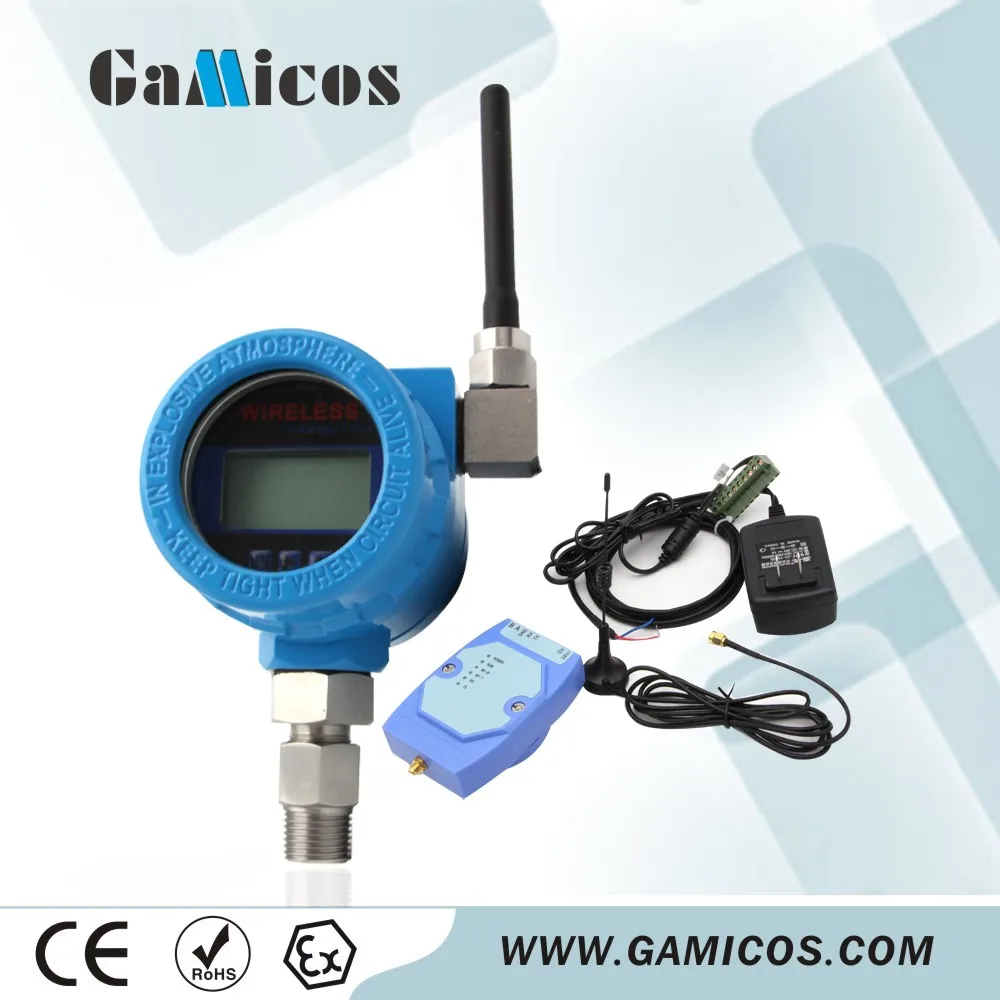

GAMICOS, We are specialized in pressure level measurement, pressure transmitter consists mainly of usually pressure sensor, ceamic pressure sensor, high temp. pressure sensor, flush disphragm pressure sensor, smart digital pressure sensor, wirelss pressure sensor etc.

Why you choose and trust us?

♦ Trade Assurance: 75 Transactions, total amount is above $ USD 200,000+ (from Jan to Jun, 2017)

♦ Near 50% buyers found pressure sensor and contact us, GAMICOS in ALIBABA

♦ View GAMICOS 7000+, Send inquiry 300+ (from Jan to Jun, 2017)

Production Description

GPT230 pressure sensor is made of high quality stainless steel structure, the core and the pressure sensor chips are imported from Germany, the use of digital calibration and compensation technology, and passed the safety certification and CE certification.Widely used in compressor, automobile, air conditioning and other field pressure measurement.

Pressure range	0~2bar...600bar
Pressure type	Gauge (G)
Accuracy	±0.5%FSm, 1%FS
Material	Membrane: ceramic Housing:Stainless steel
Output signal	4~20mA 1-5V 0-5V 0.5~4.5V 0~10V 100mv
Power supply	10~30Vdc 5V
Electrical connection	Packard , DINS43650 , plug connection, cable connection, water proof outlet
Pressure connector	G1/2, G1/4, NPT1/4, 7/16-20UNF, M20×1.5
Stability	Typical 0.5%FS Max. 1%FS
Overload pressure	1.5 times of rated pressure (1.5X)
Operating temperature range	-40~100℃
protection	IP65
certification	CE ,Ex ,ROHS

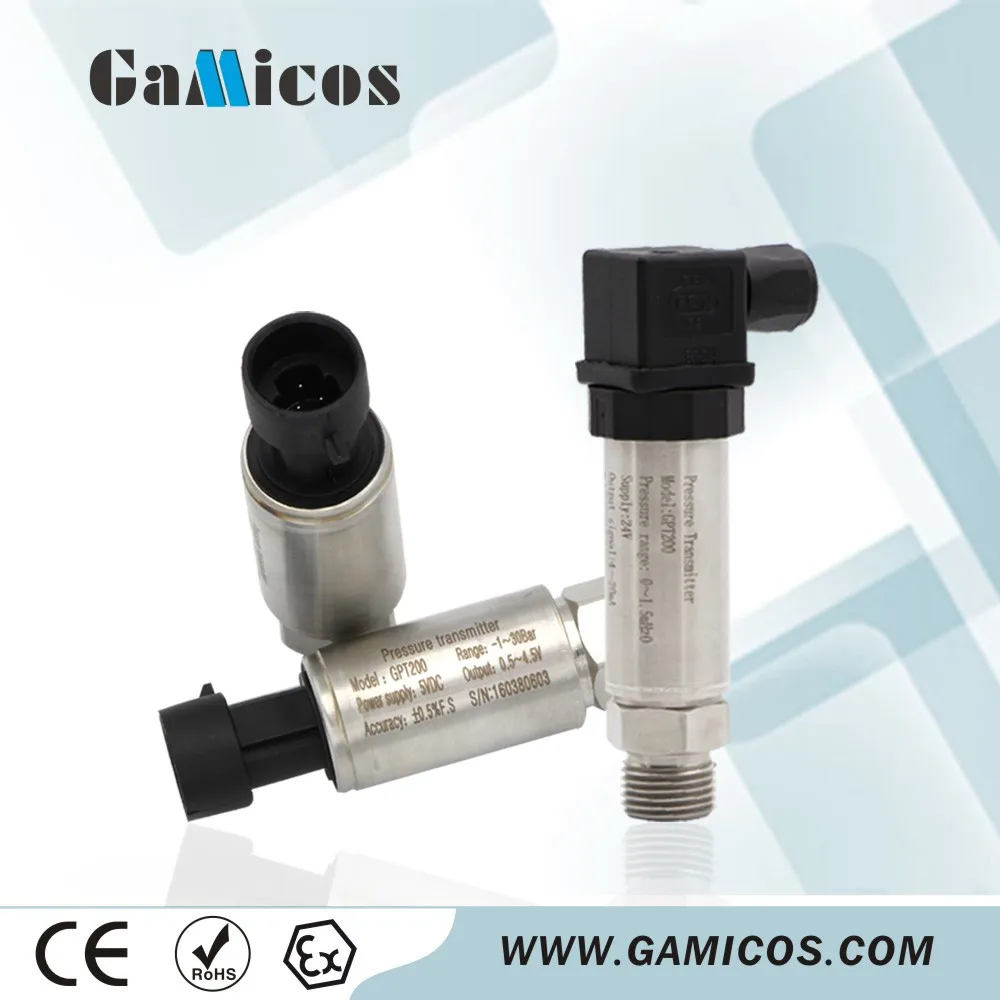

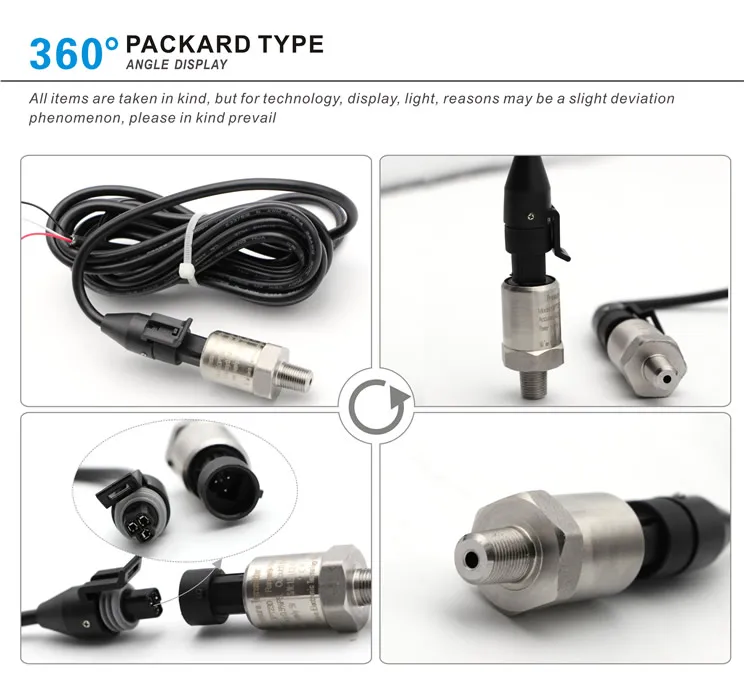

Product Display

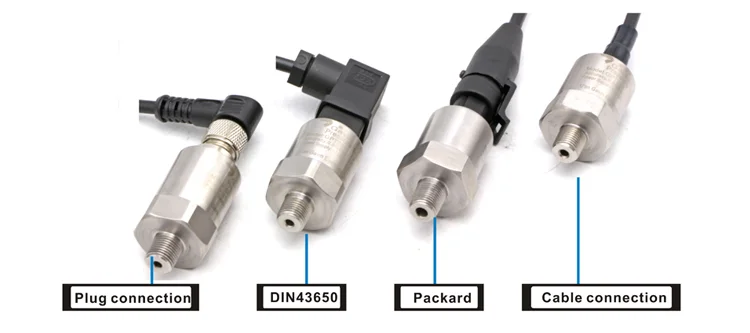

In order to meet different connection requirements, GPT230 has designed four electrical connections.They are DIN43650,cable connection,plug connection,packard.

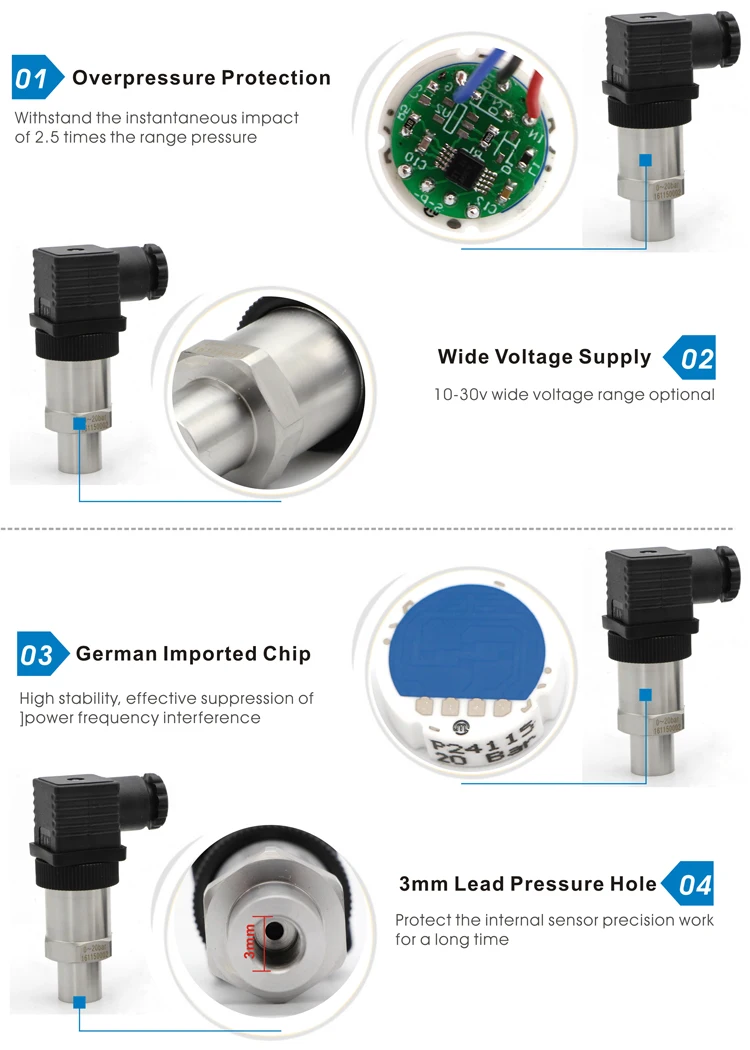

Features of GPT230

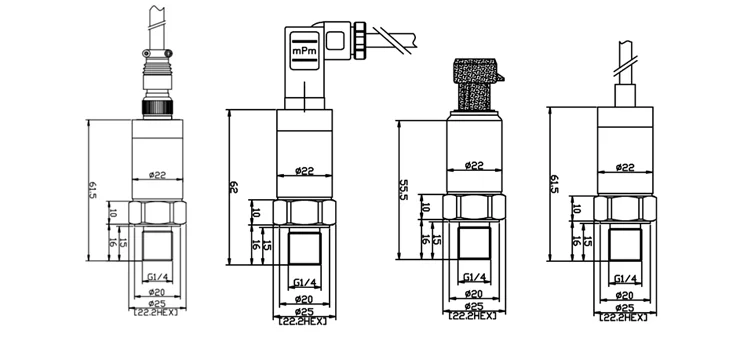

Dimensions

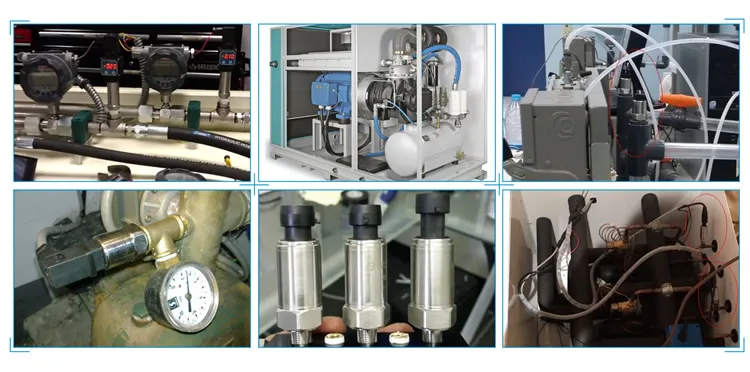

Successfuel Case

GPT230 is widely used in:

Process control system Air compressor Refrigeration system

CNG\SNG gas station Natural gas HVAC

Oil pump\drilling Food industry Chemical industry

Hydraulic control system pump&water system Others

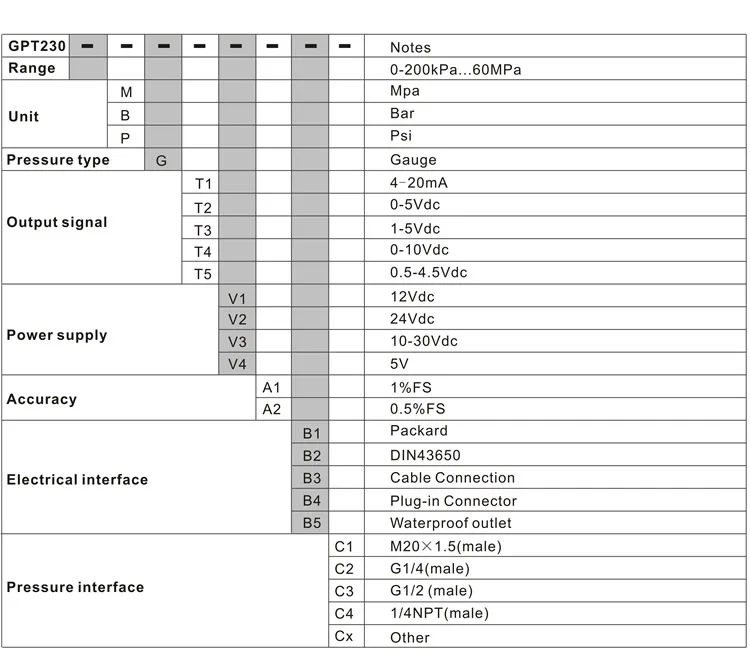

Ordering Guide

Our Service

Service standards: we are committed to providing a high quality,and responsive services to all clients
The fastest reply: detailed informations, specific model and price of products will be provided quickly after receiving your inquiry.
Quality assurance: good quality is assured by advanced manufacturing technology. And all products will be checked by our quality-control manager.
Excellent package: each unit has individual box and all boxes are packed in standard packages.
OEM available for submersible water level sensor
