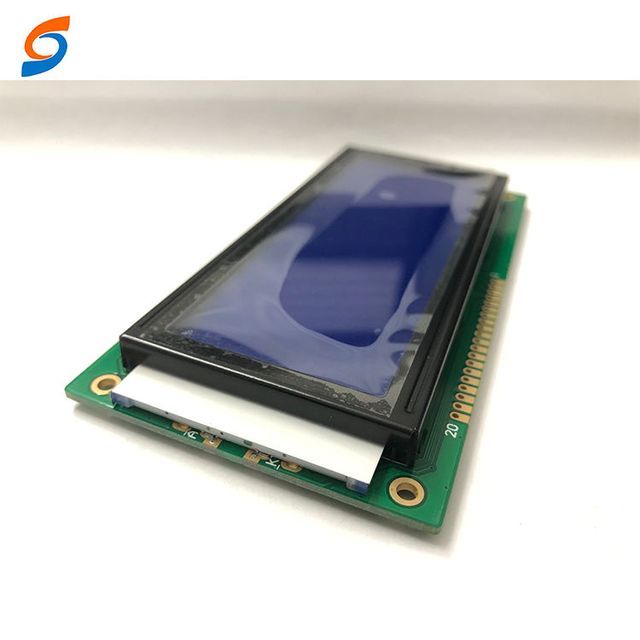

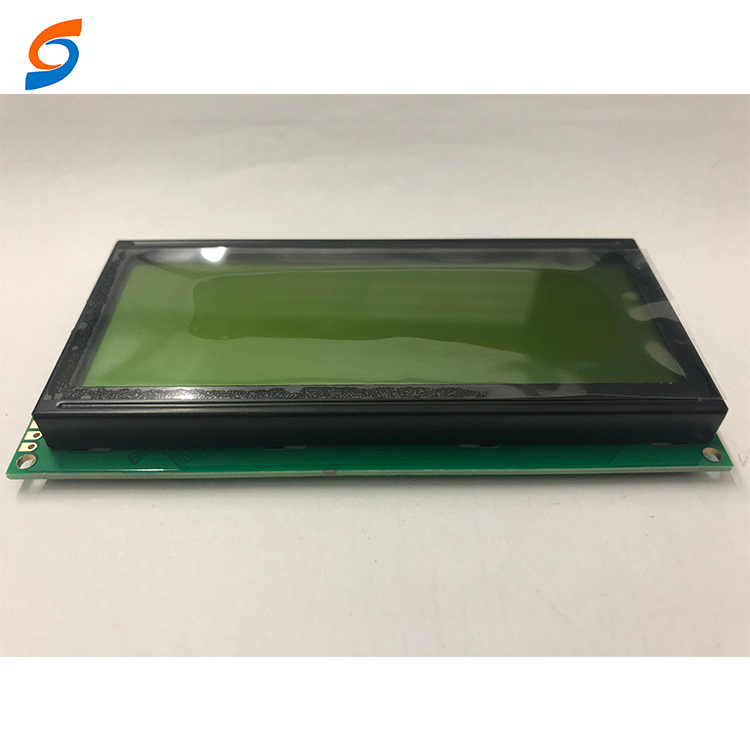

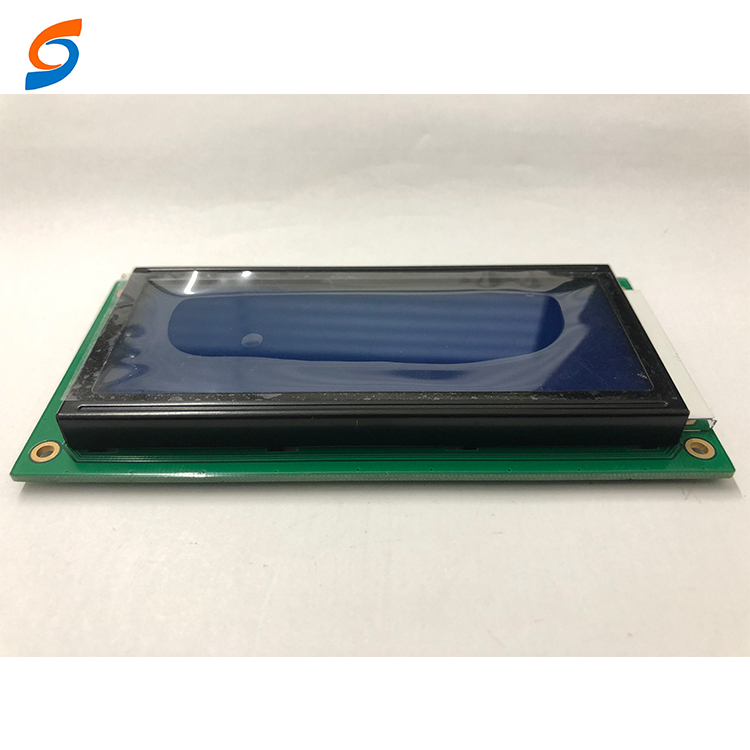

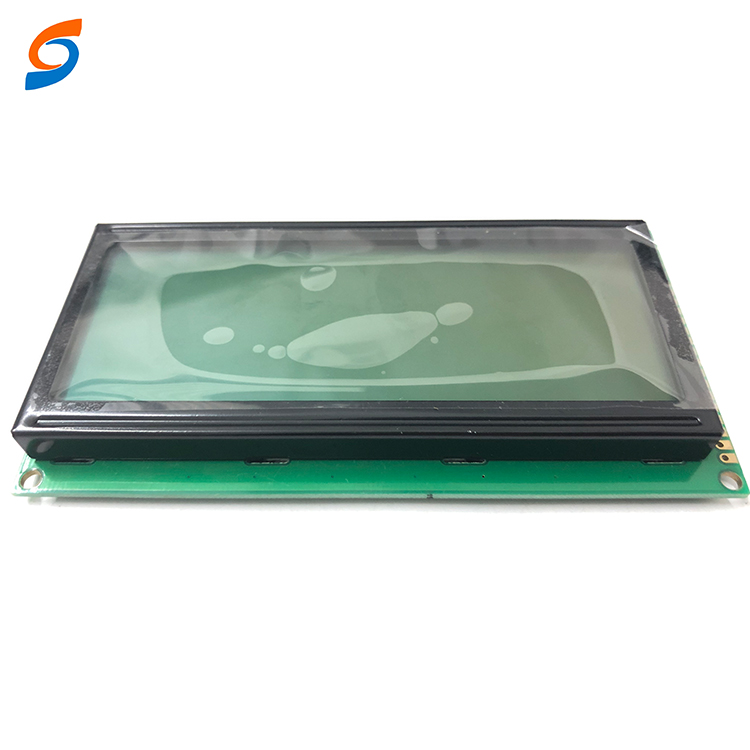

19264 graphic liquid crystal display module

Product details
Working temperature:-0℃~+50℃, or customizedPackaging Details:Foam pallet inside and standard carton outside. Package quantities vary according to specific size and shape. Liuzhou Liyuan Photoelectric Technology Co., Ltd. supplies: monochrome LCD screen/LCD module; TN, HTN, STN, FSTN, VA LCD panels and accessories; segment code, dot matrix graphics and character LCD panels and modules; GOB, COG packaged LCD screen custom LCD screen
appearance:White on blue background/Black on yellow background Green/White on gray backgroundSupply capacity:2000000 per month Double HS code: 85312000
Dimensional general tolerances:+/-0.2mmCustom order:usable
model:LY19264Package preview:
Origin:Chinaport:Shenzhen/Guangzhou/Hong Kong or other ports in China
Chip package:COB/COGDisplay mode:Negative/Positive
brand:Liyuanproduct name:19264 graphic liquid crystal display module
payment terms:L/C, D/A, D/P, T/T, Western Union, MoneyGram, To orderDisplay size:custom size
Display type:TN, HTN, STN, FSTN, VAStore at room temperature:-20℃~+60℃, or customized
Polarizer Type:Transflective/Transmissive/Reflective
Product Description



product name: 19264 graphic liquid crystal display module

Serial Number: LY129264

manufacturer: Liuzhou Liyuan Photoelectric Technology Co., Ltd.

Technical Parameters:

display type

TN, HTN, STN, FSTN, VA COB

display format

plus or minus

polaroid type

Transflective/Transmissive/Reflective

Working temperature room temperature

-0°C to +50°C, or other, or customized

Store at room temperature

-20°C to +60°C or others

drive mode

Related to the selected driver chip

Power (Typical)

Generally set at 3~5V

viewing direction

3/6/9/12 o'clock or others

interface

Metal pin, FPC, ZEBRA or others

LCD module size

standard or custom

view area

standard or custom

activity area

standard or custom

Point (Pixel) Size/Spacing

standard or custom

Diagonal size

5~20 inches

appearance

White text on blue background, black text/green text on yellow background, white text on gray background or others

custom order

usable





Packaging and Shipping

Package:

  Inside the foam pallet + outside the standard carton.

Package quantities vary according to specific size and shape.

Customized packaging with your logo and specific images can be provided.

The packaging process mainly includes the following three steps.

(1) Confirm the specifications of your goods;

(2) Put the foam into the carton and pack your goods;

(3) Conduct security tests.

Shipping:



Lead time: 1-7 days for sample; 25-35 days for mass production

Shipping method: DHL, FEDEX, UPS or designated forwarder

Loading port: Shenzhen/Guangzhou/Hong Kong or other ports in China



    pay:

      T/T, L/C,Western Union, Paypal, Bank Transfer, Cash, Money Gram, and Escrow are all available.

Sample order: 100% payment before drawing the design drawing.

Formal order: 30% paid as deposit before production, 70% paid before shipment

t.

other products

Product Category:

  • Segment LCD
  • Dot matrix LCD display
  • character liquid crystal display
  • Graphical LCD
  • TN liquid crystal display
  • HTN LCD display
  • STN/FSTN LCD display
  • VA LCD display
  • LCD Panels, Modules and LCD Accessories
  • LCM, COB, COG, TAB

LCD application

hHouseholdeelectricElectrical appliances:

Air conditioners, refrigerators, microwave ovens, rice cookers, water dispensers, gas stoves, water heaters, air fresheners, dehumidifiers, humidifiers, purifiers, sterilizers, filing cabinets, health and medical equipment, running equipment, tape recorders, tape recorders, telephones, Electric phone, audio, etc.

Various instruments and meters:

Space instruments, thermometers, water meters, instruments, multimeters, pressure gauges, flow meters, material level instruments, display instruments, electrical instruments, electrical measurements, measuring instruments, analytical instruments, electrochemical instruments, optical instruments, sphygmomanometers, measuring instruments, etc. exist.

Various equipment:

Filling machine, fuel dispenser, elevator, CNC lathe, machining center, CNC machine tool, fuel dispenser, etc.

vehicle electronics:

Car instrumentation, car audio, car remote control, driving recorder, reversing radar, anti-theft device, combination CD, MP3, car electrical appliances, etc.





custom order

Customized LCD screen:

  • Monochrome LCD, backlight, FPC and PCB boards can be customized with a small tooling charge, and the custom shape fits the customer's mechanical design.
  • LED backlights are available in yellow/green, white, blue and other colors, and can be customized with different brightness according to your requirements.
  • Including reflective, transmissive or transflective different types of polarizer options, as well as polarizer positive mode and negative mode options.
  • Connection boards can be added to each project, changing the interface from FPC to pins or cables, we can provide various pin connections to meet your requirements.
  • LCD panel technologies include TN, STN, FSTN, FFSTN, and VA types, and the viewing angles are 3:00, 6:00, 9:00, and 12:00.
  • Wide range of LCD displays with various backlight and LCD type combinations.
  • Supply capacity 2,000,000 pieces per month

Please complete and send the form to us:





If you need samples or custom LCD screens,

Please feel free to contact us!
