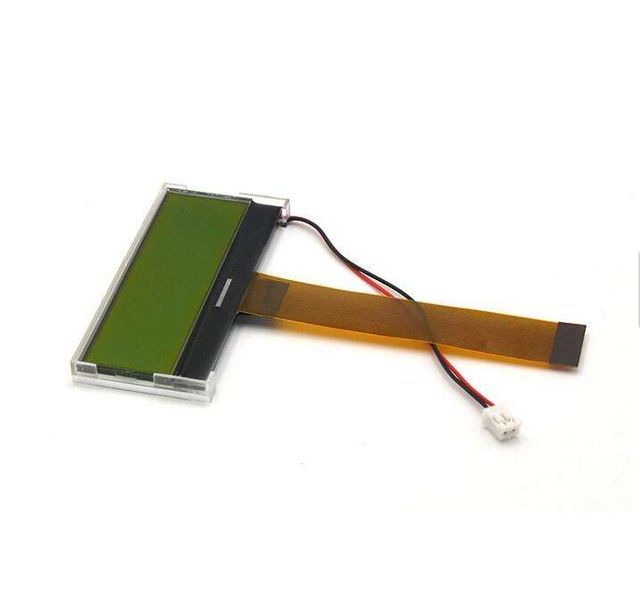

128x32 COG FSTN transflective front view LCD module with ST7567 SPI MCU interface white LED backlight

Product details
Place of origin:Guangdong, ChinaLCD screen type:128x32 COG LCD display
Supply capacity:10,000 pieces per daymodel:EG12832-G16BSW
payment terms:T/T, Western Union, MoneyGram, Alibaba Trade Assurance, PayPalbrand:everton
Driver chip:ST7567port:Shenzhen, Hong Kong
solve:128x32Packaging details:1. There is an anti-static bag inside, a foam or plastic bag and a box outside; 2. Packed according to customer requirements.
Package preview:





Product Description



Item name128x32 STN FSTN transflective front COG gray blue LCD module with ST7567 parallel and series SPI interface
color262K colors
Pixelmonochrome
Contrast500:1
brightnessWhite, yellow-green backlight
Dimensions63.0(width)X27.5(height)X4.85(thickness)mm
viewing area60.0(width)X18.5(height)mm
Activity area56.03(width)X14.53(height)mm
solve128x32
point0.424*0.407mm
asphalt1.0 mm
Drive supply voltage3.3V
Viewing angle6:00
Operating temperature-20℃~+70℃
Storage temperature-30℃~+80℃
display modemonochrome
touch panelResistive touch screen or capacitive touch screen
Soft board lengthFPC connector type
Response time100 milliseconds
I seeST7567
integrated circuit packagingcenter of gravity



+
main application
Telecommunications equipmentTelephones, walkie-talkies, watches, radios, etc.
household appliancesWashing machines, refrigerators, home integrators, etc.
industrial controlCoaxial CNC machine tools
InstrumentationTesters, medical instruments
In-vehicle digitalizationMP3, MP4, car air conditioner
miningMining lamp charger, gas tester
oceanSalinity tester

According to customers' various requirements, TFT LCD screen, LCD panel, LCD monitor, LCD screen, FSTN and STN LCD display, industrial LCD screen, we can match all accessories, including driver board, LED backlight and LVDS cable.



ODM/OEM acceptable

Provides multiple LCD display modes with different backlight colors and temperature ranges



Product Range

1) TN, STN, FSTN LCD panel/module

2) Customized LCD panel/module

3)Small (1.5-inch-7-inch) TFT LCD screen
