Theory: | Reciprocating Pump; | Check valve made: | EPDM or Viton; |
Delivery Detail: | Shipped in 7 days after payment; | Brand Name: | Sailflo; |
Certificate: | CE Certificate; | Max pressure: | 170psi; |
Standard or Nonstandard: | Standard; | Port: | Xiamen; |
Application: | water; | Product name: | SAILFLO; |
Power: | Electric; | Payment Terms: | T/T,Western Union,Paypal; |
Model Number: | DP-160; | Packaging Detail: | 10pcs per carton; |
Structure: | Diaphragm Pump; | Supply Ability: | 10000 Piece/Pieces per Month; |
Max flow: | 5.5LPM; | Warranty: | 12months; |
Usage: | Water; | Pump design: | 3 chamber diaphragm; |
Pressure: | High Pressure; | Place of Origin: | Fujian China; |

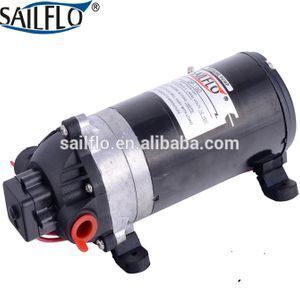

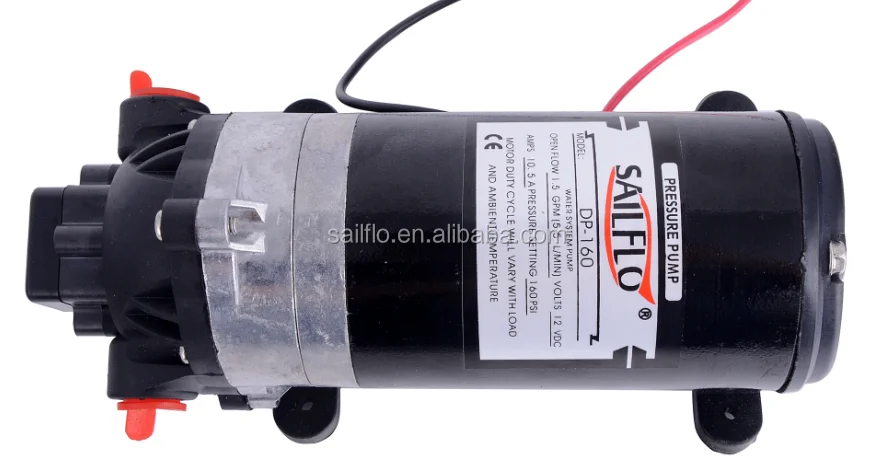

Sailflo12v 160PSI high pressure diaphragm pump/water pumping machine with pricepump
SAILFLO 3 Chamber DC Diaphragm Pump DP Series |
This series pump with high pressure, Perfect for portable car wash machine, carpet clear machine,sweeper and agriculture sprayer etc. Use it with fresh or weak acid/ alkaline liquid. These pumps automatically turn on and off when you turn the tap on and off. We have tested these pumps and found they will operate to a 2 metre suction lift and 11 meters head. |
Feature: | |
Type: | 3 Chamber Diaphragm |
Port Size: | 3/8” BSPT Female Thread |
Liquid: | 140°F [60 °C] Max |
Self-priming: | 6 feet [about 2M] |
Max pressure | 160psi(11bar);can be adjust to 170psi. |
Run Dry: | Yes (within 30 second) |
Motor: | Permanent Magnet, Intermittent |
Duty Protection: | Thermal Overload, Automatic Restart |
Volts: | 12/24 VDC motors standard |
Standard Connector: | 1/4” BSPT Male Thread, 3/8” hose barb |
Approved Certificate: | CE and RoHS |
√ High volume flow rate, Built-in chec valve |
√ Permanent Magnet motor with longer lifetime |
√ Antivibration pad,easy installation. |
√ Self-priming,Top quality Automatic Pressure Switch. |
√ Thermally Protected |
√ Low Noise,with excellent resistant to chemical corrosion. |
STANDARD PUMP CONFIGURATIONS
Model | Volt | Flow(LPM/GPM) | Pressure(PSI/BAR) | Valve | Amp Draw(A) |
DP-60 | 12 | 4.6(1.2) | 60(4.1) | EPDM/VITON | 7.0 |
DP-60B | 24 | 4.6(1.2) | 60(4.1) | EPDM/VITON | 4.0 |
DP-80 | 12 | 5.5(1.5) | 80(5.5) | EPDM/VITON | 8.0 |
DP-100 | 12 | 5.5(1.5) | 100(7.0) | EPDM/VITON | 9.0 |
DP-120 | 12 | 5.5(1.5) | 120(8.3) | EPDM/VITON | 9.5 |
DP-120B | 24 | 5.3(1.5) | 120(8.3) | EPDM/VITON | 4.5 |
DP-160 | 12 | 5.5(1.5) | 160(11.0) | EPDM/VITON | 10.5 |
DP-160B | 24 | 5.5(1.5) | 160(11.0) | EPDM/VITON | 4.2 |
XIAMEN USAIL INDUSTRY AND TRADE CO.,LTD has specialized in research ,design and |
manufacturing multiple micro diaphragm water pump,Bilge pump, Washdown kit,Agricultural |
sprayer and Garden tools etc more than 10 years. |
Quality is first, SAILFLO pumps had been approved with the CE and RoHs international |
Certificate.We are devoted to develop excellent products to meet customers' demand.The |
products have a good market in North America ,South America ,Australia,Europe and others |
countries and regions. OEM/ODM custom service is warm welcome.We sincerely welcome domestic |
and overseas clients to negotiate business and build up good relations for creating bright future! |
1. What's your MOQ?
Normally our MOQ can be 1cartons . we also do retail. So MOQ can be negotiated.
2. Are you a trading company?
We do trade . Also we have our real factory , and our factory has pass ISO-9001, we have good quality control.
3. Do you accept customized?
Yes , we have different customer make their own OEM product.
so we also can make product as per your requirement.
4. How long can I expect to receive my goods after I place order?
Our production time are always 10--25 days after pre-production sample confirmation.
5. Can I get some samples before place order and how long for a sample?
Yes, Sample order is welcome, usually the sample delivery time is within 7days.
6. How is your shipping?
1) shipping by express (sample order) and by air or by sea (bulk order)
2) worldwide shipping service available
3) please contact before order as shipping cost varies time to time.
7. Will you have some discount?
1) To clients who bring repeat orders and large orders
2) Please contact us for Better Quote.
