Sailflo Teleflex SeaStar 16 FT CC17216 Universal Boat Shift Throttle Control Cable

Supplier: Xiamen Usail Industry And Trade Co., Ltd.
Region: Fujian, China
Contact: Ms Tracy Wu
Price: $7.00 / >=100 meters
Min. Order: 100 meters

Click here to contact

Product details

Single gross weight:	8 KG;	Certificate:	ISO9001:2000;
Application:	marine boat control system;	OEM:	available;
Single package size:	15X19X21 cm;	Max stroke:	120mm;
Model Number:	HY 14F;	inner dia:	8mm;
Insulation Material:	carbon steel;	Outer dia:	16.5mm;
Product Name:	marine control cable;	Place of Origin:	Fujian China;
Color:	black, red;	Out-dia:	16mm;
In-dia:	6.5mm;	Jacket:	Rubber;
Selling Units:	Single item;	Brand Name:	Sailflo;
Conductor Material:	Copper;

Sailflo Teleflex SeaStar 16 FT CC17216 Universal Boat Shift Throttle Control Cable

Direct-Replacement Type Control Cable for SeaStar Solutions and Other Controls

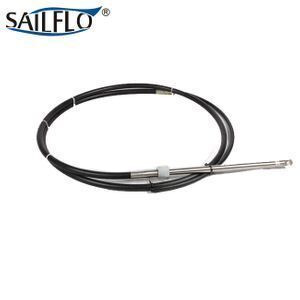

Pic:

Product description:

1.Marine stering cable

2.outer dia:16.5mm

3.inner dia:8mm

4.supply any ft

Teflon hose & 316 stainless steel ends
Seaworthy packing
ISO9001:2000
Within 15days after TT payment

We supply accelerator cable, choke cable, control cable, brake cable, driving manipulate cable, marine control cable, marine engine control, rotary steering system, auto control lever, universal control lever,etc.

The Kit Includes:

· Steering Cable 14 Feet

· Steering Helm - Single Rotary gear, 3/4" tapered shaft

· Bezel Kit

· Steering Wheel

· 90 degree bearing

1. Designed and developed especially for marine use.

2. Mainly applied in mechanical/manual steering for yachts, fishing boats and other waterborne vehicles.

3. Made in zinc alloy, corrosion resistant, ergonomically designed, easy to install, compact for mounting.

4. Combined with steering cable, 316 stainless steel end fittings, can be any length within 30 Feet.

STEERING HELM:

The Steering Helm is a gearbox arrangement mounted on the dashboard of the boat.On the shaft of the helm is mounted the Steering Wheel.

Applications:

Suit for max. 30 Feet(9 meters) out board boat(up to 200hp)

Max load 300 pounds at tiller.

Gear design:3 turns lock to lock

Max steering wheel dia 406mm (16")

Minimal feedback

Shaft Length: 125mm

Material:Chromed plated Zinc Alloy

BEZEL KITS

Bezel kit is a plastic part along with related hardware which is mounted between the steering wheel and dash board to cover the helm hardware.

Features:

Bezel made from Engineering Plastic

Black color available as standard options

90 degree tilt

Contains mounting hardware

STEERING CABLE

The Steering Cable is a push pull mechanical cable which convents the rotary motion of the helm to linear motion at the engine/rudder.One end of the cable is connected to the helm & the end to the rudder.The latest construction technology, the internal control line used elastic material.Output used 304 stainless steel seamless pipe and corrosion-resistant materials, control lines has longer life.

5-30 feet length control line can be used, and to increase per 1-foot increments.

Features:

Output ends made of 316 Stainless Steel

Maximum Trave:9inch(225mm)

Minimum bend radius:8 inch (200mm)

Maximum working load at Tiller end:5000N

Cable Outer Diameter:16.5mm

Spiral inner cable Diameter:8mm

Technical drawing:
