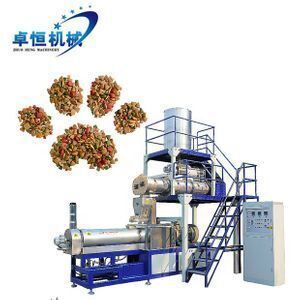

Dog Cat food pet food equipment extruder making machine

Supplier: Jinan Zhuoheng Extrusion Machine Co., Ltd.
Region: Shandong, China
Contact: Mr Victor Feng
Price: $8500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Applicable Industries:	Food & Beverage Factory;	Weight:	3000kg;
Condition:	New;	Product name:	Cat food pet food equipment extruder making machine;
Place of Origin:	Shandong China;	After-sales service:	Engineers available to service machinery overseas;
Dimension(LWH):	2500015002200;	Port:	Qingdao Dalian,shanghai,;
Inverter:	ABB;	Capacity:	120-5000 kg/h;
Warranty:	2 Years;	Process:	Extrusion;
After-sales Service Provided:	Field installation, commissioning and training;	Product shape:	customized;
Supply Ability:	80 Set/Sets per Month Dog Cat food pet food equipment extruder making machine;	Power(W):	110kw;
Certification:	CE BV TUV GOST;	Type:	Double Screw Feed Pellet Machine;
Material:	304 Stainless Steel;	Application:	Dog;
Motor:	Siemens Motor;	Brand Name:	Zhuoheng;
Voltage:	220/380V or Customized;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,trade assurance;
Packaging Detail:	wooden packing or according to our customers' request We can supply from stock.;	Energy:	Electricity Diesel Steam Gas;

Product Description

Dog Cat food pet food equipment extruder making machine is suitable to make dry and wet type pet food pellet (dog food, cat food, fish food etc.)

1). All pet food equipments are made of stainless steel.
2). The pet food whole line fully continuous and automatic.
3). ZHUOHENG provide basic pet food formula according to your require.
4). The final pet food shapes and sizes can be various by changing the mould.
5). Supply different size mould free of charge.
6). Packing machine could be supplied to work with the pet feed production line (depending on your require)

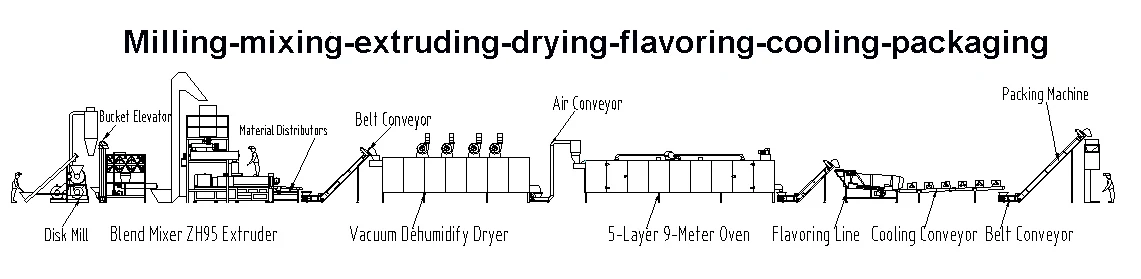

Flow chart diagram:

Can be designed the layout drawing according to your dimension

Raw material:Dog Cat food pet food equipment extruder making machine

Rice flour, corn flour, wheat flour, low temperature soya flakes meal, rice bran , wheat bran, fish powder, bone powder etc.

Final product Made by Dog Cat food pet food equipment extruder making machine

Technical parameter Dog Cat food pet food equipment extruder making machine

Moodel	Intsalled power(KW)	Real consumption(KW)	Capacity(kg)	Dimension(M)
ZH65	112kw	75kw	120-150kg	2033
ZH68	110kw	75kw	150-200kg	2033
ZH70	142kw	90kw	200-250kg	2533
ZH72	122kw	80kw	250-300kg	2533
ZH85	245kw	160kw	500-700kg	3033
ZH95	300kw	195kw	1-1.2ton	5056

Detailed Image Dog Cat food pet food equipment extruder making machine

	Blend Mixer Motor: 3kw, 4kw, 7.5kw etc. Capacity: 60kg/time, 100kg/time, 300kg/time, 500kg/time etc. Material: stainless steel, carbon steel Zhuoheng's Blend Mixer is a high standard two-way ribbon mixing machine. It includes material tank, screw mixing paddles and drive parts.

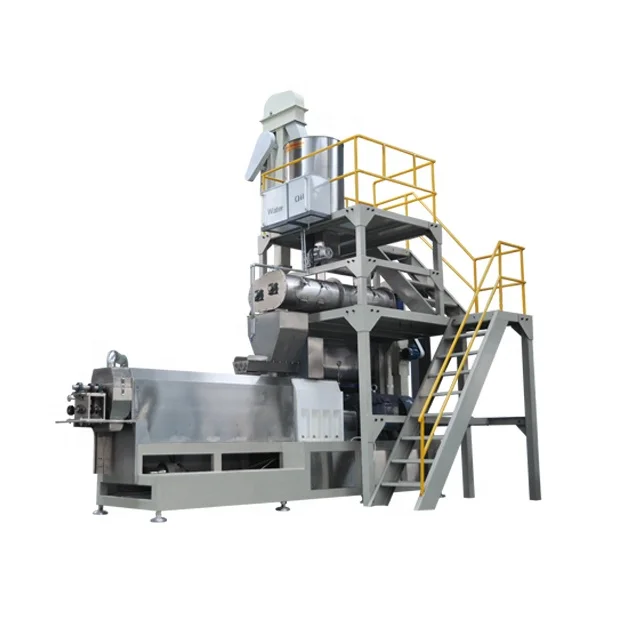

Double Screw Extruder Motor: 22kw, 30kw, 55kw, 75kw etc. Capacity: 120-150kg/h, 200-250kg/h, 300kg/h, 500kg/h, 1000kg/h etc. Material: Screw materials 38CrMoAl stainless steel, carbon steel Fish feed extrudr unit consist of bucket elevator, Storage Silo, material conveyor, conditioner, feeder, extruder, electric controller and operation platform. The extruder includes drive system, extrusion system, cutting system, heating system, lubricating system and extraction steam system.
	Dryer Type: 5 layers 5 meters, 5 layers 7 meters, 5 layers 12meters, 7 layers 12 meters. Heating source: electric, gas, steam, oil, diesel. Material: stainless steel, carbon steel
Single Drum Flavoring Line Motor: 0.75kw, 1.1kw etc. Capacity: 100kg-1000kg/h Material: stainless steel controled by inverter,speed can be adjusted

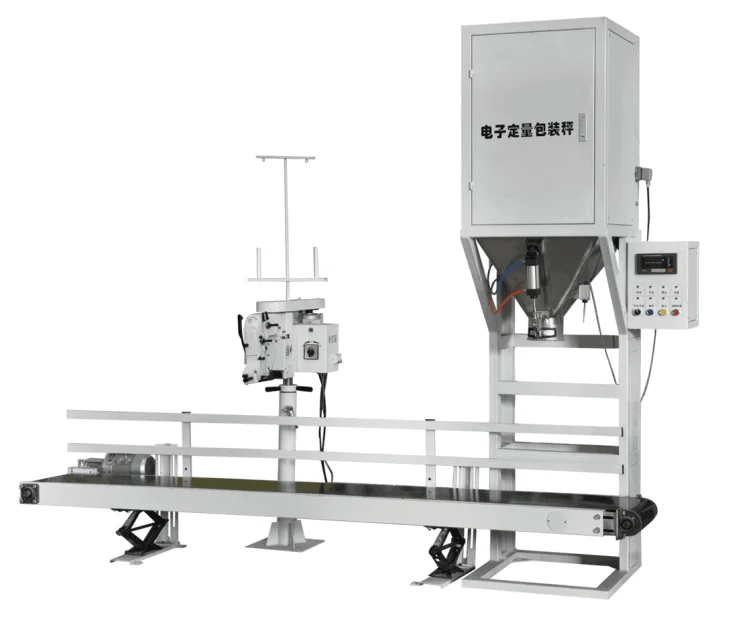

	Packing Machine Type: automatic, semi-automatic. Weight range: 1-5kg/bag, 5-25kg/bag, 25-50kg/bag Material: stainless steel, carbon steel

company information

Jinan Zhuoheng Extrusion Machinery Co.,Ltd . A Shareholders-owned and operated business established more than 10 years ago, is considered as one of Chinese most respected and experienced suppliers of extrusion machine for fish feed ,pet food or other animal food.accessories and services,we also could support you other machine lines,like snack machine line,corn flakes machine line,macaroni machine line,etc.our company’s motto is :”Excellent Quality.Lasting Reputation”

Zhuoheng has a comprehensive manufacturing program offering equipment and systems to customers in extruded fish feed.pet food processing machinery and allied industries,we can supply individual item of equipment of complete factory layouts and lines,which are custom-built to meet the requirements of customers.our spare parts and service division demonstrates our continuous commitment to customers’ support and after -sales service.we have successfully completed several large-scale projects from planning to completion and project management.Zhuoheng has a proven record of quality and service.

Advantages

Packaging & Shipping

Packing: Machines are always wrapped by film completely and safely and then packed in strong fumigation-free case or 20'/40' container for delivery.

We take good care of each machine for you

Delivery: 20-30 working days after receiving advance payment.

Our Services

Pre-sale service	Communicating with customers and learn your requirement
	Providing professional advisory services
	Providing solutions according to customers’ requirement, And offer the quotation
	Providing on-site visit to our factory
	Providing samples
Selling service	Confirm every terms and details and sign contract with customers
	Manufacturing machines according to contract.
	Trial running after production.
	Packing machines and delivery on time
	Providing relevant documents for Custom clearance (If necessary)
After-sale service	Send engineers for installation, trial running and training workers.
	Handling the problems occurred during use.
	Supply spare and wearing parts on discount.
	Help customers to solve any other problems
	2 years warranty.
