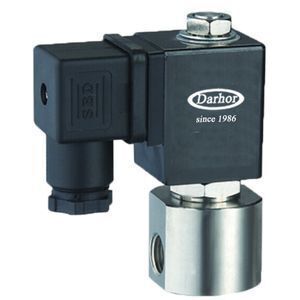

300bar high pressure solenoid valve stainless steel brass 12VDC 30bar 100bar 200bar

Click here to contact

Product details

Application:	General;	Body material:	brass/stainless steel;
Media:	Gas/Liquid;	Pressure:	High Pressure;
Packaging Detail:	12V 24V DC High Pressure NC Solenoid Valve for Air Gas Water well-packed in carton, with bubble pad;	Power:	Solenoid;
Warranty period:	two year;	Sample leadtime:	2~3 days;
Structure:	Diaphragm;	Temperature of Media:	Medium Temperature,Normal Temperature;
Type:	Normal Colse;	Size:	1/8'', 1/4'', 3/8'', 1/2'', 3/4'', 1'', OEM for customer requests;
Payment Terms:	T/T,Western Union,PayPal;	Material:	Brass/Stainless Steel;
Supply Ability:	1000 Piece/Pieces per Week;	Keyword:	high pressure solenoid valve;
Port:	Ningbo/Shanghai;	Place of Origin:	Zhejiang China (Mainland);
Working temperature:	-10℃~120℃;	Standard or Nonstandard:	Standard;
Pressure:	0-800 bar; based on customer needs;	Model Number:	DHSE;
Seal:	NBR, EPDM, VITON;	Brand Name:	Darhor Solenoid Valve;
Port Size:	1/4"-2'';

Product Description

Pressure 0 bar-800 bar is available

Min DN1MM

OEM service

For more high pressure solenoid valve, please click the below picture link:

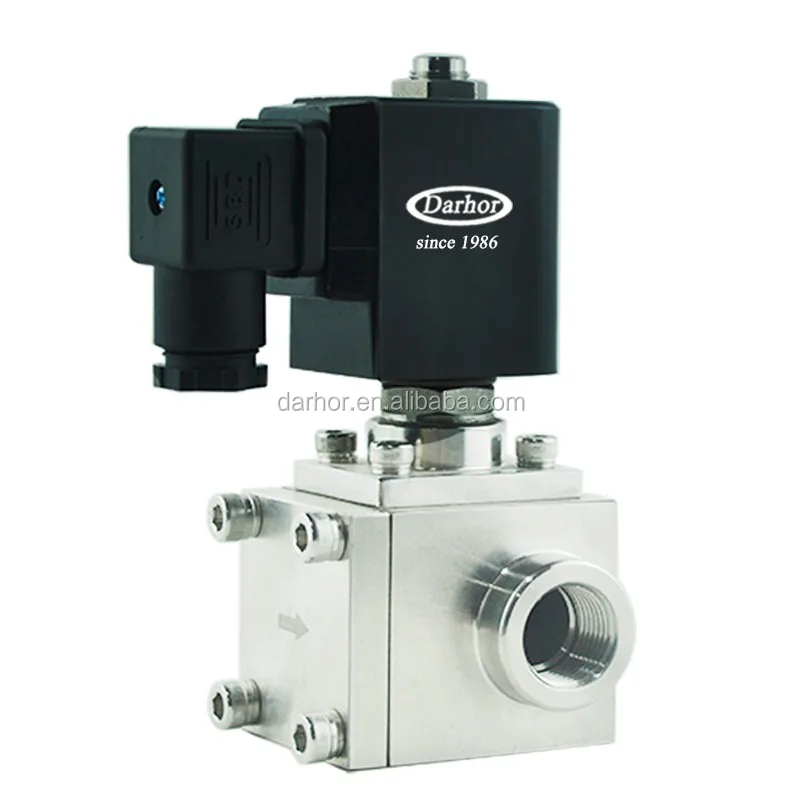

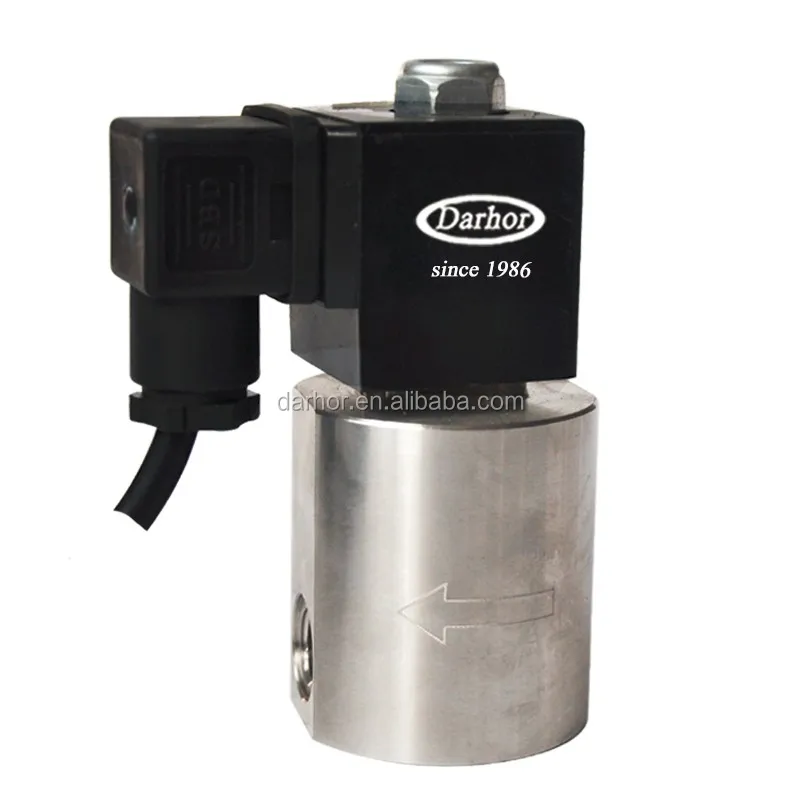

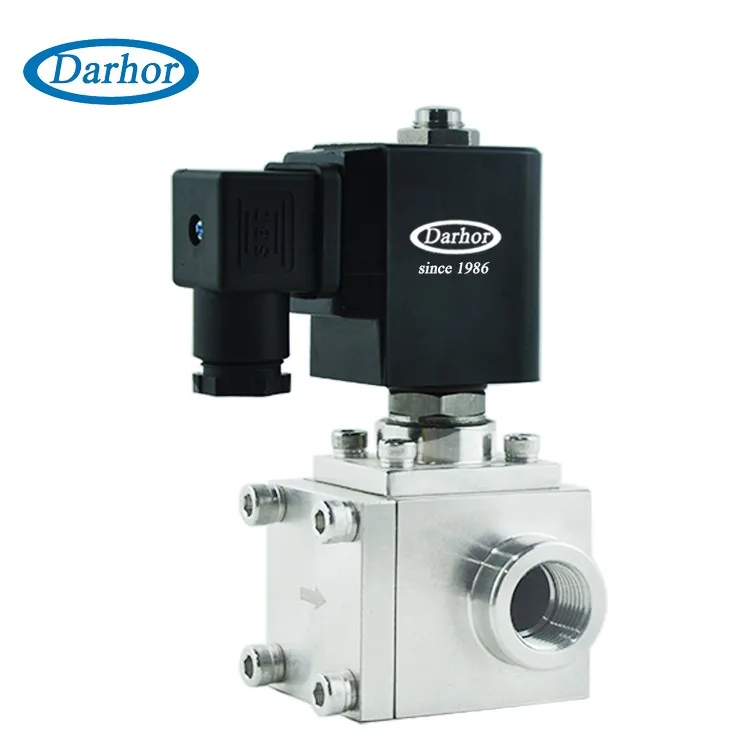

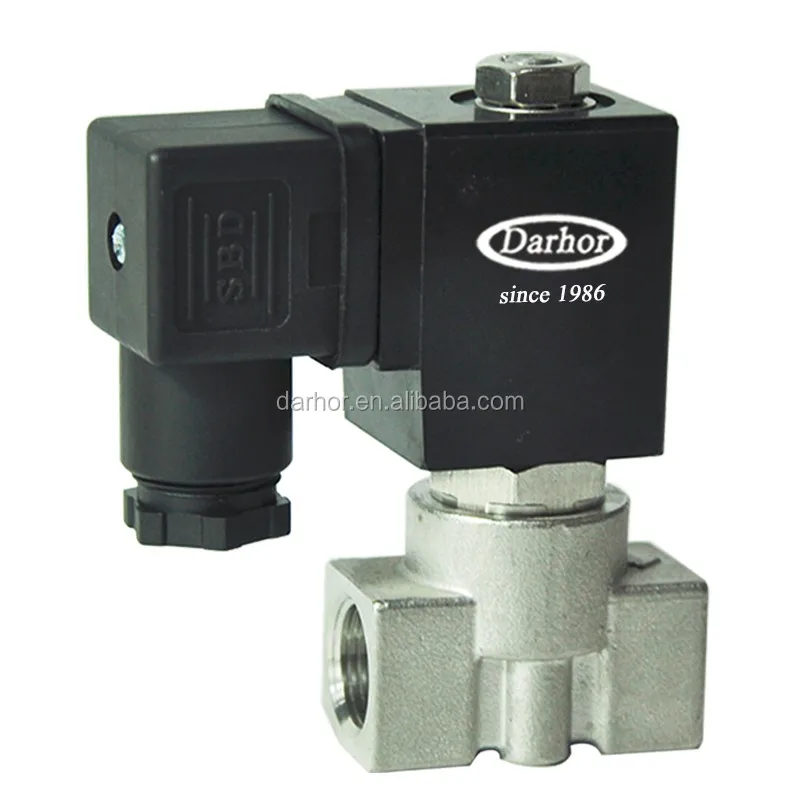

DHLZ: 1/8''-3/8'' DHSE:1/4''-1'' DHC: 1/8''-custmized size

0-170bar 0-300bar 0.1-800bar

1.Two position two way high pressure solenoid valve.
2. With German Nass coil to improve the quality.

Body-Stainless Steel
Seal- PU
Armature Tube-Stainless Steel 304
Plunger- Stainless Steel 430F

Stop- Stainless Steel 430F
Springs- SS304
Shading Rings- SS304

Medium:	High pressure liquid, Gas, Light oil.
Temperature:	PTFE Seal: -10℃ to 130℃
Pressure:	0-25.0 MPa
Port Size:	1/4'', 3/8'', 1/2'', 3/4'',1''
Port Thread:	NPT, RC Thread, BSP
Orifice(mm):	1,1.5,2,2.5,3,10,15,20,25
Voltage:	DC -12V,24V,36V; AC - 12V,24V,120V,240V/60Hz'110V,220V/50Hz; Tolerance:+/-10%
Coils:	0580,30VA(AC),18W(DC),IP65,100%ED With the LED indicator light connector NASS COIL 0543 on request

Specification

DHSE Normally closed
Valve body	Port size	Orifice	Cv	Min pressure(Mpa)	Max pressure(Mpa)		Seals material	Body material	Coil
Valve body	Port size	Orifice	Cv	Min pressure(Mpa)	AC(30VA)	DC(18W)	Seals material	Body material	Coil
DHSE1	1/4'' or 3/8''	1	0.04	0.0	30	20	PTFE	Stainless Steel	0580
DHSE1.5		1.5	0.08	0.0	16	12			0580
DHSE2		2	0.15	0.0	13	8			0580
DHSE2.5		2.5	0.20	0.0	8	6			0580
DHSE3		3	0.25	0.0	6	4			0580
DHSE10	3/8''	10	3.5	0.0	16	12			0580
DHSE15	1/2''	15	4.7	0.0	16	12			0580
DHSE20	3/4''	20	7	0.0	16	12			0580
DHSE25	1''	25	11	0.0	16	12			0580
For other requests about size or pressure, please contact us or send inquiry
