structure: | ball | Warranty: | 1 year |
Origin: | Tianjing, China | media: | water |
Supply capacity: | 200 units per day | Medium temperature: | medium temperature |
Customization support: | Processing | Manual override: | None (electric water ball valve) |

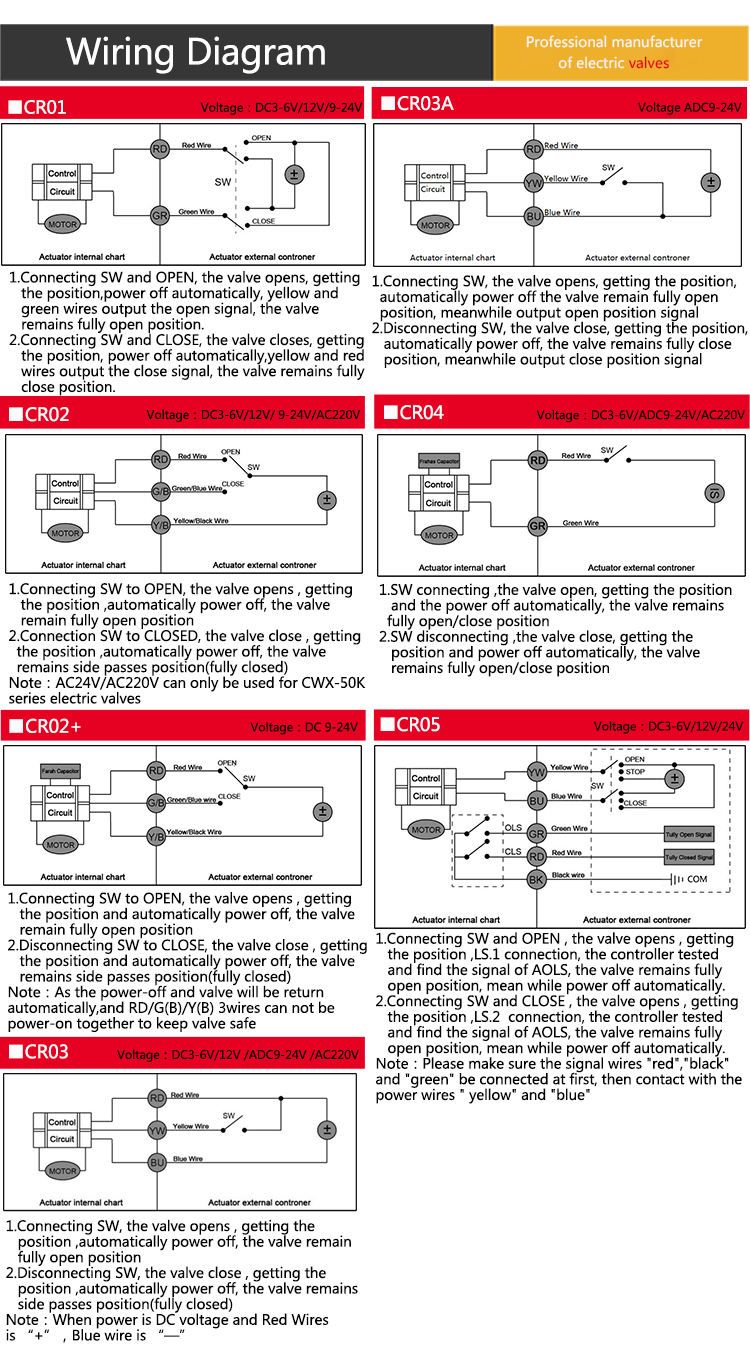

Wiring control mode: | 2, 3, 5 wires (CR01, CR02, CR02+, CR03, CR03A, CR03T, CR04, CR05) | strength: | electrical |
Body material: | Brass, UPVC, SS316/304 | Port size: | DN15 (1/2 inch) DN20 (3/4 inch) DN25 (1 inch), DN15 (1/2 inch) DN20 (3/4 inch) DN25 (1 inch) |
Work pressure: | PN10 /1.0Mpa | Packaging Details: | Each valve is packed in a single carton or wooden box. Bulk valves will be in normal packaging. We will provide shipping packaging to ensure the valve arrives safely in your hands. |
application: | General | Package preview: | |
product name: | Electric ball valve CWX-15N | Voltage: | DC3-6V 12V AC/DC9-24V AC220V AC85-265V |
brand: | sky fly | type: | Ball valves, globe and waste valves, washing machine valves, water heater service valves, truck shutoff valves, adjustable relief valves, temperature and pressure relief valves, temperature regulating valves, drain valves, water regulating valves, air valves and vents |
payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram, Paypal, Alipay | model: | CWX-15N |
Operating temperature: | -10°C-40°C/14°F-108°F | port: | Newport |
Certificate: | ISO, RoHS, CE | connect: | BSP, NPT and G threads |

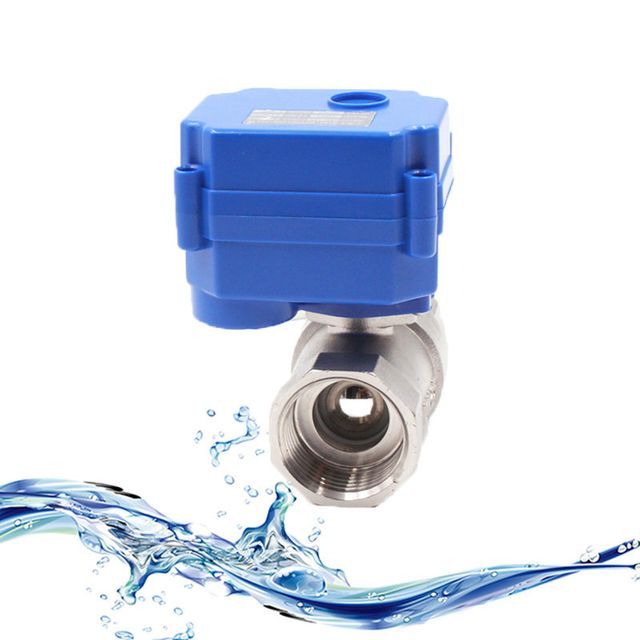

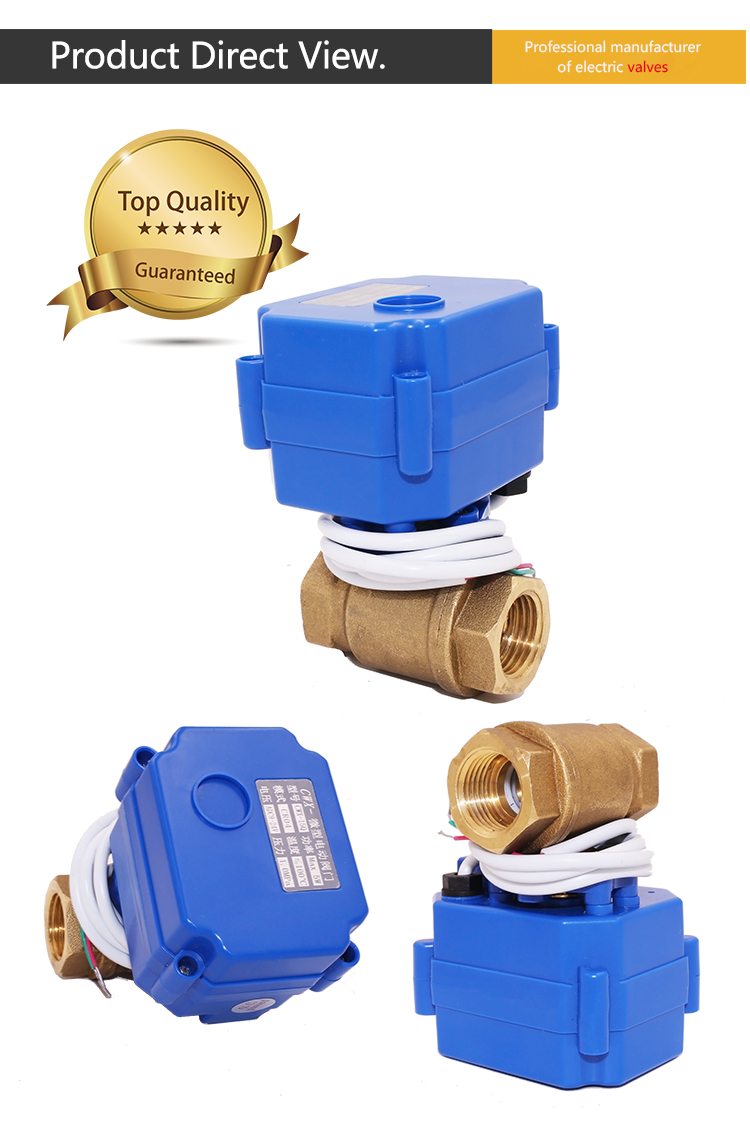

CWX-15N DC5v DC12v ADC9-24V AC85-220V Brass SS304 UPVC 2 Way Electric Ball Valve
Product number | CWX-15Q | CWX-15N |
output torque | 1.5nm | 2 nautical miles |
Rated voltage | DC 3-6V DC 12V AC/DC 9-24V AC 220V AC 85-265V |
DC 3-6V DC 12V AC/DC 9-24V AC 220V AC 85-265V |
strength | <3W | <2W |
Working current | Max100mA (CR04 except Max150mA) | <100mA (CR04 except Max150mA) |
on/off time | <3 seconds | 5S |
position indicator | yes (no by default) | yes (no by default) |
manual override | No | No |
gear material | POM and metal gears | POM and metal gears |
work pressure | Max1.0Mpa | Max1.0Mpa |
Valve material | brass PVC Stainless steel |
brass PVC Stainless steel |

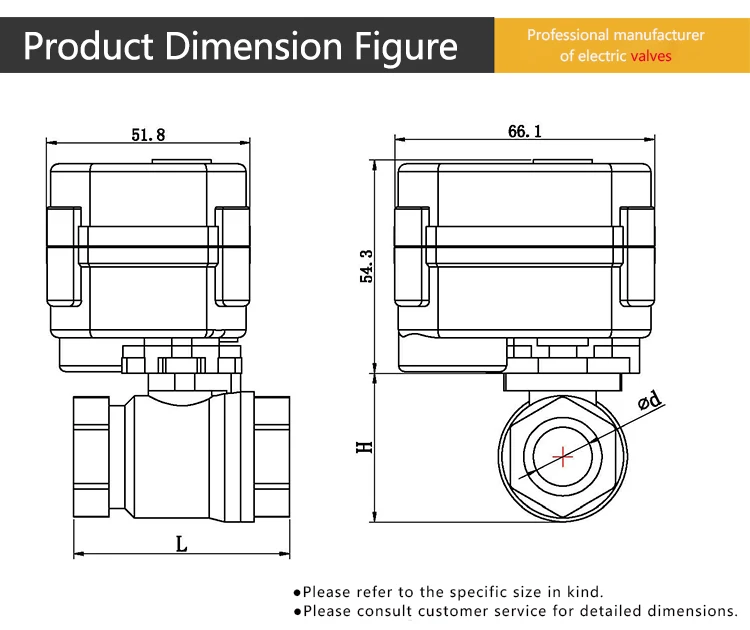

valve size | DN8-DN20 | Maximum diameter 32 2-way DN8-DN25 Tee DN8-DN25 Reduced port DN25 or smaller |
control method | CR01 CR02 CR02+ CR03 CR03A CR04 CR05 |
CR01 CR02 CR02+ CR03 CR03A CR03T CR04 CR05 |
ambient temperature | 0-50℃ | 0-50℃ |
Medium temperature | 0-90℃ | 0-90℃ |
degree of protection | IP65 | IP65 |
Signal | No | No |
product life | 5W | 5W |
