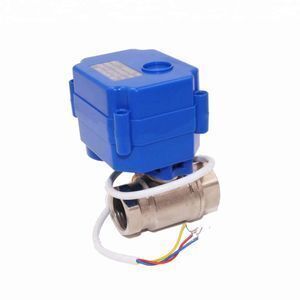

2 way CWX-15N mini electric actuator motor operated ball valve

Product details
Packaging Detail:Paper carton;product life time:100,000 times;
wiring:CR01,CR02,CR03,CR04,CR05;model:CWX-15;
material:brass,stainless steel;current:<100mA;
Application:General;pressure:1.0MPa;
open/close time:3sec 5sec;special function:angle adjustable open 30% 60% 90%;
Selling Units:Single item;Media:Water;
Standard or Nonstandard:Standard;Structure:Ball;
Power:Solenoid;certificate:ISO,RoHS,CE;
voltage:DC3-6v,DC12v,DC24v,ADC9-24v,AC85-265v;Single package size:13X10X8 cm;
Pressure:Medium Pressure;Model Number:CWX;
Temperature of Media:Medium Temperature;Material:Stainless Steel;
Place of Origin:Tianjin China;Single gross weight:0.6 KG;
Port Size:1/4''-1'';Brand Name:CWX;

2 way CWX-15N mini electric actuator motor operated ball valve

Product Description

    1,Metal gearbox and POM gear design, low noise, perform reliably .

    2,Long service life: more than 100000 circles.

    3,Electric limit and machinery limit design, located accurately, avoid gear run continuously.

    4,Mufti-angle assembling, easy to install.

    5,Float ball structure, no leakage,especially suitable for heavy pollution conditions.



    1.Heat energy meters, fire work, save water system.

    2.Auto control system, industrial mini auto control equipment.

    3.Water saving equipment, drinking water equipment.

    4.Air-conditioning fan coin(HVAC).



Product ModelRated VoltageWorking currentOutput torqueOpen/close timeSize
CWX-15QDC3-6V
DC12V
AC/DC9-24V
AC220V
AC85-265V

Max100mA

(CR04 except Max150mA)

Max1.5NM<3sDN8-DN20
CWX-15N Max2.0NM<5sDN8-DN32
Working pressurePowerMedium temperatureControl modeIP GradeSpecial function
Max1.0Mpa<3W0-90℃CR01   CR02 CR02+  CR03 CR03A  CR04   CR05IP65CR01 CR02 CR03 CR04(with singal feedback)



Brass



 Connection Sizes d H L

Both female thread

Full-port


 DN8 846  31
 DN15 15 5738
 DN2020 71 45
 DN25 23.572 49
    Both female thread      Reduce-port    DN10 84631
DN20  1566 38
DN25  2072 47
DN32  258660

Vertical

Three-way

DN15126349
DN20156653
  Female-male thread  DN15156338
DN20156638
DN32207650
Both male threadDN15156838
SS304/316Both female threadDN884631
DN1084630.5
DN15155538
DN20156339
DN20207145
DN25207547
DN25257249







Company Information

Tianjin Tianfei High-Tech Valve Co., Ltd. is a professional manufacturer of electric valve and manual valve, is a founding company of Tianjin Valve industry.Tianfei has a professional

R & D team,has won many letters of petent and the recognition of the Tianjin municipal government departments.“CWX”is our brand and our company has passed the

ISO9001,CE,RoHS,NSF61 certificate and so on,the products have exported to many countries and regions worldwide.

Our company motto is novative, simplified, high-valued, As having accumulated rich experiences and resources during more than 10 years developing, we are confident in providing you satisfied products and service in the cooperation. Tianfei pays attention to the quality of the products,use “CWX” valve is your correct choice.





Packaging & Shipping





FAQ

1. Are you manufacturer or trading company?
We are manufacturer, we had been produced electric valve for more than 10 years. So we have advantage in price. We also could do OEM.



2. What's the payment method?
T/T,Paypal,Western Union, Moneygram,Aliexpress, L/C ect.



3.What's your Minimum Order Quantity (MOQ)?
Our MOQ is 1piece.

4. What about the delivery time?
Sample need about 3 working days, large order delivery time will according to your quantity.



5..Would you have a discount if l have a large order?
A; Yes we could offer different discount according to your order quantity.



6.Where is the factory located?
Tianjin city and welcome to visit our factory.
