Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal; | Model Number: | CWX-15N/CWX-15Q; |
Brand Name: | CWX; | Medium: | Liquids; |
Material: | Brass; | Supply Ability: | 30000 Piece/Pieces per Month electric motorized flow control valve 12V; |
Voltage: | DC3/6V DC9/24V AC220V AC85/265V; | Application: | General; |
Body material: | SS304/Brass; | Packaging Detail: | paper carton(electric motorized flow control valve 12V); |
Port Size: | 1/4"~5/4'' 2-way; | Pressure: | Medium Pressure; |
Place of Origin: | Tianjin China (Mainland); | Connection: | Bsp.NPT; |
Power: | electric; | Product name: | electric motorized flow control valve 12V; |
Open time: | <5S; | Media: | Water; |
Working pressure: | Max1.0MPa; | Type: | 2way/3way; |
Temperature of Media: | Normal Temperature; | Certificate: | CE; |
Port: | Tianjion; | Size: | DN8~DN32; |
Structure: | Ball; |

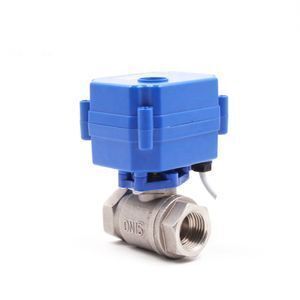

CWX-15N stainless steel brass BSP NPT motorized flow control valve 12V electric actuator ball valve 12v 24v 110v 220v
CWX-15N stainless steel brass BSP NPT motorized flow control valve 12V electric actuator ball valve 12v 24v 110v 220v
1,Metal gearbox and POM gear design, low noise, perform reliably .
2,Long service life: more than 100000 circles.
3,Electric limit and machinery limit design, located accurately, avoid gear run continuously.
4,Mufti-angle assembling, easy to install.
5,Float ball structure, no leakage,especially suitable for heavy pollution conditions.
1.Heat energy meters, fire work, save water system.
2.Auto control system, industrial mini auto control equipment.
3.Water saving equipment, drinking water equipment.
4.Air-conditioning fan coin(HVAC).
CWX-15N stainless steel brass BSP NPT motorized flow control valve 12V electric actuator ball valve 12v 24v 110v 220v
Product Model | Rated Voltage | Working current | Output torque | Open/close time | Size |
CWX-15Q | DC3-6V DC12V AC/DC9-24V AC220V AC85-265V | Max100mA (CR04 except Max150mA) | Max1.5NM | <3s | DN8-DN20 |
CWX-15N | Max2.0NM | <5s | DN8-DN32 | ||
Working pressure | Power | Medium temperature | Control mode | IP Grade | Special function |
Max1.0Mpa | <3W | 0-90℃ | CR01 CR02 CR02+ CR03 CR03A CR04 CR05 | IP65 | CR01 CR02 CR03 CR04(with singal feedback) |
CWX-15N stainless steel brass BSP NPT motorized flow control valve 12V electric actuator ball valve 12v 24v 110v 220v
CWX-15N stainless steel brass BSP NPT motorized flow control valve 12V electric actuator ball valve 12v 24v 110v 220v
Brass
| Connection | Sizes | d | H | L |
Both female thread Full-port | DN8 | 8 | 46 | 31 | |
DN15 | 15 | 57 | 38 | ||
DN20 | 20 | 71 | 45 | ||
DN25 | 23.5 | 72 | 49 | ||
Both female thread Reduce-port | DN10 | 8 | 46 | 31 | |
DN20 | 15 | 66 | 38 | ||
DN25 | 20 | 72 | 47 | ||
DN32 | 25 | 86 | 60 | ||
Vertical Three-way | DN15 | 12 | 63 | 49 | |
DN20 | 15 | 66 | 53 | ||
Female-male thread | DN15 | 15 | 63 | 38 | |
DN20 | 15 | 66 | 38 | ||
DN32 | 20 | 76 | 50 | ||
Both male thread | DN15 | 15 | 68 | 38 | |
SS304/316 | Both female thread | DN8 | 8 | 46 | 31 |
DN10 | 8 | 46 | 30.5 | ||
DN15 | 15 | 55 | 38 | ||
DN20 | 15 | 63 | 39 | ||
DN20 | 20 | 71 | 45 | ||
DN25 | 20 | 75 | 47 | ||
DN25 | 25 | 72 | 49 |
Tianjin Tianfei High-Tech Valve Co., Ltd. is a professional manufacturer of electric valve
and manual valve, is a founding company of Tianjin Valve industry.Tianfei has a professional R & D team,has won many letters of petent and the recognition of the Tianjin municipal government departments.“CWX”is our brand and our company has passed theISO9001,CE,RoHS,NSF61 certificate and so on,the products have exported to many countries and regionsworldwide.
Our company motto is novative, simplified, high-valued, As having accumulated rich experiences and resources during more than 10 years developing,
we are confident inproviding you satisfied products and service in the cooperation. Tianfei pays attention to the quality of the products,use “CWX” valve is your correct choice.
1. Are you manufacturer or trading company?
We are manufacturer, we had been produced electric valve for more than 10 years. So we have advantage in price. We also could do OEM.
2. What's the payment method?
T/T,Paypal,Western Union, Moneygram,Aliexpress, L/C ect.
3.What's your Minimum Order Quantity (MOQ)?
Our MOQ is 1piece.
4. What about the delivery time?
Sample need about 3 working days, large order delivery time will according to your quantity.
5..Would you have a discount if l have a large order?
A; Yes we could offer different discount according to your order quantity.
6.Where is the factory located?
Tianjin city and welcome to visit our factory.
CWX-15N stainless steel brass BSP NPT motorized flow control valve 12V electric actuator ball valve 12v 24v 110v 220v
