ball valve wifi automatic smart valve stainless steel brass BSP NPT motorized flow control intelligent wifi water shutoff valve

Supplier: Tianjin Tianfei High-Tech Valve Co., Ltd.
Region: Tianjin, China
Contact: Ms Xiaojing Wang
Price: $35.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Media:	Water;	Open time:	<30S fully open/close;
Structure:	BALL;	Brand Name:	CTF;
Port Size:	1/4"~5/4'' 2-way;	Package Preview:	;
Body material:	SS304/Brass;	Packaging Detail:	paper carton(intelligent wifi water shutoff valve);
Model Number:	CTF001 WIFI motorized valve;	Place of Origin:	Tianjin China;

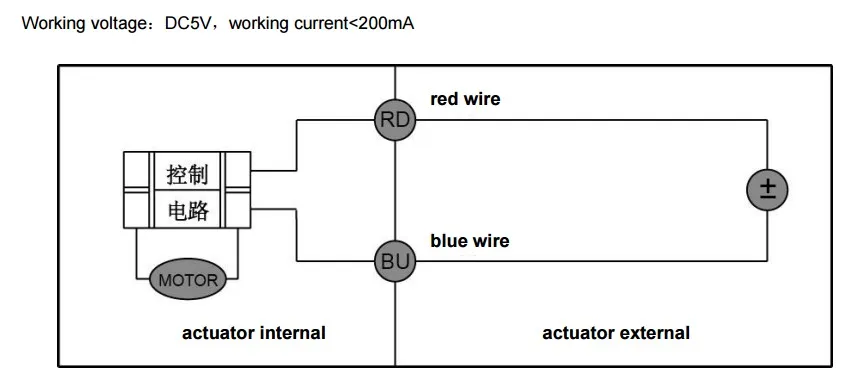

Voltage:	DC5V;	Certificate:	CE;
Power:	electric;	Application:	General;
Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram,Paypal;	Working pressure:	Max1.0MPa;
Temperature of Media:	Normal Temperature;	Supply Ability:	30000 Piece/Pieces per Month intelligent wifi water shutoff valve;
Port:	Tianjion;	Size:	DN8~DN32;
Type:	2way/3way,BALL VALVES,Float Valves,Drain Valves,Water Regulating Valves;	Product name:	wifi ball valve water valve wifi automatic shut off valve smart valve;
screw:	BSP.NPT;	Medium:	Liquids;

Product Description

wifi ball valve wifi water valve wifi automatic shut off smart valve stainless steel brass BSP NPT motorized flow control valve intelligent wifi water shutoff valve

wifi water valve wifi automatic shut off smart valve stainless steel brass BSP NPT motorized flow control valve

1. WIFI wireless connection, mobile APP remote control,

2.Manual Override, the valve can be operated when power failure;

3. Real-time status feedback, easy installation, plug- and- play,

4.Super torque, micro high temperature resistance, long life electric ball valve.

5.The valve can realize angle adjustment, timing switch, flow control.

wifi water valve wifi automatic shut off smart valve stainless steel brass BSP NPT motorized flow control valve

This product is widely used for various liquid, gas, pressure, temperature and other needs

1. University laboratories, automobile laboratories;

2. Drug production, diesel energy saving, etc.;

3. University water-saving, automatic control system, industrial automatic control and other small equipment;

4. Environmental protection, water supply and drainage, and water treatment projects;

5. Places solenoid valve can not be used normally;

6. Water-saving appliances, drinking water equipment,

wifi water valve wifi automatic shut off smart valve stainless steel brass BSP NPT motorized flow control valve

Body size	DN8-DN32	Voltage	DC5V
Output torque	10NM	Fully open/close time	<30s
Transmission mode	WIFI	WIFI frequency	2.4G
Motor power	<5W	Working current	<200mA
Medium temperature	0-90℃	Protect level	IP65

*High performance industrial computer core, high torque output; Dn8-dn32 diameter ball valve can be driven.

WIFI wireless connection;

*2.4G frequency transmission, in line with IEEE 802.11b/G/N standard; Remote control of mobile APP;

*Real-time status feedback; Control accuracy: 0.5%~1%; Easy to install, plug and play;

*The electric actuator has two working states: timing mode and Angle adjustment mode;

* Open angle can choose from 10%,20%,30%,40%,50%,60%,70%,80%,90%,100%

CWX-15N stainless steel brass BSP NPT motorized flow control valve 12V electric actuator ball valve 12v 24v 110v 220v

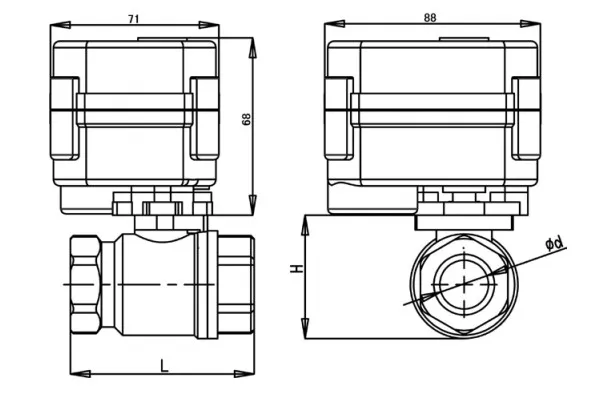

Brass	Connection	Sizes	d(mm)	H(mm)	L(mm)
	Both female thread Full-port	DN8	8	46	31
		DN15	15	57	38
		DN20	20	71	45
		DN25	23.5	72	49
	Both female thread Reduce-port	DN10	8	46	31
		DN20	15	66	38
		DN25	20	72	47
		DN32	25	86	60
	Vertical Three-way	DN15	12	63	49
	Vertical Three-way	DN20	15	66	53
	Female-male thread	DN15	15	63	38
		DN20	15	66	38
		DN32	20	76	50
	Both male thread	DN15	15	68	38
SS304	Both female thread	DN8	8	46	31
		DN10	8	46	30.5
		DN15	15	55	38
		DN20	15	63	39
		DN20	20	71	45
		DN25	20	75	47
		DN25	25	72	49
