Media: | Water; | Supply Ability: | 20000 Piece/Pieces per Month; |

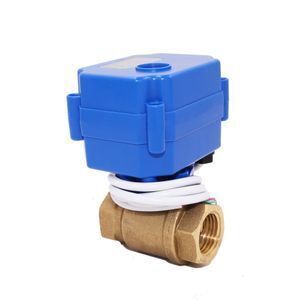

Product name: | CWX-15N 2 way brass ss304 mini electric motorized water ball valve; | Model Number: | CWX15N/Q motorized ball valve; |
Enclosure: | IP65; | Temperature of Media: | Normal Temperature,Max 90degree; |
Brand Name: | CWX; | Power: | electric, motorized; |
Application: | General; | Power: | 2w; |

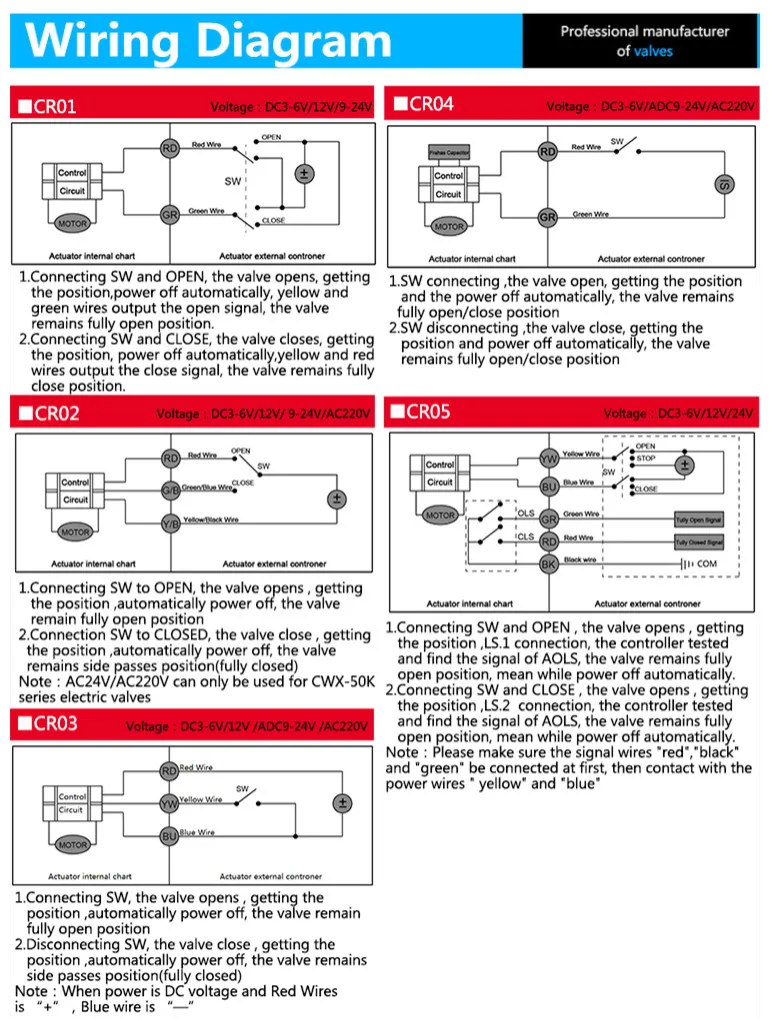

Structure: | Ball; | Control mode: | 2,3,5 wires(CR01/02/03/04/05/06); |
Output torque: | 2.0NM; | Connection: | Thread BSP NPT; |
Port: | Tianjin ,China; | Open/close time: | 3-5seconds; |
Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal; | Place of Origin: | Tianjin China; |
Current: | Max100mA (CR04 Max150mA); | Rated Volotage: | DC3.6V-6V/AC/DC9-24V,AC85-265V; |
Packaging Detail: | Packaging Detail: Inner packaging: paper box:1~2PC/Paper Box Outer packaging: cartonbox , 30-80PCS/CTN for 5v 3.6v 12v 24v 110v 220v DN15 DN20 CWX-15N 2 way brass ss304 mini electric motorized water ball valve for water irrigation; | Type: | BALL VALVES; |
Port Size: | DN8 DN10 DN15 DN20 DN25; | Certificate: | ISO,CE,ROHS; |
1,Metal gearbox and POM gear design, low noise, perform reliably .
2,Long service life: more than 50000 circles.
3,electric limit and machinery limit design, located accurately, avoid gear run continuously.
4,Mufti-angle assembling, easy to install.
5,Float ball structure, no leakage,especially suitable for heavy pollution conditions.
1.Heat energy meters, fire work, save water system.
2.Auto control system, industrial mini auto control equipment.
3.Water saving equipment, drinking water equipment.
4.Air-conditioning fan coin(HVAC).
Product Model | Rated Voltage | Working current | Output Torque | Opening time | Caliber adapter |
CWX-15Q | DC3.6-6V DC12V AC/DC9-24V AC220V AC85-265V | Max100mA (CR04 except Max150mA) | Max1.5NM | <3s | DN8-DN20 |
CWX-15N | Max2.0NM | <5s | DN8-DN32 | ||
Working pressure | Power | Medium temperature | Control Mode | IP Grade | Special function |
Max1.0Mpa | <3W | 0-90℃ | CR01 CR02 CR02+ CR03 CR03A CR04 CR05 | IP65 | could customised with position indicator |
Brass
| Connection-Way | Sizes | d | H | L |
Female-Female thread Full-Port | DN8 | 8 | 46 | 31 | |
DN15 | 15 | 57 | 38 | ||
DN20 | 20 | 71 | 45 | ||
DN25 | 23.5 | 72 | 49 | ||
Female-female thread Reduced Bore | DN10 | 8 | 46 | 31 | |
DN20 | 15 | 66 | 38 | ||
DN25 | 20 | 72 | 47 | ||
DN32 | 25 | 86 | 60 | ||
Vertical Three-Way | DN15 | 12 | 63 | 49 | |
DN20 | 15 | 66 | 53 | ||
Female-male Thread | DN15 | 15 | 63 | 38 | |
DN20 | 15 | 66 | 38 | ||
DN32 | 20 | 76 | 50 | ||
Male-male thread | DN15 | 15 | 68 | 38 | |
SS304/316 | Female-female thread | DN8 | 8 | 46 | 31 |
DN10 | 8 | 46 | 30.5 | ||
DN15 | 15 | 55 | 38 | ||
DN20 | 15 | 63 | 39 | ||
DN20 | 20 | 71 | 45 | ||
DN25 | 20 | 75 | 47 | ||
DN25 | 25 | 72 | 49 |
Tianjin Tianfei High-Tech Valve Co., Ltd. is a professional manufacturer of electric valve and manual valve, is a founding company of Tianjin Valve industry.Tianfei has a professional
R & D team,has won many letters of petent and the recognition of the Tianjin municipal government departments.“CWX”is our brand and our company has passed the
ISO9001,CE,RoHS,NSF61 certificate and so on,the products have exported to many countries and regions worldwide.
Our company motto is novative, simplified, high-valued, As having accumulated rich experiences and resources during more than 10 years developing, we are confident in providing you satisfied products and service in the cooperation. Tianfei pays attention to the quality of the products,use “CWX” valve is your correct choice.
1. Are you manufacturer or trading company?
We are manufacturer, we had been produced electric valve for more than 10 year. So we have advantage in price. We also could do OEM.
2. What's the Payment Method?
T/T,Paypal,Western Union, Moneygram,Aliexpress, L/C ect.
3.What's your Minimum Order Quantity (MOQ)?
Our MOQ is 1piece.
4. What about the delivery time?
Sample need about 3 working days, large order delivery time will according to your quantity.
5..Would you have a discount if l have a large order?
A; Yes we could offer different discount according to your order quantity.
6.Where is the factory located?
Tianjin city and welcome to visit our factory.
