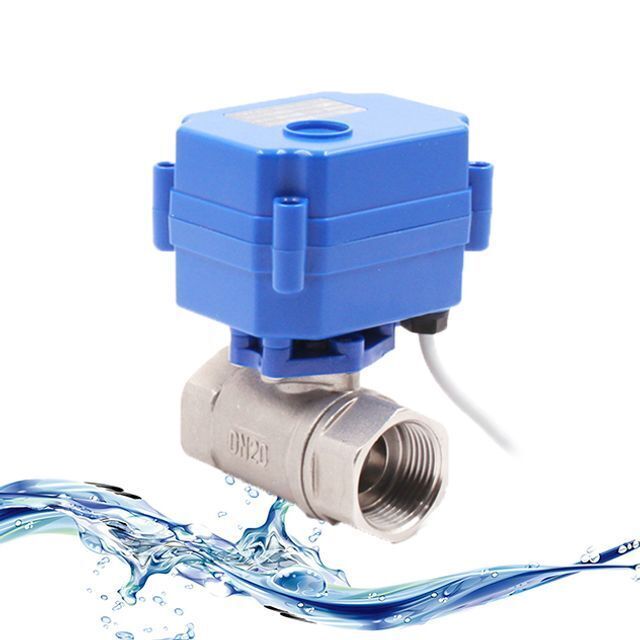

Electrical ADC Motor Control Ball Valve Wireless Remote Operated Automatic Drain Shut off Valve Parts

Product details
Brand Name:TF;Voltage:DC3-6V 12V AC/DC9-24V AC220V;
Medium:Liquids;Type:2/3--way L/T flow,BALL VALVES;
Connection:BSP.NPT;Standard:NPT BSP;
Supply Ability:1000 Units per Day;Size:DN8-DN32;
Warranty:1 year;Structure:BALL;
Body material:Brass,Plastic,SS316/304;Place of Origin:Tianjin, China;
Package Preview:;Application:General;
Certificate:CE;Standard or Nonstandard:Standard;
Working pressure:Max1.0MPa;Port Size:1/4inch to 1inch DN8-DN32;
Media:Water;Temperature of Media:Normal Temperature;
Payment Terms:L/C,Western Union,D/P,D/A,T/T,MoneyGram,Paypal, Alipay, Wechat Pay;Packaging Detail:carton box for Electrical ADC Motor Control Ball Valve Wireless Remote Operated Automatic Drain Shut off Valve Parts;
Port:Xingang;Power:electric;
Customized support:OEM;Model Number:CWX-15;

Electrical ADC Motor Control Ball Valve Wireless Remote Operated Automatic Drain Shut off Valve Parts

Product Description





    1,Metal gearbox and POM gear design, low noise, perform reliably .

    2,Long service life: more than 100000 circles.

    3,Electric limit and machinery limit design, located accurately, avoid gear run continuously.

    4,Mufti-angle assembling, easy to install.

    5,Float ball structure, no leakage,especially suitable for heavy pollution conditions.



    1.Heat energy meters, fire work, save water system.

    2.Auto control system, industrial mini auto control equipment.

    3.Water saving equipment, drinking water equipment.

    4.Air-conditioning fan coin(HVAC).



Product Model Rated Voltage Working current Output torque Open/close time Size
CWX-15Q DC3-6V
DC12V
AC/DC9-24V
AC220V
AC85-265V

Max100mA

(CR04 except Max150mA)

Max1.5NM <3s DN8-DN20
CWX-15N  Max2.0NM <5s DN8-DN32
Working pressure Power Medium temperature Control mode IP Grade Special function
Max1.0Mpa <3W 0-90℃ CR01   CR02 CR02+  CR03 CR03A  CR04   CR05 IP65 CR01 CR02 CR03 CR04(with singal feedback)



Brass



 Connection  Sizes  d  H  L

Both female thread

Full-port


 DN8  8 46   31
 DN15  15  57 38
 DN20 20  71  45
 DN25  23.5 72  49
    Both female thread      Reduce-port     DN10  8 46 31
DN20   15 66  38
DN25   20 72  47
DN32   25 86 60

Vertical

Three-way

DN15 12 63 49
DN20 15 66 53
  Female-male thread  DN15 15 63 38
DN20 15 66 38
DN32 20 76 50
Both male thread DN15 15 68 38
SS304/316 Both female thread DN8 8 46 31
DN10 8 46 30.5
DN15 15 55 38
DN20 15 63 39
DN20 20 71 45
DN25 20 75 47
DN25 25 72 49



Company Information

Tianjin Tianfei High-Tech Valve Co., Ltd. is a professional manufacturer of electric valve

and manual valve, is a founding company of Tianjin Valve industry.Tianfei has a professional R & D team,has won many letters of petent and the recognition of the Tianjin municipal government departments.“CWX”is our brand and our company has passed theISO9001,CE,RoHS,NSF61 certificate and so on,the products have exported to many countries and regionsworldwide.

Our company motto is novative, simplified, high-valued, As having accumulated rich experiences and resources during more than 10 years developing,

we are confident inproviding you satisfied products and service in the cooperation. Tianfei pays attention to the quality of the products,use “CWX” valve is your correct choice.



Packaging & Shipping



FAQ

1. Are you manufacturer or trading company?
We are manufacturer, we had been produced electric valve for more than 10 years. So we have advantage in price. We also could do OEM.



2. What's the payment method?
T/T,Paypal,Western Union, Moneygram,Aliexpress, L/C ect.



3.What's your Minimum Order Quantity (MOQ)?
Our MOQ is 1piece.

4. What about the delivery time?
Sample need about 3 working days, large order delivery time will according to your quantity.



5..Would you have a discount if l have a large order?
A; Yes we could offer different discount according to your order quantity.



6.Where is the factory located?
Tianjin city and welcome to visit our factory.
