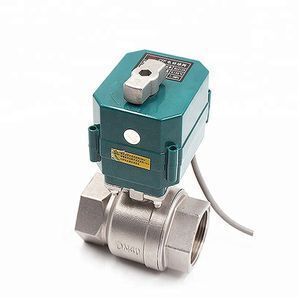

motorized actuator 1/2" 3/4" 1" 11/4" 11/2" 2" BSP NPT electric ball valve 5v 9-24V 220V 2 inch motorized valve

Product details
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal;Brand Name:CTF;
voltage:DC3-6V DC12V A/DC9-24V AC220V AC85-265V;Open/Close time:<12S;
Body material:Stainless Steel/PVC;Product name:2 inch motorized valve;
Pressure:Medium Pressure,16Bar 1.6Mpa;Port Size:1/2" 3/4" 1" 11/4" 11/2" 2";
Application:General;Supply Ability:30000 Set/Sets per Month 2 inch motorized valve;
Temperature of Media:Medium Temperature;Protection class:IP65;
Power:electric motor;Structure:BALL;
Place of Origin:Tianjin China;Media:Water;
Life time:50000 times;output torque:10NM;
Port:Tianjin China,;Material:Stainless Steel;
Size Scope:DN8-50 2 way DN15-25 3 way;Model Number:CTF-001;
Number of wires:CR01 CR02 CR03 CR04 CR05;Working Pressure:Max 1.6 Mpa(16bar);
Packaging Detail:carton(2 inch motorized valve);
Product Description
motorized actuator 1/2" 1" 2" BSP NPT electric ball valve DC3-6V DC12V A/DC9-24V AC220V AC85-265V automatic control ball valve 2 inch motorized valve



 motorized actuator 1/2" 3/4" 1" 11/4" 11/2" 2" BSP NPT electric ball valve 5v 9-24V 220V 2 inch motorized valve

    1.Simple shape, small size, all-metal gear driving, reliable performance, large torque

up to 15NM, is the interface between mini and industrial-grade valve, the valve sealed

with float structure, no dripping and suitable for heavy dirt and long-term non-action occasions.

    2.Electrical and mechanical double limit, accurate positioning, high consistency.

    3.The connection of actuator and valve belong to ISO5211 standard, flange type

F03, F05,convenience for user choose valve body. And supply brass, stainless steel

ball valve and PVC ball valve, IP65 enclosure, can be used in a relatively humid environment.

    4.Position indicator and manual override function (suitable for sudden power failure

or accident emergency switch )



  motorized actuator 1/2" 3/4" 1" 11/4" 11/2" 2" BSP NPT electric ball valve 5v 9-24V 220V 2 inch motorized valve

1. University LABS, automotive laboratories.

2. Drug production, diesel fuel saving, etc.

3. Small equipment such as water saving, automatic control system and industrial

automatic control in colleges and universities.

4. Agricultural irrigation, environmental protection, water supply and drainage, water treatment works.

5. Water-saving appliances, drinking water equipment, etc.



  motorized actuator 1/2" 3/4" 1" 11/4" 11/2" 2" BSP NPT electric ball valve 5v 9-24V 220V 2 inch motorized valve

 Product model Rated voltage Output torque Open/close time Control model Working pressure Special function
 CTF001     DC3-6V
DC12V
A/DC9-24V
AC220V
AC85-265V
 Max10NM <12s CR01   CR02  CR03   CR04  CR05  Max1.6Mpa CR01 CR02 CR03 CR03 CR04(with signal feedback)
 Motor voltage Power Working current Medium temperature Size IP Garde
 5V Max18W <500mA 0-90℃   DN8-50 Two-way DN15-25 Three-way   IP65
 12V Max22W <300mA
 24V Max22W <100mA





  motorized actuator 1/2" 3/4" 1" 11/4" 11/2" 2" BSP NPT electric ball valve 5v 9-24V 220V 2 inch motorized valve

 Material Sizes d L H
 SS304/316      DN15 15 62 55
 DN20 20 71 63
 DN25 25 81 78
 DN32 32 93 84
 DN40 40 102 91
 DN50 50 118 107
 UPVC      DN15 15 121 50
 DN20 20 135 62
 DN25 25 150 69
 DN32 32 165 82
 DN40 40 181 99
 DN50 50 206 122



  motorized actuator 1/2" 3/4" 1" 11/4" 11/2" 2" BSP NPT electric ball valve 5v 9-24V 220V 2 inch motorized valve

MaterialSizesdLWH
Horizontal Three-way (Brass)DN1515614846
DN2020674854
DN2525967468
DN323289.326857
Horizontal Three-way (SS304/316) DN1515805254
DN2020826259
DN2525876771
DN32321159089





Company Information

Tianjin Tianfei High-Tech Valve Co., Ltd. is a professional manufacturer of electric valve

and manual valve, is a founding company of Tianjin Valve industry.Tianfei has a professional R & D team,has won many letters of petent and the recognition of the Tianjin municipal government departments.“CWX”is our brand and our company has passed theISO9001,CE,RoHS,NSF61 certificate and so on,the products have exported to many countries and regionsworldwide.

Our company motto is novative, simplified, high-valued, As having accumulated rich experiences and resources during more than 10 years developing,

we are confident inproviding you satisfied products and service in the cooperation. Tianfei pays attention to the quality of the products,use “CWX” valve is your correct choice.



Packaging & Shipping



FAQ

1. Are you manufacturer or trading company?
We are manufacturer, we had been produced electric valve for more than 10 years. So we have advantage in price. We also could do OEM.



2. What's the payment method?
T/T,Paypal,Western Union, Moneygram,Aliexpress, L/C ect.



3.What's your Minimum Order Quantity (MOQ)?
Our MOQ is 1piece.

4. What about the delivery time?
Sample need about 3 working days, large order delivery time will according to your quantity.



5..Would you have a discount if l have a large order?
A; Yes we could offer different discount according to your order quantity.



6.Where is the factory located?
Tianjin city and welcome to visit our factory.
