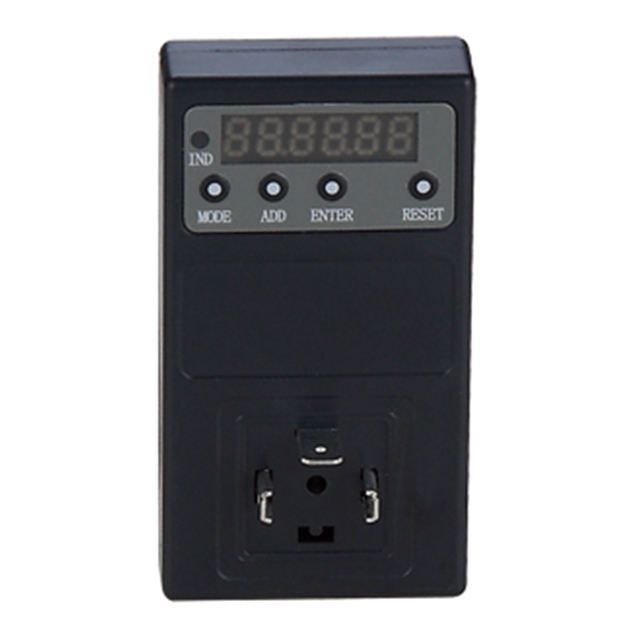

Electronic analog and digital digital interval timer

Supplier: Yuyao No. 4 Instrument Factory
Region: Zhejiang, China
Contact: Ms Ying Liu
Price: $10.00 /set
Min. Order: 1 set

Click here to contact

Product details

Why us? :	Over 40 years of history since its establishment in 1965	Material:	plastic
pressure:	low pressure	structure:	diaphragm
place of origin; place of origin:	Zhejiang, China	media:	according to
Standard or non-standard:	standard	brand:	round star
model:	RSX	Shipping Details:	30 days
application:	General	Port size:	standard
Packaging Details:	Standard export packaging	Medium temperature:	room temperature
strength:	solenoid	payment terms:	T/T, Western Union
port:	Ningbo	Supply capacity:	10000 sets per season

Drain valve:

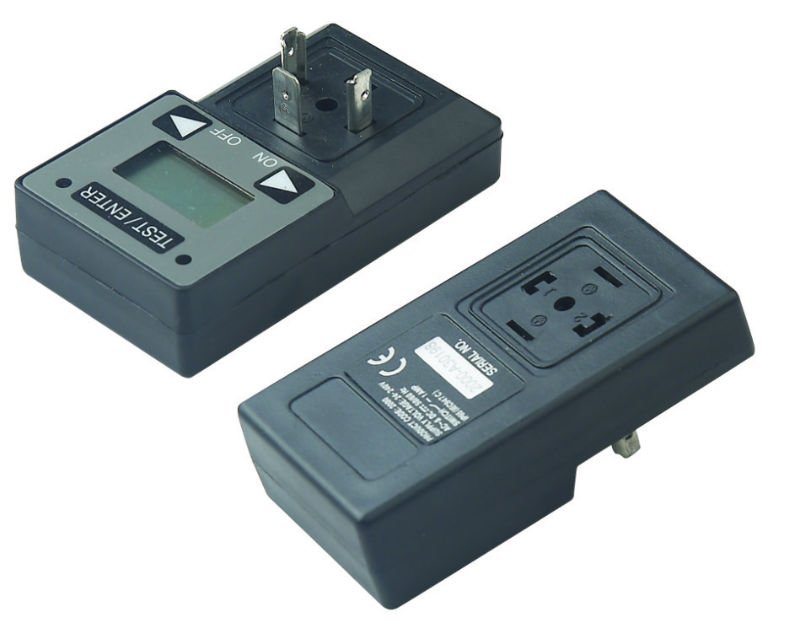

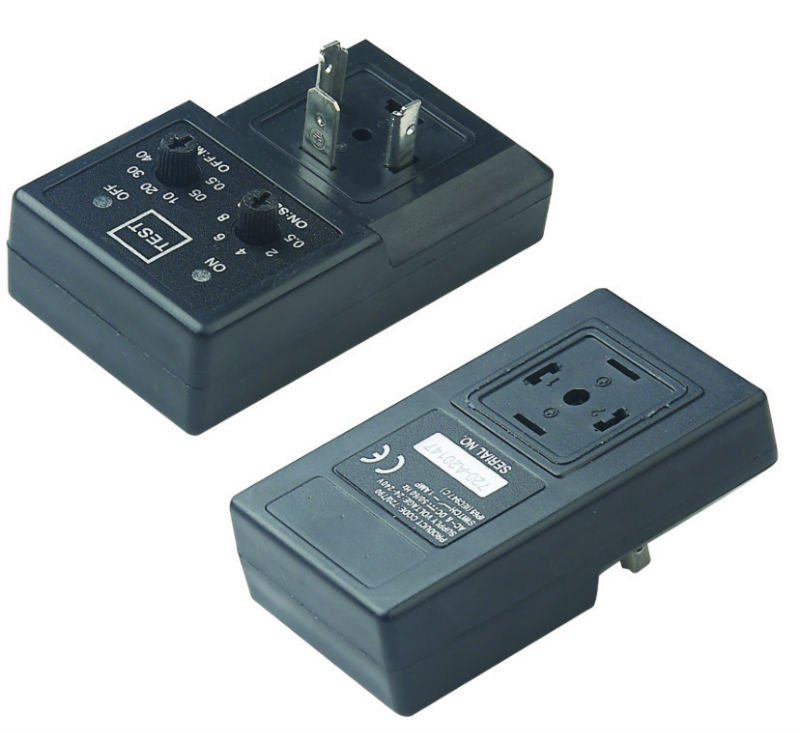

Solenoid valve plus timer

Onetimeris a special type of clock. Timers can be used to control the sequence of events or processes. and astopwatchCounting up from zero to measure elapsed time, atimerCount down from a specified time interval, like an hourglass. Timers can be mechanical, electromechanical, electronic (quartz), or even software, since all modern computers contain digital timers of one kind or another. Some timers simply indicate (for example, by an audible signal) when a set period of time has expired, while others operate an electrical switch, such as a time switch, which cuts power.

type	RSX-720	RSX-2000	RSX-11
voltage	24-240VAC/DC 50/60HZ	110-240VAC/DC 50/60HZ	24-240VAC/DC 50/60HZ
absorb	4MA	4MA	4MA
Operating temperature	-40 -60	-10~55	-40-60
time	0.5-10 seconds	0.5-99 seconds	2 seconds
Break time	0.5-45 minutes	0.5-99 minutes	0.5-120 minutes
Connectors and Gaskets	Standard 4650A	Standard 43650A	Standard 43650B
Class protection	Protection class 65	Protection class 65	Protection class 65
