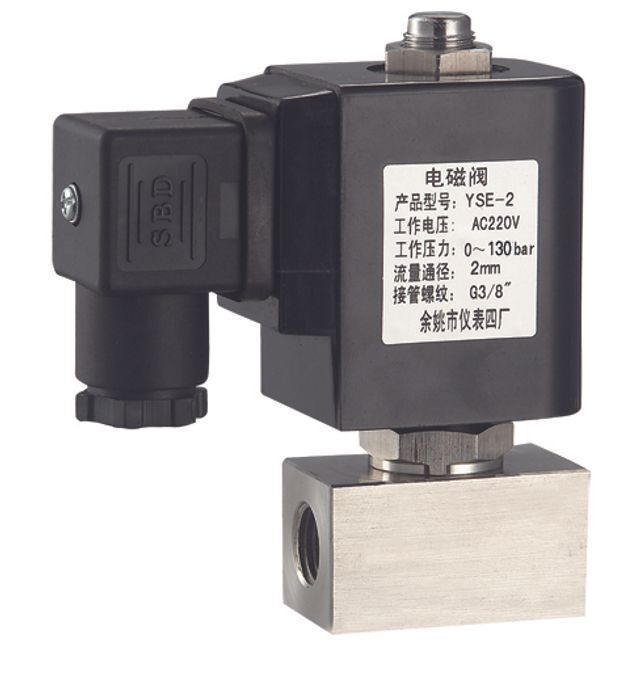

YSE-010 1/4' 3/8' stainless steel IP65 AC230V High pressure low power solenoid valve 300bar

Supplier: Yuyao No. 4 Instrument Factory
Region: Zhejiang, China
Contact: Ms Ying Liu
Price: $25.99 / 1 - 99 pieces
$20.99 / 100 - 999 pieces
$15.99 / >=1000 pieces
Min. Order: 1 piece

Click here to contact

Product details

Packaging Detail:	carton;	Media:	Gas;
Company spirit:	to challenge our future and pursue and surpass ourselves;	Standard or Nonstandard:	Standard;
Port Size:	1/4' 3/8';	Structure:	Pilot;
Type:	SOLENOID VALVES;	Temperature of Media:	High Temperature,Medium Temperature;
Company style:	to be faithful,practical, coorperative and efficient;	Brand Name:	Round Star;
Model Number:	YSE-010;	Payment Terms:	Western Union,D/A,T/T;
Warranty:	3 years;	Company value:	to make wealth for society and the values of employees realized;
Port:	ningbo;	Place of Origin:	Zhejiang, China;
why us?:	more than 40 years since founded in 1965;	Application:	General;
Supply Ability:	1000 Sets per Month;	Power:	Solenoid;
Customized support:	OEM;

Products Description

working medium : water、liquid、air、light oil（viscosity≤20cst）
medium temperature：0 ～ 120 ℃
working pressure： 0～300bar
working type：DN1mm～4mm direct acting DN10～25 pilot operated
valvebody material: SS304
sealing material: PTFE
interface：G thread NPT thread
Working voltage：AC220～240V AC110V 50/60Hz 30VA DC24/DC12V 25W I P65 H degree voltage could be custom made
options：
Nass coil LED light connector digital timer
ES low power energy saving coil（AC220V 4VA DC24V 4W） pressure conform to normal coil
Rc thread

Certifications

Company Profile

Performance testing equipment for solenoid valve
To supply qualified products,each solenoid valve has been tested strictly.

Automatic digital winding machine for the production of coil
We useautomatic digital high-speed winding machine for the production of coil. The machine is characteristic of parallel winding,
high precision and high speed.

Coil plastic capsulation workshop corner

Performance testing machine for solenoid coil

To guarantee the quality, each solenoid coil has been tested bin the aspects of resistor, laps, current, power and withstand
voltage.

German spectrometer

All the metal components of solenoid valve have been tested by OXFORD spectrometer to ensure the rightness of material, which
meets various requests for production

Iron-hand digital control lathe

High-tech iron-hand operating, each operator can manage more than 5 sets digital control lathes,which greatly improve the
production efficiency and sharply reduce the production cost. So we can offer more discount to the customer.

High performance digital automatic testing machine for solenoid valve

Each solenoid valve has been tested of high pressure, low pressure,leakage and so on, to ensure that we can offer satisfied
products for our customers.
