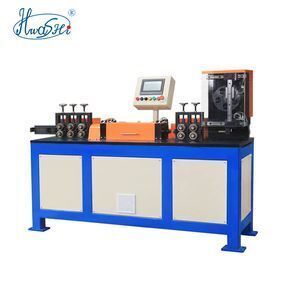

HWASHI 1.0-1.5mm Condenser Wire High Speed Wire Straightening and Cutting Machine

Product details
Package Type:Wooden Box;Type:Straightener & Cutter;
Certification:CE, CCC;Usage:High Speed Wire Straightening Machine;
After-sales Service Provided:Video technical support;Condition:New;
Warranty:1 Year;Single volume:5 cm;
Power(W):0.75KW;Weight:500kg;
Name:High Speed Wire Straightening and Cutting Machine;Use:Wire;
Motor power:0.75KW;Speed:150m/min;
Voltage:380V;Single gross weight:1,000 KG;
Cutting length:0.3mm-99m;Dimension(L*W*H):1500x500x1100mm;
Drawing material:Steel Iron;Brand Name:HWASHI;
Place of Origin:Guangdong China;Control system:PLC(Delta Brand);
OVER ALL SIZE:10x1m;Selling Units:Single item;
Color:Customer Demand;Wire diameter:1.0-1.5mm;
Product Description

Product Application

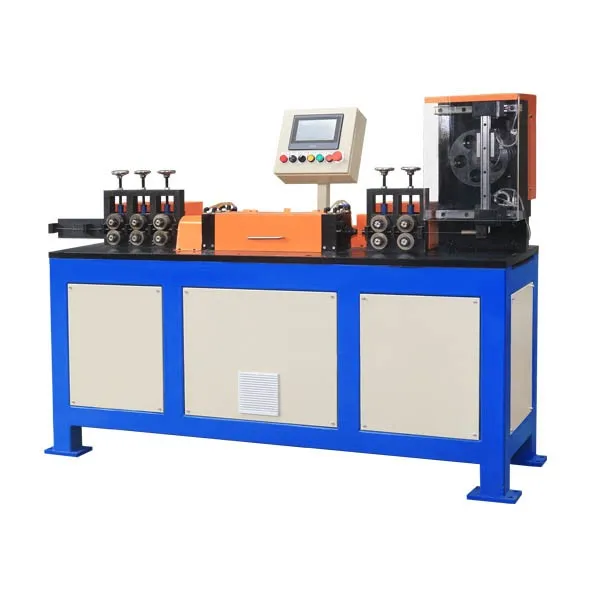

Condenser Wire High Speed Wire Straightening and Cutting Machine is for producing the iron wires which are used in producing condenser. It is driven by motor to do straightening and cutting in order to achieve high speed production. The machine is composed of decoiler, machine body and unloading tray. The main body is composed of wire feeding wheels, straightening shaft, encoder, rear wire wheel and rotary cutter.

Specifications for High Speed Wire Straightening and Cutting Machine
No.
Items
Data
1
Power
Three-phase 440V±10% four wires.
2
Rated Power
7.5KW
3
Wire Diameter
1.0mm-1.5mm
4
Cutting Range
100mm-1800mm (adjustable)
5
Cutting Speed (Max.)
350pcs/min
6
Wire Speed (Max.)
150m/min
7
Cutting Precision
except for accelerate and decelerate
8
Wire Material
Normal low carbon steel wire

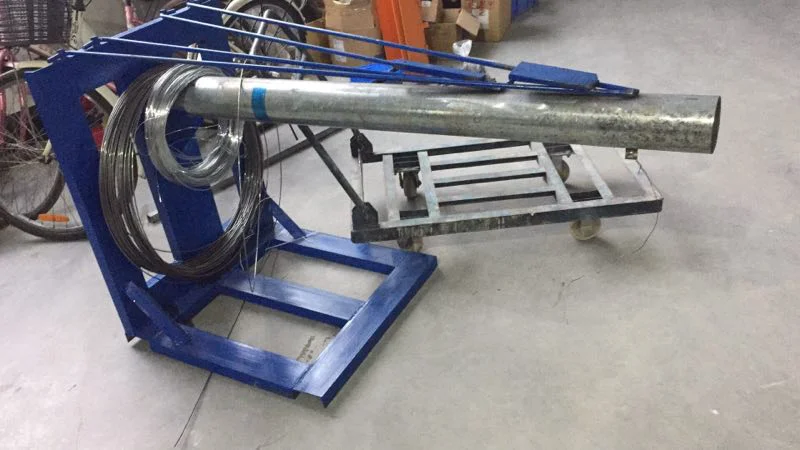

Decoiler

Holding Tray

Configuration


No.
Items
Brand
1
Machine Main Body
HWASHI professional welding, post weld stress relief treatment
2
Painting
Sand blasting treatment, surface spray powder, color can be customized.
3
PLC
DELTA
4
Servo Motor
HOUSINE
5
Touch Screen
KINCO
6
Encoder
Omron
7
Low Voltage Apparatus
CHNT
Certifications
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to install the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Quality Control
Our Company

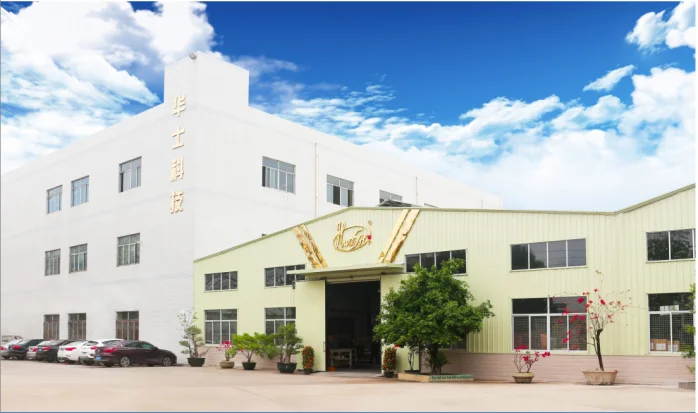

Story of HWASHI

Guangdong Hwashi Technology Inc. was established in 2001. The headquarter is located in Hwashi industrial park in Huizhou. Hwashi is a high-tech enterprise specialized in developing, manufacturing and selling of resistance welding machine, automatic welding machine and an industrial robot.

In the past 20 years, Hwashi has obtained more than 50 patents for invention patents, utility model patents, design patents, and software Copyrights. It is the drafting unit of several national standards and industry standards. Hwashi has been awarded "China famous brand", "Guangdong famous brand", "China quality credit enterprise", "world outstanding Chinese businessman association member unit", "Guangdong province science and technology innovation quality management advanced unit", "Guangdong province academician expert enterprise workstation" and many other honorary titles.


For 20 years, Hwashi keeps innovating and follow up with the latest technology in the world. Invest heavily in product development and innovation every year. In cooperation with key universities and national key laboratories and engineering technology centers in new materials and processes, the "medium frequency inverter" technology was first introduced into resistance welding equipment. Help to realize the "unmanned, intelligent" factory, the practice we have been striving for is to create efficient, energy saving, safe and environmentally friendly production environment for customers.

With the trend of intelligent manufacturing in the world, Hwashi has set up a large-scale robot development base of 50,000 square meters in Yichun City, Jiangxi province. Introducing the world's top advanced production and processing equipment in our factory. We have a technical team and high-quality workers including mechanical, electronic, welding, automatic control, electromechanical integration, and management. We are committed to providing customers with efficient automation welding solutions in order to become a leading enterprise in world-class industrial intelligent equipment.

Related Products

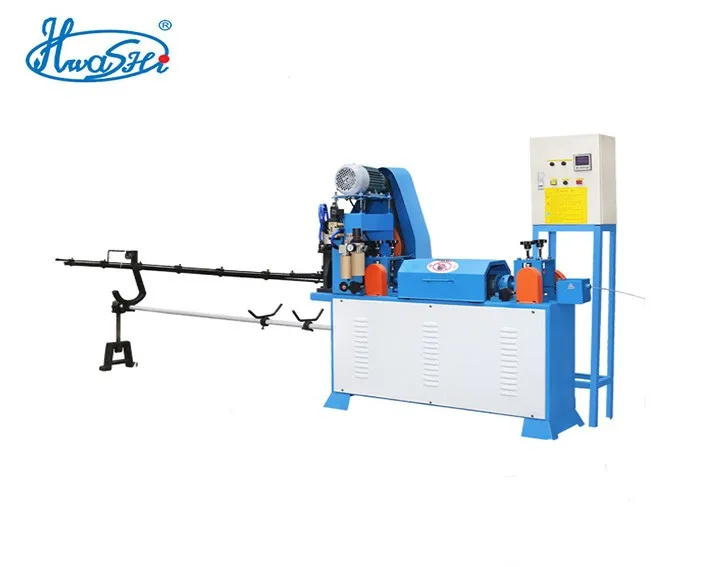

Normal Speed Wire Straigtener and Cutter

91.8% Response Rate

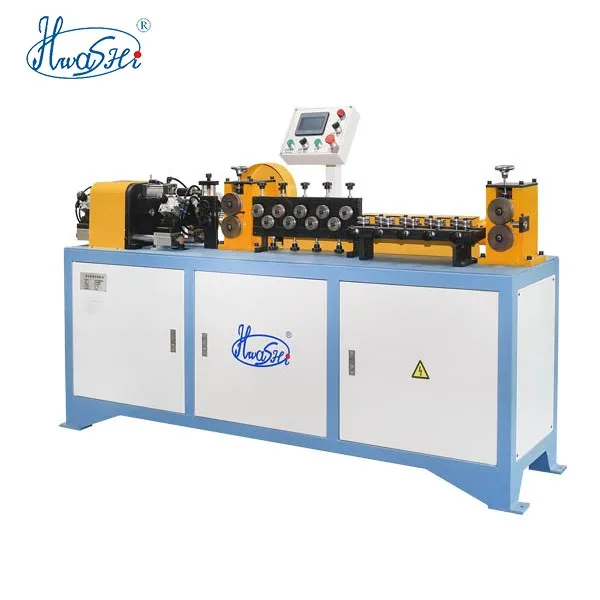

Tube Straightening and Cutting Machine
