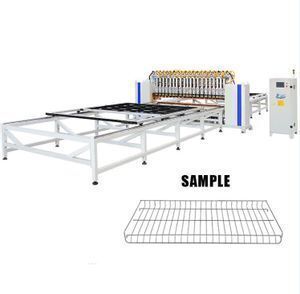

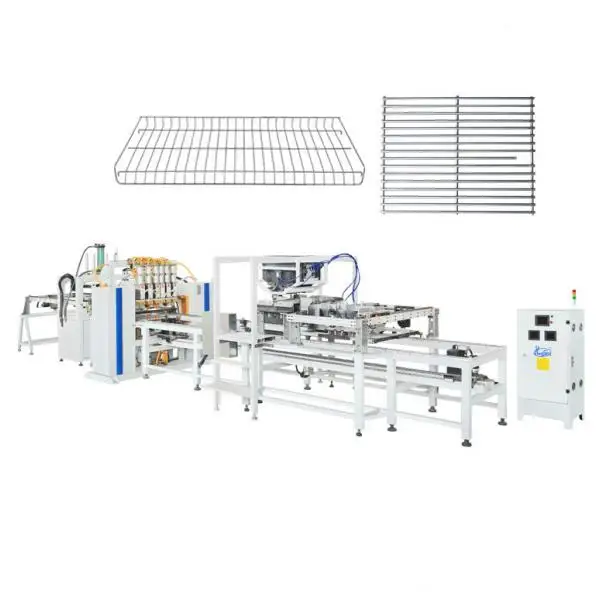

cnc wire mesh welding machine,wire fence mesh welding machine

Our machines have been widely applied to various kinds of industries, such as kitchen utensils, automobile making, motorcycle manufacturing, glasses, hardware, household appliances, low-voltage apparatus, elevator, compressor, etc.

DETAILED DESCRIPTION

Six-Head Gantry Type Welding Machine WL-SQ-MF-90Kx6 is the special automatic welding machine for welding IBC tank tubular frame. IBC intermediate bulk container is an essential tool in modern storage, liquid transportation. The IBC tank is composed of inner container and metal frame. The metal frame is made of bended tubular mesh.

 FEATURE

1. This machine is designed as reinforced gantry structure with the advantage of high rigidity and stable running.

2. The welding power is designed with medium frequency inverter power supply system with the features of electricity and energy saving.

3. The machine is equipped with 6 sets of welding head and 6 sets of power supply systems. The welding current of each single point could be adjusted independently in order to ensure the reliability of welding spot.

4. For the sake of increasing the output efficiency, it is designed as double-layer feeder for cycle running. When one feeder is under welding process, another feeder could be loaded with material.

5. Automatic stepping welding. Servo motor will drive the stepping belt to ensure the accuracy of stepping position.

6. Automatic demolding device: after welding the product, the demolding cylinder will jet up for preparation of automatic unloading.

7. Automatic unloading device will grab the product via servo motor control. It will move down to grab the welded product and moving to the setting position via servo motor. It helps to reduce labor force and lower labor intensity. It is designed as 90° rotation of unloading feeder for the convenience of transportation of welded product. the demolding cylinder will jet up for preparation of automatic unloading.

  MATERIAL CONFIGURATION

1.Adopt silicon controlled from SEMIKRON of West Germany or IXYS of United Stated with high precision and long service life.

2.Adopt integrated circuit from Motorola of U.S. and PLC from Japan SIEMENS with quick response and stable performance.

3.Adopt Japan Panasonic intelligent touch screen control system which is installed with automatic bug alarm system.

4.Adopt self-developed intelligent microcomputer welding control system to control the compensation for the fluctuation of circuit built-in voltage in order to ensure the fluctuation of voltage is within±15%.

5.Adopt South Korea SANWO pneumatic components with stable performance.

6.All the electronic components are from Japan Mitsubishi and Omron with ideal service life and performance.

7.The transformer adopts Japan high purity silicon steel sheet with good magnetic and electricity conductivity.

8.High precision all digital control system effectively resolve the problems of cold joint or loose welding due to the current shunt in projection welding.

9.Strictly comply with CE security standard to design the machine. Lower the accident rate.

 TECHNICAL PARAMETERS
