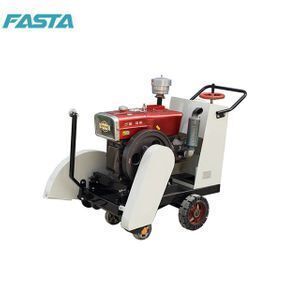

Concrete pavement joint cutting machine road cutter concrete cutter machine

Product details
Brand Name:FASTA;Port:Shanghai, Guangzhou, Qingdao, Ningbo, Tianjin;
Delivery Detail:Shipped in 7 days after payment;Rotary Speed:3600rpm;
Driving method:Manual Push;Disc Diameter:700mm;
Power Source:Electric;After-sales Service Provided:Engineers available to service machinery overseas;
Dimension(L*W*H):1400*700*1150;Color:Optional;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;Power(W):11KW;
Diameter of Blade:400mm 450mm 500mm;Condition:New;
Cutting Depth:0-260mm;Weight:154kg;
Packaging Detail:Concrete pavement joint cutting machine road cutter concrete cutter machine Package: 1400*700*1150mm(plywood);Supply Ability:300 Set/Sets per Week Concrete pavement joint cutting machine road cutter concrete cut;
Depth Adjustment:Hand Rotation;Running Speed:3600 rpm;
Certification:ISO;Product name:Concrete pavement joint cutting machine road cutter machine;
Place of Origin:Henan China;Saw Blade type:Laser Welded Diamond Saw Blade;
Model Number:FCS28;Voltage:Customized;
Type:Electric Motor 380V/50hz 11kw;Max Cutting Depth:260mm;
Water Tank Capacity:40L;Engine:electric;

Concrete pavement joint cutting machine road cutter concrete cutter machine

Product Description

Fasta Concrete Saw uses first-class brand engine which is reliable and durable. And you can also choose diesel engine. Unique designed steel water tank provides adequate water supply and perfect cooling effect and has less problems. We use laser welded diamond saw blade, the blade size is optional, you can choose 350mm, 400mm, 500mm blades, the cutting depth is adjustable, the maximum cutting depth is 180mm.





Product Features

Fasta  Concrete Saw is mainly used for road maintenance work, slitting and cutting concrete and asphalt road. It’s widely used for cutting concrete, masonry, brick, asphalt, tile, and other solid materials. Our concrete cutter could be easily operated on cutting concrete and asphalt floor of road, bridge, parking lot, square, factories house floors and so on.



Features of High Quality Concrete Saw:
1.Engine are available.
2.Small volume, light weight, and portable.
3.Simple clamping and convenient operation.
4.400mm,500mm blades are optional.
5.Large matching power and quick cutting speed.
6.High precision of positioning, good quality of cutting section.



Technical Data
Concrete saw ModelFCS28
Weight(kg)156
Dimension(mm)L1400xW700xH1150
Cutting width(mm)0-260
Max.cutting depth(mm)260
Disk Size(mm)700
Engine380V/50hz
TypeElectric Mortor
Max.output kw(hp)11 kw
Max.speed(rpm)3600
Water tank capacity(L)40

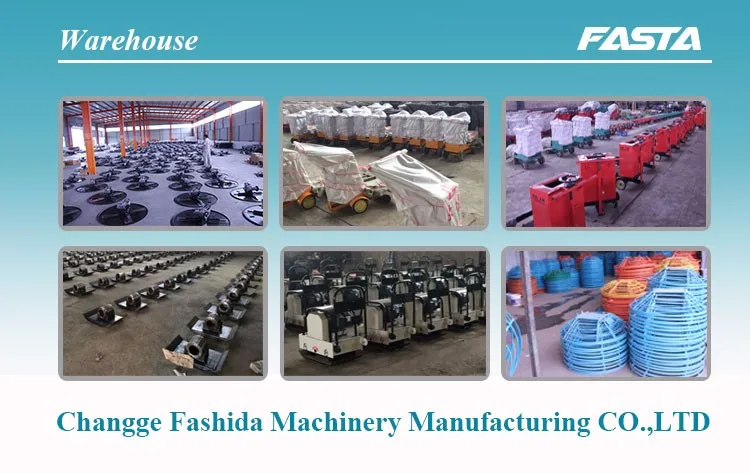

Warehouse Photos

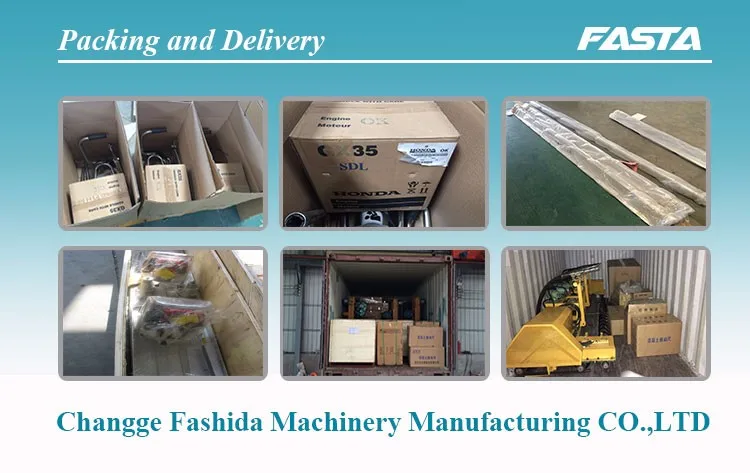

Packing and Delivery

\

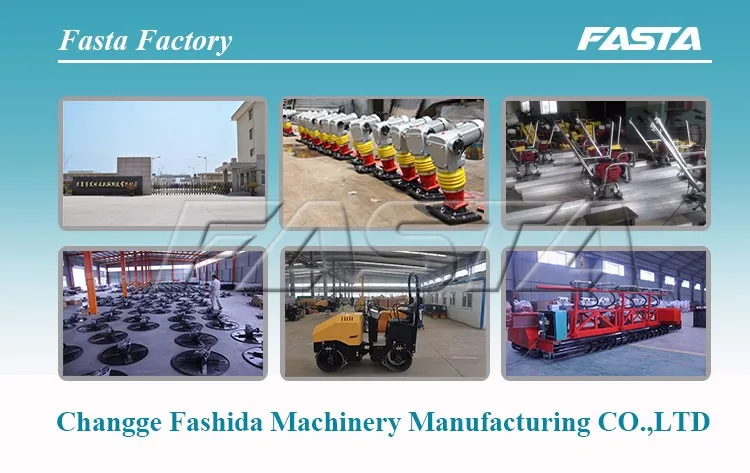

Fasta Factory

Changge Fasta machinery manufacturing CO.,LTD is a professional company produce all kinds of concrete road construction machines and other concrete machines. We have manufactured road rollers, vibratory screed, power trowel, concrete roller paver, concrete saw, asphalt saw cutting machine, plate compactors, tamping rammer and concrete row vibrators since 2003. Our machines have been widely used not only in China but also in other countries such as Russia, India, Vietnam, Indonesia, Australia, South Africa and so on.

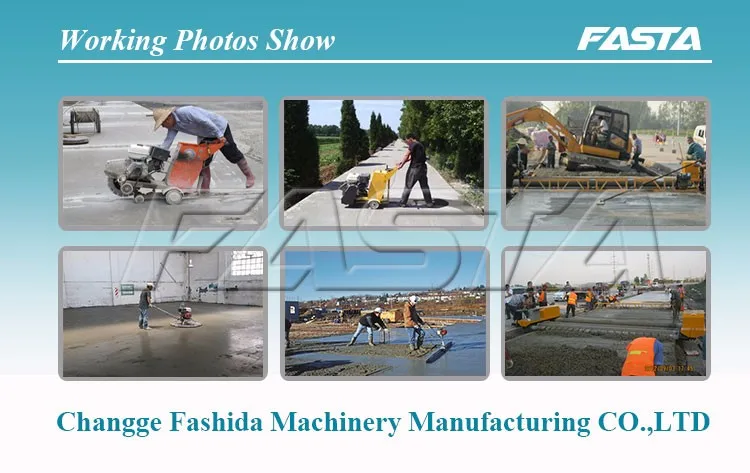

Working Photo Show




 FAQ





Contact us



Certifications
