Laser Concrete Leveling Machine

Supplier: Changge Fashida Machinery Manufacturing Co., Ltd.
Region: Henan, China
Contact: Ms Alisa Feng
Price: $18000.00 / >=3 sets
Min. Order: 3 sets

Click here to contact

Product details

After Warranty Service:	Video technical support, online support	Drive System:	PHASE (Italy)
Applicable industries:	Building Materials Stores, Manufacturing Plants, Food and Beverage Plants, Farms, Home Use, Construction Works	Video external inspection:	if
Reverse speed:	2.5 km/h	Packaging Details:	Laser concrete machine leveling package: L2748W2900H2044 mm (plywood airworthy case)
Slope work:	Single-phase slope automatic adjustment	Mechanical test report:	if
dynamo:	EC2500CX (2.6kw, single-cylinder four-stroke generator set)	Name:	Laser Concrete Leveling Machine
place of origin; place of origin:	Henan, China	Marketing Type:	New Products 2020
Core Components Warranty:	1 year	payment terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Laser Concrete Leveler
After-sales service provided:	Online support	Unique Selling Points:	High operating efficiency
Warranty:	1 year	port:	Qingdao, Shanghai, Tianjin, Ningbo
Laser generator:	Leica (Sweatland)	Local service location:	India
brand:	fasta	Supply capacity:	10 laser concrete screeds per week
Showroom location:	India	Core components:	engine
Health status:	new	Working length:	2.6M
Scraper material:	Aluminum alloy	aspect:	L2748W2900H2044 mm
Control System:	AC Servo System

Product Description

ApplicationsLaser Concrete Leveling Machine :

FLS-300 miniature laser concrete leveler with horizontal line measuring tool has wide working size and large ground clearance, which can adapt to 300MM concrete floor. Can be used on roads, ground, etc. With an electric drive system, it is one of the lightest on the market.

FLS300 Concrete Laser Screed Specifications
Model	FLS300
Dimensions (mm)	274829002044(lengthwidthheight)
dynamo	Honda EC2500CX (2.6kw, single-cylinder four-stroke generator set)
laser generator	LEICA (Switherland), 635nm visible laser, self-leveling, horizontal error ≤±1.5mm/30m, effective emission distance 300m
laser receiver	LEICA (Switherland), effective receiving distance 300m, blind spot accuracy ≤±2.5mm
Control System	AC Servo System
Drive System	PHASE (Italy), stepless adjustment, the rotation speed is greater than 1:2.5
Body adjustment system	Liquid level sensor automatic adjustment system
slope work	Single-phase slope automatic adjustment (optional: bipolar slope automatic adjustment system)
wheel tire	733nm ATV (1.8-2.2BAR) or 3.0-21 narrow tires (1.6-2.1 BAR)
Vibration system	Eccentric vibration motor. 3000HZ
centrifugal force	100kg
vibrating plate	Aluminum alloy
scraper	Aluminum alloy
Scraper adjustment	Computer control, automatic adjustment
working length	2.6M
reversing speed	2.5 km/h
minute. Ground clearance	355mm
weight	200kg

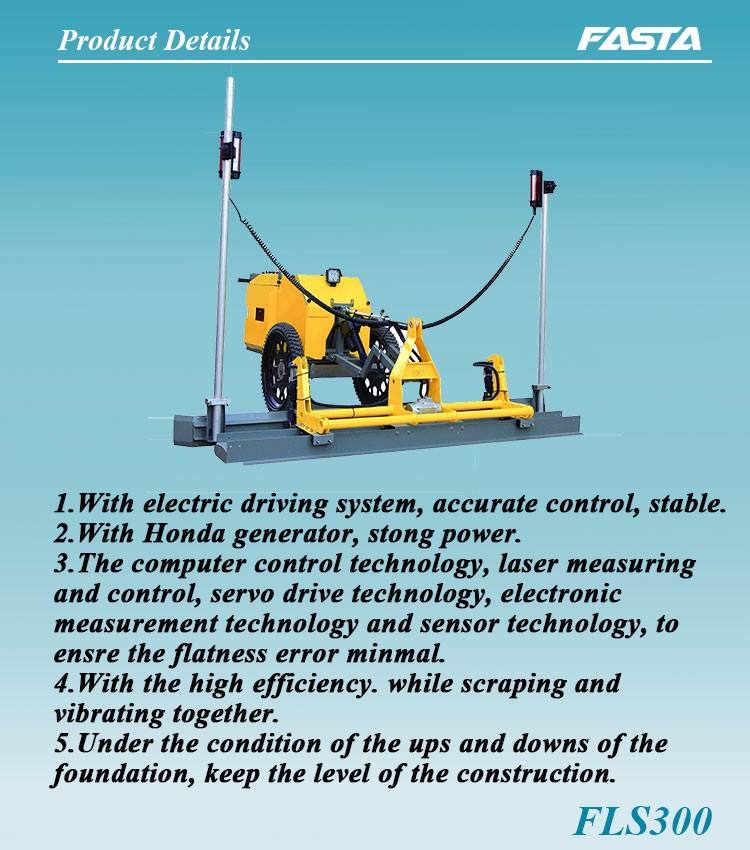

main featureLaser Concrete Leveling Machine:

1. Using electric drive system, the control is accurate and stable.
2. Using Honda generator, strong power.
3. Computer control technology, laser measurement and control, servo drive technology, electronic measurement technology and sensor technology to ensure the smallest flatness error.
4. High efficiency. Scratch and vibrate at the same time.
5. In the case of ups and downs in the foundation, maintain the construction level.
6. With automatic construction mode and manual mode.
7. One-button operation, simple and flexible.

8. Easy to assemble and disassemble.

Product Details

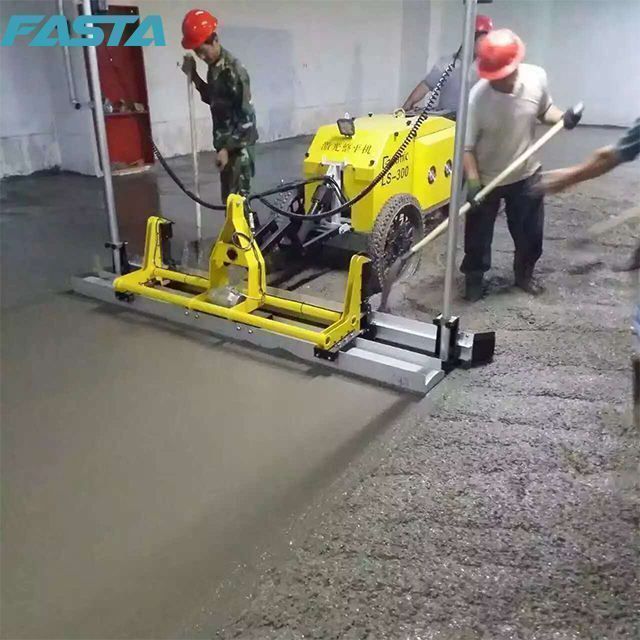

work photo show

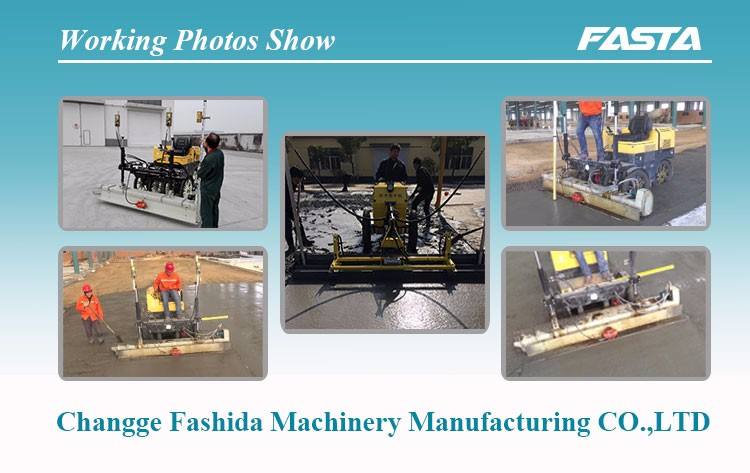

Laser concrete leveling machine working photos:

The Fasta FLS300 Serious Walk Laser Leveling Concrete for sale is a state of the art machine for levelling roads of all kinds of pavements, roads, squares, airports. These machines are mainly used for road construction work. Our machines have been widely used in China, India, Vietnam and other countries, some of the working photos of the machines are as follows:

Packaging and Delivery

Photo of laser concrete leveling machine packaging and delivery:

Fasta factory has been producing and selling laser screed concrete for many years, these machines are sold not only in China but also in many other countries such as: India, Vietnam, Cambodia etc. The machines are packed in containers and shipped to these countries by sea, some photos of packing and delivery are shown below:

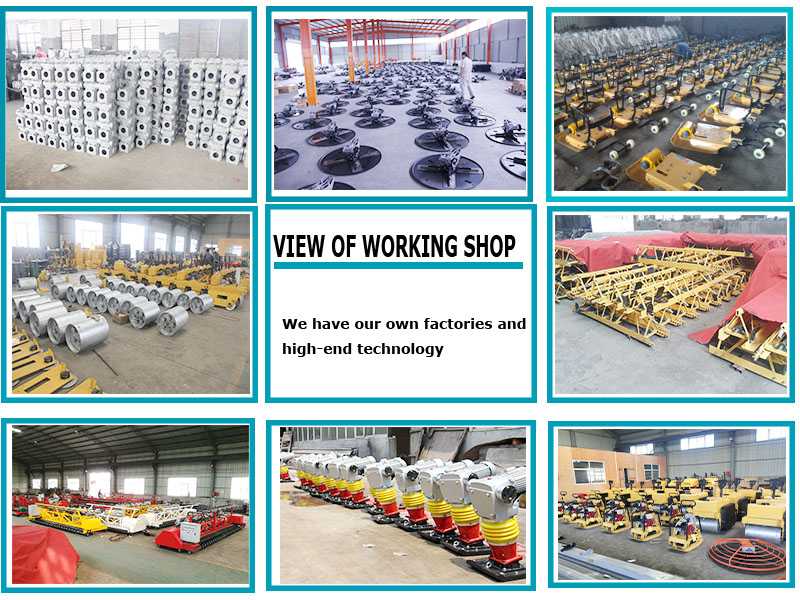

Fasta Factory Showcase

Laser Concrete Leveler Factory-Fasta :

Changge Fasta Machinery Manufacturing Co., Ltd. is a professional company that produces various concrete road construction machinery and other concrete machinery. We manufacture laser screed concrete for sale, road rollers, vibrating screeds, power trowels, concrete drum pavers, concrete and asphalt pavement cutters, vibratory plate compactors prices, tamping rams, new concrete vibrators and spreaders paver, concrete pavement paver supplier and concrete row vibrator from China since 2003. Our machines are widely used not only in China but also in Russia, India, Vietnam, Indonesia, Australia, South Africa and other countries.
