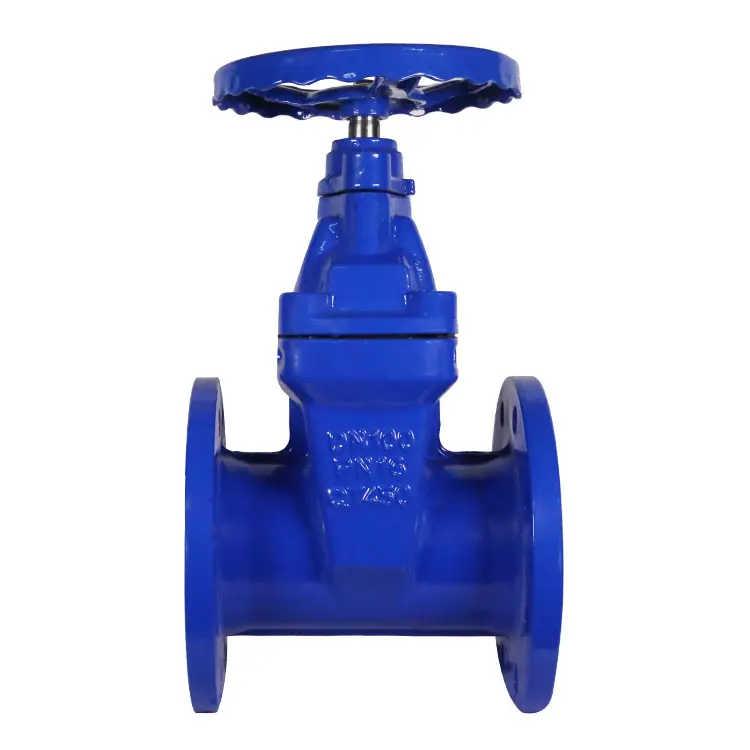

Bundor DIN F4 Flanged 4 Inch Gate Valve Ductile Iron Gate Valve

Supplier: Henan Bundor Flow Control Co., Ltd.
Region: Henan, China
Contact: Ms Nancy Yuan
Price: $28.00 / >=500 pieces
Min. Order: 500 pieces

Click here to contact

Product details

Structure:	Gate;	Body material:	Ductile Iron;
MOQ:	2 Piece;	Usage:	Industrial Usage;
Brand Name:	Bundor;	Medium:	Water Oil Gas;
Temperature of Media:	Low Temperature,Normal Temperature;	Warranty:	2 Years;
Model Number:	Z45X-16Q;	Connection:	Flange Ends;
Product Name:	Bundor DIN F4 Flanged Gate Valve Ductile Iron Gate Valve;	Size:	DN50-1200;
Power:	Manual;	Single package size:	110X110X110 cm;
Single gross weight:	10 KG;	Port Size:	Standard;
Standard or Nonstandard:	Standard;	Place of Origin:	Tianjin China;
Selling Units:	Single item;	Type:	Normal Colse;
Application:	General;	Package Type:	1.) 1.11.11.1 m export plywood case. 2.) One 20' container can in bulk loaded on 24 pcs plywood cases more or less. 3.) Customers' logos are available on package.;
Media:	Water;

Product Features:

1.Bundor patent products, patent certification.

The product side flanges comply with national, German, Russian, American, British and Japanese standards and other domestic and international standards for multiple pressures, easy connection and wide adaptability, which can reduce the type of purchase and stock.

2.The thickness of valve body wall is up to standard.

The valve body wall thickness meets the requirement of GB 26640, the thickness is up to the standard, and the pressure strength is guaranteed.

3.The product has an independent identity to ensure traceability.

Each Bundor product has its own QR code mark, unique identification number, to ensure product traceability.

4.Provide material inspection report.

All Bundor products can provide the material inspection report of the main parts.

5.As for the products of Bundor, they are insured by the Pacific insurance company with the quality of 10 million yuan, and the warranty lasts for 2 years. If they are damaged within two years, they will be compensated for the product's quality problem without any conditions.

Name	1-Body	2-Seat	3-Wedge	4-Stem
Material	DI	EPDM	DI+EPDM	2Cr13
DN	NPS(inch)	L	ΦA	ΦB	ΦC
50	2''	250	165	125	102
65	2 1/2''	270	185	145	122
80	3''	280	200	160	138
100	4''	300	220	180	158
125	5''	325	250	210	188
150	6''	350	285	240	212
200	8''	400	340	295	268
250	10''	450	405	355	320
300	12''	500	460	410	378
350	14''	550	520	470	438
400	16''	600	580	525	490
450	18''	650	640	585	550
500	20''	700	715	650	610
600	24''	800	840	770	725
700	28''	900	910	840	795
800	32''	1000	1025	950	900
900	36''	1100	1125	1050	1000
1000	40''	1200	1255	1170	1115
1200	48''	1400	1485	1390	1330
