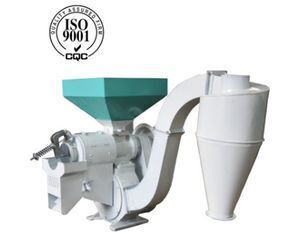

NF-280 Multifunctional Corn Peeling and Polishing Machine

Product details
Type:Peeling Mill;Payment Terms:L/C,T/T,Western Union,MoneyGram;
Supply Ability:100 Unit/Units per Month;Applicable Industries:Manufacturing Plant,Food & Beverage Factory;
Packaging Detail:NF-280 Multifunctional Corn Peeling and Polishing Machine 1.We will pack by the protect film inner, water-repellent plastic outside. 2.The wood packing is necessary if we send by less than a container. 3.The machine will be fixed by steel rope in the container. Make sure it is in good condition when it arrives.;Place of Origin:Henan China;
Brand Name:Win Tone;Warranty:1 Year;
Port:Qingdao Port;After-sales Service Provided:Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Online support,Video technical support;
Product Description

 Corn peeling and polishing machine:

1.Used in corn peeling, wheat peeling, paddy peeling and sorghum peeling.
2.Suitable for small size of food processing factories in corn, wheat and sorghum peeling.
Working principle and features:
Win Tone NF-280 multifunctional corn peeling and polishing machine mainly has corn peeling, wheat peeling and rice peeling and polishing functions. The machine is internally installed 380V motor with 7.5W and can process 500kg of corn, wheat, sorghum and rice per hour.



Working Principle

 NF-280 Multifunctional Corn Peeling and Polishing Machine Working Principle:

After cleaning up, the unprocessed corn enters into the peeling chamber of NF-280 corn peeling and polishing machine through feeding port. By control the feeding speed at the feeding port and the pressure of the pressure valve, we make the peeling chamber have some pressure. The machine squeezes, peels, degerminates, removes impurities and polishes the material between the rotary roller and the screen. And under the pneumatic effect, the corn kernels and the bran separate automatically and then we can get qualified corn kernels. The machine is internally installed efficient air suction chamber which can remove the skin and impurities from the peeling process.











Feature & Advantages

 Features of corn peeling and polishing machine:

1. Easy structure, good manufacturability in processing and installation, small volume and convenient operation. The whole machine only occupies an area of less than one square meter and we only need to install pitch screw for fixing.
2. Wheat, sorghum and paddy peeling and polishing function.


3. Internally installed efficient winnowing and dust removing blower.
4. High output and good effect.
The discharging port of the peeling chamber can accurately control corn or wheat staying time in the peeling chamber by pressure valve and ensure the effective friction with alloy roller so as to realize better peeling effect.

Finished Products



Technical Parameters

 Technical parameter of corn peeling and polishing machine:



Model
Yield
(KG/H)
Power
(KW)
Rated voltage
(V)
Spindle speed(r/Min)
Weight
(KG)
Outline dimension
(MM)
NF-280
Corn peeling
500-600
7.5
380
1000-1200
180
1000x400x1200
Wheat peeling
600-700
Millet peeling
1000-1500

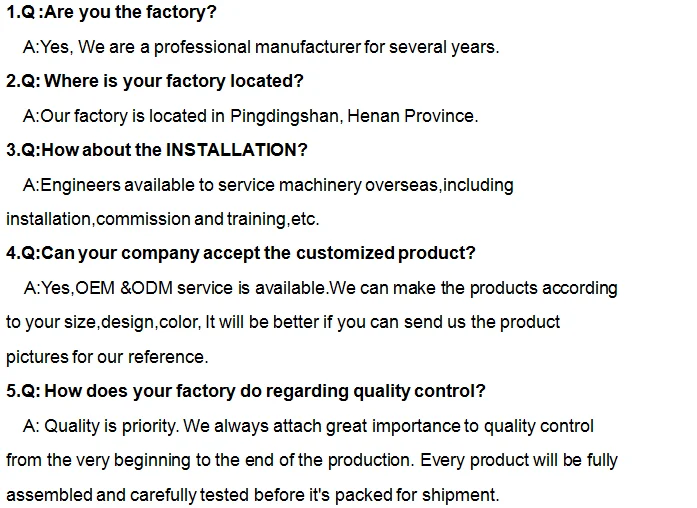

FAQ



Company Information

Lushan Win Tone Engineering Technology Co., Ltd
State-owned enterprise
Founded in 1995
Specializing in large project research, manufacturing, installation, commissioning and training for corn processing.
Cooperating with Henan University of Technology, the most famous university in Grain industry, and Jiangnan University which is the most famous university in food industry
The research center of Henan University of Technology and Jiangnan University
36 Professional engineers, in average of more than 15 years of designing experience, and cooperating with five Design Institutes
We are not only providing you GOOD Quality equipment with the BEST technology, but also responsible of helping our customers to get more profit and helping them to make business growing better.
