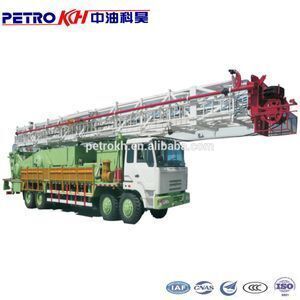

XJ350 (60t) Workover Rig

Product details
Packaging Detail:by seaway in container;Condition:New;
Place of Origin:Hubei China;Brand Name:Petrokh;
Type:Rotary Drilling Rig;Certification:ISO;
Usage:Oil Well;Voltage:220V/380V;
Supply Ability:1 Set/Sets per Month;Warranty:365day;
Dimension(L*W*H):17.2*2.8*4.18;After-sales Service Provided:Overseas service center available;
Weight:38000KG;Delivery Detail:30-60 days;
Power Type:Diesel;Model Number:XJ350;
Power(W):Standard;Payment Terms:L/C,T/T,Western Union;
Port:Shanghai Or other ports;
Product Description

Product Application

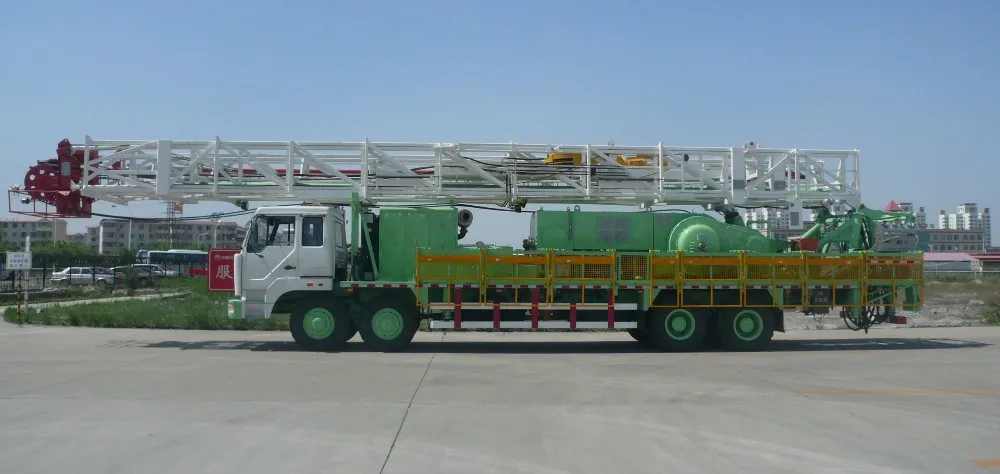

60t 350hp workover rig XJ350 for oilfield is mainly used for shallow well workover, oil testing, fishing and pump check operations. It is equipped with a lifting system and a rotary operating system. It can be used for workover, lateral drilling and water well drilling operation if equipped with a rotary table and relevant parts.

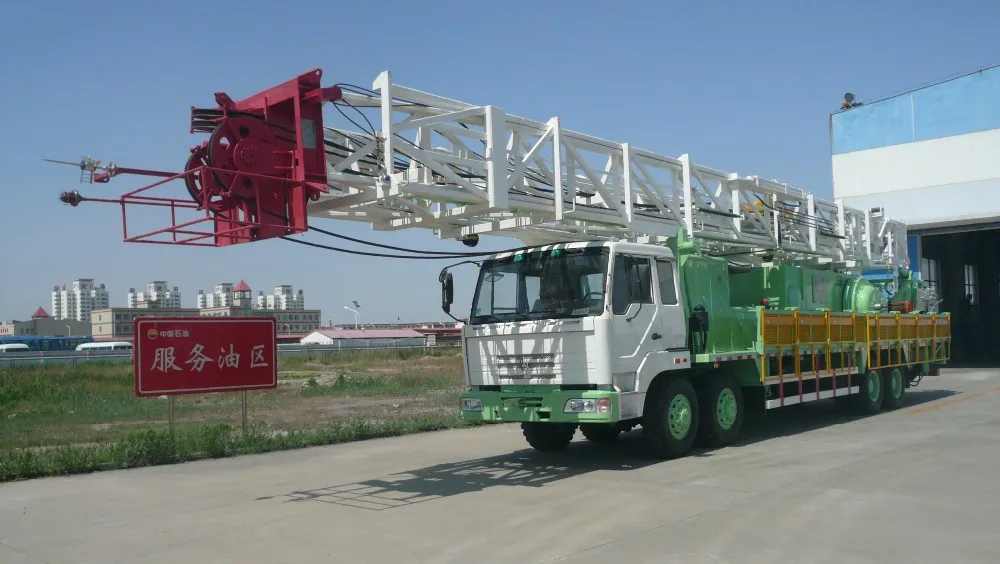

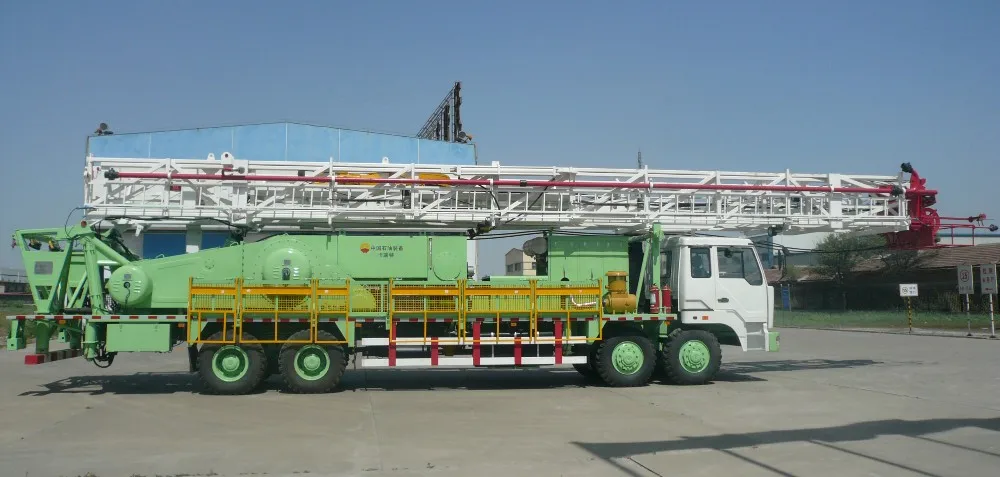

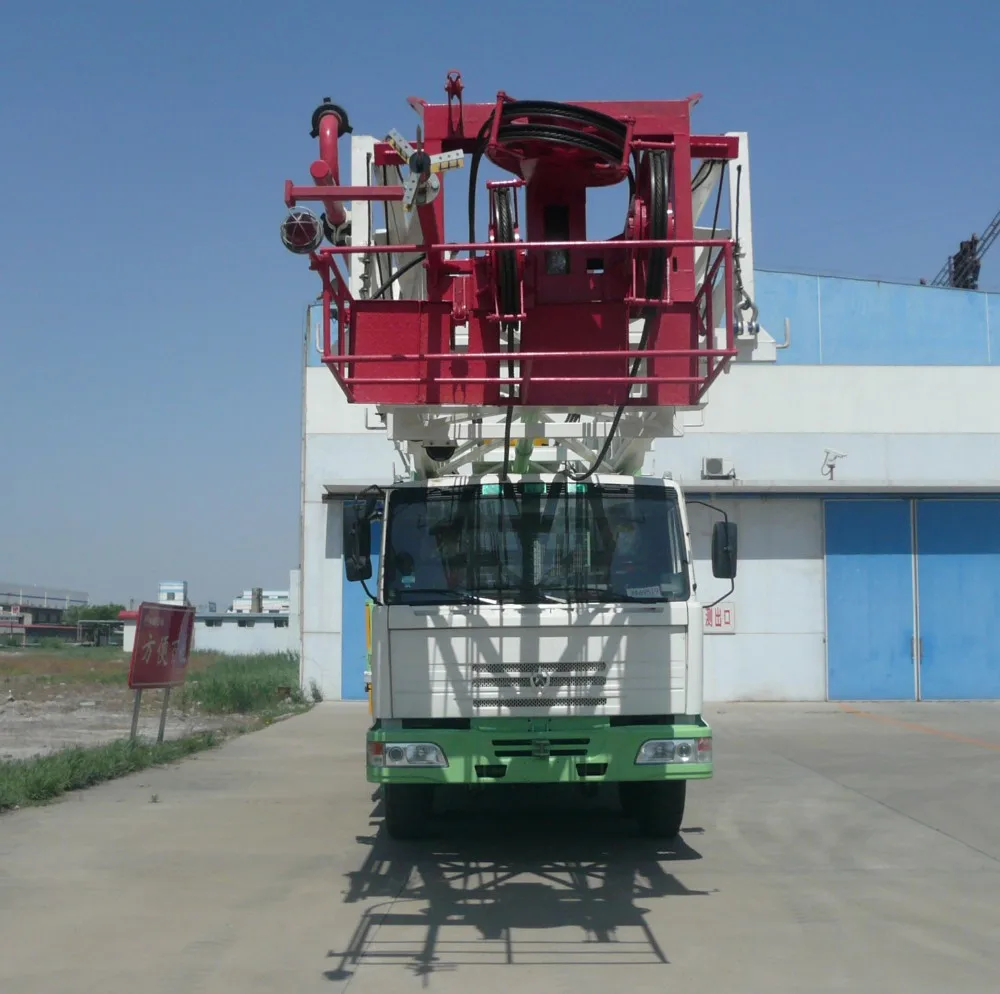

A.102.69 ft ( 31.3m ) double section mast, hydraulically raised and telescoped.

B.8×8 full drive chassis for XJ350 single-drum rig.

C.10×8 chassis for XJ350S double-drum rig.

D. Simple operation platform hanged on the rear is available.

E. A rod hanger is available.

Model XJ350

Service depth (2-7/8" UE tubing) ft(m) 13120(4000)

Workover depth (2-7/8"DP) ft(m) 3200(10498)

(3-1/2"DP) ft(m) 8530(2600)

Nominal hook load lb(kN) 134880(600)

Max Hook load lb(kN) 202320(900)

Wireline dia/effective line quantity in.(mm) φ1/6(φ26/6)

Max lifting speed of hook ft/s(m/s) 4.33(1.32)

Overall dimensions in traveling condition ft(m) 56.43×9.19×13.71(17.2×2.8×4.18)

Weight lb(kg) 83776(38000)

We can produce the assembly and spare parts for XJ350-XJ750

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

Detailed Images

Machine Parts

Name:  Chassis

Brand: North Benz

Original: China

Domestic famous plunger, strong driving force, low fuel consumption, high economic benefits.

Main Features

Name: traveling hook
Brand: KH
Original: China
Domestic famous fluid end, strong driving force, low fuel consumption, high economic benefits.

Machine Parts

Name: derrick  platform
Brand: KH
Original: China
Domestic famous, strong driving force, low fuel consumption, high economic benefits.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
1.2 T



Packaging Details

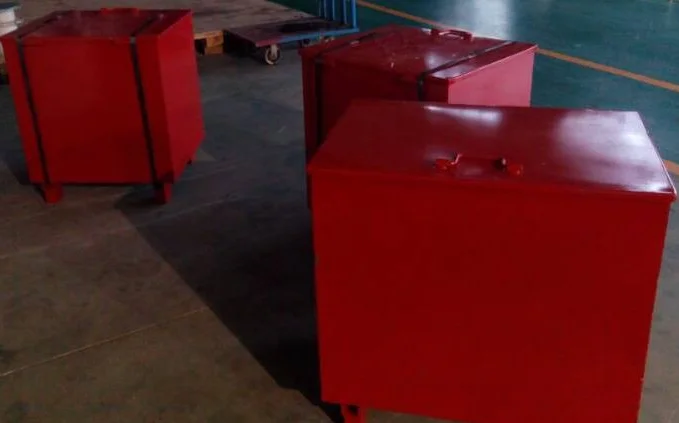

The normal package is iron box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
