industrial food freeze drying machine 50m2 / 100m2 /200m2 Vacuum fruit food freeze dryer for process price

Product details
Weight:1500kg;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Power(W):3kw;name:industrial food freeze drying machine Vacuum fruit food freeze dryer;
Condition:New;Voltage:220V;
trays:24;warranty:1 year;
Brand Name:orangemech;Application:Medicine Processing,Chemicals Processing,Food Processing;
Capacity:60-80kg;Warranty:1 Year;
dimension:1380*1200*2000mm;Port:China main port;
Certification:ISO;Heating source:electric ,steam;
material:stainless steel;trolly:1;
key word:freeze drying machine;Dimension(L*W*H):1380*1200*2000mm;
Place of Origin:Henan China;weight:20kg;
Packaging Detail:export standard package;After-sales Service Provided:Video technical support;
Supply Ability:1000 Set/Sets per Month;Type:Hot Air Furnace;



industrial food freeze drying machine 50m2 / 100m2 /200m2 Vacuum fruit food freeze dryer for process price



Brief introduction:

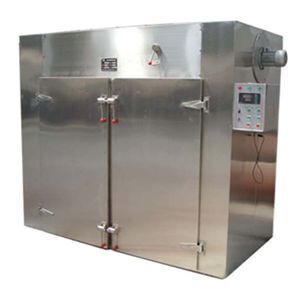

ORHGC series hot air circulation oven adopts noise elimination and thermal stable axial flow fan and automatic temperature control system. The successful designmakes the heat efficiency increases from 3~7% of the traditional drying oven to 35~45% of the present one. The highest heat efficiency can be up to 50%.

Application:

it is widely used in food processing, such as purple yam,sweet  potato,pumpkin slice,mango,apple,banana,data,

pineapple,kiwi berry,strawberry,ginger,onion,carrot,garlic ,ginseng,mushroom,red ginseng,honysuckle,etc

Advantages:

1.Energy saving

Most of the air is circulating inside the drying chamber ,energy saving and high efficiency

2.Healthy working condition

The inside surface is lined with stainless steel and full welded. The sealed working condition can make sure sanitary

working condition

3.Uniform drying temperature

 Air distributor is fixed at each side of the drying chamber to make sure uniform air flow. So the temperature

difference between the top and bottom is less than 2 °C. So the raw material can evenly dried.

 4.Easy temperature control

The drying temperature can be easily controlled by button

 5.Low noise

Heat resisting and low noise circulation fan is combined

6.Large temperature range and automatic heat preservation system

You can set temperature at any data between room temperature and 260 degrees. And oven heated system will

automatically maintain the  temperature once it is heated to the one you set , moreover no power consumption at

this time .

7.Various heating source

electricity,steam,gas etc.

Technical parameter:

Model

Capacity (batch)

 Trays

Trolly(pcs)

Size(mm)

ORHGC-24

60-80kg

24

1

1380*1200*2000

ORHGC-48

120-160kg

48

2

2430*1200*2375

ORHGC-96

240-320kg

96

4

2430*2200*2433

ORHGC-144

360-480kg

144

6

3430*2200*2620

ORHGC-192

480kg-640kg

192

8

4380*2200*2620









Pls feel free to contact me for any question at all times.
