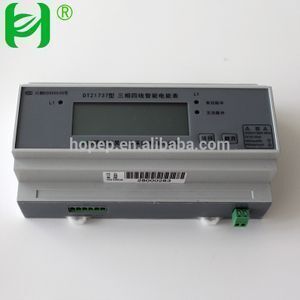

4-channel Three Phase Din Rail Ethernet Smart Energy Meter
-
Supplier: Chengdu Hop Technology Co., Ltd. -
Region: Sichuan, China -
Contact: Mr Leslie Yang -
Price: $30.00 / >=10 pieces -
Min. Order: 10 pieces
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; | Rated Current: | 3*1.5A, 3*5A, 3*10A, 3*15A, 3*20A; |
| Output Voltage: | 3x220/380V; | Type: | Din Rail Energy Meter; |
| Brand Name: | HOP; | Warranty: | 18Months; |
| Communication: | RS485/Infrared/Custom; | Color: | Grey; |

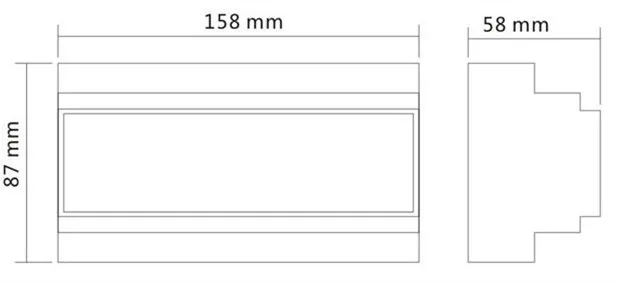

| Dimensions: | 158mm*87mm*58mm; | Measuring Energy Range: | 0-999999; |
| Phase: | Three Phase; | Weight: | 0.25kg; |
| Model Number: | DTZY1737-H10; | Display Type: | Digital Only; |
| Operating Temperature: | -25℃ ~ 60℃; | Packaging Detail: | Anti-collision bag + individual box + outer carton + 5 layers of cartons on pallet; |
| Place of Origin: | Sichuan China; | Display: | LCD Display; |
| Port: | Chengdu/Chongqing/Shanghai/Shenzhen; | Supply Ability: | 10000 Piece/Pieces per Month; |
| Accuracy Class: | 0.5S; | Frequency: | 50Hz; |

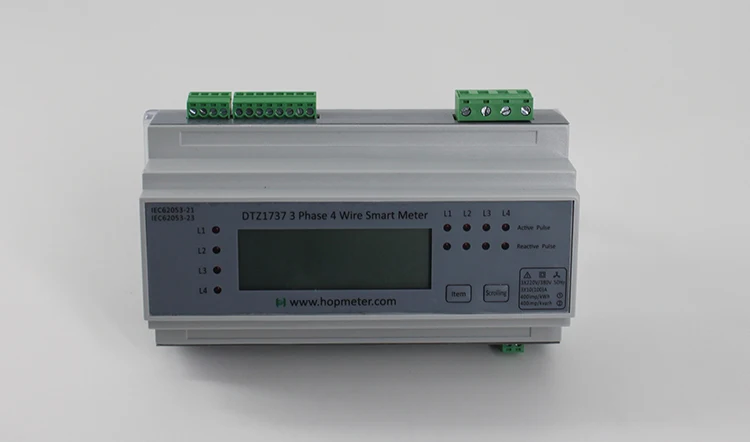

4-channel Three Phase Din Rail Ethernet Smart Energy Meter
Product Details
Product Parameter
Accuracy | Active | 1.0 | |
Reactive | 2.0 | ||
Voltage | Reference | 3*220/380V | |
Range | 0.8Un~1.1Un | ||
Limit | 0.75Un~1.2Un | ||
Frequency | 50Hz | ||
Current | Range | 3×1.5(6)A, 3×5(20)A, 3×10(40)A, 3×15(60)A, 3×20(80)A | |
Starting Current | Active | 0.004In, 0.005In(reactive) | |
Constant | Active | 200/400/800/6400imp/kWh | |
Display | Type | LCD | Register |
Digit | 6+1/6+2 | 4+2/5+1 | |
Power Consumption | Voltage Circuit | ≤1.5W,6VA | |
Current Circuit | <0.4VA | ||
Communication | Interface | RS485/ Infrared interface/ Custom | |
Protocol | DL/T 645-2007,MODBUS | ||
Temperature | Operating Temperature | -25℃~+60℃ | |
Storage Temperature | -40℃~+70℃ | ||
Humidity | ≤95% | ||
Product Functions
1.Energy Measurement
Active energy measurement of forward direction and opposite direction, setting combined active energy, combined reactive energy 1, combined reactive energy 2
2.Clock Function
Real time clock accuracy ≤±0.5s/d(temp 23℃), lithium battery for clock
3.Multi-tariff Function
time of use(TOU), 4 tariffs, 14 time divisions, 30 holidays, step price
4.Data Freezing Function
5.Event Record
Recording following events accurately: undervoltage, overvoltage, loss of phase, overcurrent, frequency exceeding limit, etc.
6.LCD Display
7.Communication Function

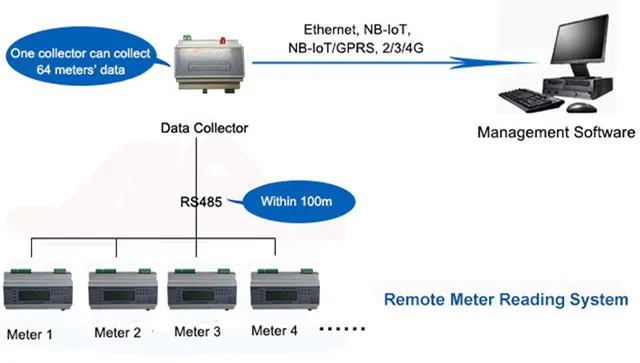

This three phase din rail ethernet energy meter is equipped with 1 infrared communication interface, 1 RS485 communication interface and 1 ethernet interface which enable the wlan communication with platform software.
Accessories

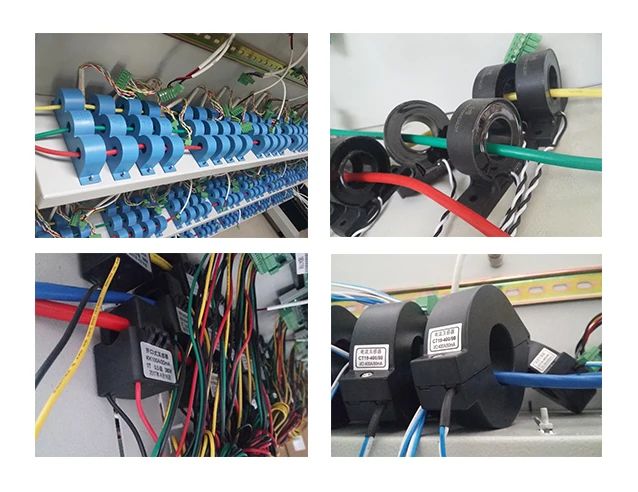

When we install the din rail ethernet smart energy meter, first we need to connect the meter with CT(Current Transformer). And we provide split core current transformer and close type current transformer for client's choice.
Product Applications
This din rail ethernet energy meter is mainly used in industrial application such as factory, telecom operators, shopping mall, etc. It is the main metering equipment in AMI & MAR systems.For the application of more than one electricity user, we have designed din rail type 4-channel three phase smart meter to seperately meter each channel consumption.
With din rail mounted design, this three phase digital power meter is widely used to accurately measure the energy consumption in industrial application.

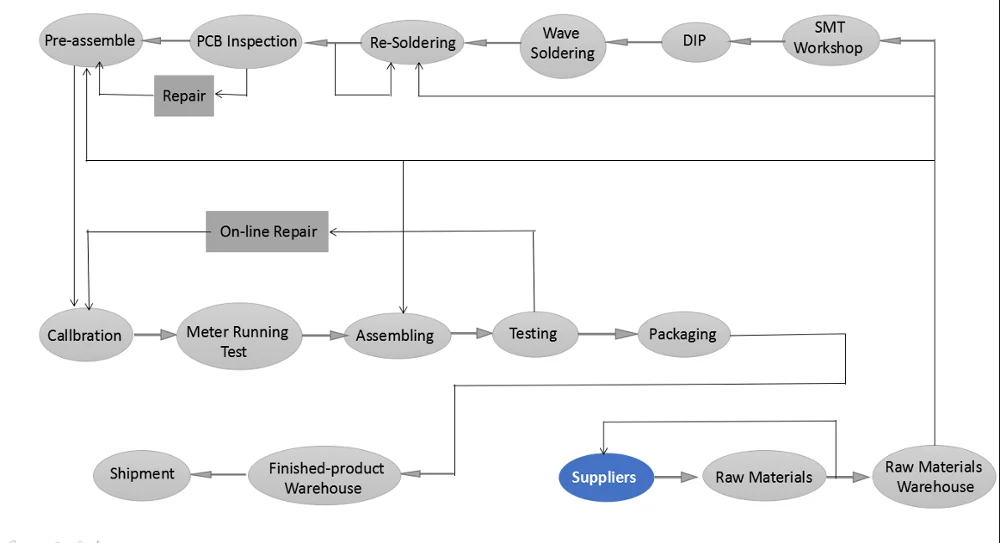

Making Process
Equipments for Meter QC
Multi testing has been adopted to result in best din rail ethernet smart energy meter products
Anti-collision bag + individual box + outer carton + 5 layers of cartons on pallet (if client has other air/sea shipping packaging requirements, we also can meet)
We have stable and reliable cooperating shipping agents in Chengdu, Shenzhen, Shanghai which can offer professional service and reasonable price.
1. Pre-sale Service
Customized professional solutions can be provided to clients after detailed communication. If needed, we also can go to clients' places to make face-to-face engineering communication
2. After-sales Service
After-sales team including sales persons and engineers will handle after-sales issues within 24 hours
3. Training
Remote online training and local onsite training can be chosen by clients
R&D Ability
HOP Technology researches and develops all products by ourselves. To ensure the excellent performance and quality of products, our R&D team has been dedicated in technology improvement, structure design, software upgrading. Our mission is to provide complete metering solution to clients and business partners with better products and services.
R&D Achievements
HOP had got 16 patents, 8 software copyrights, 6 software certifications until now, and the amount is keeping growing. Following are part of the certificates of patent, copyright and ISO
Q: Do you have APP for the 3 phase electricity meter?
A: Since different areas' clients have different using habit, so APP is always customized for clients according to the developping instructions clients give.
Q: Does the 3 phase electricity meter has load profile function?
A: No, currently only three phase meter has this function
Q: Can you put our logo on the 3 phase electricity meter?
A: Yes, we can put your logo on the meter, concentrator and system software.
-
