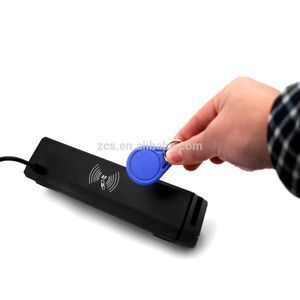

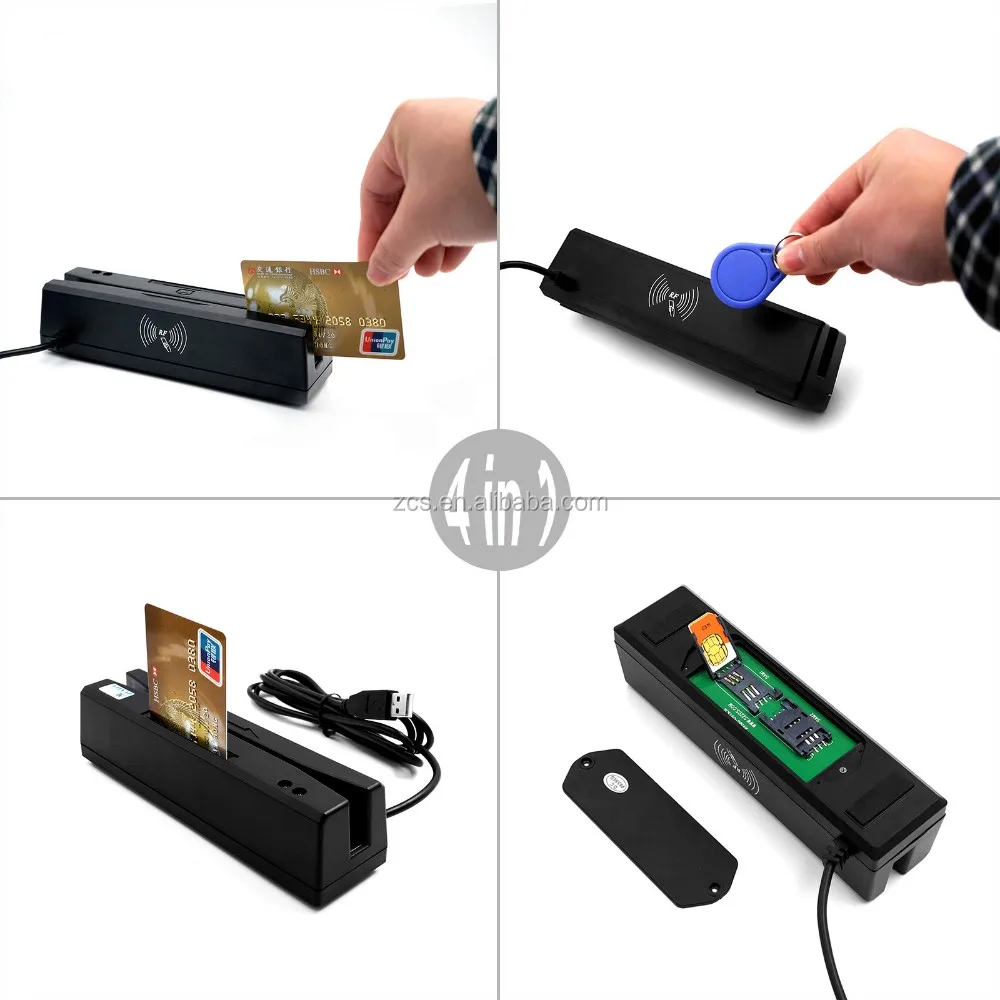

ZCS160 Programmable USB 4 in 1 magnetic card reader only + IC chip/ RFID/ PSAM card reader writer Support Android

Product details
weight:180g;certification:EMV;
size:160mm(L) *45mm(W)* 45mm(H);Packaging Detail:standard, carton;
Brand Name:zcs;Installation:External;
SDK:YES;programmable:yes;
Card Slots:All in 1 / Multi in 1;standard:7811/7812/7816/ISO14443;
support cards:magnetic, ic chip, rfid, psam card;interface:USB or RS232;
Type:CF Card,Memory Stick Card,MMC Card,SD Card,SM Card,XD Card;system:Win 98 / XP/WISTA/Win7,8,10/android;
Model Number:zcs160;Payment Terms:L/C,T/T,Western Union,MoneyGram,PAYPAL;
Interface:USB;Port:sz;
application:taxation, banking stored value, query management system;Place of Origin:Guangdong China;
Supply Ability:100000000 Piece/Pieces per Month;

Star Products



Related Products



ZCS160

four in one card reader writer,support magnetic/ic,emv chips/RFID/PSAM only for APDU command professional person to read and write CPU chip bank card.



Product Description
  • Long Service Life Magnetic Head
  • 100% Quality Confirmed 12 months Factory Warranty
  • Can read&write a variety of memory card and supports T = 0 and T = 1 communication protocol CPU card
  • Support the function of the SAM card operation
  • Use USB to communication with PC
  • Provide many development platform interface function and application example
  • Cards supported ISO 7811,AMMVA,CADMV
  • rfid is 13.56 M Hz





TECHNICAL SPECIFICATION:



Magnetic card



Selectable tracks

yes

Read card

1/2/3tracks

Swipe

Double direction

Head life

Approx 500,000 passes

Parity and LRC checking

Built-in, audible and LED good read and error indicator

Cards supported

ISO 7811,AMMVA,CADMV

RFID card



Operating Frequency

13.56 MHz

Smart Card Interface

ISO14443-A, Mifare

Sensing Distance

About 0-5cm

Programmable sound

ON or OFF

Cards supported

ISO14443A,MifareOneS50,MifareOneS70,MF3 DESFIRE, Ultralight, ISO14443B,SONY felica

PSAM card



Head life

Approx 200,000 passes

Communications

 USB

Cards supported

 ISO 7816-3

operating system

Win7, Win 2008 ,Vista, Win 2003, Win 2000, XP, Linux

IC Card Supported



Cards supported

AT24C01A/24C02/24C04/24C08/24C16/AT24C64,SLE4432/4442,SLE4418/4428,

ISSI 24C01A/16,ISO7816-(1-4) (T=1, T=0)

Communications

USB2.0,USB-OTG(Android 3.1 above)

Swipe speed

3 ~ 60 inches per second

Maximum power consumption

100 mW

Temperature

Commercial-grade:-20°∼ 60 °C

Industrial-grade:-20°∼ 60 °C

Humidity

90% non- condensing

Anti-static interference

15KV

Magnetic interference resistance

19Oersted

Vibration resistance

Amplitude 0.35mm,Frequency 10-55Hz,Three  directions sweep vibration

Insulation Resistance

Hot and humid circumstances(40°,95%)Insulation resistance should not be less than 5MΩ

Dimensions

160mm(L) ×45mm(W) × 45mm(H)

Weight

180g





Company Information

Shenzhen ZCS Technology Co., Ltd

  • Founded in 2009
  • Factory—— located in Longhua, Shenzhen,China
  • Certificate——ISO 9001 CE FCC 3C EMV PBOC
  • ODM/OEM, manufacturer, marketing and after-sale service

ZCS is a global leader in electronic devices and secure payment technology. We provide Magstripe,Smart card Reader/Writer, Mobile Payment solutions, services and value-added services at the POS.

Leading with innovation and engineering excellence,our products are provided through OEMs, VARs, distributors.

We provide practical, economical solutions according to our customers' needs.

With a strong hardware and software engineering team, ZCS is able to quickly and cost-effectively develop any application required.

To improve our products and services,we offer 2-year warranty and free technical support.

Your choice is our glory and pride."No Best, Only Better" is our promise.

Bellowing is the information and pictures for reference.



Click for more information








Packaging & Shipping

Packing Style:



1)One piece of OTG mobile card reader in one carton box.



2)Well protected.



Shipping methods:



1.DHL, FedEx, UPS, EMS, etc.



2.Sample can be delivered in 1~3 days.



3.Wholesale delivery time is 2~20 days.



4.Tracking number will be sent to customer after goods delivered.



5.We'll keep customers reported about the shipping condition.

FAQ

Do you have the items in stock?
Yes,the item are large stock. We can send the goods out within 3 days after payment received. For the goods are out of stock, production time is about 7-10 days.
Do your products support customized?
Yes, we provide OEM service.Our standard products can be branded according to your needs.
The color tones, finishing, logo silkscreen can all be customized to give the products in line with your company image and style.
What about minimum order quantity?
We have no limit for MOQ, 1 piece is available.
What about the Warranty?
We provide one year warranty for main device as well as 24 hours online service to help you out.
Are you manufacturer?
Yes.Our company headquarters is located in Nanjing of China, factory in shenzhen.
Can you provide application software for the hardware?
We provide free SDK and User manual of all API to support your development or programming.
Does the device have the language default as English?
Of course, our device supports multi-language such as English,Spanish, Portuguese ,French, German,Polish,Japanese, Russian and so on.
Can your device install the Android Apps that our customers provide?
No problem. Just send us your Apps which you need to get the liscense of the apps and then our Engineers can do that for you.
