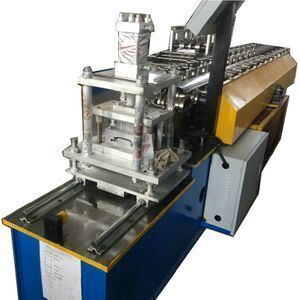

rolling shutter slats roll forming machine

Supplier: Cangzhou Zhongtuo International Trade Co., Ltd.
Region: Hebei, China
Contact: Mr Cary xu
Price: $8000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Cutting tolerance:	+/- 1mm;	Terms of payment:	30%T/T ,Balance to be paid before shipping after inspection.;
Working speed:	10-20m/min;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union;
Drive:	gear;	Packaging Detail:	1.One 20ft container for loading two sets machine with manual decoiler. 2.The whole wiped anti rust oil ,PLC controller covered by foam film. 3.Spare parts and some small parts packed in plastic tooling box. 4.All components of rolling shutter roll forming machine fixed by steel wire.;
usage:	shutter door;	Brand Name:	zhongtuo;
Supply Ability:	30 Set/Sets per Month;	Port:	XINGANG TIANJIN;
Coder:	Omron;	Delivery Detail:	45 working days after deposite;
material Thickness:	0.7-1.4mm;	name:	rolling shutter slats roll forming machine;
Deliver time:	45 working days.;

introduction

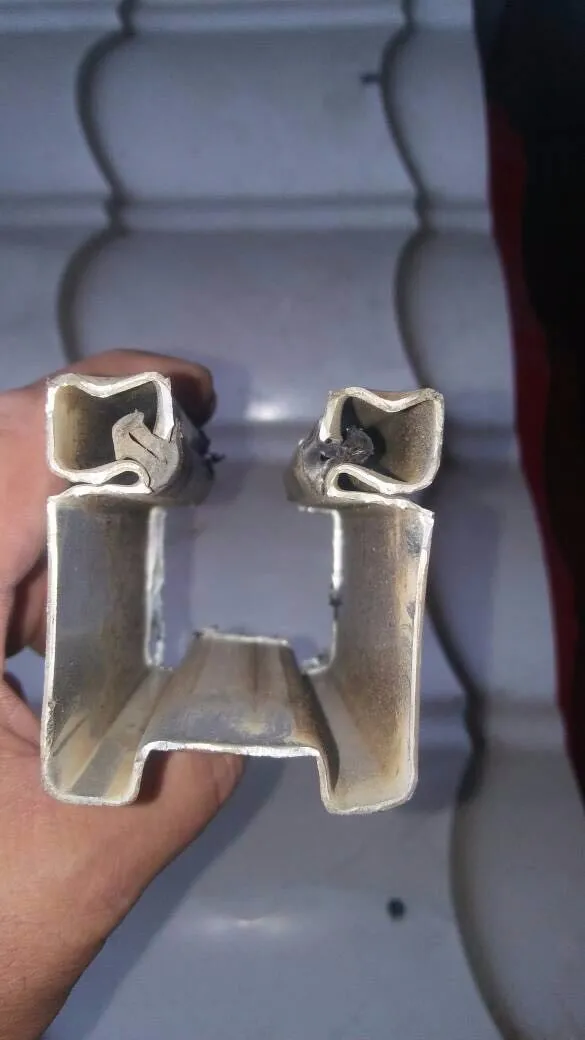

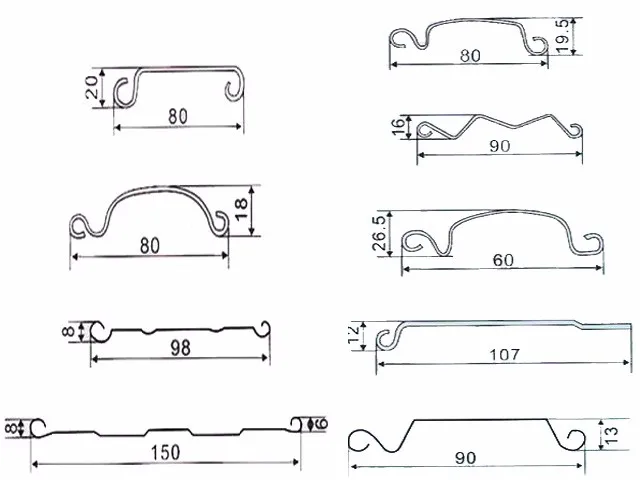

rolling shutter roll forming machine is designed to make the rolling shutter door panel in batch fully automatic. The coil can be galvanized steel, aluminum palte.

This rolling shutter is a light-duty door solution perfect for specialty use, and it’s space-saving design makes it perfect for tighter installations.It is best suited for hospitals, pharmacies, and retail stores that need a high-security door with several aesthetic options.

Details

decoiler

drive: manual

Inner Diameter: 450-550mm

Outer Diameter: max 1500mm

Max Coil width: 700mm

Carrying capacity: 3T

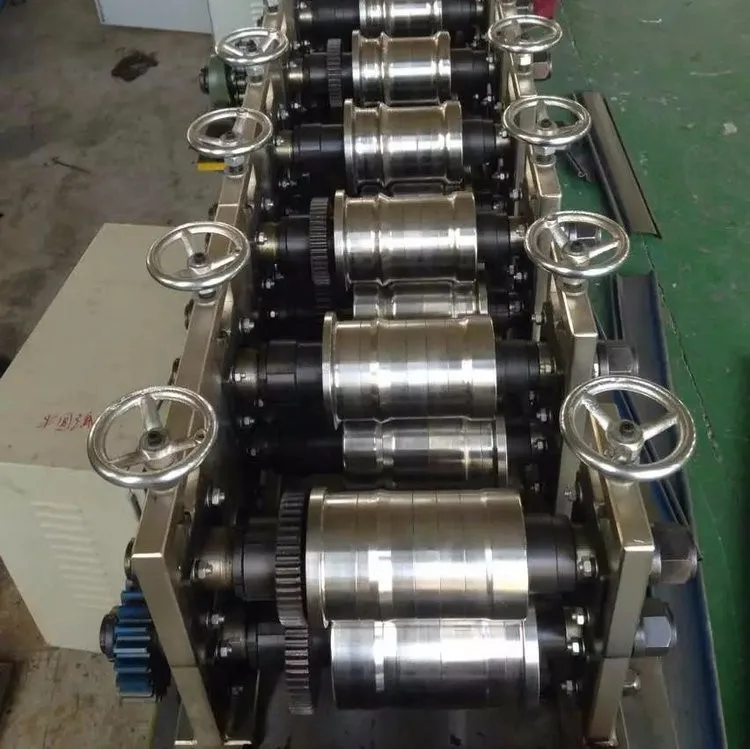

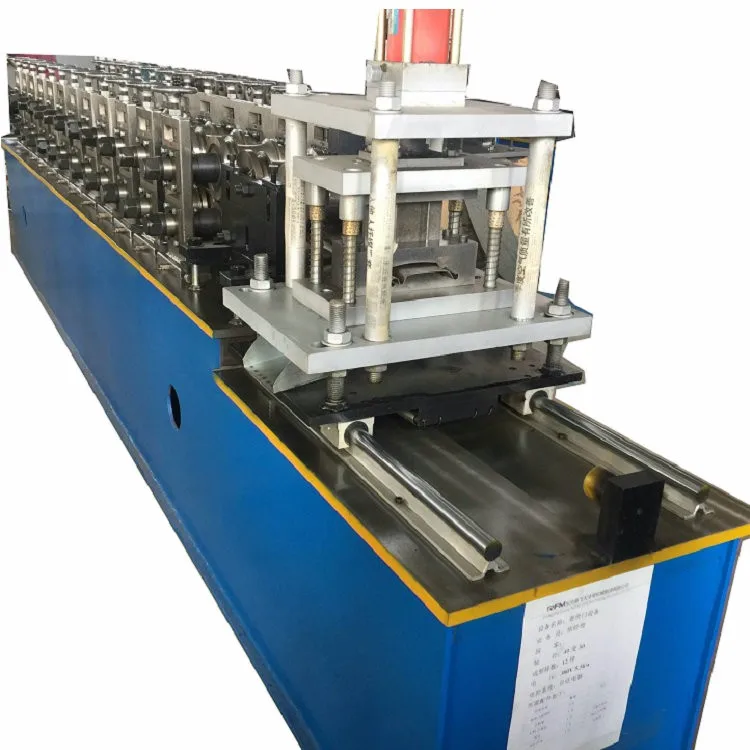

Main Forming Machine

Forming steps : 12 rollers
Shaft diameter: 40mm

Design type : Memorial arch
roller material: GCr12MoV steel
shaft material: 45# steel
Transport : By gear

power: 4kw

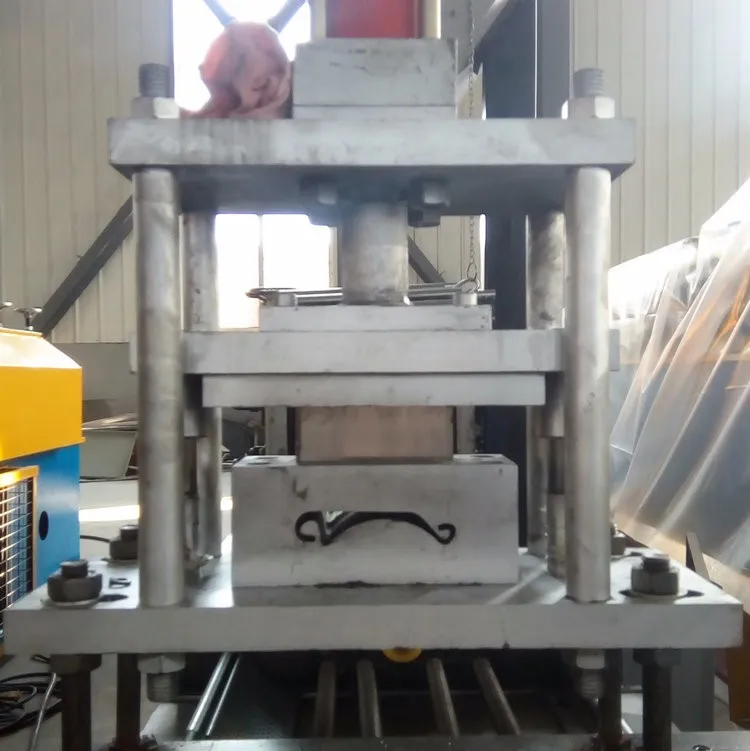

Shearing part

Material of blades: Gcr12 quenched
Power supply : hydraulic power
Type of cutting and punching: Hydraulic
Cutting tolerance: ±1mm
Cutter quantity: 2 set

hydraulic station

Hydraulic oil: 46#
Hydraulic power: 3kw
Cutting length : As required
feasure: no distorting or wasting. High level safety factor

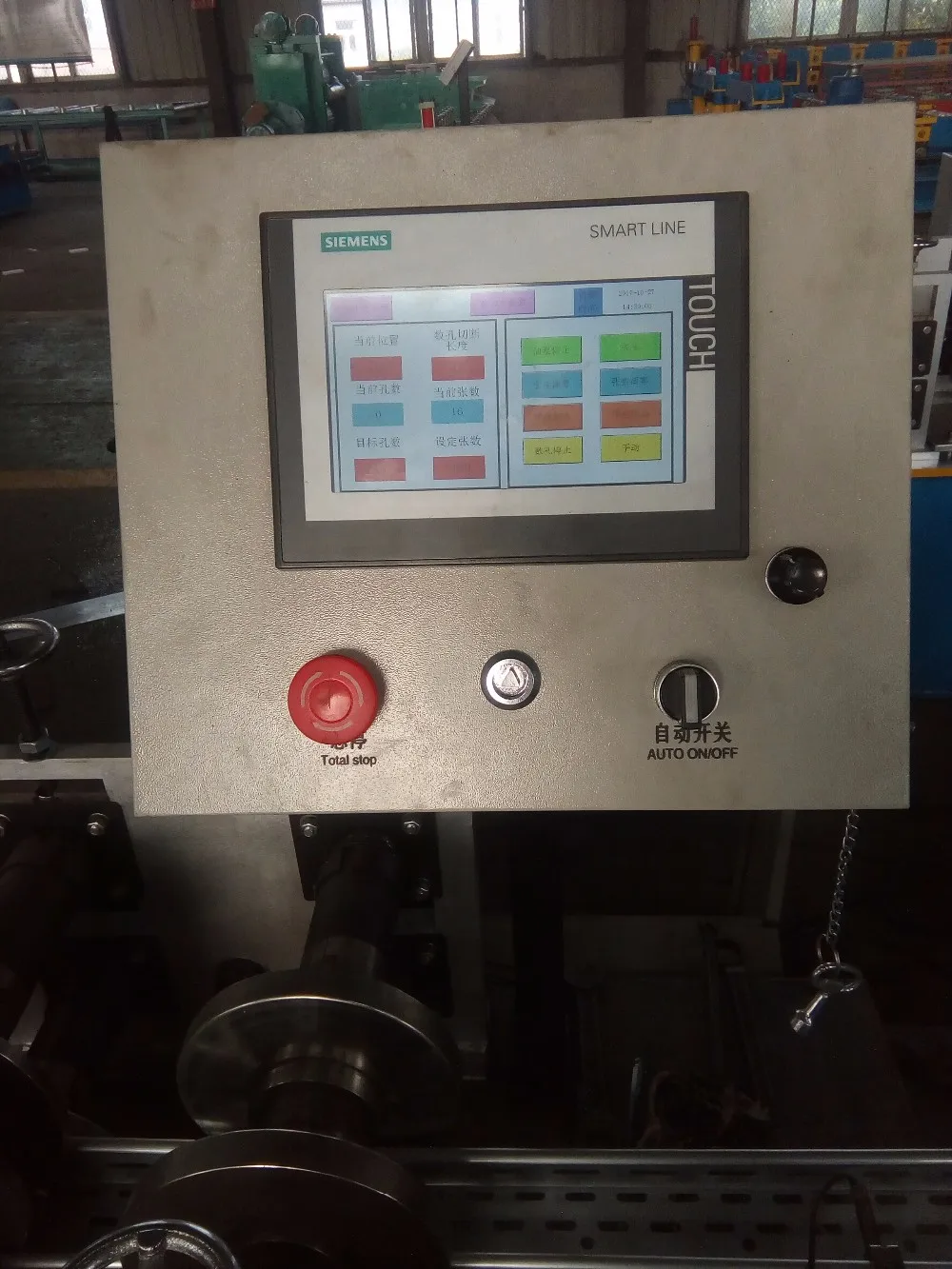

control device

PLC Control : Speed regulation control cabinet
language: As required
Touch screen: Delta
Function: Automatic length and quantity measurement

Packing & Delivery

Packaging
Packaging Details	1.One 20ft container for loading two sets machine with manual decoiler. 2.The whole wiped anti rust oil ,PLC controller covered by foam film. 3.Spare parts and some small parts packed in plastic tooling box. 4.All components of false ceiling machine fixed by steel wire.

Our Service

training

a.send you user manual and videos.
b.If buyer needs our technicians to go to your factory, the buyer need pay the technician USD80/day for salary .

c.There need one technician. for one week.

After-Sales Service

a.two years guarantee for whole machine.
b.24 hours technical support by email or calling
c.If there is any problem found in ourmachine, we will repair it for free in one year.

FAQ

1. How to get a quotation?
1. Normally we give the accurate quotation based on the drawing profile, so if you want to get the accurate quotation, please show us the drawing profile first. Or the information of the valid width, input coil width others.
2.Machine could be designed in many type and methods, for the machine frame, PLC brand, motor brand all will effect the price.
2. Terms of payment:
30% T/T, Balance to be paid before shipping after inspection.
3. Are you trade company or factory?
We are trade company but we also have our own factories.Building trade company is just for exporting various types of cold tile forming machines.
4. What can you do if the machine broken?
Our machine's warranty period is 24 months,if the broken parts can't be repaired,we can send new to replace for free,but you need to pay the express cost yourself.after warranty period,we can negotiate to solve the problems, we supply the technical support for the whole life of the equipment.

Our Company

Cangzhou ZHONGTUO Roll Forming Machinery Co., Ltd is a professional manufacturer and exporter of cold roll forming machines. All products comply with international quality standards and are greatly appreciated in markets throughout the world, such as Asia, Africa, Europe,South America, Australia and so on.

We specialized in manufacturing tile forming machinery, C U M Z purlin roll forming machine,floor deck roll forming machine, stud track roll forming machine,shutter door roll forming machine,door frame roll forming machine, highway guardrail roll forming machine, downspout machine, welding pipe machine.
