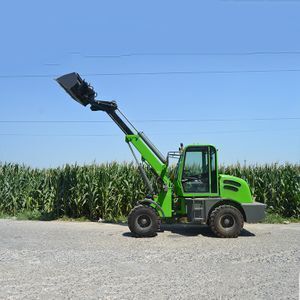

Multifunctional compact 1T small wheel telescopic boom loader
-
Supplier: Jining United Import And Export Co., Ltd. -
Region: Shandong, China -
Contact: Ms Evelina Cheng -
Price: $5000.00 /unit -
Min. Order: 1 unit
| Max. lifting Height: | 3600mm; | certification: | CE ISO; |
| After-sales Service Provided: | Video technical support,Online support,Free spare parts; | brand: | United; |
| Port: | Main China port; | Condition: | New; |
| Applicable Industries: | Manufacturing Plant,Farms,Construction works ; | Place of Origin: | Shandong China; |
| Certification: | CE ISO; | moving type: | wheel loader; |
| Hydraulic Valve Brand: | Liyuan; | Warranty: | 12 Months; |
| Supply Ability: | 200 Unit/Units per Month; | Type: | Front Loader; |
| dimention (L*W*H): | 4900*1400*2500mm; | Dimension(Long * Breadth * High): | 4900*1400*2500mm; |
| type: | front loader; | Hydraulic Pump Brand: | Liyuan; |
| Tire: | 10-16.5; | Bucket Capacity: | 0.3m3; |
| model: | CHTL810; | UNIQUE SELLING POINT: | High operating efficiency; |
| Brand Name: | UNITED; | Hydraulic Cylinder Brand: | Liyuan; |
| Packaging Detail: | nude packing 1 set in 1x40'GP, 2 sets in 1x40'HQ; | Engine Brand: | DDE; |
| Product name: | Multifunctional compact small wheel telescopic boom loader; | Machine Weight: | 3300kg; |
| Moving Type: | Wheel Loader; | Payment Terms: | L/C,T/T,Western Union; |

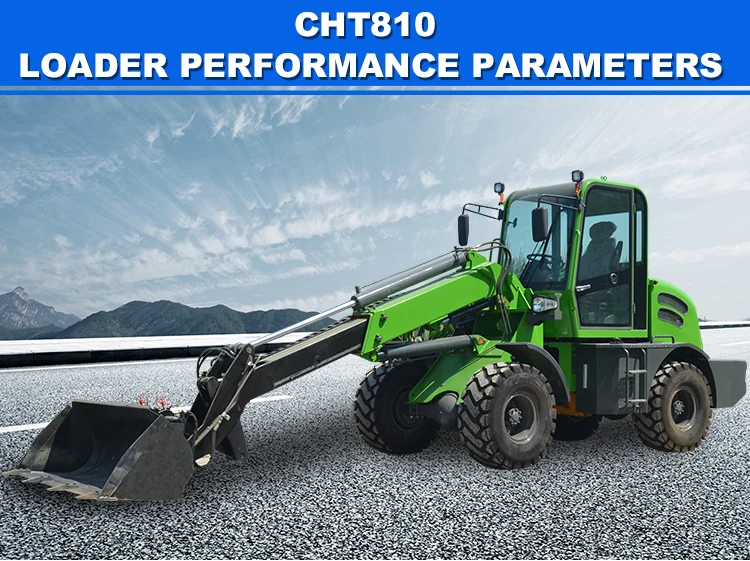

Multifunctional compact small wheel telescopic boom loader
Engine
| Model: Chinese YUNEI engine |
Engine type:In-line arrangement water-cooled, four-stroke,three-cylinder, diesel Engine | |
Rated Power:37KW | |
Optional Brand: YUNNEI 37KW ORXINCHAI Eueo/3EPA engine or PEA3/EPA4 YANMAR engine or EPA4 engine | |
Transmission System | Hydraulic converter + drive shaft + 130 axles (drum brake) |
Bucket
| Bucket Capacity:0.5m³ |
Bucket width:1400mm | |
Bucket type:Heavy-duty bolt on teeth | |
Rated Load:1000kg including attachment | |
Machine weight | 3300kg |
Overall Dimensions | Dimension:4900*1400*2500mm Max. lifting Height :3600mm Max. Bucket hinge pin Height :3000mm |
Operating Specifications
| Steering System: Articulated Frame with hydraulic power steering |
Driving System: Hydraulic converter, four wheel drive | |
Standard quick coupling(CAT style or VOLVO style or BOBCAT style) | |
Mechanical pilot joystick | |
Brake System
| Service Brake:Four wheel disc brake |
Parking Brake:Hand operated | |
Tyre | Model:10-16.5 (2)Width: 280mm(3) Diameter: 760mm |
Optional Model:12-16.5 or 31*15.5-15 wider tubeless tire | |
Wheelbase | 2150mm |
Tread | 1345mm |
System pressure | 16Mpa |
Hydraulic output | 70L/min |
Package :Nude or Polish with wax before shipping.
Shipping:Withing 25days after payment
Jining United Import & Export Co., Ltd founded in 1989,. We are mainly produce and sell Large and medium-sized Excavators,Wheel Loaders, Road Rollers, Bulldozers, Heavy Trucks, Special Equipment Vehicles, Mini excavators,Wheel Loaders,Road Rollers, Telescopic Boom Loader, Backhoe Loader and Etc.
Since establishment, the company has been worked for import and export, based in China with agents in Russia, South Africa, UAE, Brazil and other countries. Our products are sold to more than 90 countries and regions such as Asia, Europe, Africa, Oceania, and South America, and establish long-term good partnerships with customers in many countries in the world.
Product application widely use in the area below : railway, highway, airport, port, bulk cargo flow, mine, gravel field, municipal, industrial application, agriculture and animal husbandry, farmland transformation, water conservancy and hydropower, sanitation and garbage disposal, coal yard, energy power plant, Environmental protection and desert management, forest, logging, and other application conditions, such as road construction, site preparation, material handling, etc.
1, What’s your MOQ?
Minimum order is 1 pc only, dealership is warmest welcome.
2,What’s the qualify assurance we provided and how do we control quality?
1. Established a procedure to check products at all stages of the manufacturing process from raw materials to final products. Beside, we have also developed a procedure which identifies the inspection and test status of all items at all stages of the manufacturing process.
2.100% inspection in assembly lines. All controls, inspections,equipment,fixtures,total production resources and skills are inspected to ensure they consistently achieve the required quality levels.
3, How do you transport the telescopic boom loader?
We transport the vehicle in nude or Polish with wax before shipping.
Our company has long -term cooperation with ship agency which can provide you lowest shipping fee.
4, Can you satisfy my special requirement?
Yes, We can make customized design to utmost meet your special requirements.
-
