Drive Wheel: | 6x4; | Condition: | New; |
Transmission: | Manual; | Horsepower: | 371; |
Color: | Red, green, blue, white; | Dimensions(L*W*H): | 6800x2496x3125/3730; |
Fuel Type: | Diesel; | Delivery Detail: | 0 days after payment; |
Selling Units: | Single item; | Size: | 6800x2496x3125/3730; |
Displacement(L): | 9.726/11.596; | Front axle: | HF7,rated load of 7000KG; |
Drive Wheel: | 6*4; | Emission Standard: | Euro 5; |
Wheelbase(mm): | 3225+1350; | Transmission Type: | Manual; |
Package Type: | Nude packaging; | Engine Capacity: | > 8L; |
Single package size: | 6800X2496X3125 cm; | Rear axle: | MCY13 Doublereduction; |
Single gross weight: | 89,000 KG; | Gross Vehicle Weight: | 89000 kg; |
Brand Name: | Sinotruck; | Fuel Type: | Diesel; |
Product name: | Heavy duty high power tractor head truck for sale; |

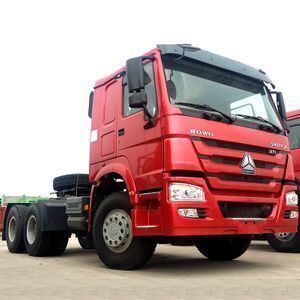

Heavy duty high power tractor head truck for sale
Vehicle series | HOWO-7 6x4 Highway Tractor | ||
Cab | HW76/HW79 | ||
Engine | Model | WD615.69 339hHP | |
Power(Ps /rpm) | 247/2200 | ||
Maximum torque(Nm/rpm) | 1500/1100-1600,1820/1100-1500 | ||
Displacement(L) | 9.726/11.596 | ||
Transmission | SINOTRUK HW series 10 gears Transmission, main and auxiliary transmission structure, main transmission with double counter shaft ,auxiliary transmission with planetary reduction. standardHW19710,optional HW19710T | ||
Clutch | Φ430diaphragm spring Clutch,Hydraulic control air assisted. standard CH430-21 | ||
Front axle | HF7,rated load of 7t, drum-type | ||
Rear axle | MCY13 Double reduction,speed ratio:3.36,3.7,4.11; optional:ST16 double reduction, speed ratio:3.93,4.42,4.8; | ||
Steering gear | Bosch steering gear, system pressure 18MPa | ||
Suspension | Steer Axle | front and rear leaf spring suspension, front suspension with shock absorber,transverse stabilizer | |
Drive Axle | front and rear leaf spring suspension,rear suspension is disconnected type with transverse stabilizer. | ||
Braking system | Service brake | dual-circuit air pressure brake | |
Parking Brake | spring storage energy without air | ||
Auxiliary brake | Engine exhaust braking. Optional ABS,Engine EVB and optional auto clearance adjusting arm | ||
Electric system | Voltage | 24V | |
Generator | 2KW | ||
Batteries | 12V/165Ah,2 pieces | ||
Starter Power | 24V,7.5KW | ||
Wheels & Tyres | Tyres | 315/80R22.5 | |
optional | 12.00R20; 12R22.5 | ||
Fuel Tank | Capacity | 400 Liters optional:600 Liter | |
Weights (kg) | Curb weight | 9100 | |
Gross Vehicle Weight | 89000 | ||
Design loading capacity at fifth wheel | 15640-15690 | ||
Maximum traction weight | 41900 | ||
Vehicle Dimensions (mm) | Overall length x width x height | 6800x2496x3125 | |
Wheelbase | 3225+1350 | ||
Front overhang/Rear overhang | 1500/725 | ||
Wheel track of front axle | 2022 | ||
Wheel track of rear axle | 1850 | ||
Performance | Maximum speed(km/h) | 92/102 | |
Maximum gradeability(%) | 20 | ||
Minimum turning diameter(mm) | 15 |
Main parameters:
Package : Nude or Polish with wax before shipping.
Shipping:within 45 days after receiving the T/T,allowing partial shipments and transshipment.
Jining United Import and Export Co.,Ltd is the authorized company of SINOTRUCK, we are doing all series of Sinotruck , including Dump truck, Tractor truck, Cargo truck, Concrete mixer and pump truck, Van truck, Semi-trailer truck, Tank truck, Dangerous goods transfer truck, Environment sanitation truck, Road maintenance truck, Fire-extinguishing truck, Aerial platform truck, Wrecker truck, Oil field truck, Vehicles for animal husbandry, Truck crane, New energy series, HIAB crane and etc.
Our company was found in 2011,located in Jining City, Shandong province,Before we worked as the construction machinery factory Jining Changhong Construction Machinery Co.,Ltd in Nov, 1996, mainly doing all construction machine spare parts, though all staff ‘effort and government`s support, We has quickly developed and expansion into overseas market.Now as a special spare parts and whole machine supplier, we have a complete set of service from before-sales to after-sales. Now our product have been sold all of the world,like Russia,India,Brazil,Southeast Asia,Africa and other countries.Warmly welcome all regular and new customers to visit our company.
1, What’s your MOQ?
Minimum order is 1 pc only, dealership is warmest welcome.
2,What’s the qualify assurance we provided and how do we control quality?
1. Established a procedure to check products at all stages of the manufacturing process from raw materials to final products. Beside, we have also developed a procedure which identifies the inspection and test status of all items at all stages of the manufacturing process.
2.100% inspection in assembly lines. All controls, inspections,equipment,fixtures,total production resources and skills are inspected to ensure they consistently achieve the required quality levels.
3, How do you transport the trucks?
We transport the vehicle in nude or Polish with wax before shipping.
Our company has long -term cooperation with ship agency which can provide you lowest shipping fee.
4, Can you satisfy my special requirement?
Yes, We can make customized design to utmost meet your special requirements.
