220v ac motor 4w for heat recovery and ventilation

Click here to contact
Product details
Speed:60RPM;Single gross weight:1 KG;
Input power:16W;Brand Name:220v ac motor 4w for heat recovery and ventilation;
Protect Feature:Drip-proof;Efficiency:Other;
Capcitor:0.33uF/630V;Rated torque:400mN.m;
Certification:CCC,CE,ROHS,BV;Single package size:15X15X13 cm;
Starting torque:200mN.m;Max. torque:450mN.m;
Input current:0.07A;Package Type:Ctn size: 370*270*270mm 18 pcs/ctn, N.W.: 13.5kgs, G.W.:14.7kgs Delivery : within 30 days after payment Apply to 220v ac motor 4w for heat recovery and ventilation;
Phase:Single-phase;Model Number:55TDY060D4-2B;
220v ac motor for ventilation:220v ac motor 4w for heat recovery and ventilation;N.W.:0.75Kg;
Place of Origin:Jiangsu China;Selling Units:Single item;
AC Voltage:220V;Frequency:50Hz;
Type:Synchronous Motor;Insulation class:B;
WHY CHOOSE US
Product Description

 PM slow speed synchronous motors is one kind of totally enclosed motor, which can naturally turn at slower speeds(72 or 60RPM).
For even slower speeds planetary gear reducers are offered. SOK synchronous motors produce very slow speed with modest gear reductions.

Ambient condition

1.Temperature:-25℃～ +40℃；
2.Relative humidity:≤95%；
3.Atmospheric pressure :74.8KPa（2500m);
4.Vibration:10～55Hz,double amplitude1.5mm;
5.Impact: 150m/s2

Typical application

Auto-testing equipment

Medical equipment

Timing belt drives

X-ray scanning

Textile machines

Electrical valve actuator


Cryogenic pump

Heat exchanger

Remote control of switches rheostat

Printing,packaging machines

Antenna rotors

Auto-welding machines

Specifications

Parameter of 220v ac motor 4w for heat recovery and ventilation

Model
Voltage
Phase
Fre.
Syn. Speed
Input current
Input power
Max. torque
Rated torque
Starting torque
V

Hz
r/min
A
W
mN.m
mN.m
mN.m
55TDY060A1-2
24
1
50
60
0.80
20
400
380
200
55TDY060A3-2
110
1
50
60
0.16
16
400
380
200
55TDY060D1-2
24
1
50
60
0.80
20
400
380
200
55TDY060D4-2
220
1
50
60
0.08
16
400
380
200
55TDY060S2-2
36
3
50
60
0.38
16
500
450
300
55TDY060S4-2
220
3
50
60
0.08
16
500
450
300
55TDY115A1-2
24
1
50
115.38
0.80
20
300
270
150
55TDY115A4-2
220
1
50
115.38
0.08
16
300
270
150
55TDY115D1-2
24
1
50
115.38
0.80
20
300
270
150
55TDY115D4-2
220
1
50
115.38
0.08
16
300
270
150
55TDY115S2-2
36
3
50
115.38
0.35
16
500
450
300
55TDY115S5-2
380
3
50
115.38
0.05
16
500
450
300


Note: The typical specifications above just for your reference. Please feel free to contact us if you can’t find the motor you required. We are always here being ready to help.

Outline drawing

Dimension of 220v ac motor 4w for heat recovery and ventilation

Our Company
FAQ
Certifications
Related Products

50Hz 55mm High quality electric Ac Motor

91.8% Response Rate

55mm ac brushless permanent magnet synchronous gearmotor

91.8% Response Rate

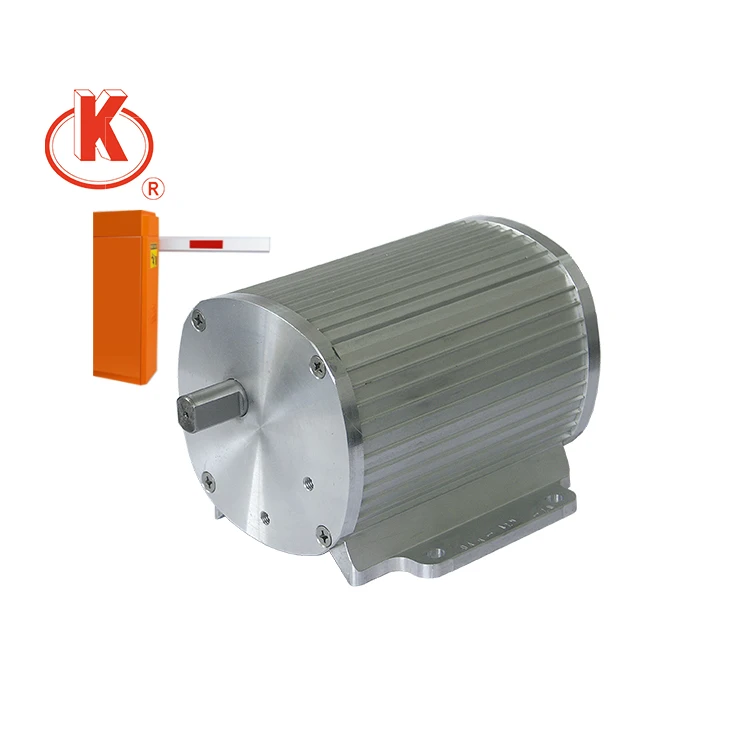

135mm Single phase acasynchrous motor for barrier gate
