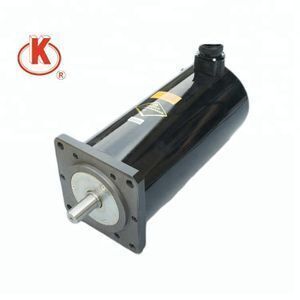

NEMA52 China micro cheap stepper motor

Product details
Motor Length:280mm;Brand Name:SOK- China micro cheap stepper motor;
Resistance:0.85Ω;Packaging Detail:Ctn size: 41*36*20cm 2pcs/ctn, cartons and pallet N.W.: 45kgs, G.W.:46.2kgs Delivery : within 30 days after payment Apply to NEMA52 China micro cheap stepper motor;
Inductance:14.4mH;N.W:22.5Kg;
Certification:CCC,CE,ROHS,BV;Model Number:SOK130H280-7004- China micro cheap stepper motor;
Noload Frequency:23000HZ;Delivery Detail:5-20 working days;
Payment Terms:L/C,T/T,PayPal/Creidt Card;Starting Frequency:2200HZ;
China micro cheap stepper motor:NEMA52 China micro cheap stepper motor;Port:Shanghai;
Phase:2;Place of Origin:Jiangsu China;
Type:Hybrid;Supply Ability:15000 Piece/Pieces per Month Apply to NEMA52 China micro cheap stepper motor;
Step Angle(degrees):1.8 Degree;Current / Phase:7A;
Holding Torque:50N.m;
Product Description
Description of NEMA52 China micro cheap stepper motor
80-325V stepper motor / NEMA 52 stepper motor / SOK130H280-7004 stepper motor
21N,M Stepper motor, high torque stepper motor with 110mm size.

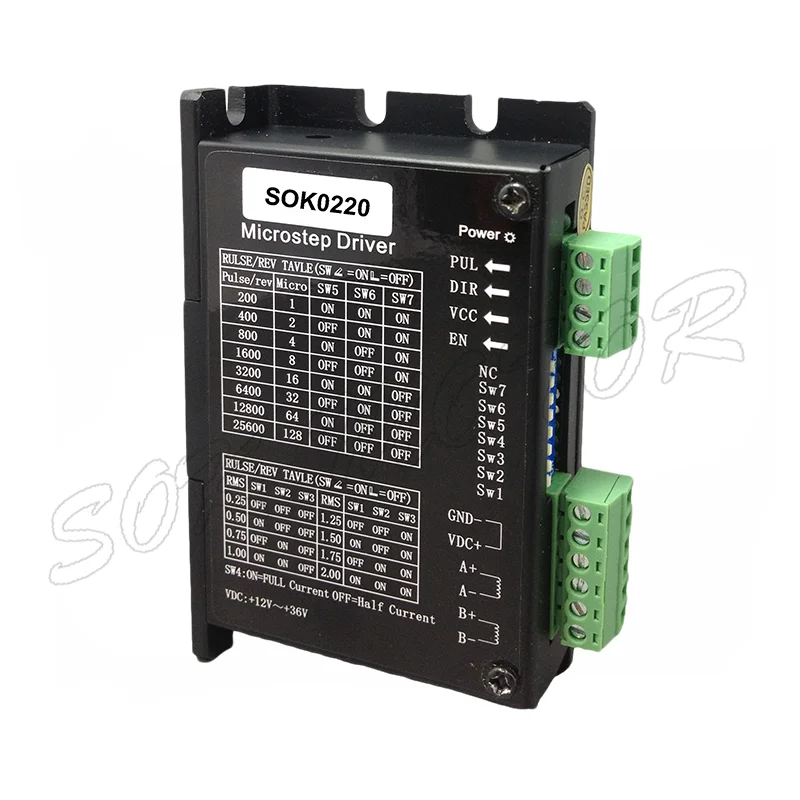

50N.m stepper motor driver-SOK0220

1.DC power input type:12V~36VDC ,
2.Output current:0.25A-2.0A
Mircostepping:1(1.8º),1/2,1/4,1/8,1/16,1/32,1/64,1/128
Pulse/rev: 200,400,800,1600,3200,6400,12800,25600
3.Dimensions:96mm×60mm×24.5mm
4.Weight:<200g.
5.Working environment:Temperature-15~80℃

Typical application of NEMA52 China micro cheap stepper motor


robots

advertising instrument

textile machinery

electronic automatic equipment

lighting& audio equipment

Cnc router

medical instrument

printer




Ambient condition
Ambient condition of NEMA52 China micro cheap stepper motor

1.Temperature:-20℃~ +50℃;

2.Relative humidity:≤95%;

3.Atmospheric pressure :74.8KPa(2500m);

4.Vibration:10~55Hz,double amplitude1.5mm;


5.Impact: 150m/s2

Specifications

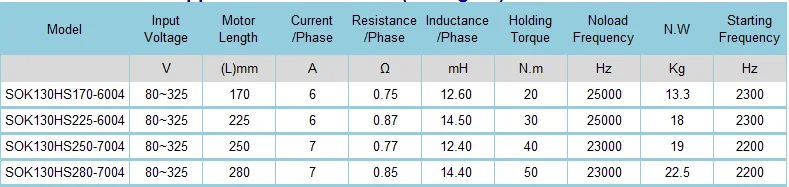

Electric motor parameter of NEMA52 China micro cheap stepper motor


Note: The typical specifications below are just for your reference. Stepper motors can be customized. Please feel free to contact us if you can’t find the motor you required. We are always here being ready to help.

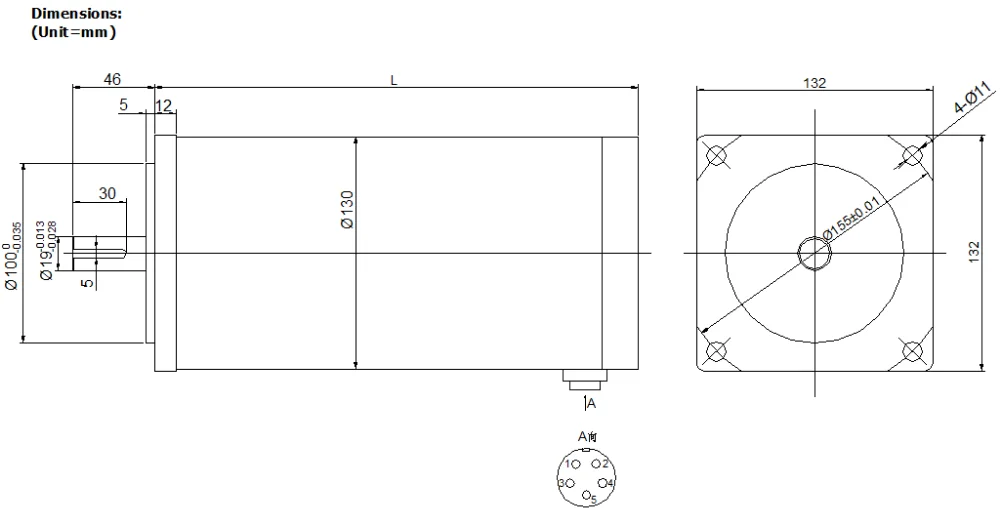

Outline drawing

Dimension of NEMA52 China micro cheap stepper motor

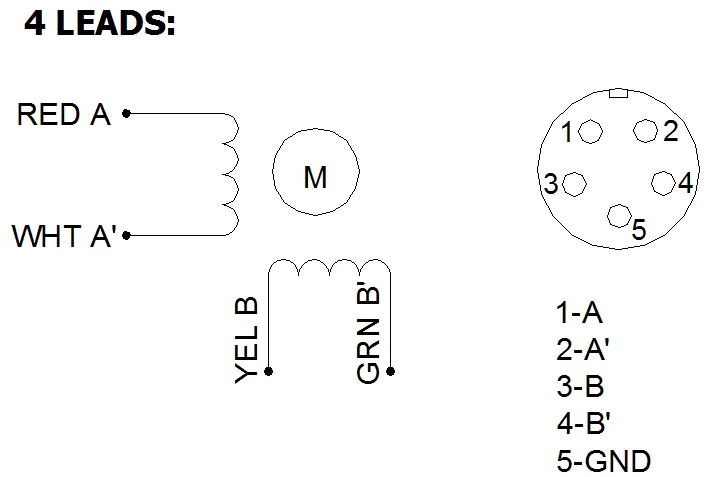

Wiring diagram of NEMA52 China micro cheap stepper motor

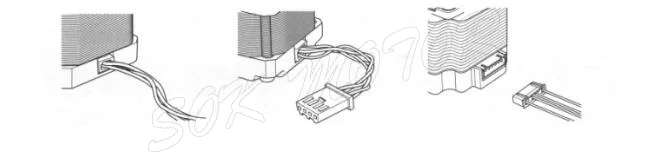

Lead wire option

Packing detail of NEMA52 China micro cheap stepper motor
