Supply Ability: | 30 Set/Sets per Month agricultural product drying machine; | Material: | 304 Stainless Steel; |
Color: | Customers' Requirements; | Dimension(L*W*H): | 8300*3000*2200; |
Condition: | New; | Port: | Qingdao/Shanghai/Tianjin/Lianyungang/Guangzhou; |
Capacity: | 300-2500kg per batch; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,Cash,Credit card,master card,visa,e-checking,etc; |
Name: | agricultural product drying machine; | Voltage: | 380V; |
Type: | Tray Dryer; | Feature: | Energy Saving; |
Packaging Detail: | agricultural product drying machine 20GP,40GP,40HQ container, motors and small parts is wooden box package.; | After-sales Service Provided: | Engineers available to service machinery overseas; |
Model: | GX03/GX06/GX10/GX12; | Weight: | 1500kg; |
Application: | Food Processing; | Brand Name: | Guoxin; |
Place of Origin: | Henan China; | After-sales Service Provided: | Video technical support,Field maintenance and repair service; |
Type: | Heat pump+Drying chamber; | Function: | High Efficiency Drying; |
Warranty: | 1 Year; | Application: | Vegetables,Fruit,herbs,seafood,leather,etc; |
Certification: | CE ISO; | Power(W): | 9.6kw; |

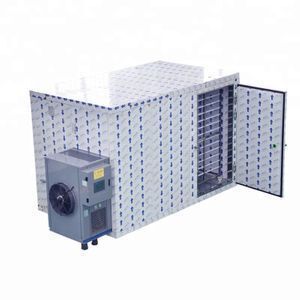

Good for agricultural product drying machine/yam dryer machine

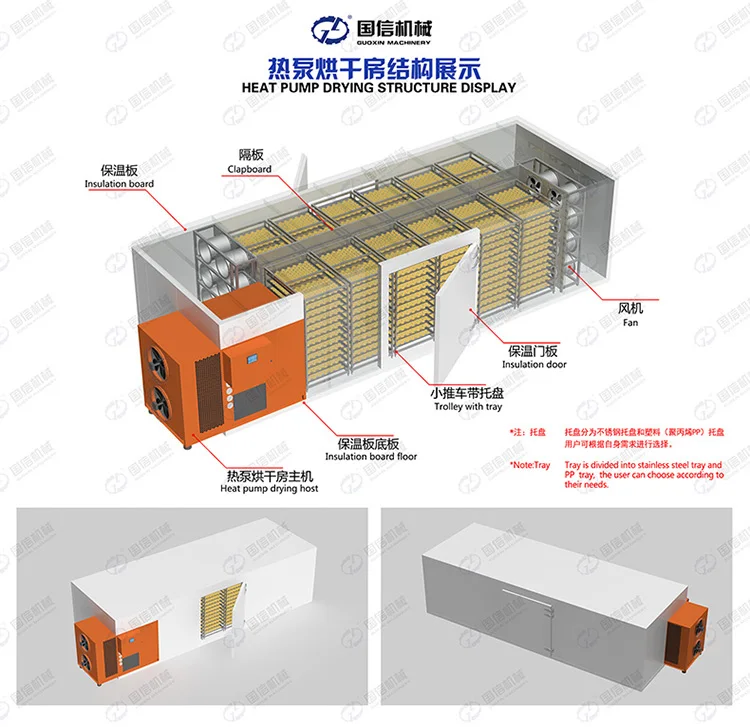

Principle of agricultural product drying machine:
This drying machine use of heat pump evaporator absorbs heat from the outside air.or recycling of exhaust gas residual heat in the process of drying.Through the work of compressor, the energy transport (transfer) to drying box, drying box of hot air after repeated cyclic heating, absorb the moisture in the material, its cooling humidification, through hot air platoon is wet or the process of condensation, water take the moisture out of the material, and finally realizes the continuous drying of materials.

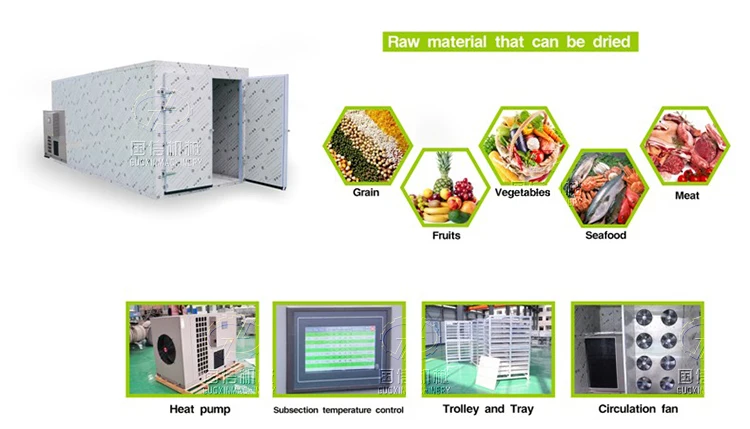

Application of agricultural product drying machine:
The heat pump can be used in many application,like agriculture,industry,seafood,grain,herbs,construction,paper products,seasoning,mineral industry,etc
Dry vegetables like Radish, lettuce, pumpkin, carrots, spinach, cassava,etc
Dry fruits like Apple, lemon, mango slices, dried longan, dried longan,etc
Dry meat: Sausage, beef, duck, ham,etc
Others it can dry noodle/ wooden /stick incense/herbs /floers ect.
Technical Parameters of agricultural product drying machine:
NEW TYPE HEAT PUMP DRYER MODEL | |||||||
Items | Unit | GX03 | GX06 | GX10 | GX12 | ||
Production capacity | 1 set | 300kg | 600kg | 1000kg | 1200kg | ||
2 sets | 600kg | 1200kg | 2000kg | 2500kg | |||
Heating capacity | Kw/h | 12 | 26 | 35 | 42 | ||
Cooling capacity | Kw/h | 7.5 | 15 | 25 | 30 | ||
dehumidification amount | L/H | 10 | 25 | 50 | 60 | ||
Suitable drying chamber size | M3 | 10-30 | 30-40 | 40-50 | 60-70 | ||
Input power
| Compressor |
kw | 2.8 | 5.3 | 9.3 | 11.2 | |
Evaporator fan motors | 0.78 | 0.78 | 1.5 | 1.5 | |||
Hot air circulating fan | 2 | 2 | 2 | 2 | |||
Dehumidify fan motor | 0.37 | 0.37 | 0.55 | 0.55 | |||
Auxiliary electric heater | 3 | 6 | 9 | 9 | |||
Power supply | kw | 220v/380v | 380v/3ph/50hz or 60hz | ||||
Total running current | A | 35/20 | 30 | 45 | 45 | ||
Max hot air temperature | ℃ | 75 | |||||
Min cooling temperature | ℃ | 8 | |||||
Working ambient temperature | ℃ | -10-45 | |||||
Mixture Refrigerant | kg | 2.5 | 4.5 | 8 | 9.75 | ||
Weight | kg | 210 | 385 | 480 | 500 | ||
Dimension | length |
mm | 1650 | 1730 | 2100 | 2179 | |
Width | 960 | 1220 | 1460 | 1356 | |||
Height | 1280 | 1280 | 1590 | 1930 |
The difference between traditional electricity heating with agricultural product drying machine:
1. New design idea--Three times waste heat recovery;
2. Adopt heat regenerators to dehumidify;
3. Adopt touch screen controllers and dry/wet bulb to control temperature and humidity, operation drying machine easily and more accurate;
4. adopt duct-type drying method, it with shorter drying time and well-distributed hot air, drying time shorter 30% than old models;
5. during drying, the material does not craze,does not distortions, nondiscolouring, never degenerate, non-oxidize, drying completely, with good Rehydration, keep nutrient content.

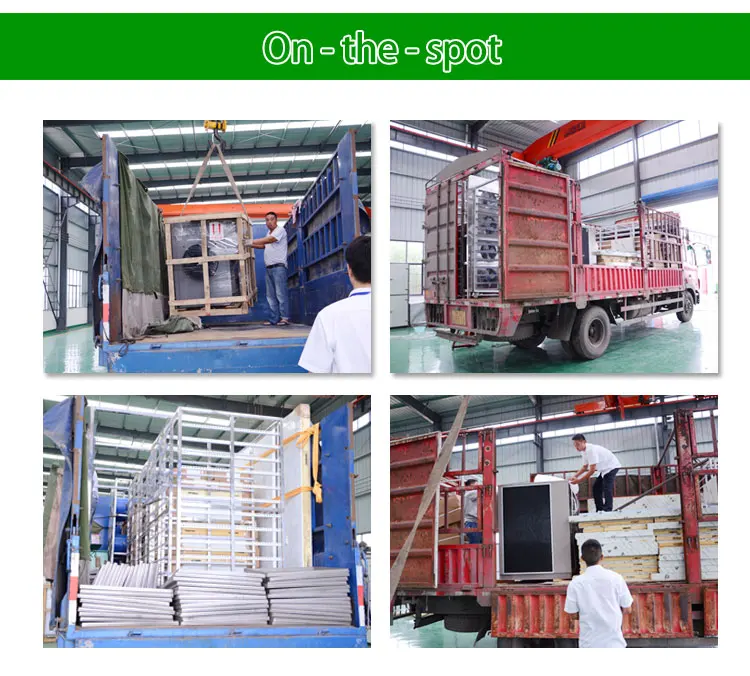

For agricultural product drying machine,Packing machine with wooden box, or delivery with Container without packing, to prevent them from destroying during transportation. Then, we will choose the most convenient and economic way to delivey goods. Besides, if our customer have specific demand with delivey, we can make it. |
Why Choose Us?
1,we are factory, not dealer, we can quote u best price.
2. we have stable work team and qualified engineer.
3. we have long cooperation shipping agency,can help u get the best freight.
4. our all products are approved CE quality inspection certificates.
