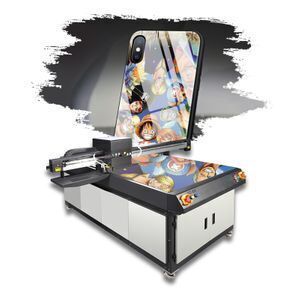

Multi Purpose High Speed Inkjet uv led flatbed printer for mobile phone case wood glass

Supplier: Shanghai Meitu Digital And Technology Co., Ltd.
Region: Shanghai, China
Contact: Mr Derek Li
Price: $1089.00 /set
Min. Order: 1 set

Click here to contact

Product details

Place of Origin:	Shanghai China;	Condition:	New;
Usage:	Flatbed Medium;	Automatic Grade:	Automatic;
Plate Type:	Flatbed Printer;	RIP software:	Photoprint Software;
Adjusting system:	With infrared ray induction system;	Ink Type:	UV Ink;
Maximum media thickness:	80mm;	Packaging Detail:	Wooden Case 3.80m L x 1.16m W x 1.83m H/800kgs;
Media handling options:	Rigid Sheets;	Outdoor durability:	3 years;
Print Dimension:	1000*1600mm;	File formats:	Bitmaps,TIFF,FPEG,Postscript3,EPS,PDF,etc;
Port:	Shanghai;	Type:	Inkjet Printer;
Color & Page:	CMYK+WHITE;	Payment Terms:	T/T,Western Union,MoneyGram;
Warranty:	1 Year;	After-sales Service Provided:	Engineers available to service machinery overseas;
Dimensions(LWH):	L2200W2100H1130;	Color management:	ICC based color;
Drying system:	LED UV Lamp;	Certification:	CE SGS MSDS;
Supply Ability:	3000 Set/Sets per Year;	Voltage:	220V;
After-sales Service Provided:	Field installation, commissioning and training,Field maintenance and repair service,Online support,Video technical support;	Brand Name:	MT;
Weight:	450kgs;

Multi Purpose High Speed Inkjet uv led flatbed printer

for mobile phone case wood glass

Product Description

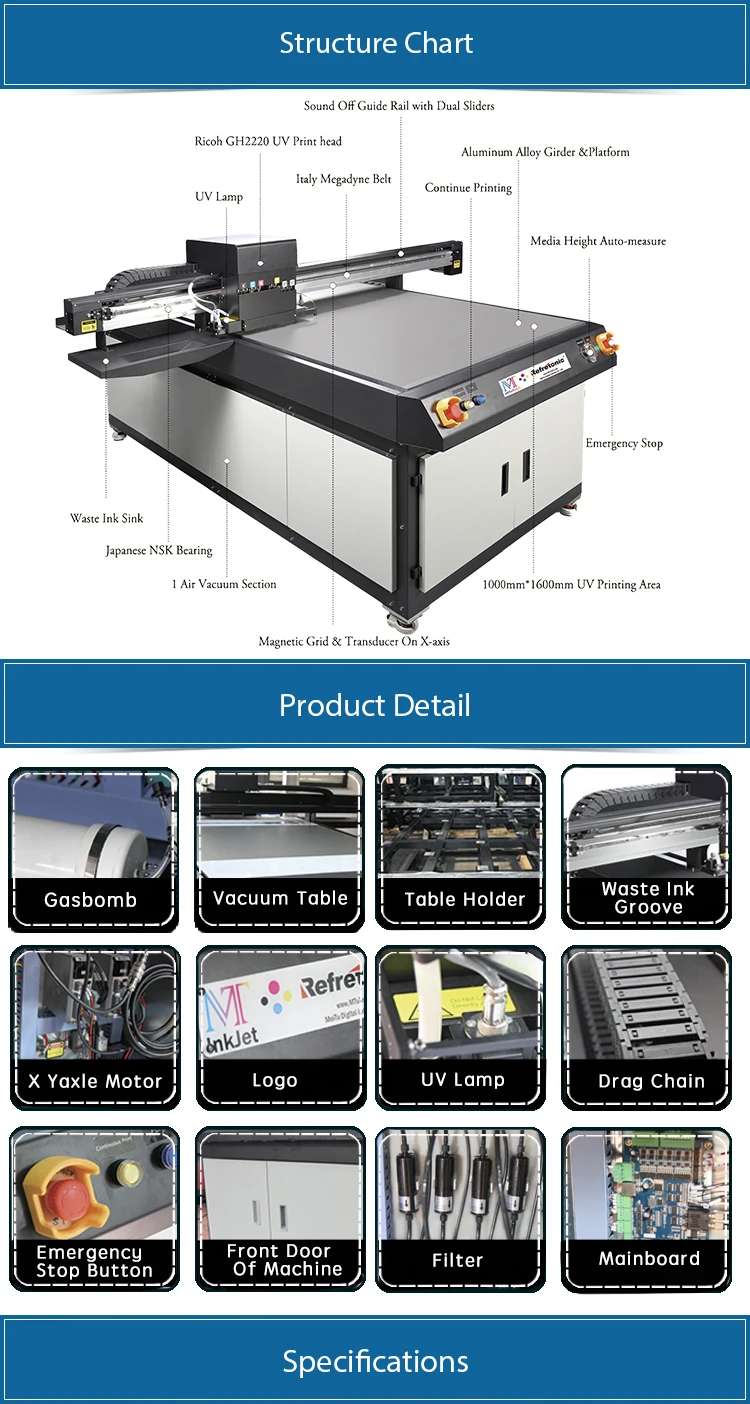

Product Pictures

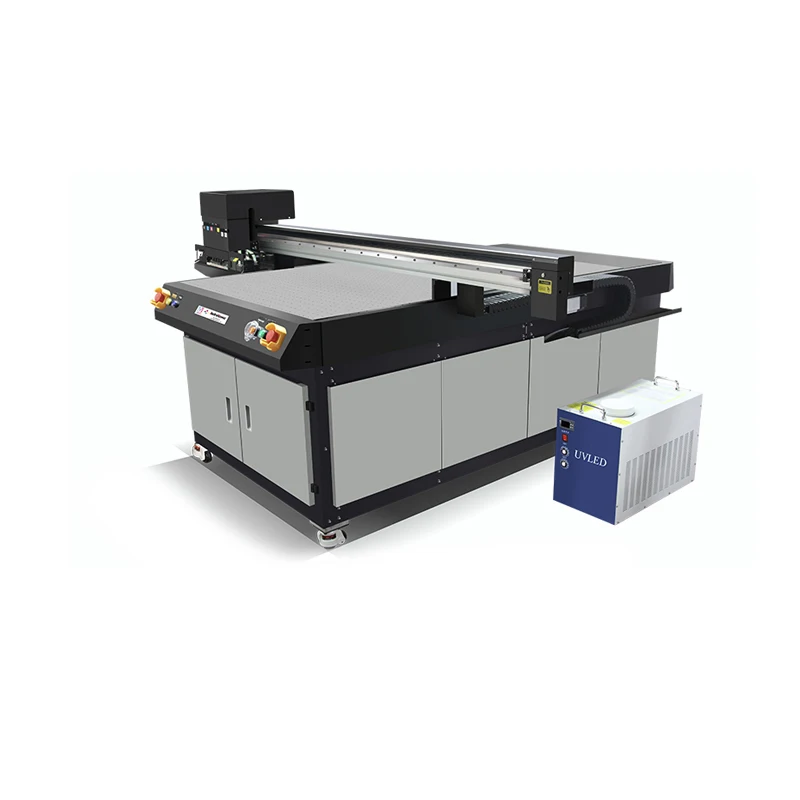

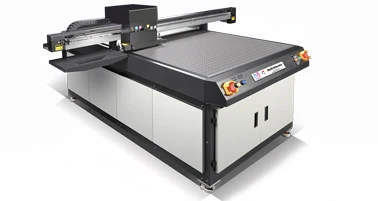

Mode Type		Flatbed UV Printer MT-1016G
Print head		Ricoh GH2220 Printhead
Max Media Size		1000*1600mm
Max Media Thickness		Panel:≤ 750mm
Print speed		Standard Output Mode: 7.5sqm/hr, Production Mode: 6.5sqm/hr, High Precision Output Mode: 5.2sqm/hr, Ultra-high quality output mode: 3.7sqm/hr
Print Resolution		600,900,1200,1800,2400dpi
Technology		Piezoelectric Inkjet,UV-curable inkjet,grayscale printing
Color Configuration		C M Y K or C M Y K Lc Lm (white color and varnish are optional)
Ink types		Environmental protective UV ink
Ink reservoir		2.5L drums, automatic ink control, non-stop and ink
RIP software		Photoprint/ Caldera(Option)
Color management		ICC based color management, adjustable curbe and density
File formats		TIFF,JPEG,Postscript,EPS,PDF,ect
Media handling		Flatbed,sheet feed and roll feed with optional Roll-to-Roll upgrade kit. Vacuum platform supports various rigid materials.Automatic media registration system is used for easy loading and accurate printing with an optional,unique blowing function,it makes medium unloading very easy.
Rigid Media		Wood panel, Aluminum panel, door plank, paperboard, PVC expansion sheet, ceiling panel, glass, ceramics, acrylic, PVC, etc.
Data interface		High speed USB transmission
UV energysource		Dual shuttered UV lamps,independent user-selectable control of shutter aperture and two lamps power levels
Temperature		15-30℃
Relative humidty		20%-80%,non-condensing(minimum 40% recommended for syn thetic media to avoid static electricity,maximum 60% recommended for paper-based media to avoid buckling)
Maximum power		2000 watts
Pequirements		Input voltage:200 to 240VAC,signal-phase, 50/60Hz,32A max
Warranty		One year
Printer Demension		L2200W2100H1132mm
Packing Demension		L2250W2350H1350mm
Net Weight		450kg
Gross Weight		600kg

PRODUCT FEATURES:

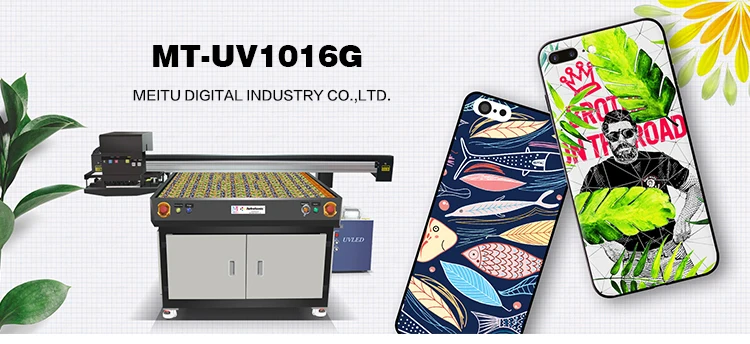

1) Item Model: MT-UV1016G

2) Machine Body Materal: Aluminum Alloy and Stainless Steel

3) Printhead: RICOH GH2220 Printhead

4) Resolution: 600 , 900 , 1200 , 1800 , 2400 dpi

5) Size of Ink Droplet: 7PL

6) RIP Software: Photoprint/ Caldera(Option)

Packaging Details:

1) Package Dimensions: L2250*W2350*H1350mm

2) Quantity/Package: 1 Set

3) 20GP/40GP: 4/8 Sets

4) Gross Weight: 600 Kg

CERTIFICATION:

LOGISTICS ABILITY:

MT Industry Arranges the Mixed Logistical for delivery as By Sea, By Air and By Truck or Train, Over 10 Years' Experience for Logistical Arrange.

MANUFACTORY SCALE:

The Total Manufactory Area: 30,000 square meters (322,916 square feet)

Production Staff: 158 to 168 QC Staff: 5 to 8 R&D: 10 to 15

DELIVERY TIME:

1) Material Preparation Time: Instock Any Time

2) Spare Parts Preparation Time: Instock Any Time

3) Metal Processing Time: 5 days

4) Assembly & Testing & Packaging Time: 2 days

5) Total Delivery Time: 7 days for 1 set for safe delivery lead time

The Faster Delivery Could be Negotiable Sometimes!

USAGE/OCCASION

Furniture Industry , Advertising Industry ,Wood Panel, Aluminum Panel, Ceiling Panel, Glass, Ceramics, Acrylic, PVC, Etc.

ManufactureShipping

We are located at Shanghai, China and founded in 2007 as designer, supplier and manufacturer of Eco

Solvent Printer, Solvent Printer, UV Printer and Digital Textile Printer with our own research institu

manufactory, marketing department, international after-sale service team etc.

We're passionate about building MT, a brand that we will be proud of and that you'll be proud to use it

too. MT is not the first Industrial Printer brand to be Born In Shanghai. But MT is passionate about

building the best Printer Product in the game at the best price and service. As consumer liked to say

about their opinion, "The best, the fastest, the latest" and we think that's right.

With more than 10 years' experience in manufacturing and exporting various kinds of Digital Inkjet

Printers to European, American, Middle East and Africa markets, we possess very professional know

how especially in controlling the quality of Eco Solvent Printers, Solvent Printer, UV Printer Digital

Textile Printer and other Advertising Products since 2007.We research and produce the inks and

other consumables to work with our printer, which can guarantee high resolution on different printing

materials.

Shipment

Payment

T/T * MoneyGram * Paypal * WesternUnion * L/C

FREQUENTLY ASKED QUESTIONS

Q: I don't know your website well, how can I trust you?

A: MT Digital Industrial Co., Ltd. ( www.MTuTech.com & www.MTjet.cn ) has launched online business for selling Eco Solvent Printer, Solvent Printer, UV Printer, Digital Textile Printer almost 10 years and established customers over 168 countries and areas. We are the Gold Supplier of Alibaba almost 10 years, and the verified user of PayPal as well as approved by SGS certification.

Q: How to pay? Can I use credit card?

A: You may use the following methods of payment: Ali Trade Assurance, PayPal online payment, PayPal direct payment, credit card (through PayPal gateway, some areas may be restricted), bank transfer, and Telegraphic Transfer (T/T) payment.

Q: How can I know if it is paid successfully?

A: We will send you a payment confirmation email upon receiving your payment

Q: How long can I receive the items?

A: Normally speaking, we will spend 1 or 2 days to prepare the order and if it requires longer time, we will inform you as soon as possible. The general shipping time will be 3 to 7 days by air cargo. Therefore, under normal situation, you will receive the items in 4 to 9 days by air.

Q: How to receive my order? Is it safe during shipping?

A: For the items you purchased, we will arrange shipping by sea or international express delivery to ship and usually the carriers are DHL, FedEx, TNT, and UPS. It shall be quite safe during shipping by sea or air. Additionally, we will purchase insurance as a guarantee for your order.

Q: How to obtain the tracking number of shipment? And how to contact the carrier (express delivery company)?

A: We will send you the Bill of Lading or tracking number after shipping your items, hereby please keep on checking your email.

Q: What is Warranty Policy

A: We provide 1 year warranty. During the 1 year warranty if any part is faulty, our company will give you replacing parts for free and help you to change the faulty parts. When the warranty expired, our company will still give you technician support for free. The only difference is the replacing part no longer free. So, we provide lifelong after sale service to you as long as you use our printer. Especially, you can gain the lifelong Warranty for your large format digital inkjet printer with continuously ink order.

All products on our website are made by the best manufacturers in China and the quality is guaranteed by the China Ink-jet Printing Association. Although low cost products are the most popular, but our products are selected with high quality and high production standards and affordable price. We can supply assembly spare parts with every machine and guarantee their functioning for at least 12 months.

Q: If I still have questions to this product, what shall I do?

A: Please click "Inquire Now" below the page and submit your inquire or questions, we will reply you as soon as possible, or email to us, Whatsapp ID: 00861363662744
