Fully Automatic Drinking Water,pure Water Bottle Filling Machine
-
Supplier: Zhangjiagang Jiayuan Machinery Co., Ltd. -
Region: Jiangsu, China -
Contact: Mr jiaxun zhu -
Price: $7000.00 /unit -
Min. Order: 1 unit
| After-sales Service Provided: | Online support,Video technical support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service; | Packaging Material: | Wood; |
| After-sales Service Provided: | Engineers available to service machinery overseas; | Capacity: | 2000-30000bph; |
| Processing Types: | Normal Pressure Filling; | Place of Origin: | Jiangsu China; |
| Certification: | CE SGS; | Filling material: | mineral water, pure water; |
| Function: | Bottle Washing Filling Capping; | Driven Type: | Electric; |
| Voltage: | 380V 50Hz; | Packaging Type: | Bottles; |
| Single package size: | 20X20X20 cm; | Warranty: | 1 Year; |
| Weight: | 2500kg; | Single gross weight: | 10 KG; |
| Automatic Grade: | Automatic; | Dimension(L*W*H): | 2200X2100X2200MM; |
| Brand Name: | JIAYUAN; | Bottle type: | PET Plastic Bottle; |
| control: | PLC,Touch screen; | Name: | water bottling machine; |
| Selling Units: | Single item; | Type: | Filling Machine; |
| Package Type: | standard wooden cases; | Application: | Beverage; |
| Condition: | New; | Key Selling Points: | Long Service Life; |
| Applicable Industries: | Food & Beverage Factory; |
1. This equipment is automatic washing filling capping three in one machine. It’s of many advantages, such as compact structure, perfect control system and easy to be operated. Advanced touch screen and PLC control system makes man-machine communication true.
2. Washing part is mainly composed of washing pump, bottle clamps, water distributor, up turn-plate, guide rail, protection cover, spraying device, defrosting tray, rinse water take and rinse water refluxing tank.
mineral water filling machine price. filling machine price
3. Filling Part is mainly composed of filling barrel, filling valves (normal temperature and normal pressure filling), filling pump, bottle hanging device / bottle pedestals, elevating device, liquid indicator, pressure gauge, vacuum pump, etc.
4. Capping part is mainly composed of capping heads, cap loader (separated), cap unscrambler, cap drop rail, pressure regular, cylinder and also we need an air compressor as the auxiliary external equipment.
5. Main electrical components are all imported from world famous brands to guarantee excellent performance of the whole machine.

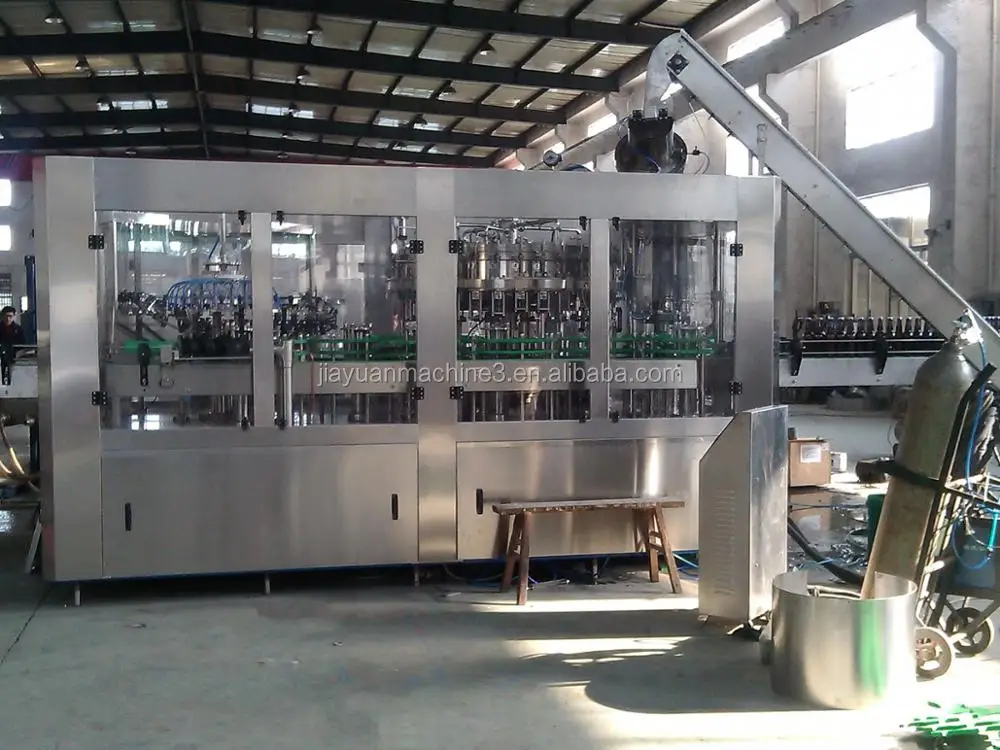

overall look

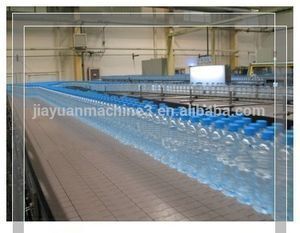

air conveyor

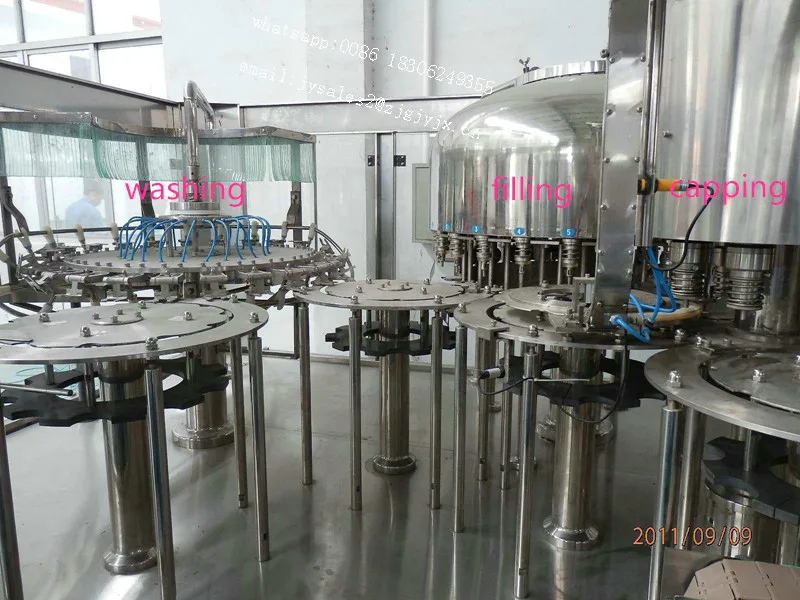

inner look

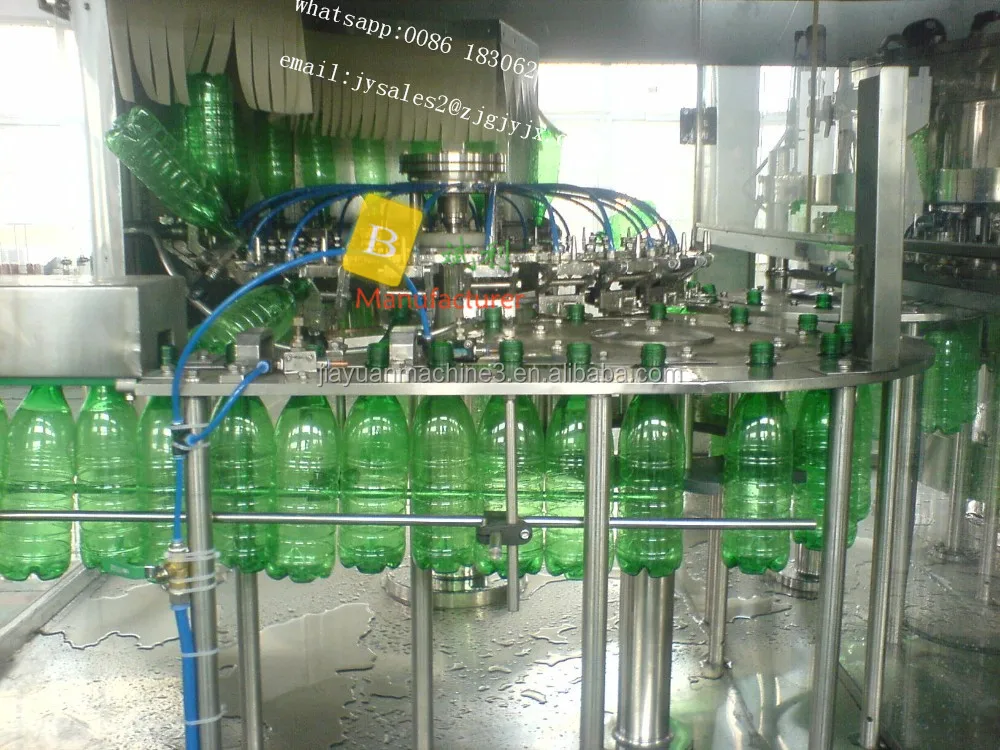

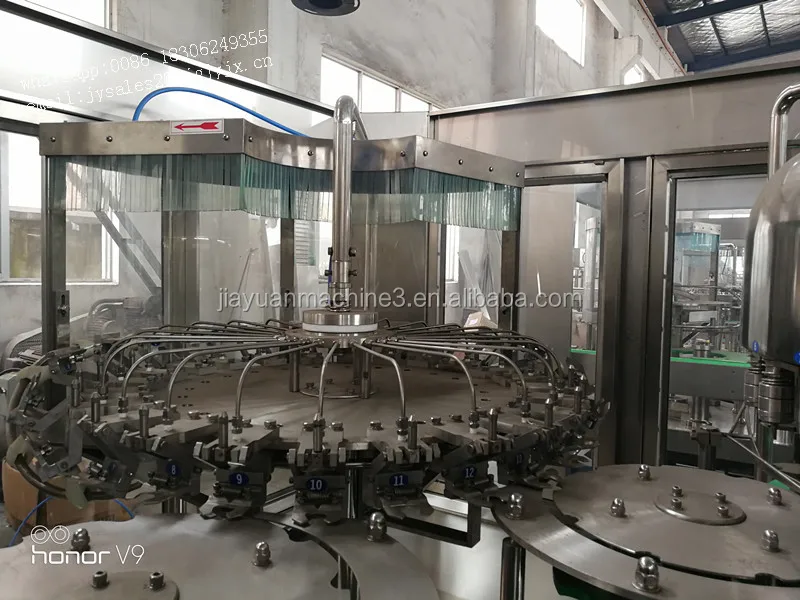

Bottle Rinser
1). The rotary disk is fully made of SUS304 stainless steel.
2). Using company original tilting bottle clip, bottle clamp stuck bottleneck, avoid the traditional bottle on rubber clip to block the bottle thread parts may be caused by the pollution. Bottle clip is made of SUS304 stainless steel, health and durable.
3). Using imported special efficient spray nozzle, the washing water will be sprayed in a particular angle, can wash any part of the inner wall, rinse with water thoroughly and save flush bottle.
4). Bottle clamp and lifting mechanism of sliding sleeve adopts Germany Igus corrosion resistant bearing without maintenance.
5). Washing part moves by a frame in the transmission system through the gear transmission.

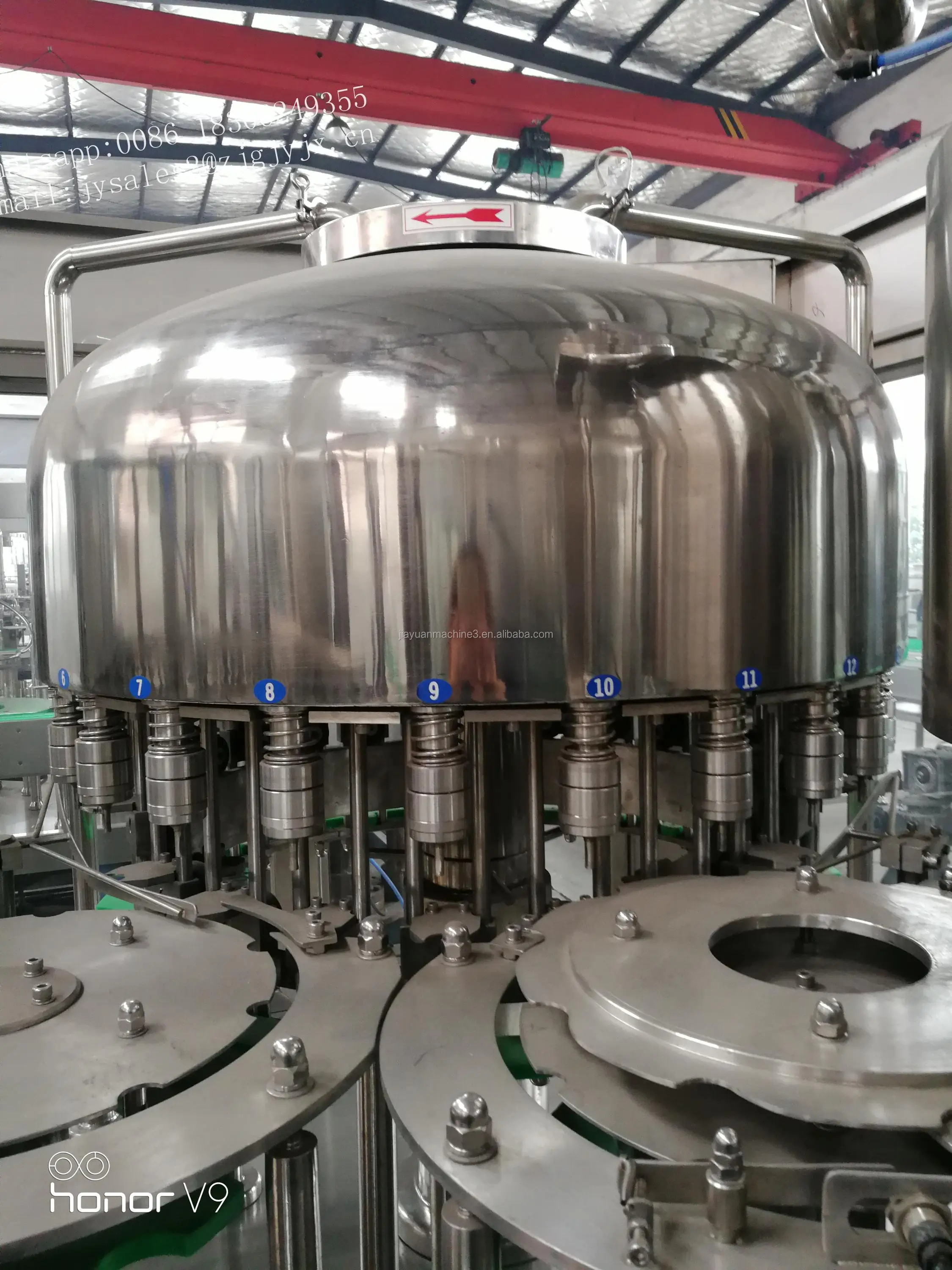

Bottle Filler
1). The washing bottle, filling, sealing are connecting with the thumbwheel card bottleneck transportation methods.
2). The rotating disk is all made of SUS304 stainless.
3). Filling method is gravity filling.
4). Filling valve manufactured by SUS304.
5). The filling valve structure design is reasonable, the filling quantity is accurate.

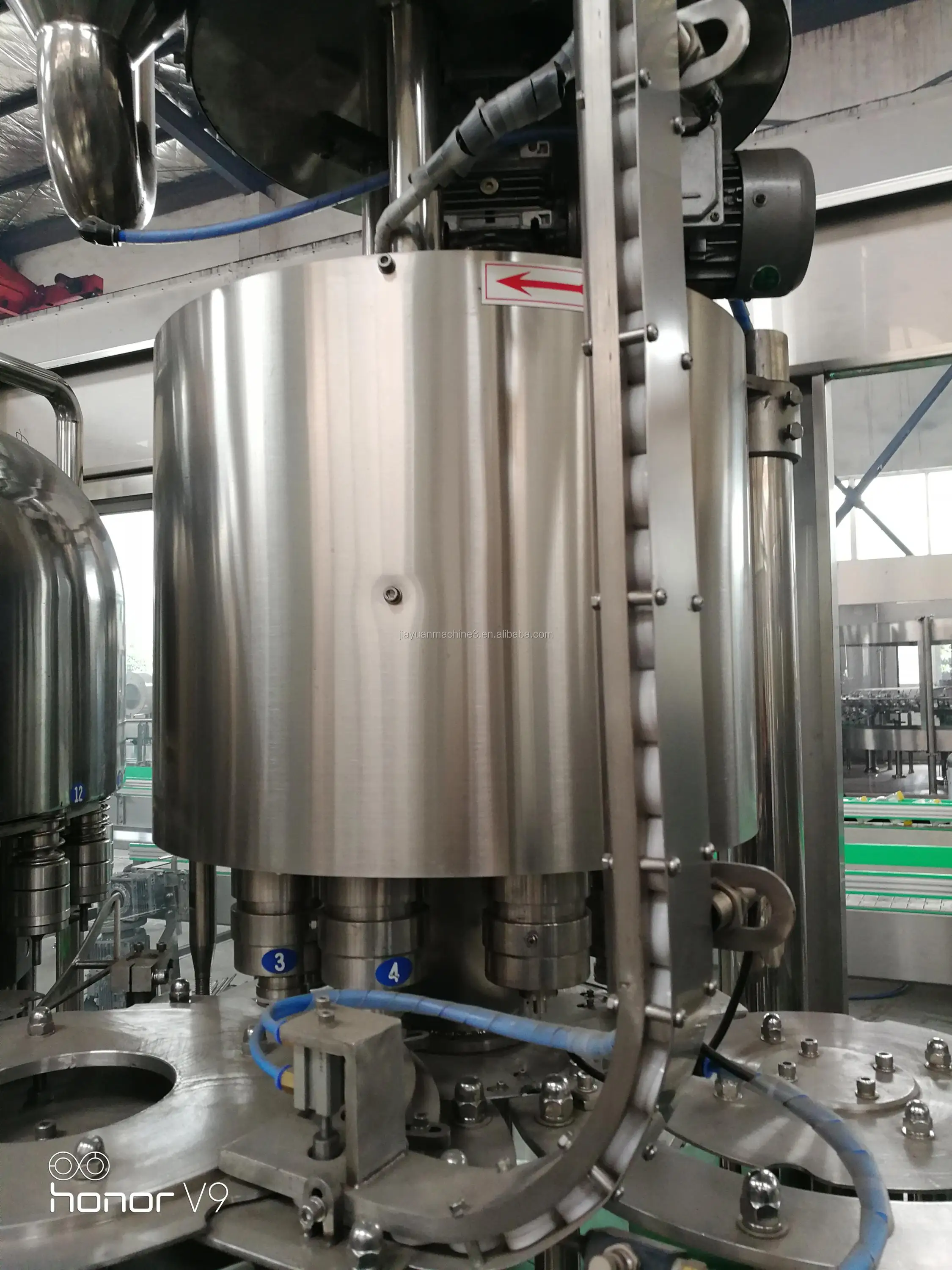

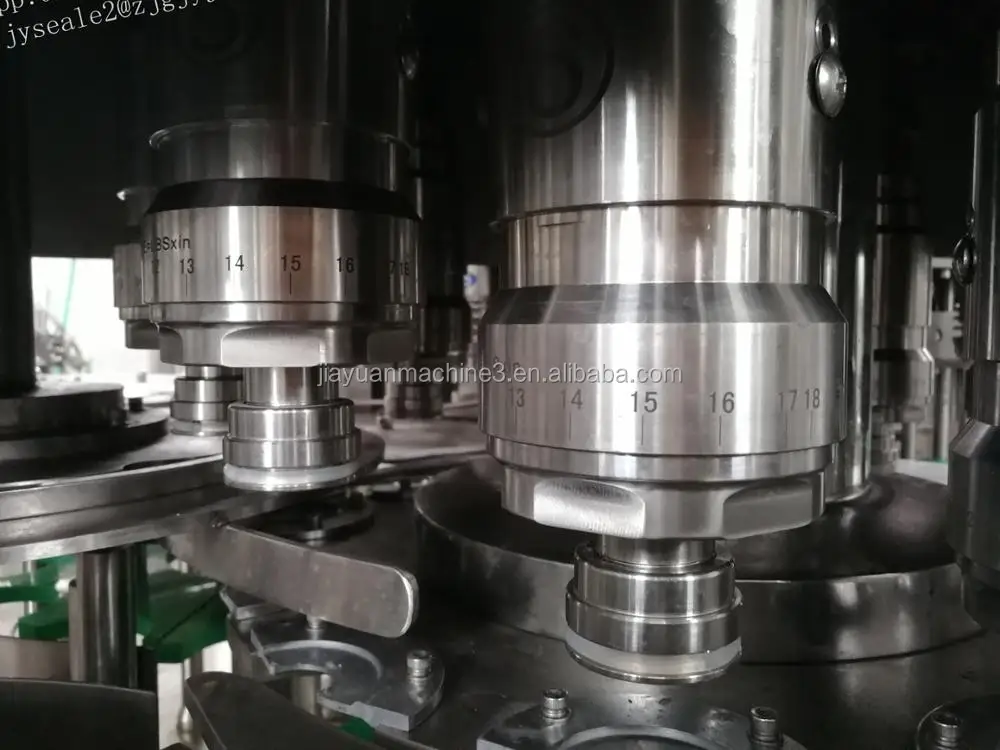

Bottle Capper:
The capping machine is the highest precision in 3-in-1 unit machine, on the reliability of equipment operation, has enormous influence on the defective rate of the product.
Introduced the world's most advanced Italian AROL capping machine technology, combining with the filling machine production experience improvement, and ask college of Shanghai Jiaotong university mechanical engineering institute of electrical and mechanical design and automation technology of experts and professors to help design.
electrical parts
if your capacity is less than 2000bph, you can select the below (pls click it):
2000bph small capacity water bottling machine
JIAYUAN was established in 1997, is the first one of beverage packing machine manufacturer. Now we have the following production line:
1. Minera water/Pure water production line;
2. Carbonated beverage production line;
3. Juice beverage production line;
4. Canning beverage production line;
5. Oil filling line;
6. Tea/Wine filling line.

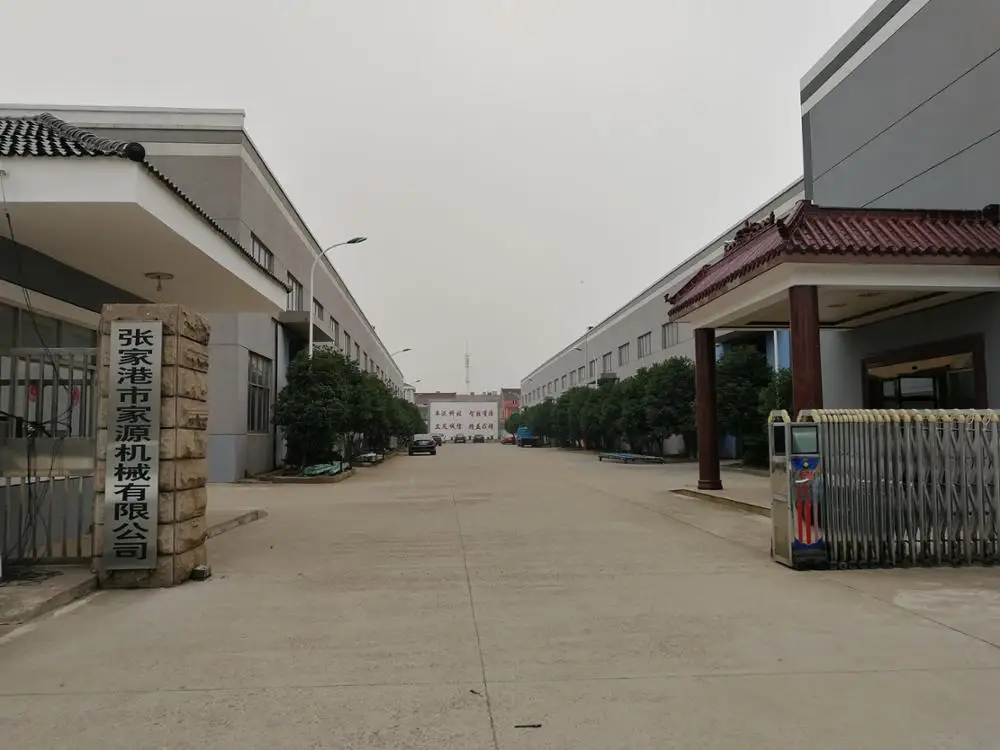

our company

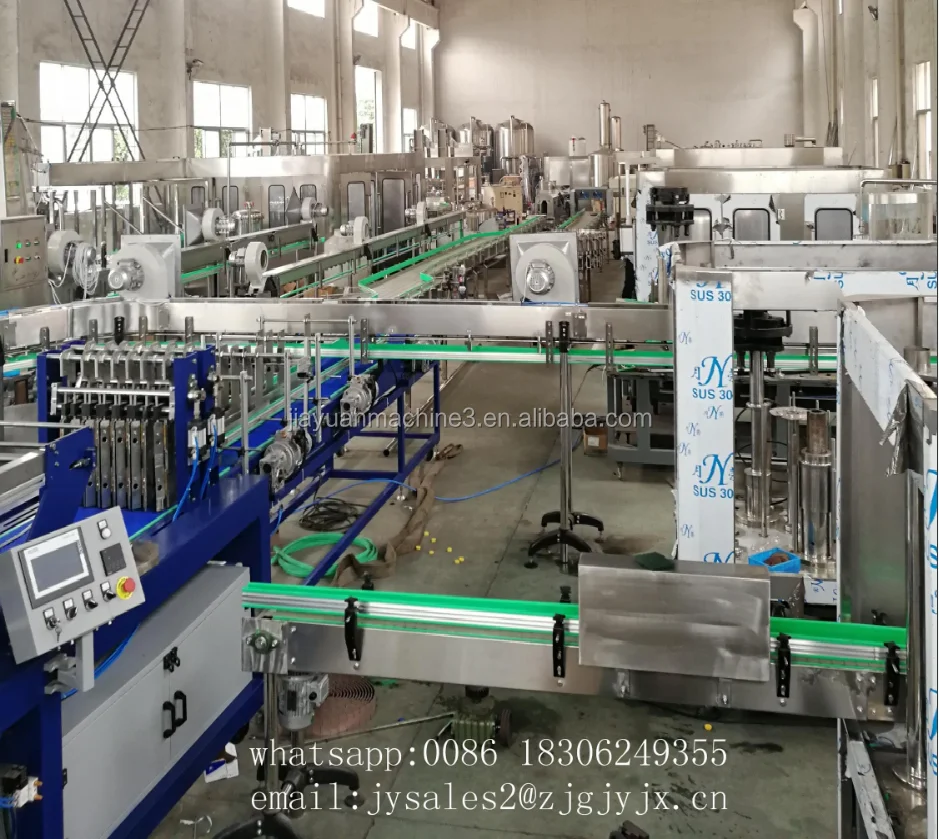

our workshop
1.Q : If you buy our machines , can you offer us wear-out spare parts?
A : No problem ! We will offer you 1 year free wear - out spare parts . As well as 1 year warranty . Once your machines broken or doesn't work within 1 year our engineers will go to your factory (company limited) to solve it . Meanwhile they will teach you the related experiences for fixing .
Q1: How is the machine quality, why I want to choose your machine.
A1: We have machine process in our factory, operation video, and if you want to, we can send oversea technician to fix your problem, just inform us (14 working day in adavance).
Q2: How we can get the spare parts?
A2: Depends on the valve, we will provice free spare parts one set, and we have list for Electrical elements,
you can get from us, or the match model in your country.
JIAYUAN is always ready to fulfill your company’s needs according to your business goals.
| Contact Person | Alice Chen |
| Mobile Phone | +86 183 0624 9355 |
| +86 183 0624 9355 | |
| Skype | +86 183 0624 9355 |
| +86 151 4055 1447 | |
| jysales2(at)zjgjyjx.cn | |
Website | jiayuan machinery |
We can provide professional solutions for customer. Send your Inquiry Details in the Below, Click "Send" Now!!!
(If you want to get your precise quotation,pls leave your capacity.thanks!)
-
