Fully automatic drinking pure mineral water bottle washing filling capping filling machine workshop production line

Product details
Voltage:380Vtype:filling machine
Filler:waterMachine capacity:4000BPH, 8000BPH, 12000BPH, 6000BPH, 20000BPH, 16000BPH, 2000BPH, 1000BPH
Filling accuracy:0.5%payment terms:L/C, T/T
Core component warranty:1 yearHealth status:new
Warranty:2 yearsbrand:Baekje
Dimensions (L*W*H):2100*2200*2200mmPackaging Details:wooden box
Supply capacity:50 sets per yearMaterials used for packaging:plastic
port:ShanghaiApplicable industries:Food and Beverage Factory
Mechanical test report:ifMarketing Type:New Products 2020
Driver type:electricalVideo shipment inspection:if
Finished bottle packaging:Shrink wrapping machineBottle labeling:Sleeve label or rotary opp hot melt bottle labeling
product name:Mineral water bottle cleaning filling capping machineMain selling points:automatic
Automatic level:automaticSewage treatment plant:reverse osmosis/ultrafiltration
application:Food, beverage, chemical industry, machinery and hardwareCap Type:plastic nut
Filling method:gravity hatShowroom location:not any
drinks:Purified water/mineral waterHost:3-in-1 rinse cap
weight:5000 kgtype of packaging:bottle
Bottle type:PET plastic bottleOrigin:Jiangsu, China
Applicable bottle size:0.25-2.0LCore components:Motors, pressure vessels, water pumps, PLCs, gears, bearings, gearboxes, engines
Product Description
Fully automatic drinking pure mineral water bottle washing filling capping filling machine workshop production line
The cleaning, filling and capping machine is mainly used for non-aerated carbon dioxide beverages, such as purified water, mineral water, etc. The unique design of combining bottle washing, filling and capping machines into one machine reduces the power of the main machine, saves space and reduces air pollution between the three machines.
detailed image

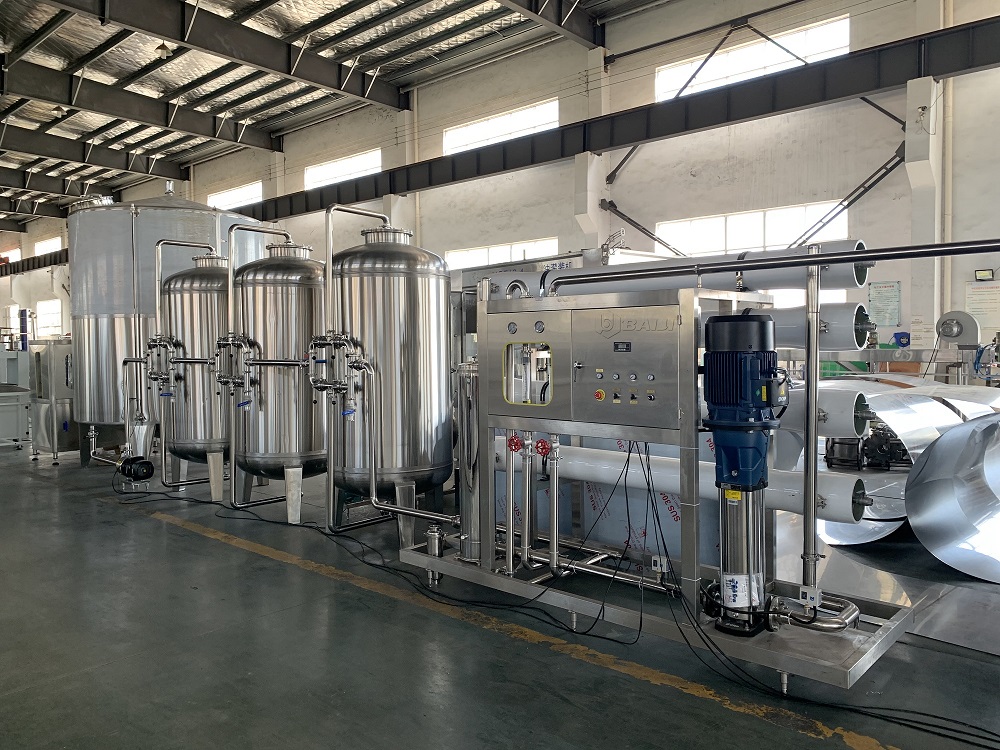

water treatment systemThe reverse osmosis process uses semi-permeable membranes to separate and remove dissolved solids, organics, pyrogens, submicron colloidal matter, viruses and bacteria from water. The process is called "reverse" osmosis because it requires pressure to force pure water through a membrane, leaving impurities behind. Reverse osmosis removes 95 - 99% of total dissolved solids (TDS) and 99% of all bacteria, providing safe, pure water

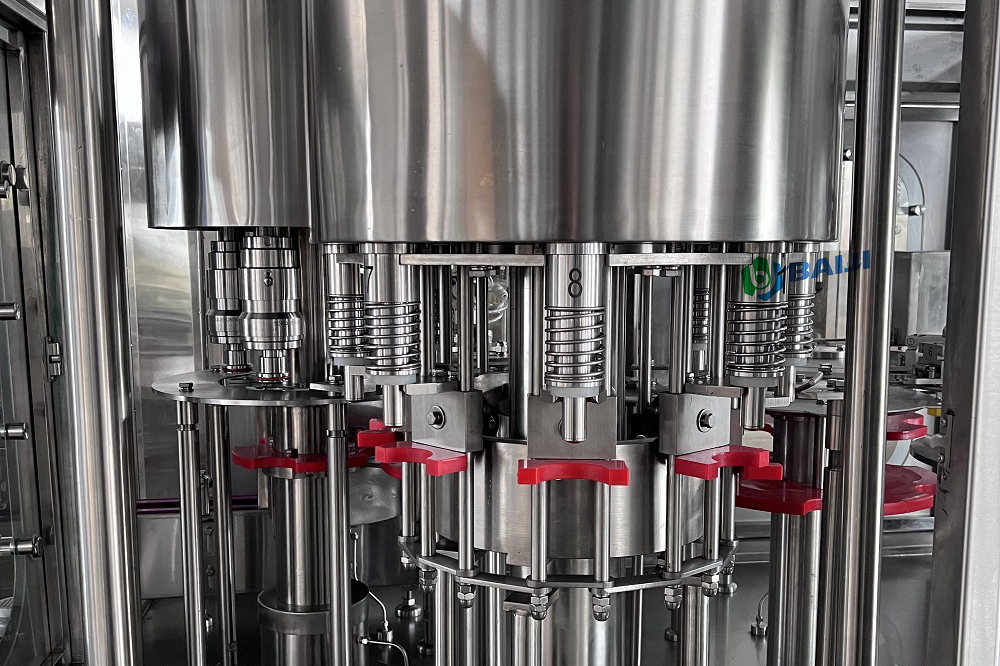

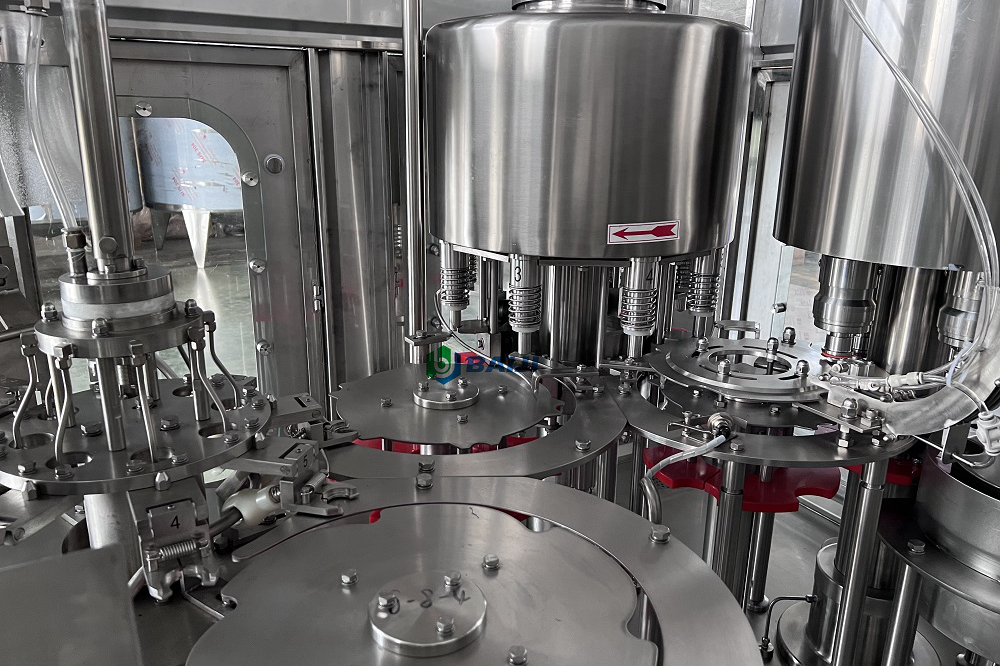

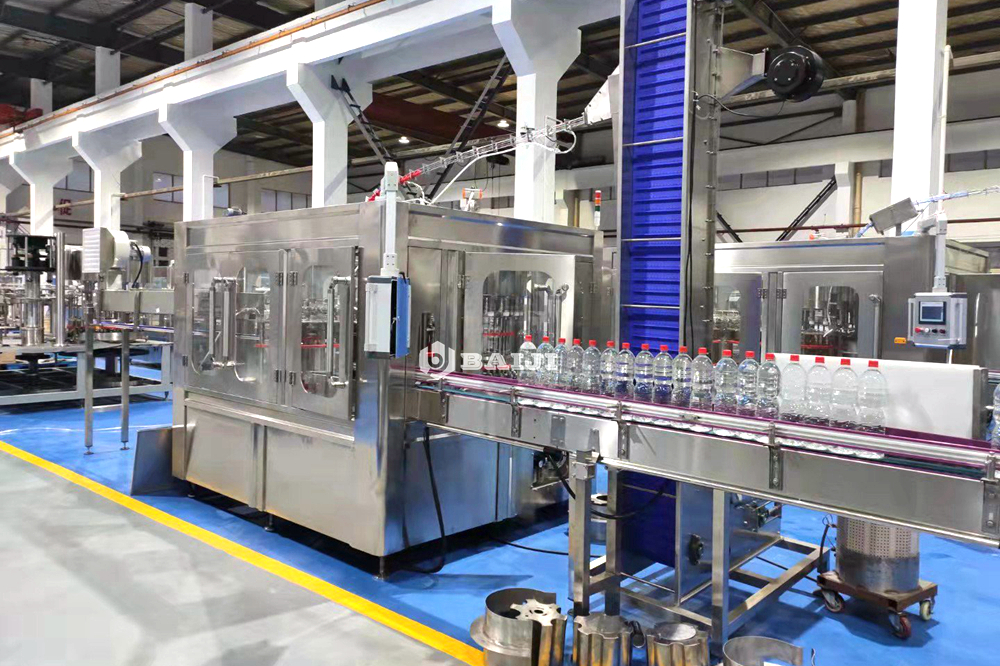

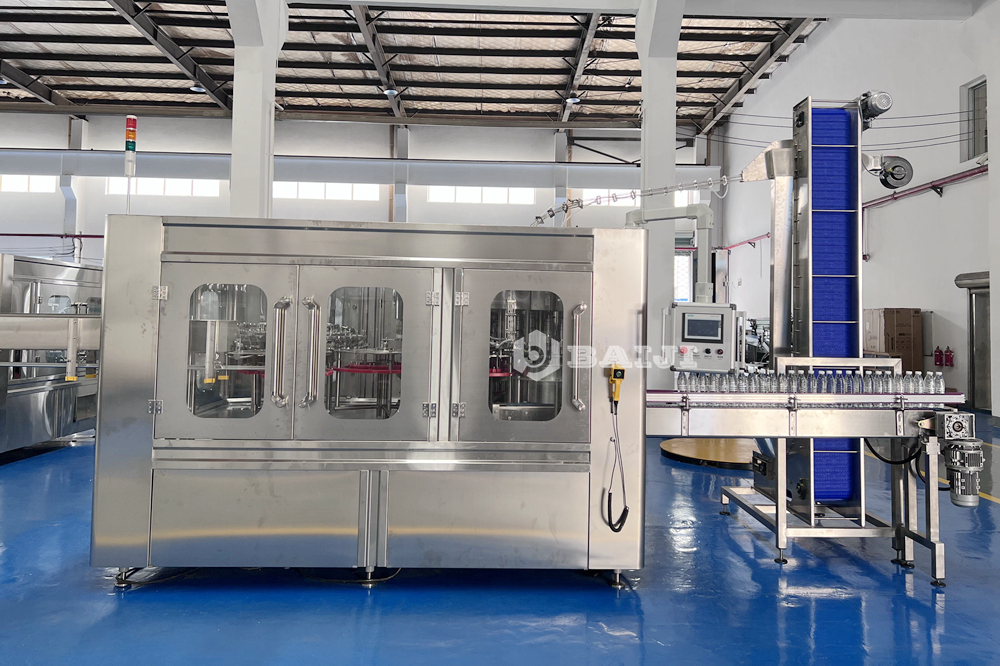

CGF washing, filling and sealing three-in-one machine
It is used to produce polyester bottled mineral water, pure water, alcoholic beverage machinery and other non-carbonated beverage machinery. Beverage machinery can complete all processes such as bottle washing, filling, and sealing, reducing the contact time between materials and outsiders, improving sanitary conditions, increasing production capacity and economic benefits.
Technical Parameters
Model
CGF8-8-3
CGF14-12-5
CGF18-18-6
CGF24-24-8
CGF32-32-8
Capacity (500ml)
2000
3000-4000
4000-6000
8000-10000
10000-12000
Applicable bottle type
PET round or square
Bottle diameter(mm)
Dia50-Dia115mm
Bottle height (mm)
160-320mm
compressed air
0.3-0.7Mpa
washing medium
sterile water
rinse pressure
>0.06Mpa <0.2Mpa
application
Purified water, mineral water, spring water
Total power (KW)
4.4kw
4.4kw
4.4kw
5.2kw
6.2kw
Dimensions
2.3*1.9m
2.5*1.9m
2.8*2.15m
3.1*2.5m
3.8*2.8m
high
2.3m
2.5m
2.5m
2.5m
2.5m
Weight (kg)
2500 kg
3200 kg
4000 kg
4500 kg
6500 kg

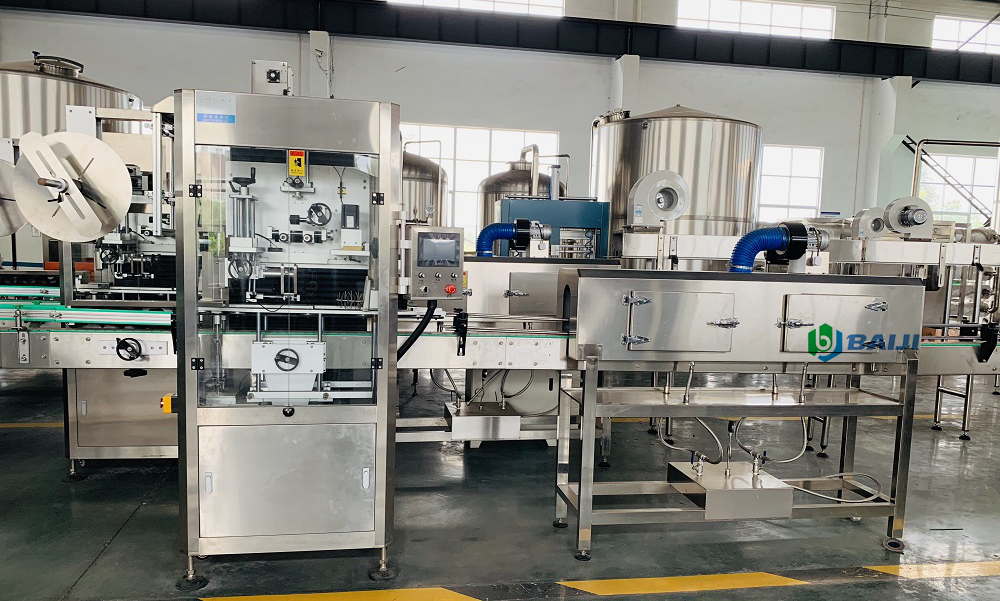

Shrink Sleeve Labeling Machine
It consists of automatic labeling machine, heat shrink tunnel and steam generator.
This machine adopts the international advanced technology, puts the round label on the PET bottle, and then heat shrinks it to fix it on the designated position of the bottle.

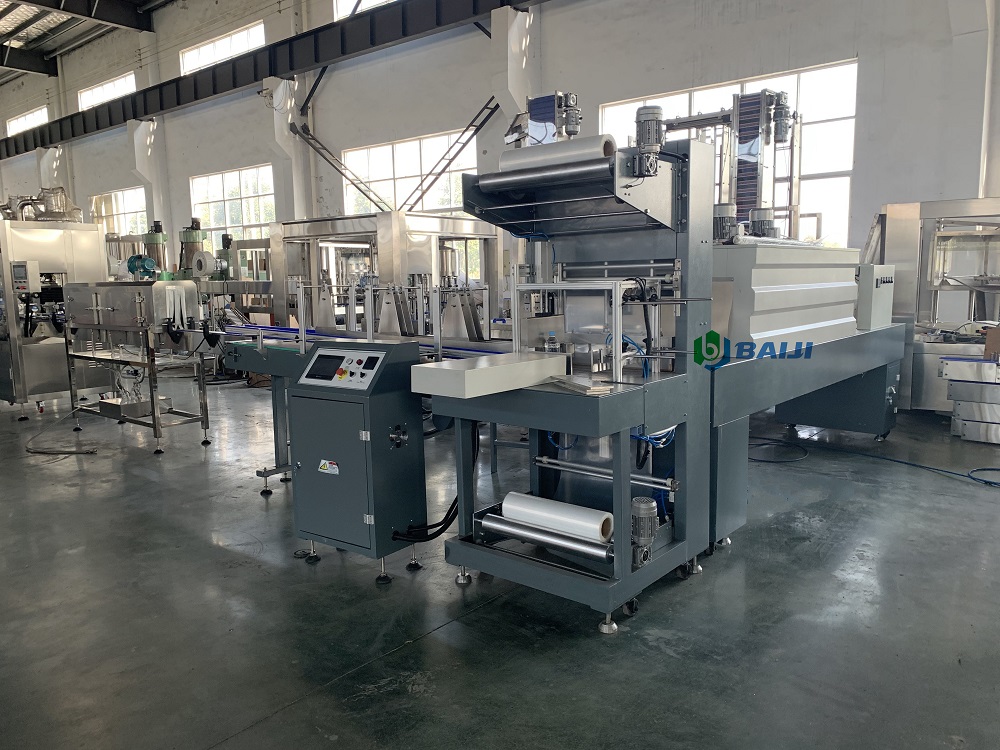

PE film shrink packaging machine
Pack several bottles in one package for easy shipping.
You can order 24 bottles per pack, 12 bottles per pack, etc., which can be varied.
