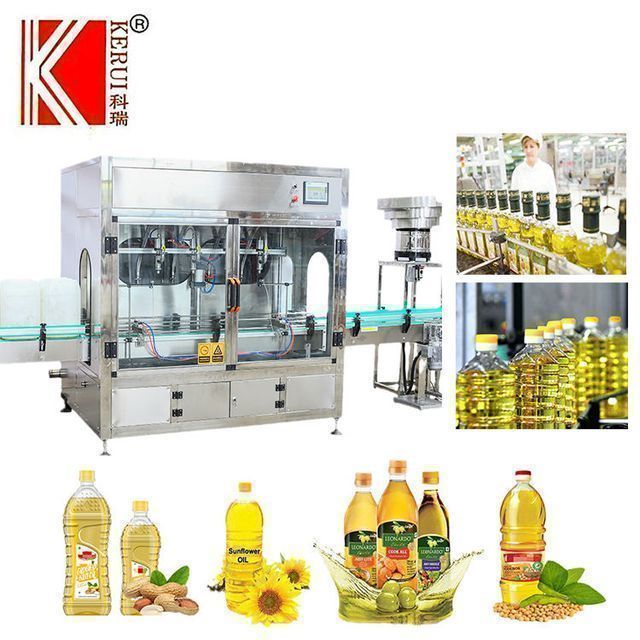

Automatic low price olive/palm/sunflower/beverage liquid/wine/juice/vegetable edible oil filling machine

Product details
Mechanical test report:ifSupply capacity:50 sets per month
type of packaging:Cans, bottles, barrels, boxesVideo external inspection:if
application:Beverages, Chemicals, Machinery and HardwareMaterials used for packaging:plastic, wood
Health status:newFilling nozzle:2-12
Drive Type:Pneumatic and Electricport:Qingdao
After Warranty Service:Video technical supportMechanical Capability:400BPH, 500BPH, 2000BPH, 1000BPH, 200BPH
Filling speed:100-150 bottles/hour/headplace of origin; place of origin:Shandong China
strength:2.2-6.6Kwbrand:Zerry
payment terms:L/C,Western Union,D/P,D/A,T/T,MoneyGramAuto grade:automatic
Core components:Motor, pump, PLCMain selling point:High productivity, high precision and long service life
type:filling machineFiller:milk, water, oil, juice
Showroom location:Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Vietnam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, United Arab Emirates , Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Japan, Malaysia, AustraliaVoltage:380/220V/415V
Warranty:1.5 yearsApplicable industries:Hotels, Clothing Stores, Building Materials Stores, Manufacturing Plants, Machinery Repair Shops, Food and Beverage Plants, Farms, Restaurants, Home Use, Retail, Food Stores, Printing Stores, Construction Works, Food and Beverage Stores, Others
Dimensions (L*W*H):3000*1300*1800mmFilling accuracy:99.98%
Packaging Details:Plywood caseCore Components Warranty:2 years
weight:600kgMarketing Type:normal product

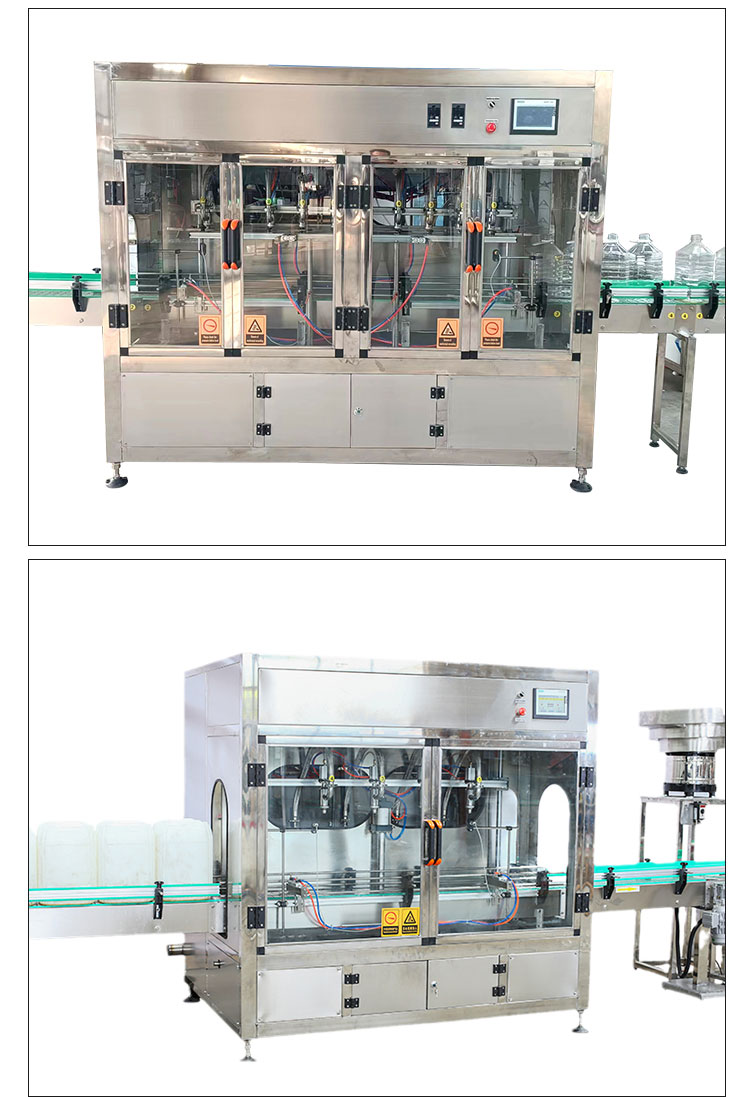

Zerui multi-function multi-head automatic oil filling machine
Product Description
Zerui ZRLG series automatic liquid filling machine adopts flow meter measurement method, with high filling accuracy, and the setting and adjustment of filling volume is very intuitive and convenient. ZRLG series filling machine is based on PLC central processing unit. The flow type filling machine can calculate the flow pulse from the flowmeter, control the unified implementation of filling valve and feeding pump, and realize high-precision filling. It is equipped with HD touch screen to realize data one key adjustment. Widely used for filling various oil bottles.
technical parameter

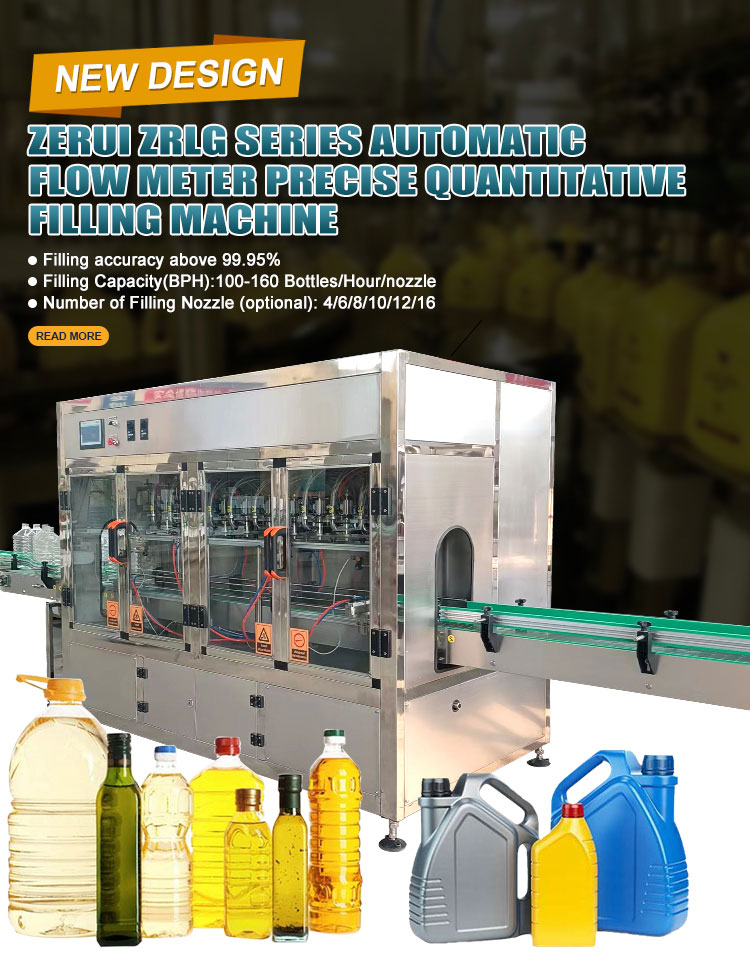

ZerryZRLGSeries of automatic flowmeter precision quantitative filling machine
Model
ZRLG-4
ZRLG-6
ZRLG-8
ZRLG-12
ZRLG-16
Filling head/nozzle
4
6
8
12
16
Filling volume
0.5-5L or 10-20L
Filling accuracy
99.5%
air pressure
0.6-0.8Mpa
strength
220/380V 2.5Kw
220/380V4.5Kw
220/380V 4.5Kw
220/380V 6.8Kw
220/380V 9.0Kw
Capacity (BPH)
100-160 bottles/hour/nozzle

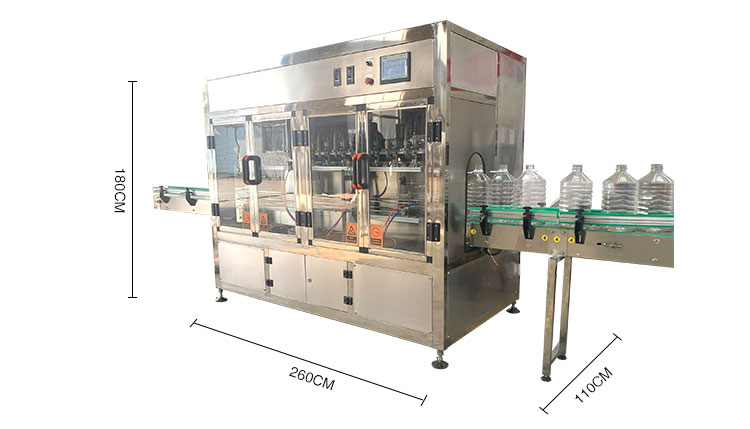

Dimensions
110*110*180cm
180*110*180cm
200*110*180cm
260*110*180cm
320*110*180cm
Features

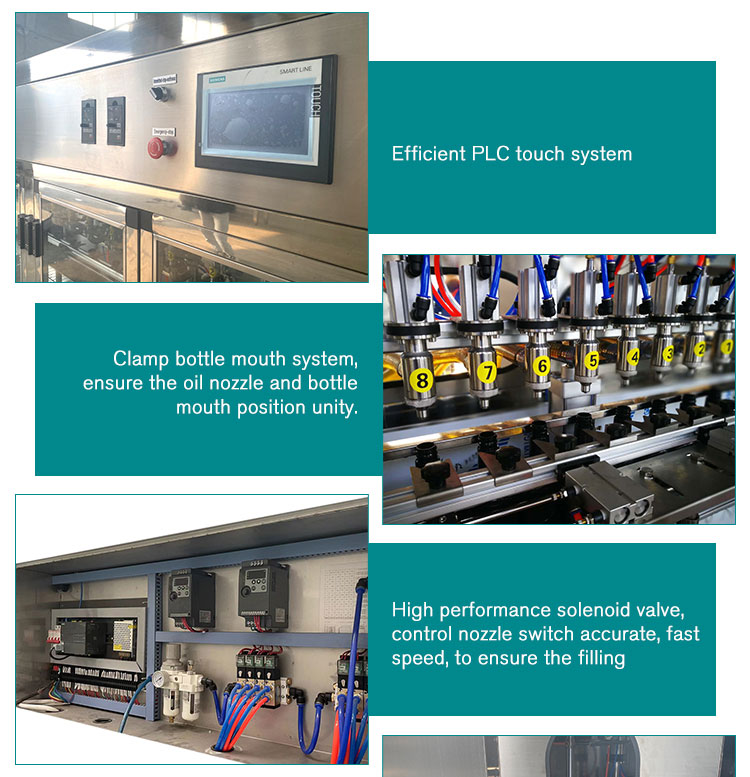

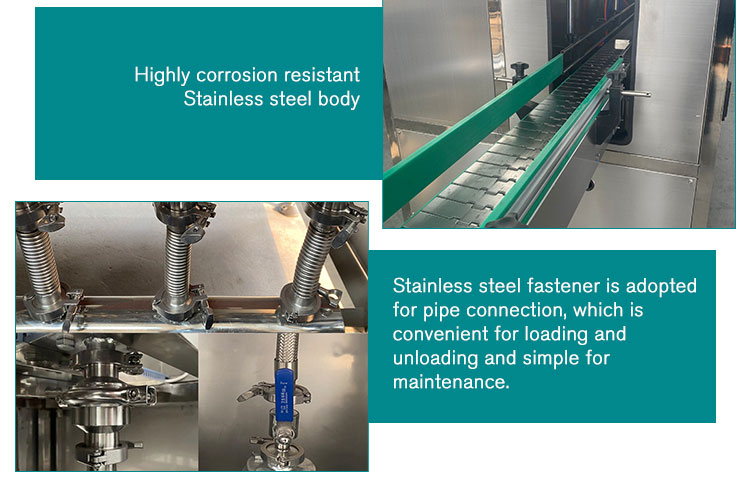

1. The filling volume adjustment range is large, suitable for1000ml-5000mlAutomatic quantitative filling. 2. The whole machine is welded by stainless steel square tube, which has strong corrosion resistance and easy cleaning. 3. The machine adopts PLC central processing system, the filling volume adjustment is from mechanical adjustment to electronic adjustment, the operation is simple and the efficiency is improved. 4. The filling head of the filling machine adopts high-precision industrial processing, and customers can choose an umbrella valve or a cylindrical valve according to the actual situation. 5. Automatic bottle feeding, automatic filling, automatic bottle output, without manual intervention, high production efficiency. 6. The machine can be customized with one pump and one nozzle to improve the filling capacity. Add back suction or residual material receiving device to reduce leakage 7. Special power supply can be customized according to customer's site, such as single-phase 110V, three-phase 220V, etc.

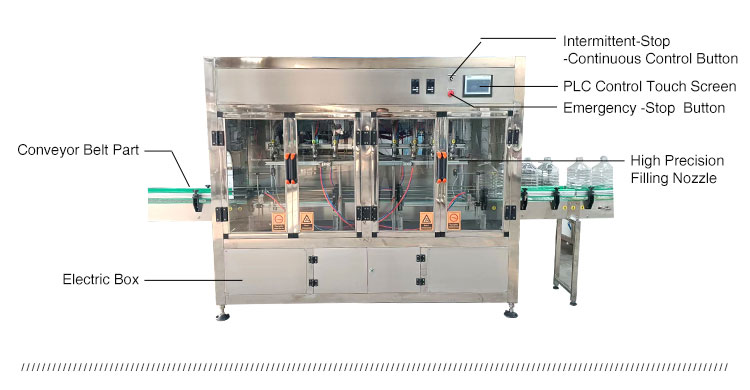

Product Details
application
Widely used in filling of sunflower oil, vegetable oil, soybean oil, palm oil, olive oil, essential oil, corn oil, rapeseed oil, lubricating oil motor and other oil products.
