Ratio tyre building machine -hot tire retreading machinery

Supplier: Qingdao Guangyue Rubber Machinery Manufacturing Co., Ltd.
Region: Shandong, China
Contact: Mr daguang qiu
Price: $6000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Capacity:	6tires/batch;	Packaging Detail:	goods will be shippment by suitable containers;
Vulcanizing way:	Hot Steam;	Warranty:	3 years;
Condition:	New;	Certification:	CE ISO SGS;
Payment Terms:	L/C,T/T;	Port:	Qingdao;
Power(W):	72kw;	Temperature:	95~120;
Control system:	PLC;	Applicable Industries:	Manufacturing Plant;
Key Selling Points:	Automatic;	Voltage:	380V/220V;
Weight:	4445kgs;	history:	more than 30 years history;
After-sales Service Provided:	Free spare parts,Field installation, commissioning and training,Online support,Video technical support;	Brand Name:	gungyue;
Machine Type:	Horizontal Electric Rubber Vulcanizing Autoclave;	Place of Origin:	Shandong China;
Dimension(LWH):	1000023002700mm;	Supply Ability:	20 Set/Sets per Month;
Suitable tire:	Car Truck Motocycle;	quality:	best quality in china;

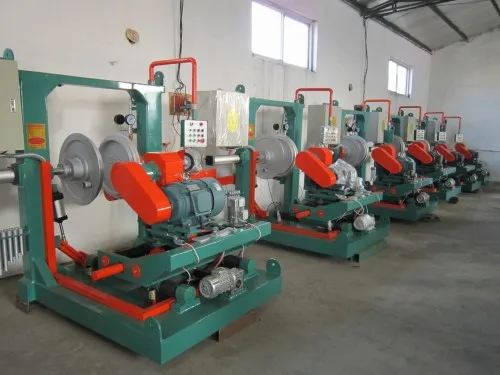

Heating Method:	Electric Heat Pipe;	BUFFING MACHINE:	AUTOMATIC;

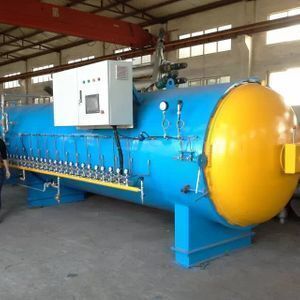

Vulcanizing boiler

Ratio tyre building machine -hot tire retreading machinery

1. Introduction

1. Vulcanizing boiler design and manufacture in strict accordance with the national standard of "" steel pressure vessel, and according to the country" pressure vessel safety design review project "the relevant requirement of inspection.

2. According to the heating mode can be divided into steam pressure,

electrical heating and heat conduction oil heating three forms.

3. According to different division control circuit for PLC control and PLC control add touch screen display two kinds.

2. Equipment features

1. Use anti-oxidation electric heating tube, useful life extend one time.

2. Equipment with cycle water cooling system, ensure seal high run, avoid damage.

3. The operating system can be devided into semi-automatic control and automatic control.

4. Adopt high –capacity draught fan ensure the temperature and the wind speed evenly.

5. According to the customers requirement to machining and process.

3. Technical parameter

Classification/model	RT-1500	RT-2000	RT-2200	RT-2500	RT-3000
Classification/model	1	2	3	4	5
Diameter (mm)	1500	2000	2200	2500	3000
Effective length (mm)	3000-20000	3000-20000	3000-20000	3000-30000	3000-30000
Material	16MnR/Q235B
Design temperature	180°C
Experiment pressure	1.0Mpa

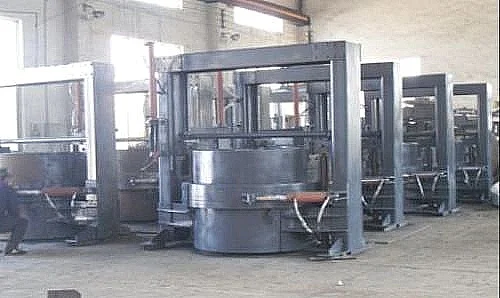

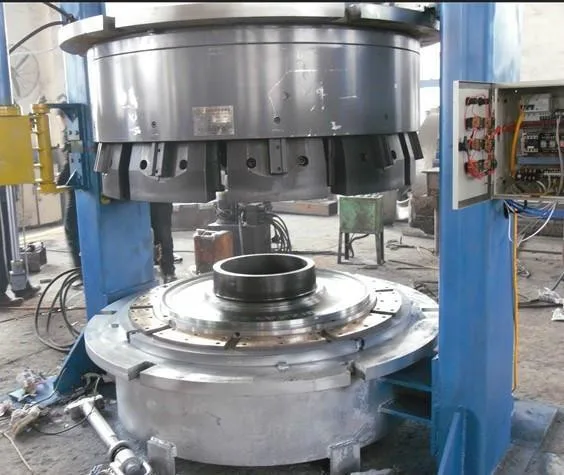

4.Picture

The combination of three-dimension CAD system and Internet guarantees the synchronization with international advanced technology. The combination of three-dimension CAD and CNC numeral process center realizes the transit from traditional manufacture to modern three-dimension manufacture. At the same time, our company keeps good contact with several universities and research institutes.

Our company takes "To live by quality, To develop by reputation, To innovate by science and technology, To keep improving all the time" as management idea, and insists on the principle of "Quality is the first, Reputation is first, Client is the first". We will provide you with the best service.
