XKP-560 Double Roller Rubber Crusher Waste Tire Rubber Crusher

Supplier: Qingdao Guangyue Rubber Machinery Manufacturing Co., Ltd.
Region: Shandong, China
Contact: Mr daguang qiu
Price: $2000.00 /set
Min. Order: 1 set

Click here to contact

Product details

type:	tire machine	product name:	XKP-560 double roll rubber crusher
capacity:	200-2000kg	use:	crushing of rubber
Voltage:	220V/380V	Certification:	ISO9001:2008, SGS
port:	Qingdao	quality:	best quality
Packaging Details:	Bulk or according to customer requirements	strength:	1.5KW - 75KW
Warranty:	one year of life	After-sales service provided:	Engineers available to service machinery overseas
Type of tire machine:	tire recycling machine	model:	XKP-560
Origin:	Shandong China	Dimensions (LWH):	506422841978
payment terms:	L/C, T/T	Supply capacity:	30 sets per month
color:	According to customer's request	Gear reducer:	Large gearboxes, planetary gearboxes, hardened gearboxes
Type of machine:	fully automatic	bushing:	Nylon Bushing, Ball Bushing
Shipping Details:	Within 20 years after receiving your deposit	weight:	different size different weight
Health status:	new	brand:	Kozuki
application:	Rubber recycling industry	Finished product:	6-30 mesh rubber powder

XKP-560 Double Roller Rubber Crusher Waste Tire Rubber Crusher

1. Detailed information

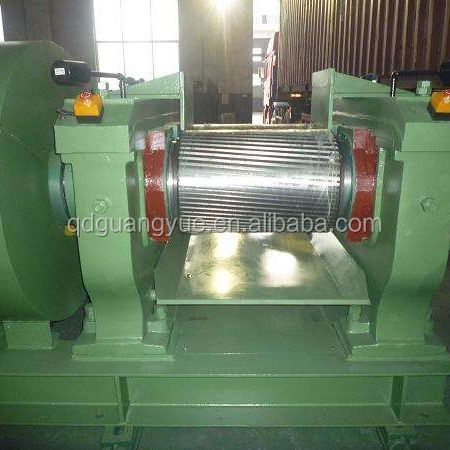

This machine is composed of machine base, frame, front roller, transmission gear, reducer, distance adjustment device, temperature adjustment device, cutter assembly, winding structure, safety switch and electric control system.

The roller is made of chilled alloy iron with high hardness and wear resistance. The temperature adjustment device can adjust the temperature of the steam and cooling water in the general roller to meet the process requirements.

Turn the rewind roller formed by the handwheel rewinder to adjust as needed.

The machine is equipped with a brake. In an emergency, pull the safety lever to brake immediately, reducing personal accidents.

2. Features

1. Transmission quality.

2. The roll is made of hard surface wear-resistant hard chilled cast iron.

3. Roller slotting.

4. The boring roll can be cooled with steam and cooling water.

5. The two rollers rotate at different speeds, so that rubber materials can be processed

6. The excellent crushing structure is open gear transmission

7. The product complies with IS09001/CE/SGS standard.

3. Parameters of rubber cracker

parameter/version	XKP-400	XKP-450	XKP-560
Front Roller Diameter	400	450	560
Backing roll diameter	400	450	510
roll length	600	650	800
Front roller surface speed (m/min)	17.32	23.2	25.56
friction ratio	1:1.38	1:1.38	1:1.30
maximum. pinch	8	8	8
Feed amount per (kg)	200-300	600-800	1500
Power(kw)	45	60	75
Dimensions (LWH)	395018001780	477018461835	506422841978
Weight (kg)	7000	12000	19000

about Us

We are Qingdao Guangyue Rubber Machinery Co., Ltd.

1. Professional manufacturers with professional production team and technical support

Top sales teams communicate with customers via email, phone, and face-to-face.

2. Professional machine explanation (technology, application, user guide, etc.)

The best after-sales---Track the whole production situation, provide machine packing photos, track customer's operation and usage in case of any problems.

3. Reasonable price

4. Flexible delivery time

5. More than 30 years experience in export capability

advantage

1. Simple and convenient structure, flexible operation and spacious space. The cylinder and plunger are made of high quality materials.

2. The hydraulic station and electrical cabinet are located on both sides of the main engine.

3. Easy to operate

4. No oil leakage, no loss of pressure.

5. Excellent reputation

6. CE standard and ISO9001 SGS certification

We have been in this line for many years and have advanced technology and experience. We can also design and produce according to customers' requirements.

If you are interested in our products, please feel free to contact me.
