High Quality Open Mill/Two Roll Mixer/Rubber Mixer
-
Supplier: Qingdao Yahua Machinery Co., Ltd. -
Region: Shandong, China -
Contact: Ms Ling Zhuang -
Price: $6000.00 / 1 - 9 sets
$5500.00 / >=10 sets -
Min. Order: 1 set
| Delivery Details: | 30 days after receiving the deposit | Certification: | International Organization for Standardization |
| strength: | 5.5kW | brand: | Yahua |
| type: | Rubber kneader | model: | XK-160 |
| Health status: | new | port: | Qingdao |
| Warranty: | 1 year | Voltage: | 380V/50HZ |
| Supply capacity: | 20 sets per month | Dimensions (L*W*H): | 1226x830x1295mm |
| weight: | 1t-22t | payment terms: | L/C,T/T,Western Union |
| place of origin; place of origin: | Shandong China | After-sales service provided: | Engineers can repair machinery overseas |
| Packaging Details: | Wooden case or PLY case |

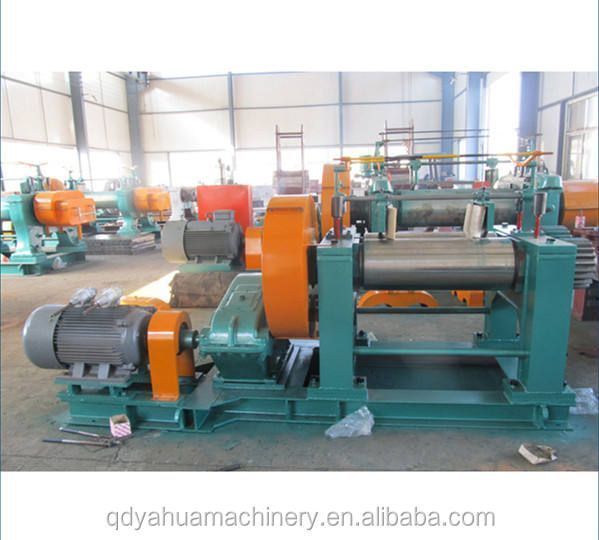

High Quality Open Mill/Two Roll Mixer/Rubber Mixer
The rolls are made of chilled cast iron and vanadium-titanium alloy. The roller surface is hard and wear-resistant. The inner cavity is treated to make the roll surface temperature uniform.
The machine is equipped with an overload protection device to protect the main components from being damaged due to overload.
The machine is equipped with an emergency device. When an emergency occurs, just pull the lever and the machine will stop immediately. The device is safe and reliable.
The transmission system adopts ordinary or hard surface gear reducer, with compact structure, high transmission efficiency, low noise and long service life.
This machine is suitable for plasticizing, heating and mixing of rubber and plastics.
This machine is used to make rubber sheets and mix recycled powder into recycled rubber.
Main parameters of the machine
| Model | XK-150 | XK-250 | XK-360 | XK-400 |
| Roller working diameter (mm) | 150 | 250 | 360 | 400 |
| Reel working length (mm) | 280 | 620 | 900 | 1000 |
| Front roller linear speed (m/min) | 8 | 14.9 | 17.4 | 19.3 |
| Line speed ratio | 1:1.4 | 1:1.7 | 1:1.25 | 1:1.27 |
| Maximum roll distance (mm) | 10 | 10 | 10 | 10 |
| Gap adjustment method | manual | manual | manual | manual |
| Batch (kg/batch) | 1-2 | 10-15 | 20-25 | 25-35 |
| Main motor power (kw) | 7.5 | 18 | 30 | 37 |
| reducer | worm gear | plain or hard gear | plain or hard gear | plain or hard gear |
| Overall size (mm) | 1080x796x1415 | 3400x1350x1500 | 3940x1780x1740 | 4250x1850x1870 |
| Weight (kg) | 1100 | 3500 | 5670 | 7600 |
| type | XK-450 | XK-550 | XK-560 | XK-660 |
| Roller working diameter (mm) | 450 | 550 | 560 | 660 |
| Reel working length (mm) | 1200 | 1500 | 1530 | 2130 |
| Linear speed (m/min) | 24.5 | 27.2 | 27.7 | 28 |
| Line speed ratio | 1:1.27 | 1:1.29 | 1:1.12 | 1:1.24 |
| Maximum roll distance (mm) | 15 | 15 | 15 | 0.5-15 |
| Gap adjustment mode | Manual or Electric | Manual or Electric | Manual or Electric | Manual or Electric |
| Mass production capacity (kg/h) | 25-50 | 50-60 | 50-65 | 165 |
| Main motor power (kw) | 55 | 90/110 | 90/110 | 240 |
| reducer | plain or hardened | plain or hardened | plain or hardened | plain or hardened |
| Overall size (mm) | 5200x2380x1770 | 6260x2330x1750 | 6290x2330x1780 | 7280x3400x2530 |
| Weight (kg) | 13000 | 20000 | 20400 | 47000 |
-
