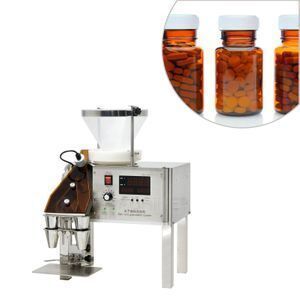

(YL-2A) CDR-5 Capsule Tablet Counting Machine

Supplier: Zhejiang Capsulcn Machinery Co., Ltd.
Region: Zhejiang, China
Contact: Ms Abaire Zhang
Price: $2667.00 /set
Min. Order: 1 set

Click here to contact

Product details

Port:	NINGBO;	Dimension(LWH):	500430630mm;
Mould:	NO need to change;	Usage:	Capsule;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Applicable Industries:	Manufacturing Plant,Pharmaceutical;
Condition:	New;	Size of Bottle:	15-500ML;
Brand Name:	CapsulCN;	Weight:	28KG;
Place of Origin:	Zhejiang China;	Warranty:	1 Year;
Supply Ability:	80 Set/Sets per Month;	Power(W):	350W;
Packaging Detail:	wooden packing 50X43X63 cm 29KG;	Size of Tablet:	Max. Dia.23mm;
Production Capacity:	500-1500PCS/MIN;	Certification:	ISO CE;
After-sales Service Provided:	Video technical support,Online support;	After-sales Service Provided:	Engineers available to service machinery overseas;
Voltage:	220V/110V;

Product Description

Introduction

This machine has been designed and developed to count & fill different shapes or size of products accurately like soft gel capsules, hard capsules, tablets, sugar coating, and film coating tablets, pills, herb medicine or similar products into containers or vials.
The machine can be adjusted to count capsules or tablets between 1-9999 pcs per bottle without changing spare parts.

Specifications

Model	CDR-5	YL-2	YL-4
Size of Tablet	Max. Dia.23mm	Max. Dia.23mm	Max. Dia.23mm
Size of Bottle	15-500ML	15-500ML	15-500ML
Output	500-1500pcs/min	1000-2000pcs/min	2000-3500pcs/min
Power	350W	350W	350W
Voltage	110V 60Hz / 220V 50Hz	110V 60Hz / 220V 50Hz	110V 60Hz / 220V 50H
Weight	28kg	82kg	118kg
Dimensions	*500430630mm*	760660700mm	920750810mm
