Power(W): | 150kw; | Certification: | CE;ISO9001; |
Supply Ability: | 1 Set/Sets per Month; | Packaging Detail: | wooden case; |
Warranty: | 1year; | Application fields: | Bakery,Snack food factory; |
Applicable Industries: | Food & Beverage Factory; | After-sales Service Provided: | Field installation, commissioning and training; |
Raw material: | Wheat,Flour,Vegetables,Water; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; |
Baking temperature: | 190-240℃; | Voltage: | 380V; |
Machinery Function: | produce biscuit cookie; | Brand Name: | BCM BAKING; |
Output product name: | biscuit cookie; | Port: | Shanghai; |
Place of Origin: | Shanghai China; |

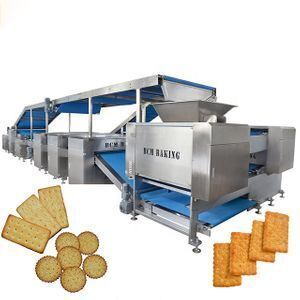

Biscuit can be grouped into hard biscuit, cookie biscuit, according to the formula, process, and different forming method, Hard biscuit production line is generally composed of a feeding machine(if producing the soda biscuit or chocolate coated biscuit, another lamination process is needed), a set of dough roller, through the dough rolling and dough sheeting, then through the roller cutting machine, rest material recycling device, inlet oven machine, the entire biscuit forming line. For soft biscuit and cookie biscuit production line, only the forming machine and inlet oven machine can be the whole forming process. In order to increase the biscuit types and characteristics, customers can allocate the sugar & salt sprinkling machine, egg spraying machine, calico printing machine, etc. The oven is to make the formed biscuit into delicious food. You can choose different types of bakery oven(electric/gas/diesel/thermal oil)for baking different types of products. Dough rolling width is 250mm to 1200mm(if you have special needs, we can customized for you).
Model | BCQ-250 | BCQ-480 | BCQ-600 | BCQ-800 | BCQ-1000 | BCQ-1200 | BCQ-1500 | Remark |
Production capacity(kg/h) | 250 | 480 | 600 | 750 | 1000 | 1250 | 1500 | Up to (Max) |
Total length(mm) | 29600 | 64500 | 85500 | 92500 | 125000 | 125000 | 150000 | If No Turn Conveyor |
Baking temperature(℃) | 190-240 | 190-240 | 190-240 | 190-240 | 190-240 | 190-240 | 190-240 | Depend |
Whole line power(kW) | 105 | 190 | 300 | 400 | 500 | 600 | 750 | If UseElectric Oven |
Whole line weight(kg) | 6000 | 12000 | 20000 | 28000 | 35000 | 45000 | 55000 | Approx |

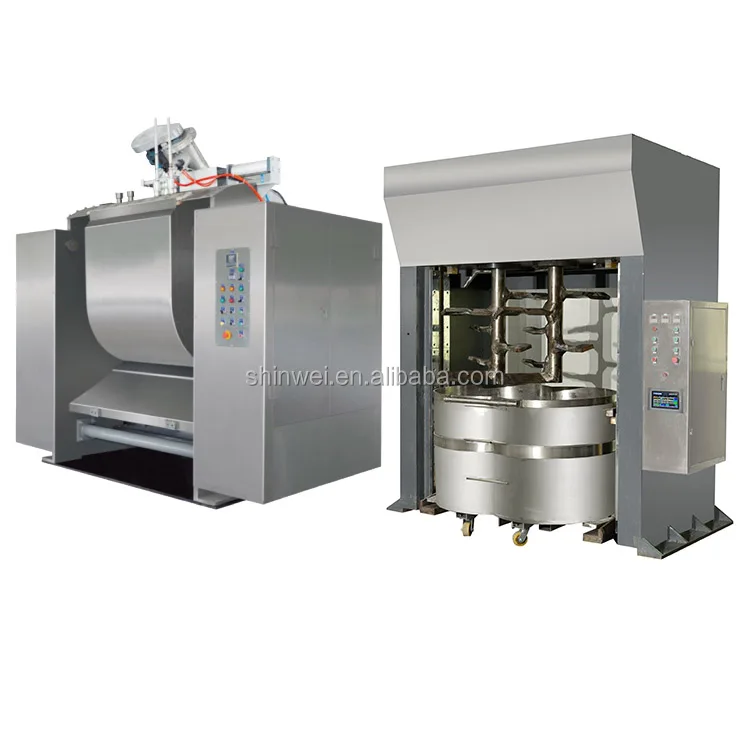

Horizontal dough mixer: - we are making vertical mixer, horizontal dough mixer, different mixer for different dough.

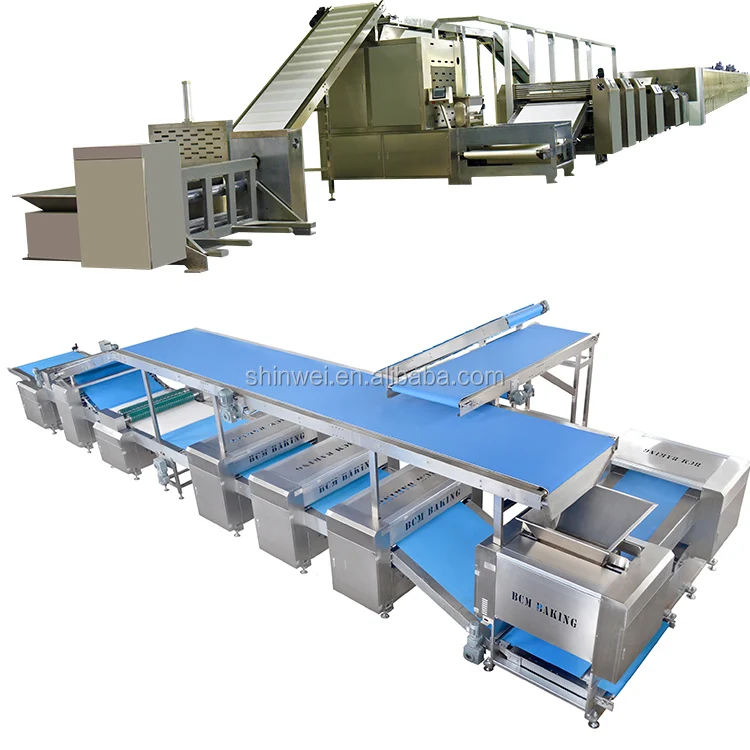

Hard and soft biscuit machine ( complete Line) - including Laminator for Cracker biscuit - hard biscuit forming section and Rotary moulder - - Salt and sugar sprinker

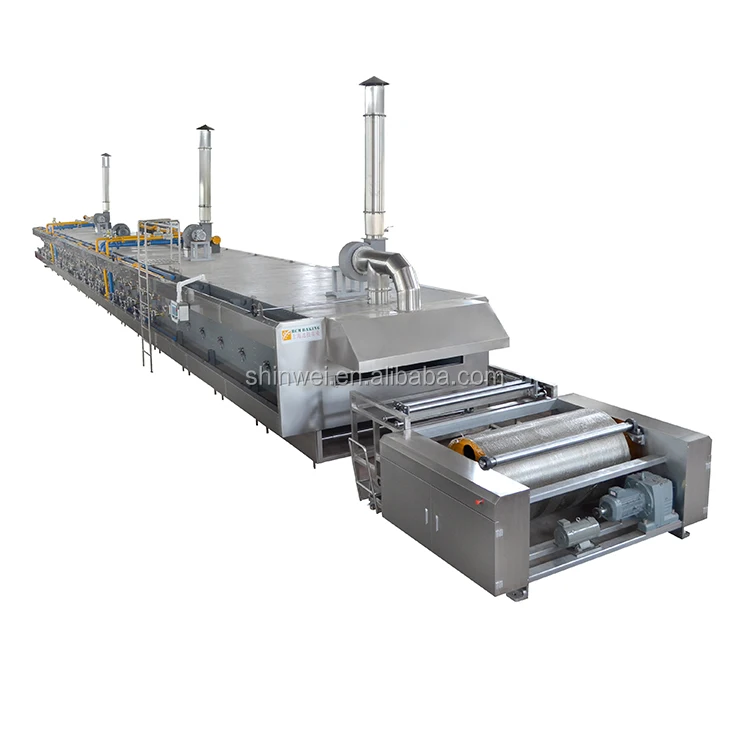

Diffrent kind of oven for baking quality biscuit - we have Electric oven, Direct gas oven, Indirect Gas oven, Convection Oven and Hybrid Oven for baking soft biscuit , hard biscuit, cracker and cookies.
