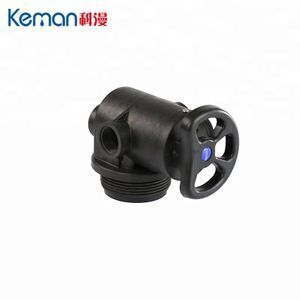

Plastic Handle Manual Filter Valve for Water Treatment Systems(MF2-H)

Product details
control method:automatic;Structure:Control;
color:black;Packaging Detail:1pc/1packing , 6pcs / Carton;
Model Number:MF2-H;Pressure:Medium Pressure;
Power:Solenoid;Port Size:3/4";
Delivery Detail:1-25 days;Brand Name:KEMAN;
Payment Terms:L/C,T/T,Western Union;Standard or Nonstandard:Standard;
Media:Water;capacity:2 ton;
Material:Ceramic;Application:General;
Place of Origin:Zhejiang China;Water Temperature:5C-45C;
Supply Ability:3000 Piece/Pieces per Month;material:PPO or PP;
Port:Ningbo;Temperature of Media:Normal Temperature;
Product Details

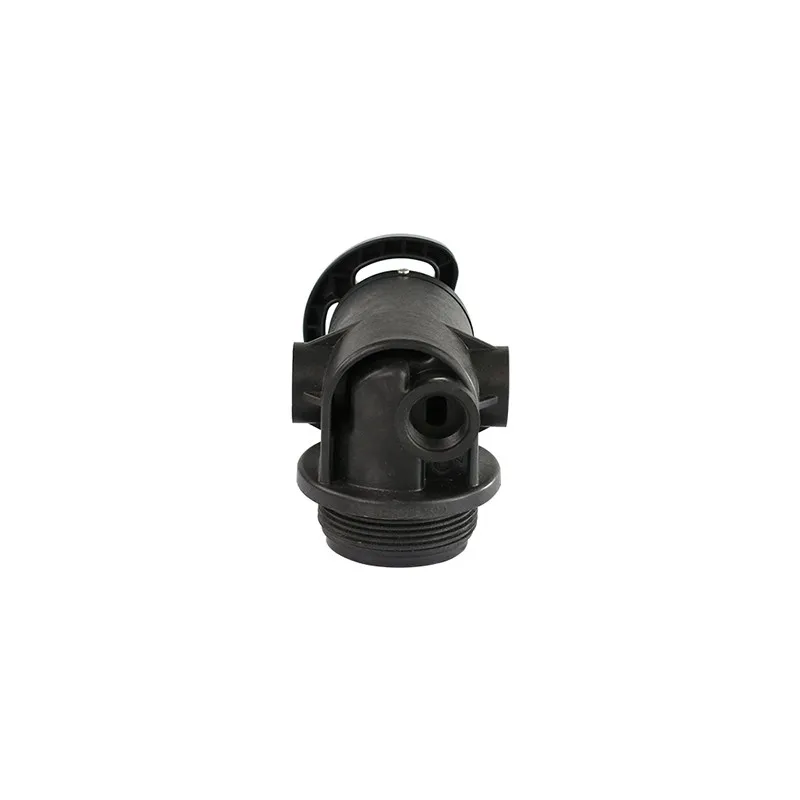

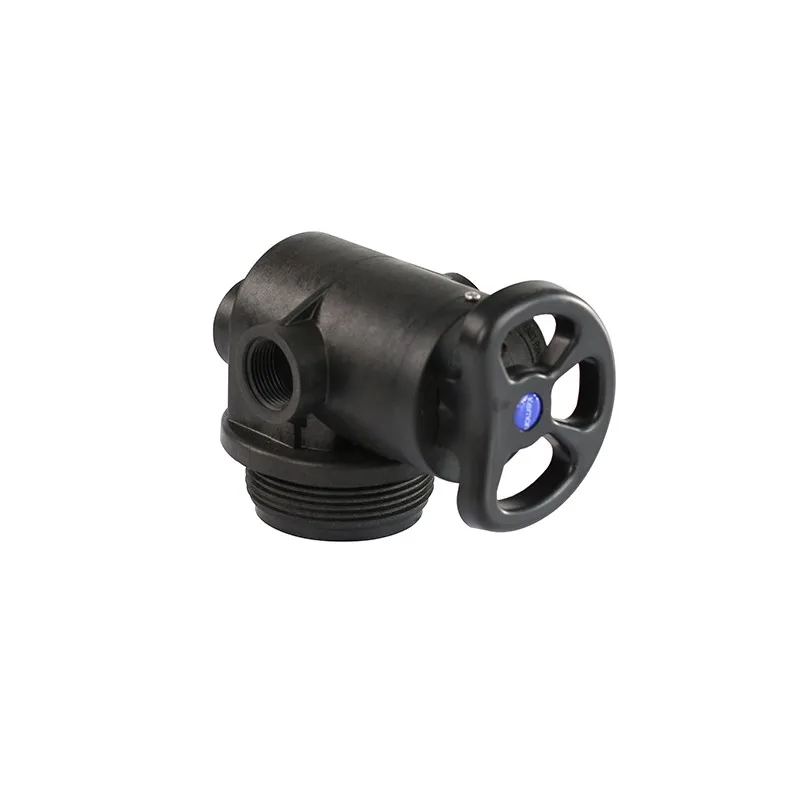

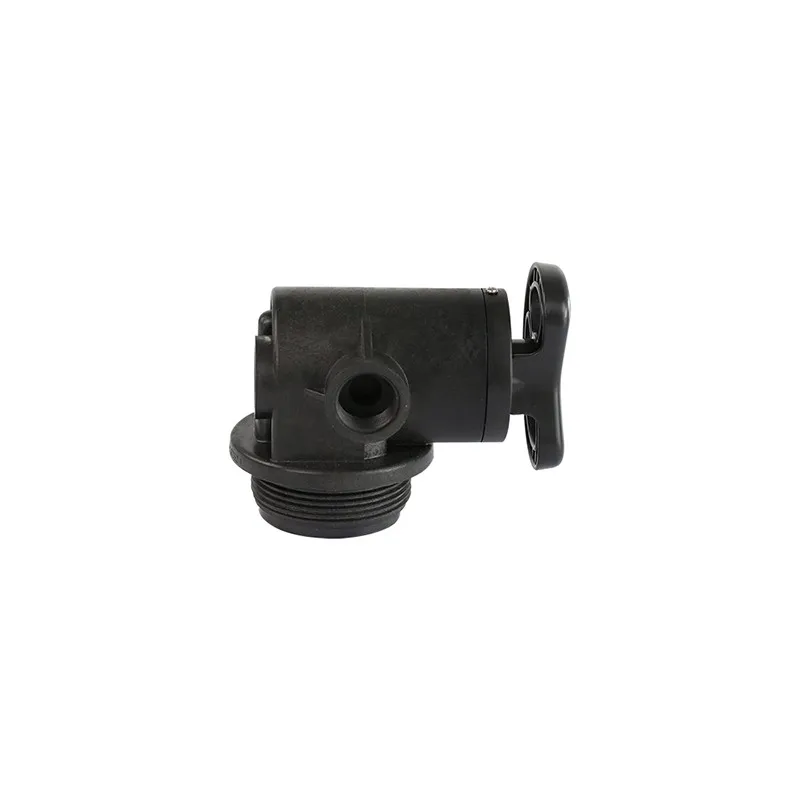

Plastic Handle Manual Filter Valve for Water Treatment Systems(MF2-H)

1. Valve Position: Filter-> Back Wash-> Fast Rinse-> Filter
2. Using ceramic moving valve disk, small rotation torque.
3. Abrasion resistance of sealing surface, outstanding and long-lived deal
4. It could be operated with pressure directly.
5. MF2, MF2-H, MF4, MF4-B, MF10 are manual filter valves, easy operation.
6. AF2, AF4, AF10 are automatic filter valves, LCD display or LED display.
7. MF4 is with a plastic handle, MF4-B is with a metal handle.

Product Parameters
Model
MF2/MF2-H
MF4/MF4-B
MF10
AF2
AF4
AF10
Working Position
Filter-> Back Wash-> Fast Rinse-> Filter
Regeneration

Mode
Manual
Automatic type
Timer by day: 0-99days
Timer by hours: 0-99hours
Inlet & Outlet
3/4''
1''
2''
1/2'', 3/4'', 1''
1''
1''
Drain
3/4''
1''
2''
1/2'', 3/4'', 1''
1''
1''
Base
2-1/2''
2-1/2''
4''
2-1/2''
2-1/2''
4''
Riser Pipe
1.05''OD
1.05''OD
1.5''D-GB
1.05''OD
1.05''OD
1.5''D-GB
Water Capacity
2m³/h
4m³/h
10m³/h
2m³/h
4m³/h
10m³/h
Working Pressure
0.15-0.6Mpa
Working
Temperature
5-50ºC
Power Supply
No Need Power
AC100-240V/50-60Hz DC12V-1.5A
AC100-240V/50-60Hz

DC24V-1.5A

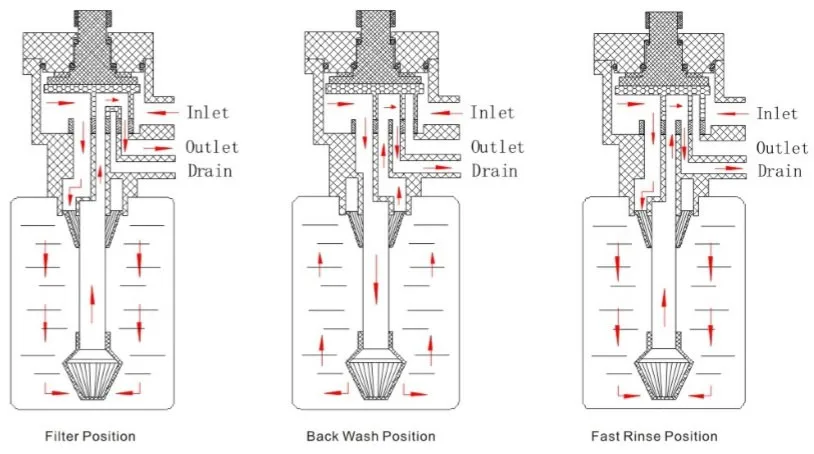

Working Principle

Products Characteristics

1. Manual Control Valve
2. Noryl Plastic Approved by FDA
3. Strong Corrosion Resistance; Stainless
4. Innovative Design; Refined Structure
5. Manual control for flushing.
6. High pressure resistance


Company profile
Trade Shows
Certificate

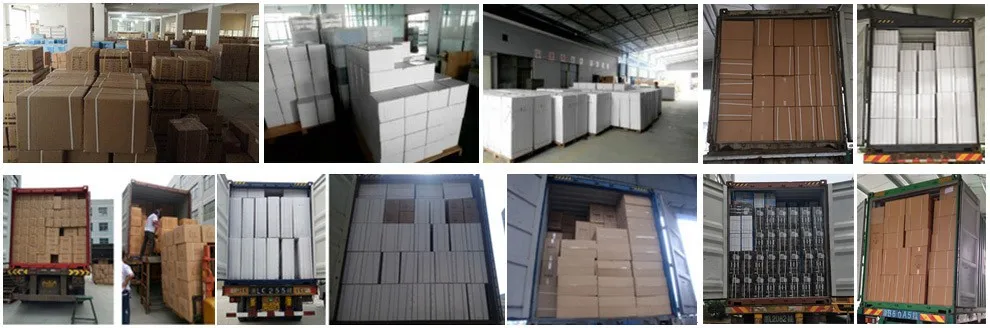

Packing & Delivery

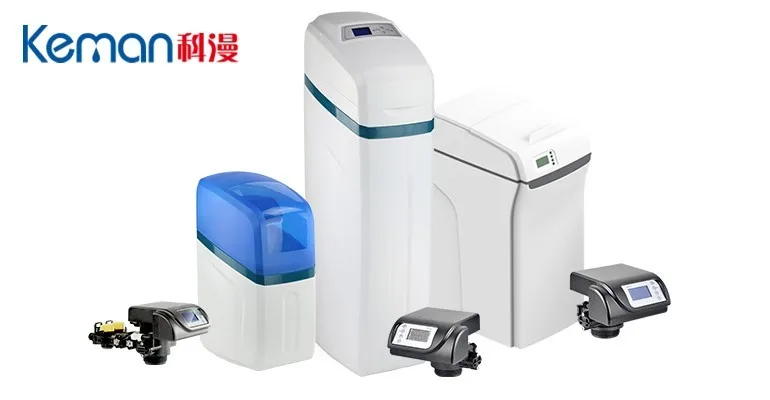

Related Products

mini newly design ion exchange automatic Water Softener

newly design ion exchange automatic Water Softener for home use

Cabinet Type Water Softener System for home use

Household water softener control valves auto softener valve

2 Ton LED automatic Household water filter control valve

4Ton houshold automatic water valve flow control with LED display
FAQ

1Q: Why we use Water Softener?
A: Much of the water you use contains traces of calcium, iron and magnesium, water with these metals known as "hard water", water softener can help you remove these traces.
2Q: How long the resin can be used in Water Softener?
A: Usually the resin can be use for 5years, it can be adjusted according to your water hardness.
3Q: How long the activated carbon can be used in Central Water Purification?
A: Usually you should change it each 1 year, it can be adjusted according to your water quality.
4Q: Why choose KEMAN electronic control valve?
1, PPO material, higher working pressure than others
2, Ceramic moving disk, small rotation torque
3, Abrasion resistance of sealing surface, outstanding and long-lived deal.
4, Valve can be operated with pressure directly.
5, Chinese, English, Spanish language can be set, other language can be customized

5Q: Are you manufacturer?
A: Yes, we are the manufacturer with R&D, production, sales and service supply
6Q:Can I get your products with our logo and design?
A: Most of products are OEM or ODM with your logo and brand not including the control valves( Keman brand valve)
7Q: How long for products my goods?
A: 7 Days for sample orders. 20-25 days for mass production orders (based on different quantities)
8Q: What's your warranty?
A: Our warranty is 1 year. But normally, our machine can work 5 years before repair.
