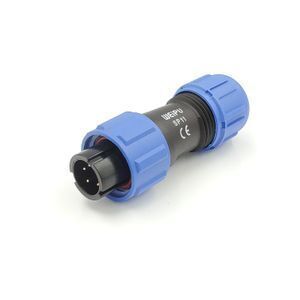

IP68 2 3 4 5 7 9 Pin circular Male SP1310 threaded cable waterproof 5A 13A power weipu connector

Supplier: Shanghai Songhai Industrial Corp.
Region: Shanghai, China
Contact: Mr Frank Lee
Price: $1.19 /piece
Min. Order: 1 piece

Click here to contact

Product details

Single package size:	4X1X1 cm;	Gender:	Male;
Single gross weight:	0.01 KG;	Shell material:	Nylon66, PC;
Insulation resistance:	2000;	Brand Name:	Weipu;
Application:	Power;	Type:	Plug;
Coupling:	Threaded;	Model Number:	SP1310;
Contact material:	Brass with gold plating;	Mating cycle:	500;
Insert material:	PPS, max temperature 260℃;	Package Type:	Carton;
Place of Origin:	Shanghai China;	Temperature range:	-40℃~+85℃;
Termination:	Solder/Screw/Crimp;	Selling Units:	Single item;

Product Description

SP13 series

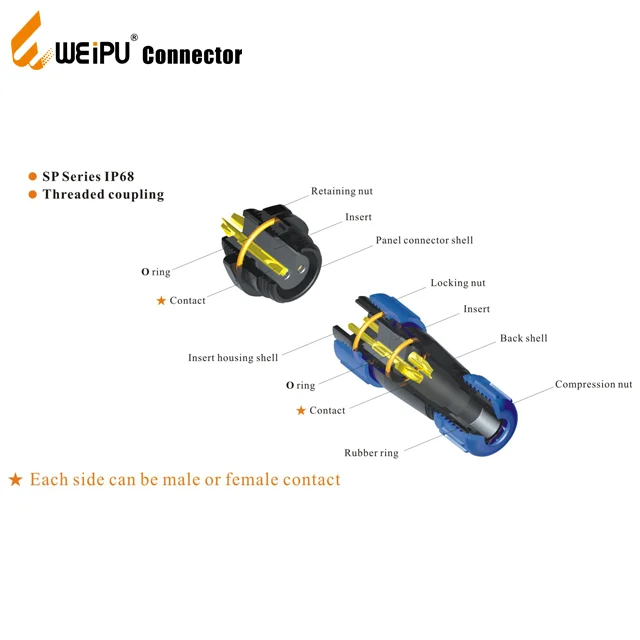

The SP13,SP17 and SP21 connectors are all IP68 connectors, threaded coupling. SP11 is the smallest plastic shell IP68 waterproof connector, this miniature connector is one of our most popular outdoor watertight connector.

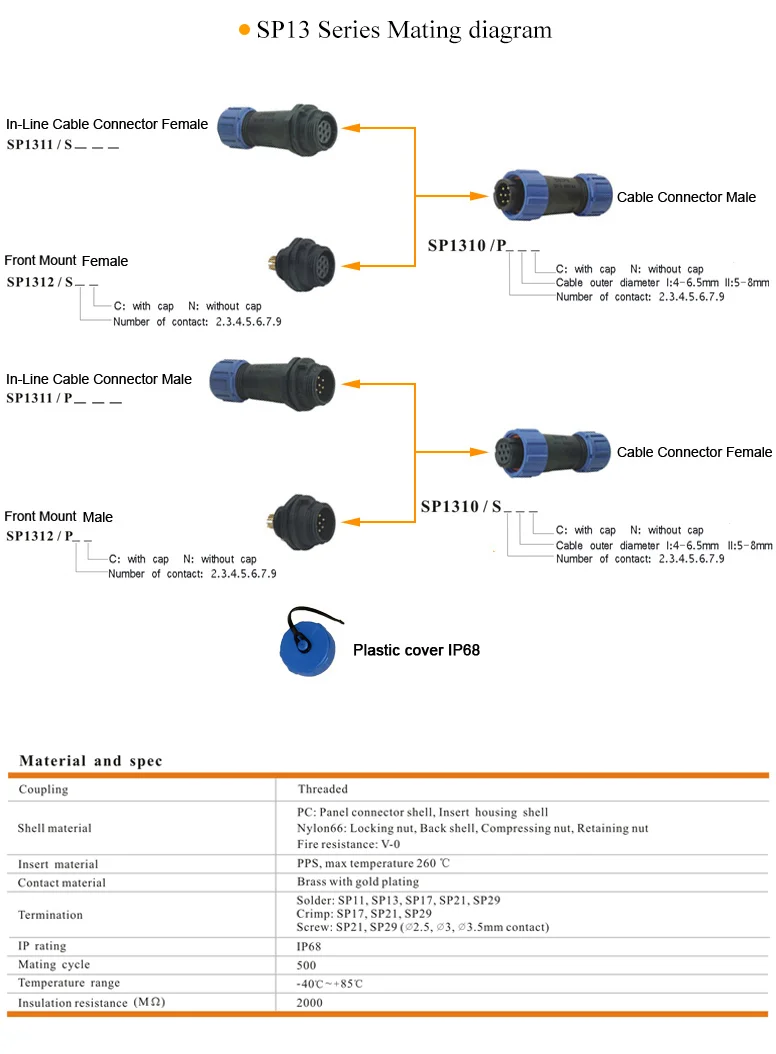

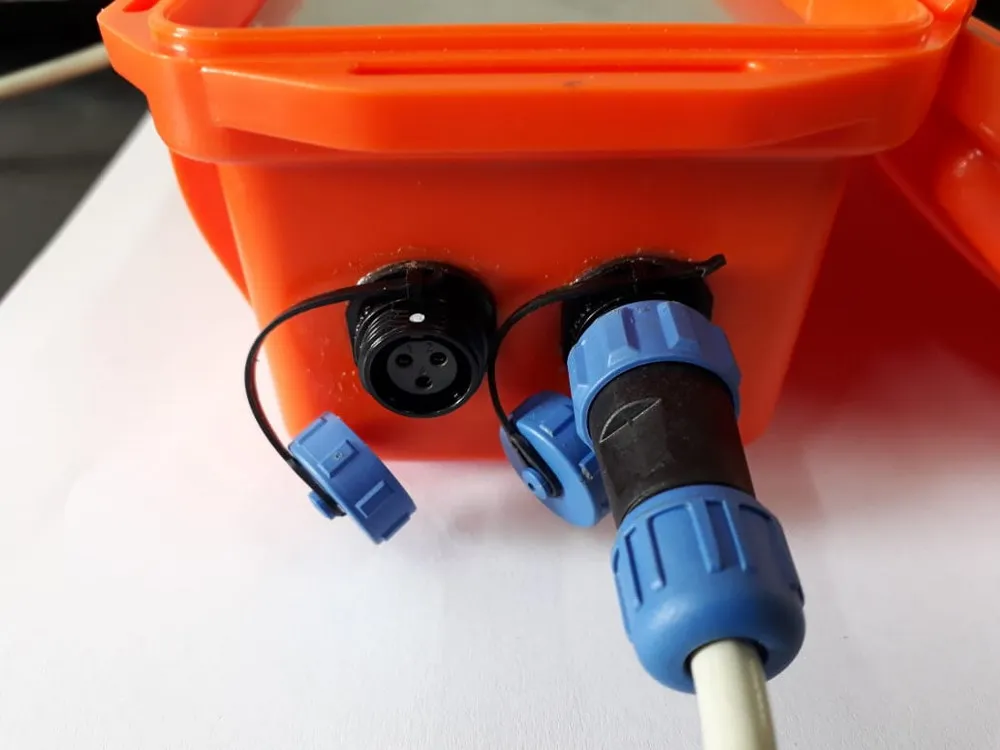

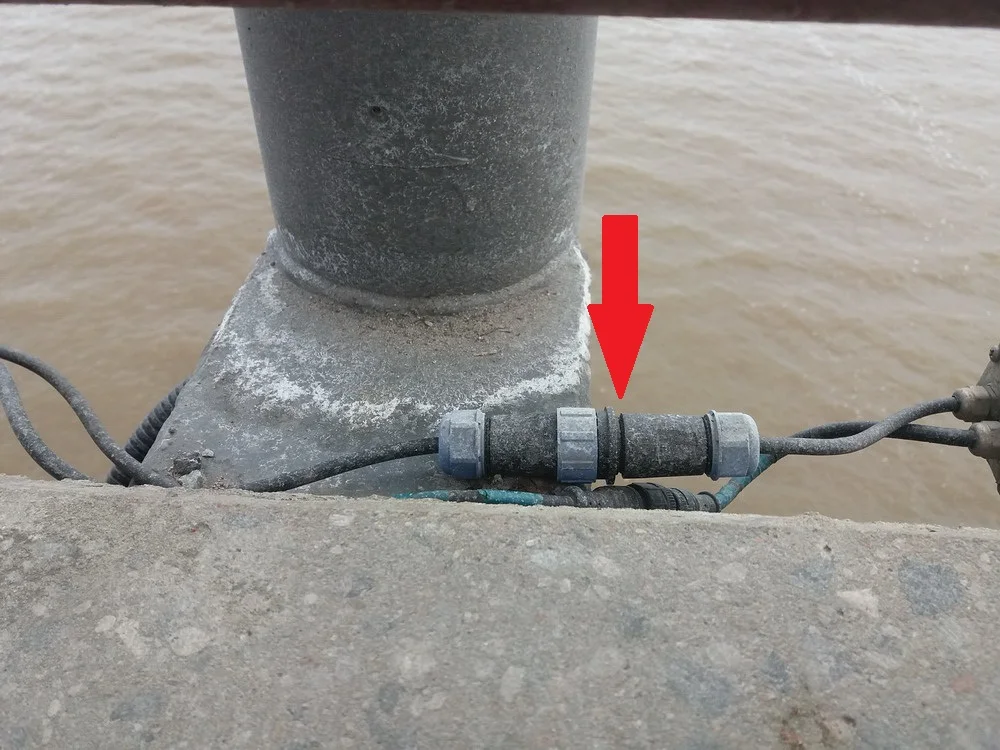

The connectors can be used for both cable to cable (in-line) or cable to panel-mount connections. Each side can be male or female contact, (Plug or socket versions), the IP68 sealing caps are available on both cable connector and panel connector.
1) shell diameter (the panel hole cutout diameter): 13mm

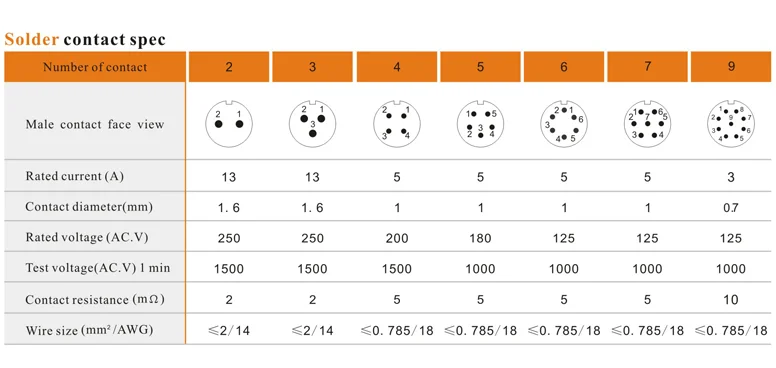

2) number of contacts : 2 -9 gold plated contacts
3) rated current and V : 13A-3A , 250V-125V
4) cable outer diameter acceptance : type I: 4-6.5mm , type II: 5-8mm
5) CE , ROHS approval
