Fork size: | 1150*160mm; | Lift height: | 1600-5000mm; |
Power source: | DC 24V / 80 - 165Ah; | Load Center: | 500mm; |
Traction motor: | 0.75 - 1.60 kw; | Battery charger: | AC 110-220V / 50-60Hz; |
Selling Units: | Single item; | Single volume: | 4 cm; |
Single gross weight: | 1,200 KG; | Brand Name: | HANMOKE; |
After-sales Service Provided: | No overseas service provided; | After-sales Service Provided: | Free spare parts; |
Certification: | CE; | Dimension(L*W*H): | 1785x800x(1745-2310)mm; |
Lowered height: | 85mm; | Lifting motor: | 2.0; |
Warranty: | 1 Year; | Place of Origin: | Guangdong China; |
Lift capacity: | 1000-2000kg; | Condition: | New; |

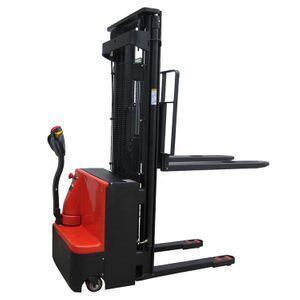

1.5ton used hydraulic manual stacker forklift with 3-stage mast

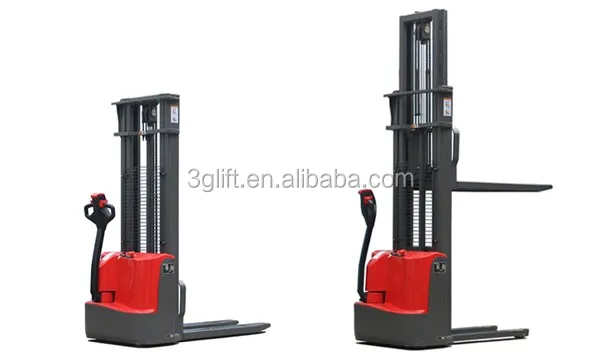

Our battery-operated stacker portable electric pallet stackers offer varying load capacities and height configurations to suit most loading/unloading tasks.
With strength, versatility & reliability in mind, our range has been chosen to satisfy the demands of handling and warehousing professionals.
Specifications:
Model |
| HEW10-16 | HEW10-25 | HEW10-30 | |
Load capacity | Q | kg | 1000 | ||
Load center | C | mm | 500 | ||
Lift height | H | mm | 1600 | 2500 | 3000 |
Fork height - lowered | h5 | mm | 85 | ||
Turning radius - outside |
| mm | 1380 | ||
Working aisle width - 800x1200mm. pallet | AST | mm | 2187 | ||
Wheel base | Y | mm | 1250 | ||
Ground clearance | m | mm | 22 | ||
Tyre type |
|
| Polyurethane | ||
Wheel size - load |
| mm | Φ80*70 | ||
Wheel size - traction |
| mm | Φ210*70 | ||
Additional wheels |
| mm | Φ125*50 | ||
Overall length | L1 | mm | 1785 | ||
Overall width | B | mm | 800 | ||
Mast collapsed height | h1 | mm | 2075 | 1825 | 2075 |
Mast extended height | H2 | mm | 2075 | 3035 | 3535 |
Fork dimension - th/w/l |
| mm | 70/160/1150 | ||
Width across forks | B1 | mm | 540 / 680 | ||
Gradeability - w. / w.o. load |
| % | 3 / 6 | ||
Traction motor |
| kW | 0.75 | ||
Lift motor |
| kW | 2.0 | ||
Battery voltage |
| V/Ah | 24 / 80 | ||
Weight - with battery |
| kg | 510 | 550 | 570 |

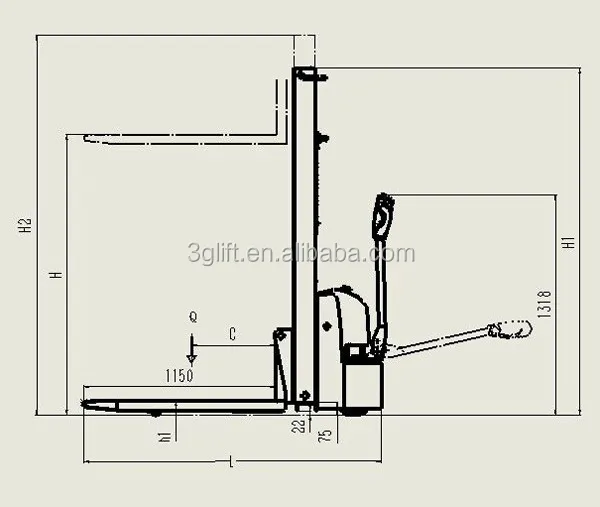

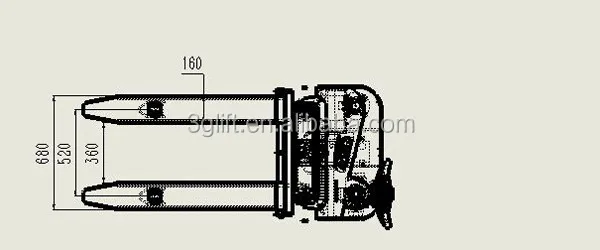

Measurement:
Features:
• Suitable for low intensity applications.
• Optimum starter unit in the high lift stacker market.
• Easy flexible manoeuvrability.
• Simple operator control implementation.
• Automatic release tiller arm position for cushioned reverse and neutral breaking.
• Ergonomic tiller handle buttons.
• Operation controls can be easily accessed for left and right hand use.
• Emergency stop switch.
Product details:

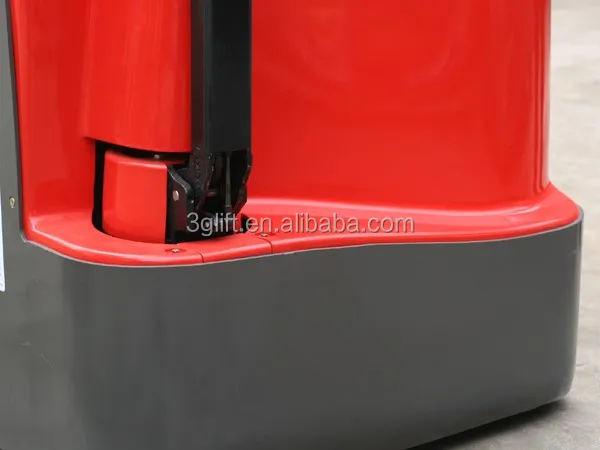

• Compact design provides minimum turning radius.

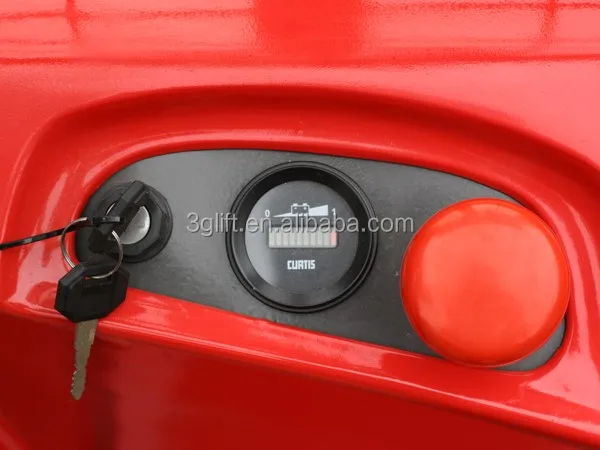

• Electric power disconnect push button

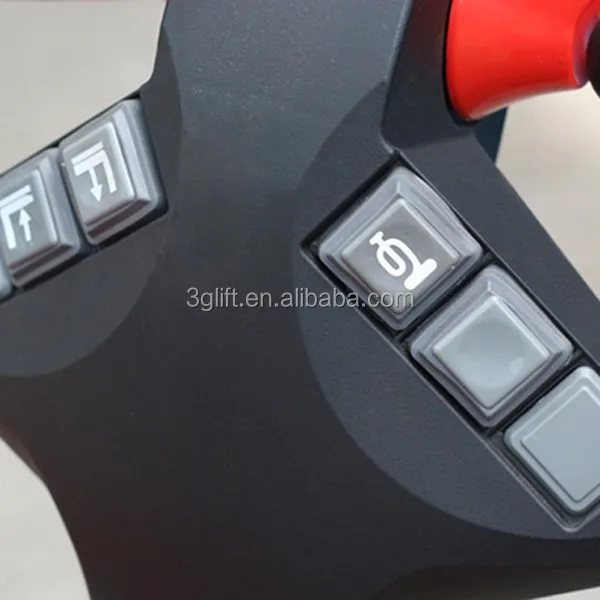

• Multifunctional control handle

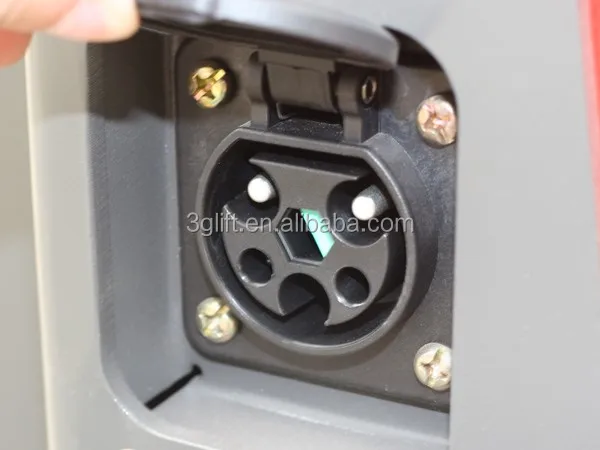

• Sideways battery charger for rapid charging operation.

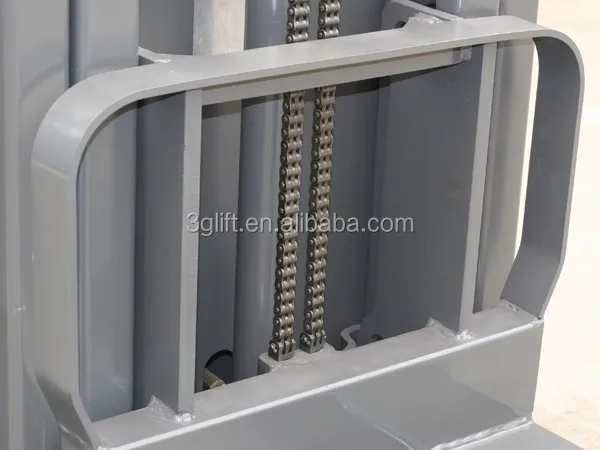

• Heavy-duty fork mast.
• Optional European/American Standard Battery Charger:
AC 110-220V / 50-60Hz,1-Phase.
Finished Products Warehouse:
FAQ: |
1. Q: Are you a manufacturer or merely a trader? |
A: We are a manufacturer specialized in logistics equipment , so we can provide the best price for you. |
2. Q: How long has your factory been founded? |
A: Our factory founded in 2003 for over 13years. |
3. Q: How many units can you provide each month ? |
A: We can provide 120 Units mechine per Month to demand for large quantity. |
4. Q: How do you guarantee the quality of your product? |
A: Every process will be checked by responsible QC which insures every product's quality. |
5. Q: How long is your delivery time? |
A: Usually, it's about 10-15 days, but mostly according to the specific requirements. |
6. Q: What is your payment terms? |
A: T/T mainly .Thanks ! |
