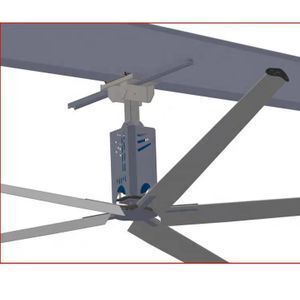

24ft CE Low noise cooling hvls large industrial factory cheep ceiling fan
-
Supplier: Guangzhou Hanmoke Mechanical Equipment Co., Ltd. -
Region: Guangdong, China -
Contact: Mr Howei Dai -
Price: $1990.00 /set -
Min. Order: 1 set
| Packaging Detail: | Soft Plastic Foam Packing with Solid Shipping Crates; | Fan Diameter: | customized; |
| Type: | Other; | RPM: | 45-180RPM; |
| Place of Origin: | Guangdong China; | Coverage Area: | 250-1500cm2; |
| After-sales Service Provided: | Overseas service center available; | Mounting: | Ceiling Fan; |
| Type: | Other; | Power: | 1.8Kw; |
| Payment Terms: | L/C,T/T; | Motor brand: | Nord; |
| Voltage: | 220V/380V/415V; | Port: | Huangpu Port; |
| Supply Ability: | 1000 Set/Sets per Month; | Color: | Customized; |
| Usage: | Ventilation / Cooling; | Brand Name: | HANMOKE; |
| No.s of Blade: | 6-10; | Warranty: | 3 years; |
| After-sales Service Provided: | Video technical support; | Certification: | CE; |
| Material: | Aerometal; | Blade Material: | Aerometal; |

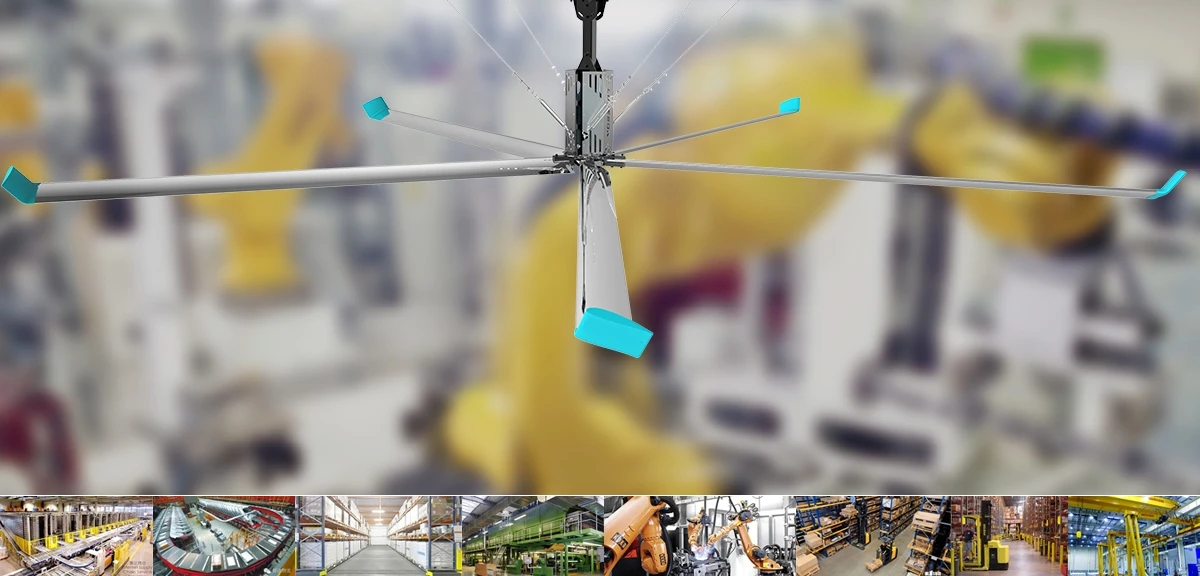

24ft CE Low noise cooling hvls large industrial factory cheep ceiling fan
1.Huge Air Volume 14,160m³/min
2.Ultra-low Energy Consumption1.5kW
3.Super Coverage 1,700m²
 | Cooling The fan could bring the natural wind at 1.2-2.3m/s to the human body and improve the speed of the sweat evaporation and drop the temperature of the human body by 5-7 ℃ |
 | Dehumidification & Mould proof
Dehumidification & Mould proof Keep air dry and eliminate bacterial growth Prevent rust and mildew of equipment
AnticondensationKeep products, packaging, cartons, trays from moisturing, rust, corruption Prevent rust and mildew of equipment
fans generate low-frequency but powerful fan airflow to the surrounding continuously and rapidly, so as to form a 3.5m airflow layer. The corners, the ground and the distance of large public spaces like warehouse and workshop will no longer be forgotten, the operating environment is improved significantly. |
 | Remove the cooling and heat stratification In winter, heat (70-80%) gathered in the roof, and the workers on ground can not feel the obvious rise in temperature. In order to rise provides 0.2m/s breeze, using the principle of negative pressure above the fan, the hot air gather on the roof will |
 | Huge air volume Blade-Empennage System is 7.36m in diameter, generate a low-frequency but powerful airflow at 14160m³/min driven by 1.5kW High Efficiency Motors. |
 | Super coverage generate a low-frequency but powerful fan airflow at 14160m³/min, and continuously spread rapidly to the surrounding, so as to form a 3.5m airflow layer. The air in the large space is regularly circulated, covering an area over 1700m². |
Ultra-low energy consumption The corners, the ground and the distance of large public spaces like warehouse and workshop will no longer be forgotten by industrial cooling and ventilation. Our fan can significantly improve the overall operating environment;Situation: A warehouse or a workshop of 17000m²,full covered, 12,000h run time |
Specification
| Diameter(m) | Air volume(m³/min) | Cover area(m²) | Power(Kw/h) | Amount(set) | Run time(h) | Power consumption(Kw/h) | Saved energy(Kw/h) | Service lift(Y) |
| 7.36 | 14160 | 1700 | 1.8 | 10 | 12000 | 180,000 | 2,197,200 | 15 |
Research and Development
Professional design
1. From America, Designed by Shanghai Jiao Tong University Pro Lukeson 5.0 Series HVLS;
2. Professional design, efficient fan Blade-Empennage system, excellent application of aerodynamics, smooth speed streamlines,
more fit to the airfoil surface.
3. Maximum high pressure zone, and maximum pressure energy, and maximum air volume, and maximum energy conversion
Continuous optimization
1. Continuous optimization by ANSYS in a professional workstation;
2. Stress, deformation and stress analysis;
3. fatigue test & destructive test;
 | Best streamline design of the flabellum could decrease the resistance force to the lowest points and transfer the electrical energy into the energy of motion efficiently; In a professional workstation, we use ANSYS ICEM and ANSYS CFX to continuous analysis, optimize and test by the means of aerodynamics lift coefficient method; High strength light alloy with high strength, light-weight, high ductility, corrosion resistance, long life; Three stiffeners will help to prevent the blades sagging when the fan is not at work and upward when the fan is at work. Thus the fatigue expenditure will be reduced; |
 | Made of high strength light alloy by 1600T hot forging that ensures the metal fiber to be continuity, streamline integrated, and realizes a good mechanical performance; Machined by CNC precisely, assembly accuracy is ±10μm, the drive plate will be in good dynamic balance; Casehardening, corrosion resistance, antioxidant; Excellent mechanical properties, large density, high hardness, fatigue resistance, ductility, light weight, good thermal cracking resistance; |
 | Made of high strength light alloy after heat treatment by T6, mechanical properties have further improved; Machined by CNC precisely, assembly accuracy is ±10μm; Surface carbon paint handling, corrosion resistance, antioxidant; Excellent mechanical properties, large density, high hardness, fatigue resistance, ductility, light weight, good thermal cracking resistance; |
 | Large torque, low noise, long-life; Reinforced bearing, Trapezoid shaft; Overall optimization design, three layers of enlarged oil seal; High precision gear grinding provides greater precision surface; Assembling with low gear clearance greatly improves the transmission accuracy, thus the fan runs more stable; |
 | Stepless speed regulation by frequency conversion,precise control; Once the accident occurs the frequency controlling system would automatically alarm and stop the operation in 0.01s.; Comprehensive protection function, efficient shielding technology; Comprehensive protection function for ground connection, over-temperature, short out, overload, overcurrent, default phase, impact; |
 | In a professional workstation, we use ANSYS ICEM and ANSYS CFX to continuous analysis, optimize and test by the means of aerodynamics lift coefficient method for the empennage, which eliminates the turbulence and stabilize the operation of the fan; ABS engineering plastic, primary shaping, high strength, long life, beautiful, no deformation; |

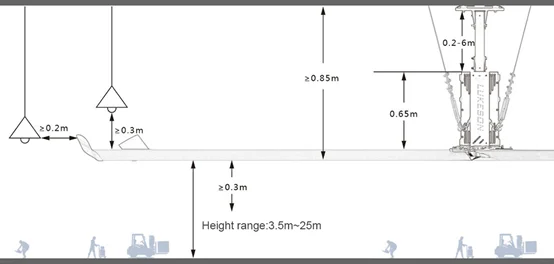

Installation Parameter
Installation (conventional)
Convenient and efficient support pre-sales & after-sales;
1,Experienced team in electric, mechanical engineering, building structure, stress analysis;
2,Programmed installation, standardized operation, scientific and clear installation process;
3,Fastening with standard torque by excellent equipment;
4,Accurate height and horizontal measurement, strict balance correction;
-
