Material: | 304 Stainless Steel; | Weight: | Depend Machine Capacity; |
Color: | Silver; | Application: | fruit and vegetable processing; |
Warranty: | 12 Months; | Power(W): | 5.5kw; |
Voltage: | 380V; | Delivery Detail: | 30 days after deposits; |
Certification: | ISO CE; | Sterilization ways: | High Temperature; |
Packaging Detail: | wrapped with plastic film & wooden box; | Name: | STERILIZER; |
Place of Origin: | China; | Sterilizaiton control: | SIMENS; |
Payment Terms: | L/C,T/T; | Capacity: | 500-15000kg/h; |
Processing Types: | Juice; | Brand Name: | AIDEKE; |
Processing: | Sterilizer; | Place of Origin: | Shanghai China (Mainland); |
Condition: | New; | Dimension(L*W*H): | Depend Machine Capacity; |
Port: | shanghai; | Type: | Tubular; |
Model Number: | ADK-U325; | After-sales Service Provided: | Engineers available to service machinery overseas; |

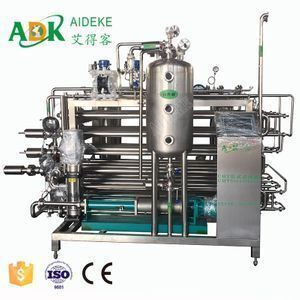

Industrial UHT sterilizer for juice,jam,puree
1.Application
All kinds of fruit juice, jam, puree, concentrated juice and other liquid foods.
2.Equipment features
The tube sterilizer can take hot process on the liquid foods and beverage. Compared to the sterilizer of other model, it has the following characteristics:
1, High heat effect,90%of the heat can be recycled after heating the material.
2, Temperature gap between the medium and the material is small, so to realize generally heating; the heating pipe adopts wave pipe, the material and the medium are both in flow.
3, It is of high automatic degree, can automatically control and record from CIP cleaning to pipe sterilizing to sterilizing the material.
4, It is of precise and reliable sterilizing temperature control: automatically control the affecting sterilizing temperature system such as steam pressure, flow, and material flow.
5, The inside of the material pipe adopts advanced polish technology, pipe joints automatically, pipe design realize complete automatically clean, and the whole process sterilizes, so to ensure the system asepsis.
3.Main equipment
UHT sterilization machine, aseptic filling machine, high pressure pump, buffer tank, temperature control, drain valve, plate heat exchanger, regulating valve, liquid level control, aseptic valves, the filling chamber, conveying roller, automatic electrical control system.
4.Specification
Name Unit Model | ADK-UHT1001 | ADK-UHT1002 | ADK-UHT1003 | ADK-UHT1004 | ADK-UHT1005 |
Production capacity(L/H) | 1000 | 2000 | 3000 | 4000 | 5000 |
Inlet temperature | 5℃ | 5℃ | 5℃ | 5℃ | 5℃ |
Warm keeping time(s) | 4-15 | 4-15 | 4-15 | 4-15 | 4-15 |
Sterilization temperature | 95-125(138℃) | 95-125(138℃) | 95-125(138℃) | 95-125(138℃) | 95-125(138℃) |
Outlet temperature | 4-20℃ | 4-20℃ | 4-20℃ | 4-20℃ | 4-20℃ |
Steam pressure | 0.4(0.6MPa) | 0.4(0.6MPa) | 0.4(0.6MPa) | 0.4(0.6MPa) | 0.4(0.6MPa) |
Steam consumption | ≈130 kg/h | ≈160 kg/h | ≈240 kg/h | ≈320 kg/h | ≈400 kg/h |
Compressed air pressure | 0.6MPa | 0.6MPa | 0.6MPa | 0.6MPa | 0.6MPa |
Compressed air consumption | 50L/H | 50L/H | 50L/H | 50L/H | 50L/H |
Size | 3500*1600*1800 | 4500*2000*1900 | 4500*2500*2000 | 5000*2000*2000 | 5000*2000*200 |
Electricity consumption(kw) | 8.75 | 12 | 18 | 21 | 25 |

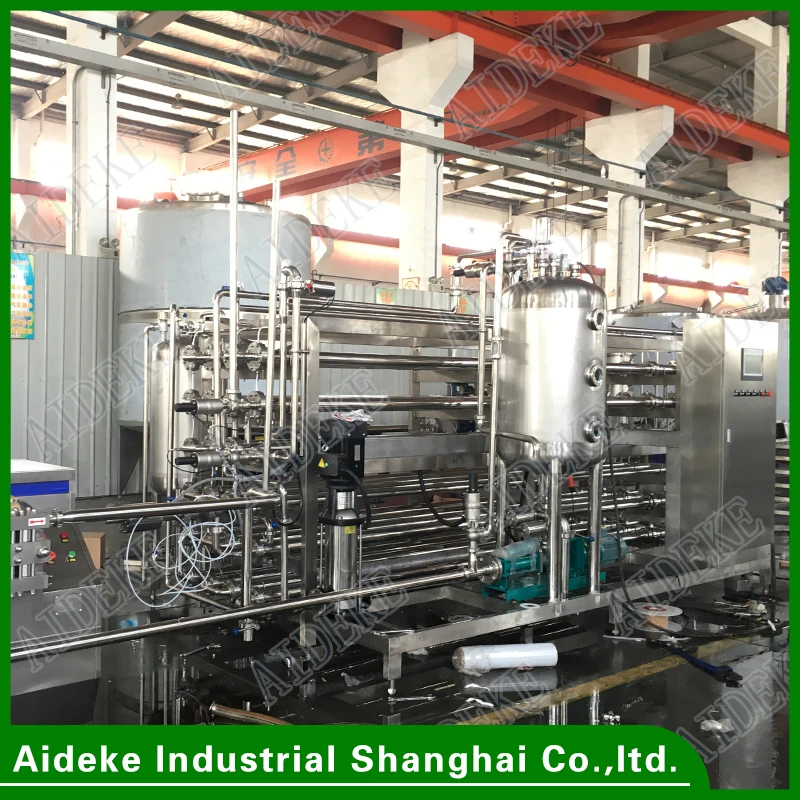

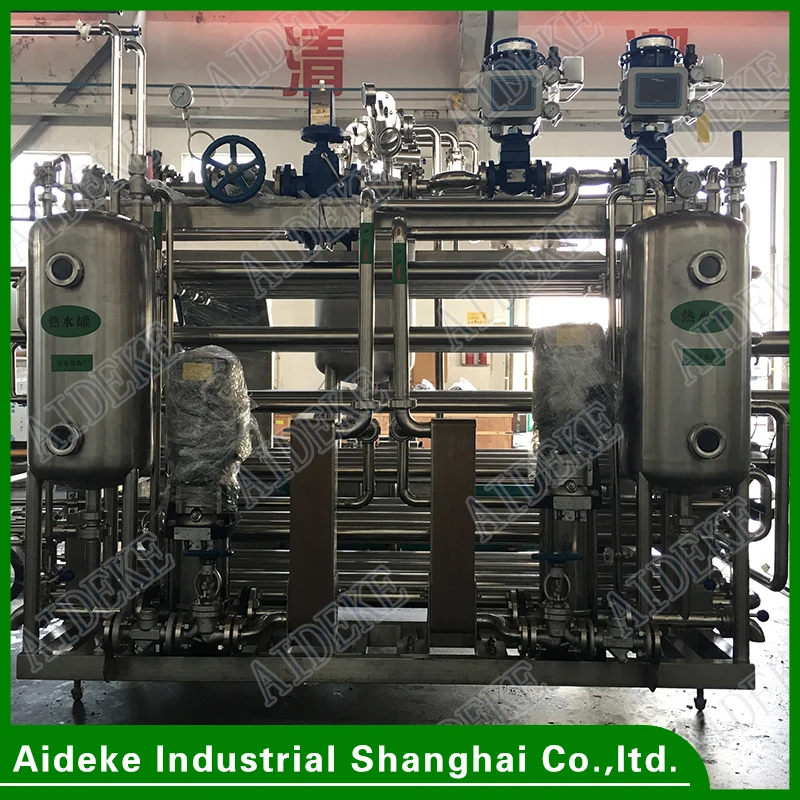

5.Pictures
Aideke Industrial shanghai Co., Ltd. is the manufacture who devoted to fruit and vegetable processing machinery for over ten years in this industry.
Our company is located in the heart of the Yangtze River Delta, we can provide convenient transportation and quick response service and have professional R & D teams, to provide high quality and safety products.
Q:Does the machine/equipment difficult to install ?
A:We will install and debug well for the machine before delivery .Moreover, we will provide the specific“ user Manual” for your reference. Engineers will service the equipment overseas.
Q:What is the package of this machine ? Will it damage during shipment?
A:Machine will be packed in standard wooden case. So it will not damage. After you receive our machine, you can check whether it is OK.
Q: How can I pay you?
A: After we confirmed order, I will send you contract sales with our company bank information. You can transfer money to our company bank account by T/T.
Q: What is the warranty?
A:It is one year warranty ( except for artificially damaged) .
