Holykell HPT604 4-20mA intrinsically safe pressure level sensor for diesel level

Supplier: Holykell Technology Company Limited
Region: Hunan, China
Contact: Ms Bonnie Liu
Price: $65.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Material:	316L Stainless steel;	Warranty:	1 year ,and free repair for quality itself;
Level range:	-1...0-0.05bar...20bar;	Electronic connection:	direct cable & Water proof IP68;
Brand Name:	HOLYKELL;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal;
Supply Ability:	5000 Piece/Pieces per Month intrinsically safe pressure level sensor;	Model Number:	HPT604;
Product Name:	diesel fuel level sensor;	Accuracy:	0.5%F.S;
Port:	Shenzhen;	Working temp:	-20℃ to 80℃;
Packaging Detail:	standard export packing, no damage to product Holykell HPT604 4-20mA intrinsically safe pressure level sensor for diesel level;	Cable length:	5M,10M(customized length);
Out put:	4-20 Ma,0-5V,0-10V,digital output optional;	Power supply:	12-36V DC;
Place of Origin:	Hunan China;

Holykell HPT604 4-20mA intrinsically safe pressure level sensor for diesel level

Why Choose and trust HOLYKELL intrinsically safe pressure level sensor?

You benefits from:

Factory experience:

More than 17 years of experience in intrinsically safe pressure level sensor industry.
large stock:

within 24 hours delivery for standard specifications.
Supply ability:

At least 50000 pcs per Month.
Supply area:

All over the world, about 109 countries (Most of them are from North America, Europe, Australia,Asia and Africa)

Certificate:

CE, RoHS, ATEX audited by TUV Rheinland and ECM

OEM/ODM : Accept.

You Credit Guarantee:

Holykell is the leading seller in this line on Alibaba trade assurance!---You can search and prove that on alibaba.

Trade Assurance: 558 Transactions, total amount is above $ USD 380,000+ (2018.01.01-2018.06.01)
Near 50% buyers found water level sensor and contact us, Holykell in ALIBABA
View Holykell 6000+, Send inquiry 300+, Quote 400+ (half of 2017 years)

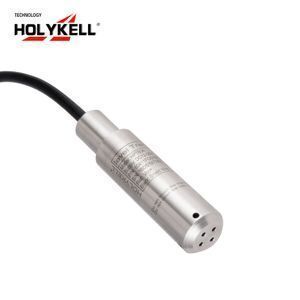

Introduction of HPT604 intrinsically safe pressure level sensor

HPT604 high quality submersible intrinsically safe pressure level sensor use imported U.S.A MEAS TE silicone core, ensure the factory the highest accuracy is 0.1%. 5 layers of seamless and waterproof dust-proof connection design, international level IP68; 12 mm waterproof and oil-proof cables, the service life is more than 10 years. HPT604 is a submersible level transducer suitable for liquid level and depth measurement. It consists of an imported U.S.A MEAS TE silicone core element encased in all 316 stainless steel, hermetically sealed housing make it suitable for immersion in most industrial liquids and oils. 5-10 years design life, the lifelong maintenance for your project escort!

Holykell HPT604 4-20mA intrinsically safe pressure level sensor for diesel level
Feature	Advantage	Benefit
lightning surge reverse protection	short-circuit conditions to protect prevent reverse connection; Instant voltage overload protection	running reliable and longlasting in harsh condition
The vent with a filter	breath atmospher and protect moisture enter transducer	without maintenance, even in the most humid environments.
USA TE Chip,Digital PCB board	High accuracy 0.25%,Small temperature drift,automatically compensates for changes in barometric pressure	Stability,keep sensor running longer by reducing downtime and maintenance costs
Lowe-Power output signals	Low-power output signals for battery-operated or solar measuring systems available ,lowest power supply is 3.3V	energy-saving and environmental protection
316L diaphragm	Anti-corrision ,wear resistance , shock resistance	make it suitable for immersion for a long time in most industrial liquids
Suction water filter design	8 pore design Anti-blocking Prevent plugging rate increases more than 80%	Simple maintenance ,easy to cleaning and installation

Why Choose Holykell HPT604 4-20mA intrinsically safe pressure level sensor?

1. 5-10 years design life, the lifelong maintenance; Import diffusion silicon core body, ≤1 ms response

time; Its service life is 2-3 times of similar products.

2. Adopt the military printed-circuit board and wiring, with good electromagnetic compatibility;

Anti-interference is enhanced by 300%, the stability is over 10 years.

3. The unique design of 4 hole and The unique filter design, it Can effectively filter out impurities,

prevent blockage, prevent shock; Prevent plugging rate increases more than 80%

4. Automatic temperature compensation, -40 ~ 85℃, auto-correction temperature drift.

5. Five layers of seamless and waterproof dustproof connection design, international level IP68;

12 mm waterproof and oil-proof cables, the service life is more than 10 years.

6. Filter cover can be filter <0.6mm impurities Overload above 20bar

7. Professional Explosion-Proof Design

What is The Application of HPT604 intrinsically safe pressure level sensor?

The HPT604 submersible 4-20mA intrinsically safe pressure level sensor can be found in diesel fuel tanks, gasoline tanks, Ad Blue tanks, DEF applications and other tanks measuring a variety of different liquids, and are highly praised by consumers.

Level Measurement in Bio-Fuels

Monitoring of Gasoline & Diesel Fuel Tanks

Level Measurement in Ballast Tanks

Level Measurement in Oil Tanks

Monitoring of Contain Coolant for Diesel Engines

Level Measurement in AdBlue Tanks

Level Measurement in Kerosene

Company Information

Holykell Technology Co. , Ltd is a high-tech company integrating R&D, production and

distribution. The company has a purification plant of 5000m2, an annual output of 1

million production line of pressure sensor, transmitter and intelligent digital instrumentation.

Now the company has more than 120,000 customers worldwide, the products have

been exported to Europe, America, Australia, Africa, southeast Asia, 109 countries.

Holykell can provide a cost effective solution for pressure monitoring for a variety of

applications. Welcome to your inquiry.

FAQ

Q:Can you accept ODM & OEM service ?

A:We professional provide OEM &ODM service for pressure and intrinsically safe pressure level sensor.

Q:Could I get samples?
A:Yes,we have materials in stock to help you to get the samples as soon as we can.
Q:How about the quality of the magnets?
A:We have the certification of ISO,CE and ROSH,we could send the certification test of our company to you.

Q:How is the price?
A:As we believe the quality is the most important,we will provide the best quality pressure sensor we can with reasonable price.
Q:Could you provide me the shortest lead time?
A:We have materials in our stock,if you really need,you can tell us and we will try our best to satisfy you.
Q: How can I get the quotation?

A: Send your inquiry to us by the inquiry from on the right-side or the bottom of this page.

Or contact us directly at (email: sales04 at holykell.com, skype: holykell04), you will get the reply within 12hours, and the quotation will send to you according to your requirements.

Q: How can I get my sensors?/ What's the means of transport?

A. We main delivery goods by express: DHL, FedEx, UPS,TNT, etc or logistics by indicator

Q. How to order ?

A. In order to recommend you the most suitable Holykell intrinsically safe pressure level sensor for diesel levelor level sensors and make an accurate quotation, please provide the following information and send it to our sales when you are going to make an inquiry, thanks !

1. What is your medium? Water, oil or others?

2. Level range: 0-5meters, or others?

3. Output signal: 4-20mA, 0-5V, RS485 or others?
